PRE-OPENED BAGS ON A ROLL · KPW-A12-4TR
Bagging Machine with Wide Label Printer
Use a larger label-print area when the approved pack needs more identification space. The KPW-A12-4TR has a listed 107 × 250 mm print area, compared with 53 × 125 mm on the 2TR versions. It retains the 60–300 mm bag-width range and a 20 bags/min reference.
Output is a reference from the supplied specification, not a guaranteed complete-station rate. Loading, materials and any label handling affect actual output.
Match the equipment to your packing task
Bring the complete label, not only its nominal size
Provide all text, graphics, barcodes and required blank areas at the intended scale. Confirm print orientation and usable artwork within 107 × 250 mm. The print-area limit is not a substitute for reviewing the label roll and finished layout.
Check the label on the filled package
A flat artwork proof may behave differently once the label is applied to a filled flexible bag. Review the chosen position for wrinkles, seams, curvature and handling. Agree stock and application with the actual pack; do not infer suitability from printer resolution alone.
Keep destination requirements in the brief
If the label serves a customer, distributor or fulfillment workflow, provide that party’s current specification. The machine specification does not certify a marketplace, carrier or regulated-label requirement. Approve the final data and finished sample before production.
What this quotation covers
This model includes adhesive-label printing. Label application, automatic feeding, counting, floor stands and conveyors are separately configured.
Use matched pre-opened bags on a roll. Paper and laminated structures require sample review; no universal material compatibility is claimed. This equipment packs products into suitable bags rather than manufacturing empty courier bags.

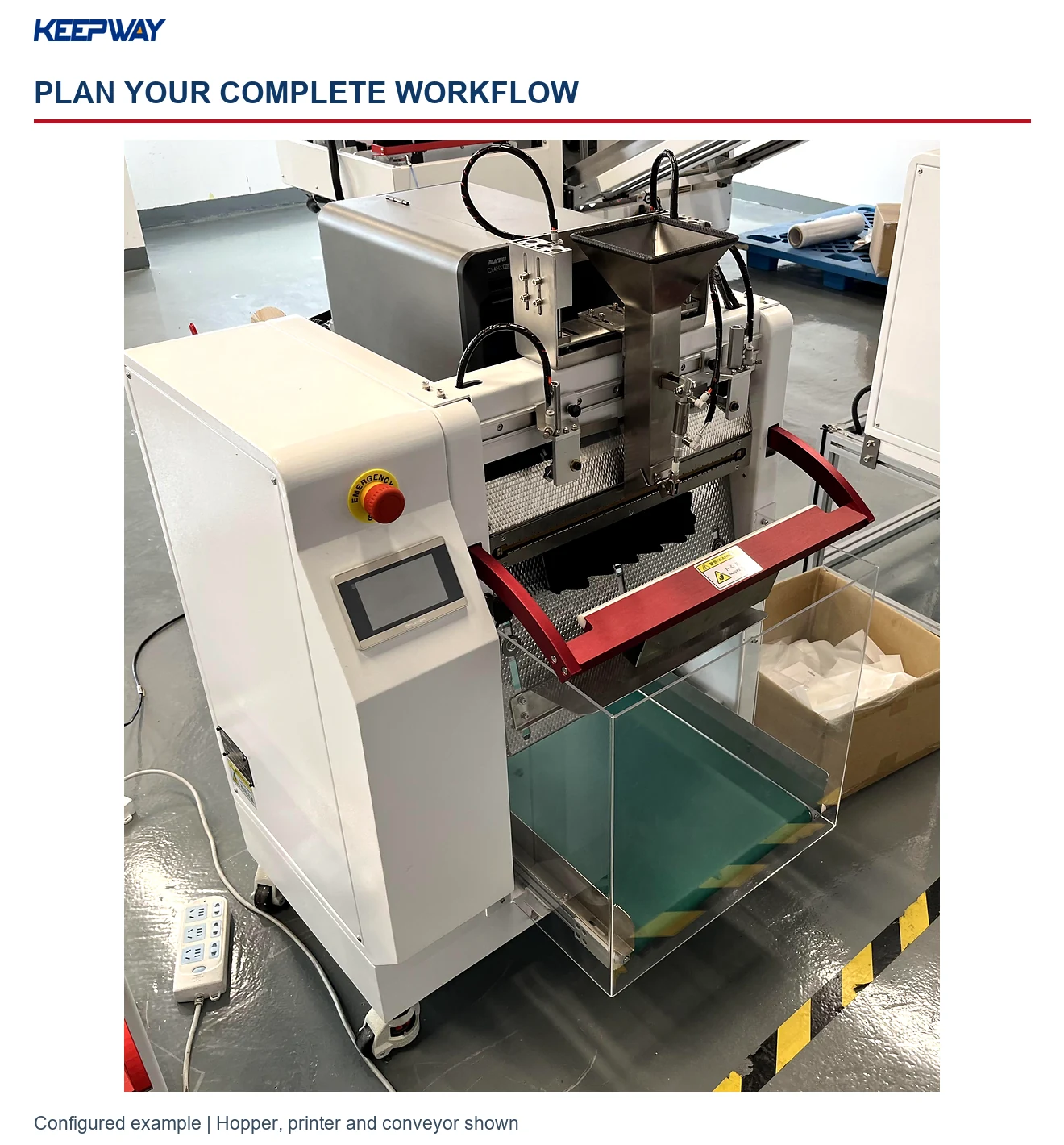

Look closer at a configured bagging station
Actual photographs from our 25 August 2026 factory visit show the working areas to review before ordering. These are configuration references, not a claim that every pictured accessory or component is standard on KPW-A12-4TR.

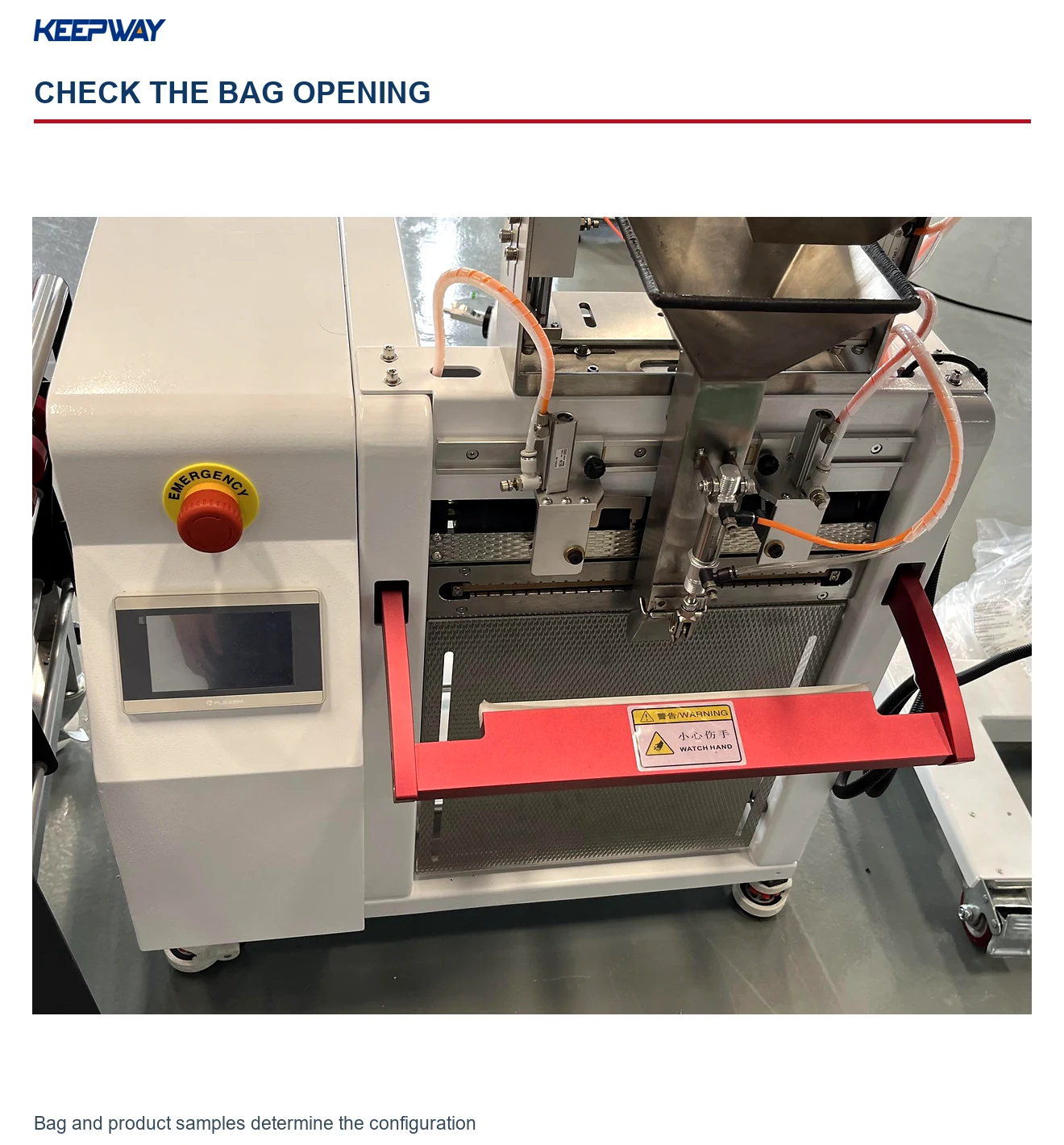

Check your bag and product together
Send an empty roll-bag sample and your largest filled pack. Review how the opening, guides and loading clearance match before confirming a setup.

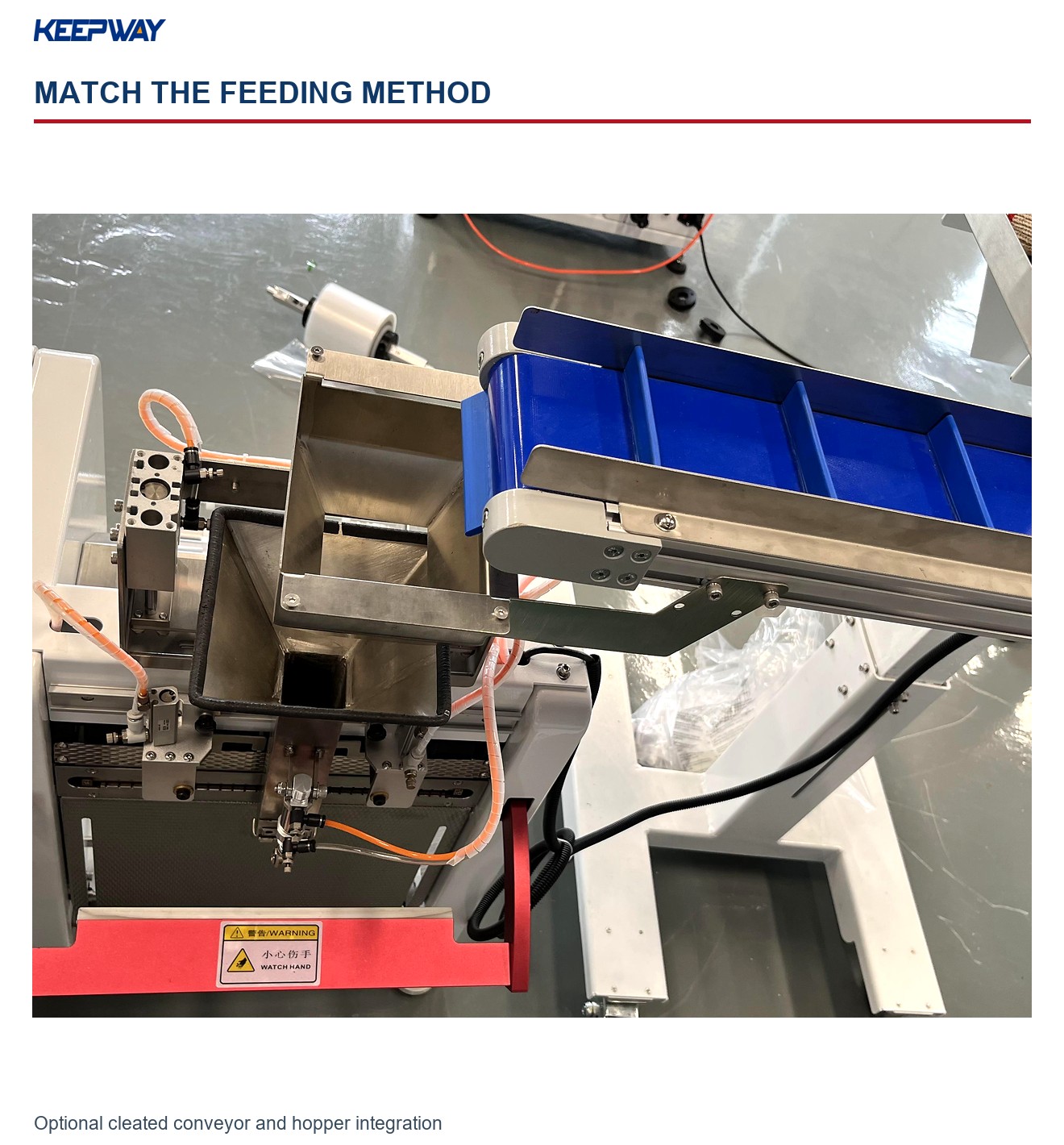

Specify what happens before sealing
The pictured cleated feeder and hopper are optional. Define manual loading, counting or upstream feeding in the quotation; a hopper alone does not establish counting accuracy.

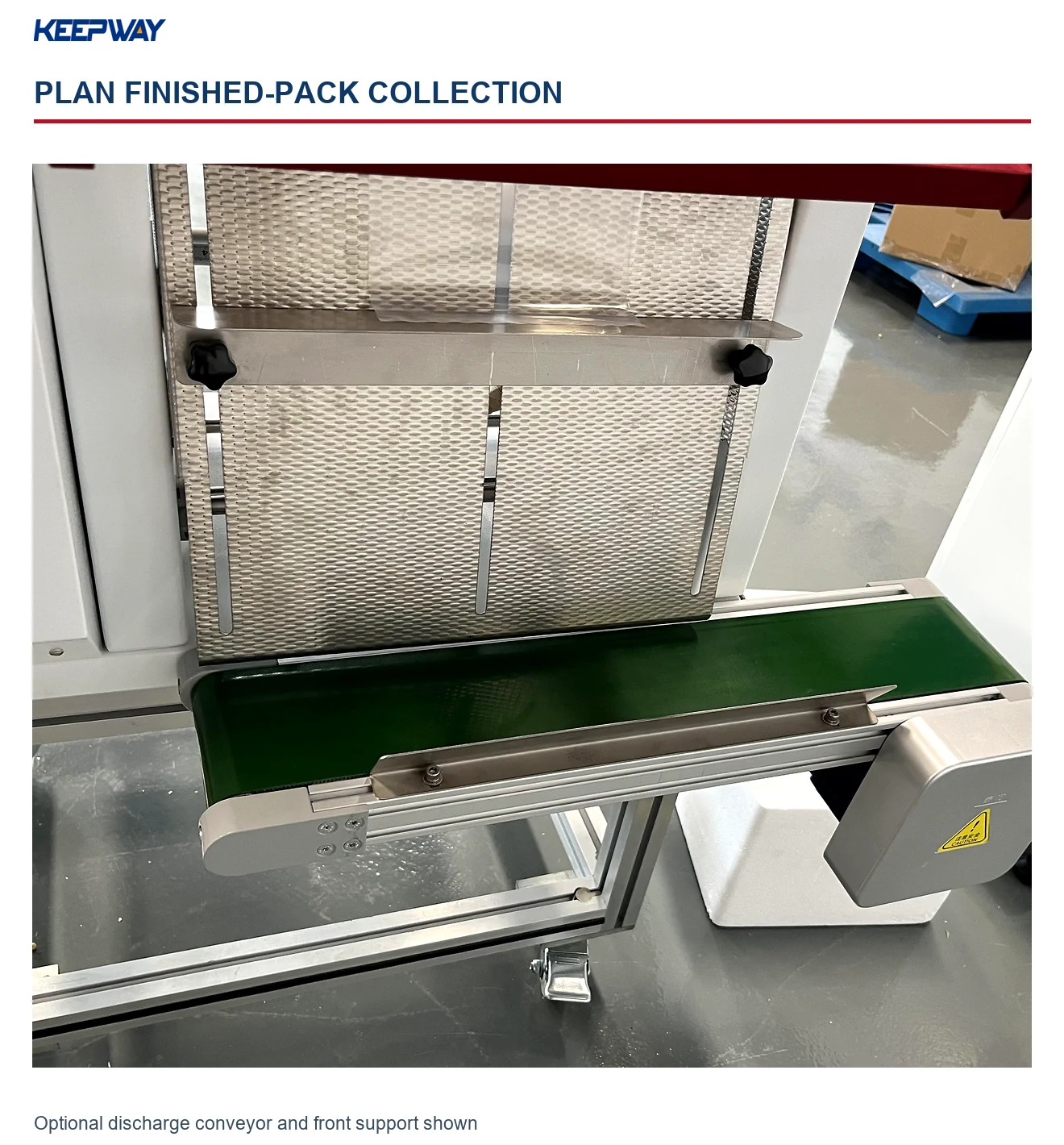

Agree how finished packs leave the station
Review collection position, support and any optional conveyor with your actual pack weight and layout. Include the outfeed sequence when measuring complete-station output.

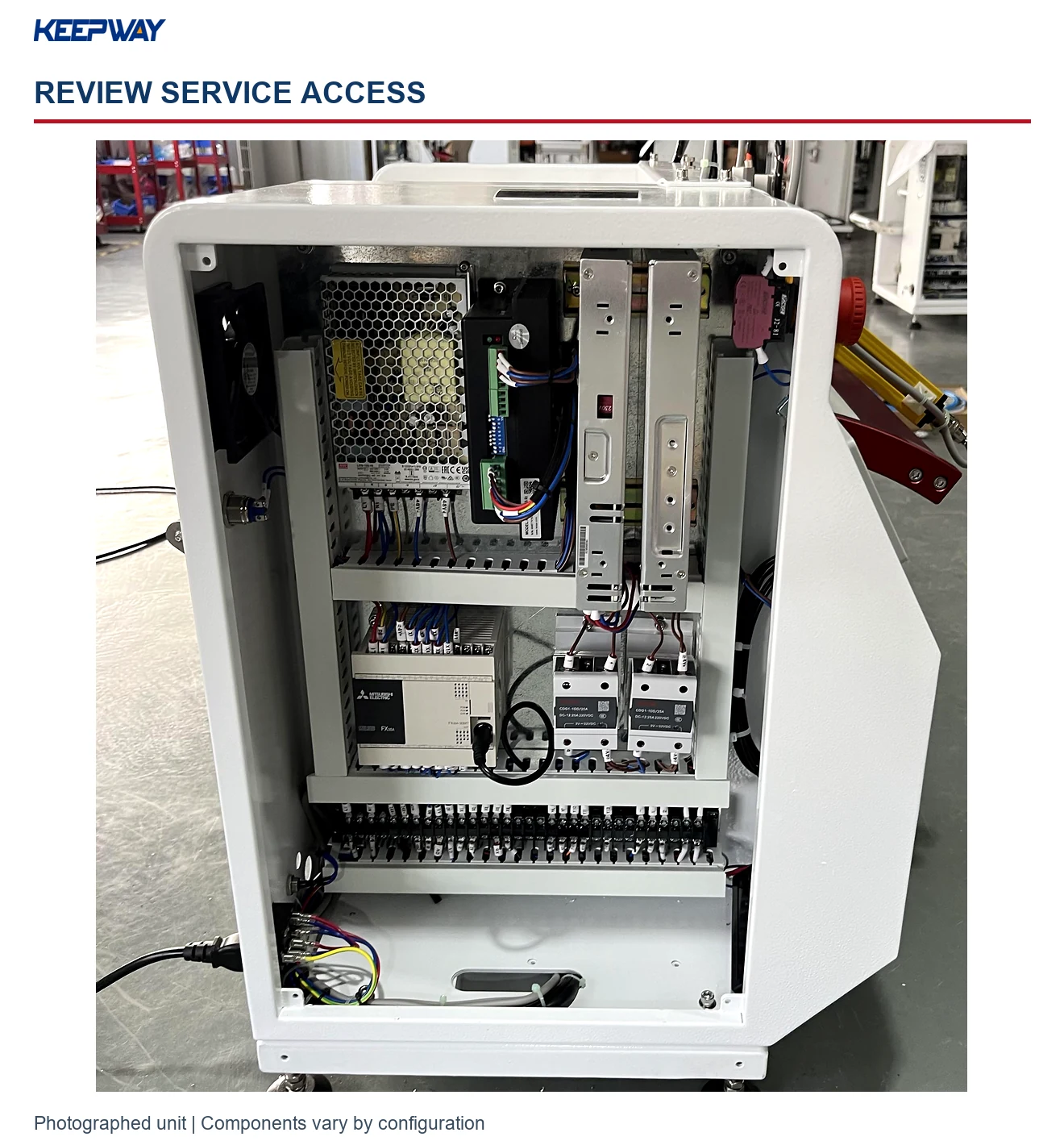

Clarify the supplied electrical configuration
Use the pictured cabinet as a discussion reference. Confirm the component list, access space, documentation and local utilities for the ordered machine.
KPW-A12-4TR specifications
| Model | KPW-A12-4TR |
|---|---|
| Base-machine L × W × H | 483 × 750 × 653 mm |
| Bag width | 60–300 mm |
| Bag length | 100–400 mm |
| Film thickness | 0.04–0.15 mm |
| Listed output | 20 bags/min; sample and loading dependent |
| Power supply / base rating | AC 120/220 V; 50/60 Hz; 400 W |
| Compressed air | 0.7 MPa (7 bar) |
| Operator interface | Dual 7-inch HMI; Chinese / English |
| Start modes | Foot switch, start button, push bar or external signal |
| External signal | Dry contact; project-specific interface review |
| Printing type | Self-adhesive labels; application separately configured |
| Listed print area | 107 × 250 mm |
| Print resolution | 12 dots/mm (300 dpi), horizontal and vertical |
| Printer communication | RS-232 (PC), LAN (Ethernet), USB; confirm project data workflow |
Dimensions are for the base machine, not an optional complete floor-standing line. Confirm the configured utilities, working layout and model-specific operating instructions before installation.
See the bagging workflow
These supplied videos show the product family’s operating concept. They are not separate acceptance tests for every model or optional module. Use your own product, bag and label samples for configuration approval.
Pre-opened bag handling demonstration
Roll-bag sealing workflow
Compare the other bagging configurations
Choose the bag envelope first, then the need for label printing and the actual artwork area.
| Model | Bag width | Label print area | Selection focus |
|---|---|---|---|
| KPW-A8 | 60–200 mm | No integrated printer | Small-part packing at a manual-loading bench; narrow bags without an integrated printer |
| KPW-A12 | 60–300 mm | No integrated printer | Tabletop packing with a wider bag envelope; mixed cable and accessory formats without a printer |
| KPW-A8-2TR | 60–200 mm | 53 × 125 mm | Narrow-bag component identification with a 53 × 125 mm adhesive-label print area |
| KPW-A12-2TR | 60–300 mm | 53 × 125 mm | Wider-bag kits and accessories with a compact barcode label; data and kit handover defined |
| KPW-A12-4TR | 60–300 mm | 107 × 250 mm | Wide print-area selection for information-rich adhesive labels on matched wider bags |
Compare the full pre-opened bagging range · Poly bagging machines · Bagging machine selection guide
Questions before ordering
Does the wider printer increase bagging speed?
No higher bagging speed is specified. KPW-A12-4TR and the 2TR variants have the same listed 20 bags/min reference. The distinction is print area; compare full-cycle output using your label, bag and product.
How should we compare real output?
Agree representative samples, the complete sequence and the observation period. Count accepted finished packs per elapsed minute, including the agreed loading, label handling, replenishment and changeover activities. Record interruptions and rejected packs rather than converting the listed reference into a shift guarantee.
What support is available?
Keepway provides a two-year warranty, free replacement parts and shipping during the warranty period, and lifetime service and technical support. Confirm the supplied configuration and service details in the quotation.
Send a brief for KPW-A12-4TR
Send the full-scale label artwork, stock and roll drawing, filled-pack samples, data source, required label position and the written requirements of the receiving operation.
Also include installation country, voltage, compressed-air availability, preferred loading method and your business email or phone number so the proposal can address your application.
Discuss this model and my samples
Use the product enquiry form below. No test result, savings percentage or application approval is implied before the configuration review.
