   Home > Our Products > Poly Bagging Machines > Tabletop Small Parts Bagging Machine | K

Poly Bagging Machines

Tabletop Small Parts Bagging Machine | KPW-A8

  • Product Item : KPW-A8
  • Category: Poly Bagging Machines
  • Views:158
  • Model: KPW-A8; tabletop base machine
  • Bag width: 60–200 mm; length: 100-400 mm
  • Listed output: 25 bags/min; verify with samples
  • Standard model without label printing; feeders and stand optional
  • Product description:Tabletop Small Parts Bagging Machine: 60–200 mm bags, standard non-printing model. Send samples for configuration review.
  • INQUIRY

Can the smallest kit enter a pre-opened bag without losing a part?

Load an actual kit in its normal orientation and look for a component that hangs up near the mouth. Compare prepared kits with loose parts and specify who counts the kit before it reaches the standard tabletop bagger.

PRE-OPENED BAGS ON A ROLL · KPW-A8

Tabletop Small Parts Bagging Machine

Pack matched small components in pre-opened bags on a roll. The KPW-A8 tabletop bagger is the standard 8-inch version for 60–200 mm bag widths, with a listed output of 25 bags/min. Start with your actual part and bag samples to confirm loading clearance, sealing and the complete working cycle.

Request a sample-based quotation

Check the bag format. KPW-A8    /    Tabletop pre-opened bagger
KPW-A8 accepts 60–200 mm flat bag widths. The standard model has no integrated printer. Send a bag roll and a filled kit for a loading trial.
Bag width60–200 mm
Listed output25 bags/min
Label print areaNot included

Output is a reference from the supplied specification, not a guaranteed complete-station rate. Loading, materials and any label handling affect actual output.

Match the equipment to your packing task

Check the opening, not just the flat width

A washer, screw kit or plastic fitting needs clearance to enter the open bag. Send the largest assembled item and the heaviest intended pack, together with an empty and a filled bag. Flat bag width does not establish the maximum product width.

Keep hand loading and optional feeding separate

Define who prepares the component count, presents the product and collects the sealed pack. A counting feeder or bowl feeder is an optional project arrangement; the standard bagger specification does not include an automatic counting guarantee.

Fit the bench and utilities

The listed base-machine dimensions are 483 × 680 × 570 mm. Leave room for the bag roll, operator access, replenishment and discharge after reviewing the installation layout. The machine requires 0.7 MPa compressed air as well as electrical power.

Illustrative small-product bagging application
Application illustration. Confirm your product and bag samples; this is not a recorded customer result.

What this quotation covers

This standard model is specified without a label printer. Automatic feeding, counting, floor stands and conveyors are separately configured.

Use matched pre-opened bags on a roll. Paper and laminated structures require sample review; no universal material compatibility is claimed. This equipment packs products into suitable bags rather than manufacturing empty courier bags.

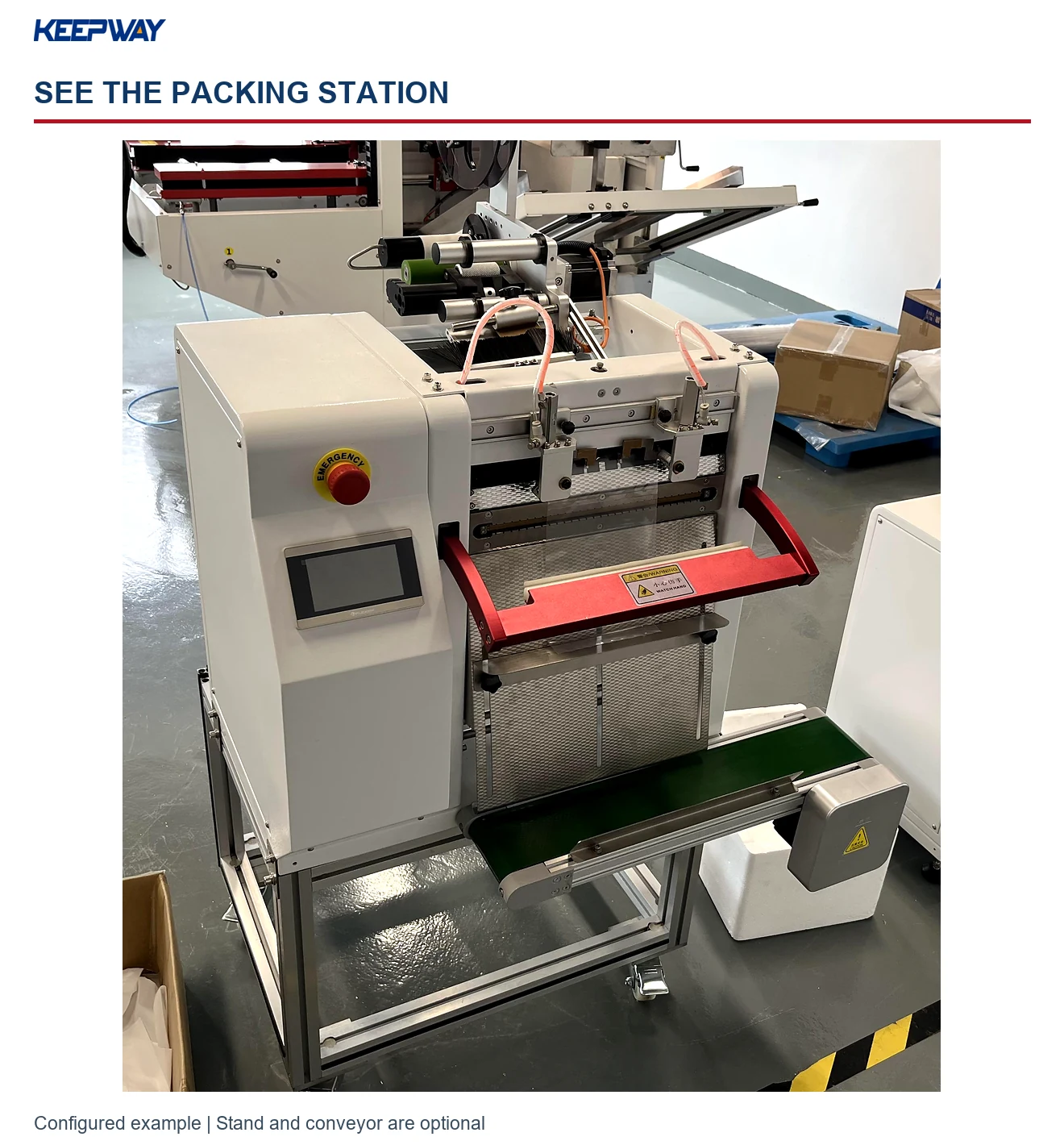

Look closer at a configured bagging station

Actual photographs from our 25 August 2026 factory visit show the working areas to review before ordering. These are configuration references, not a claim that every pictured accessory or component is standard on KPW-A8.

Mark the unwind direction. Pre-opened film on a roll
Send a short roll sample and mark its unwind direction. The bag mouth and perforation must suit the loading and separation sequence.

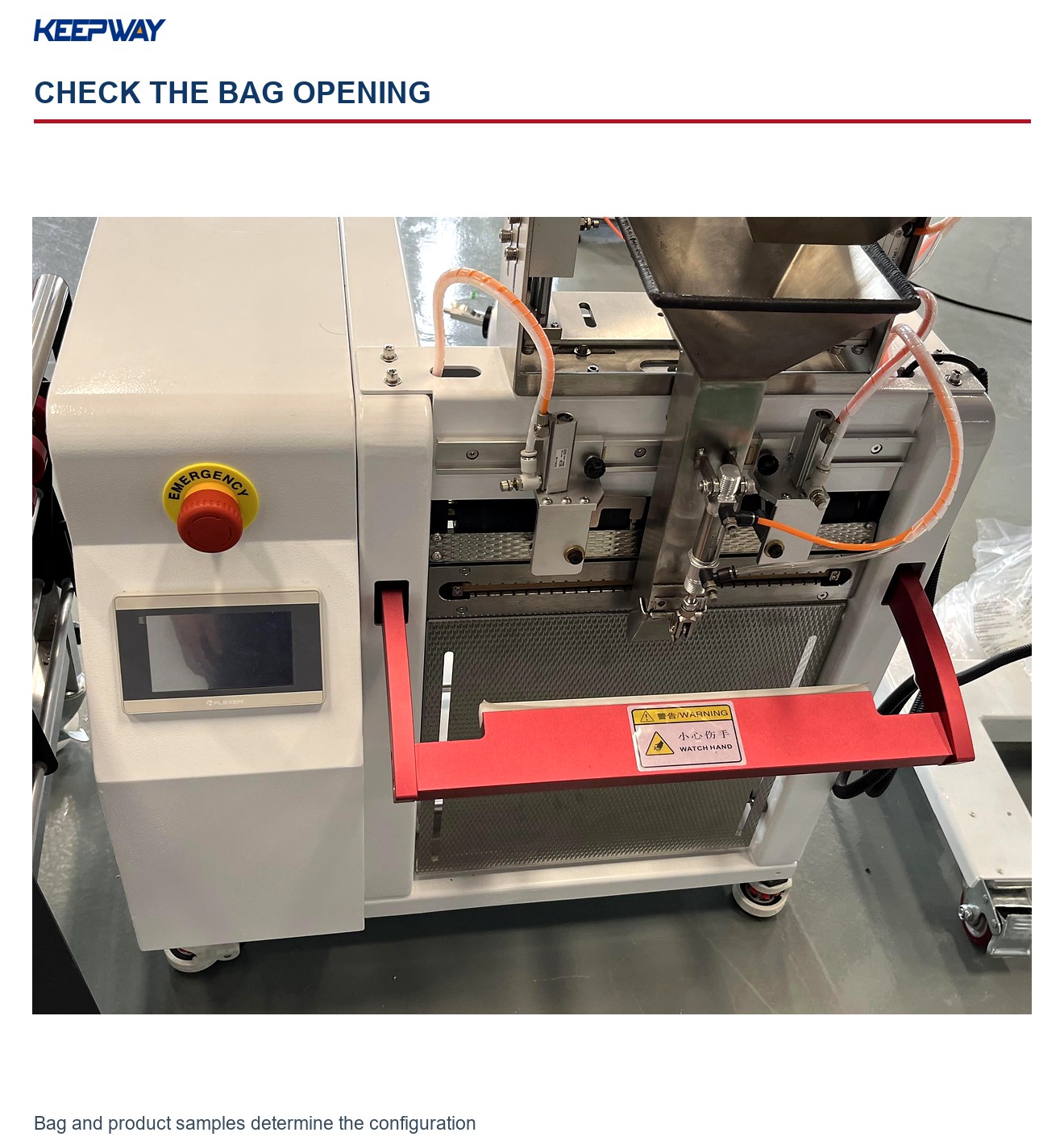

Check your bag and product together

Send an empty roll-bag sample and your largest filled pack. Review how the opening, guides and loading clearance match before confirming a setup.

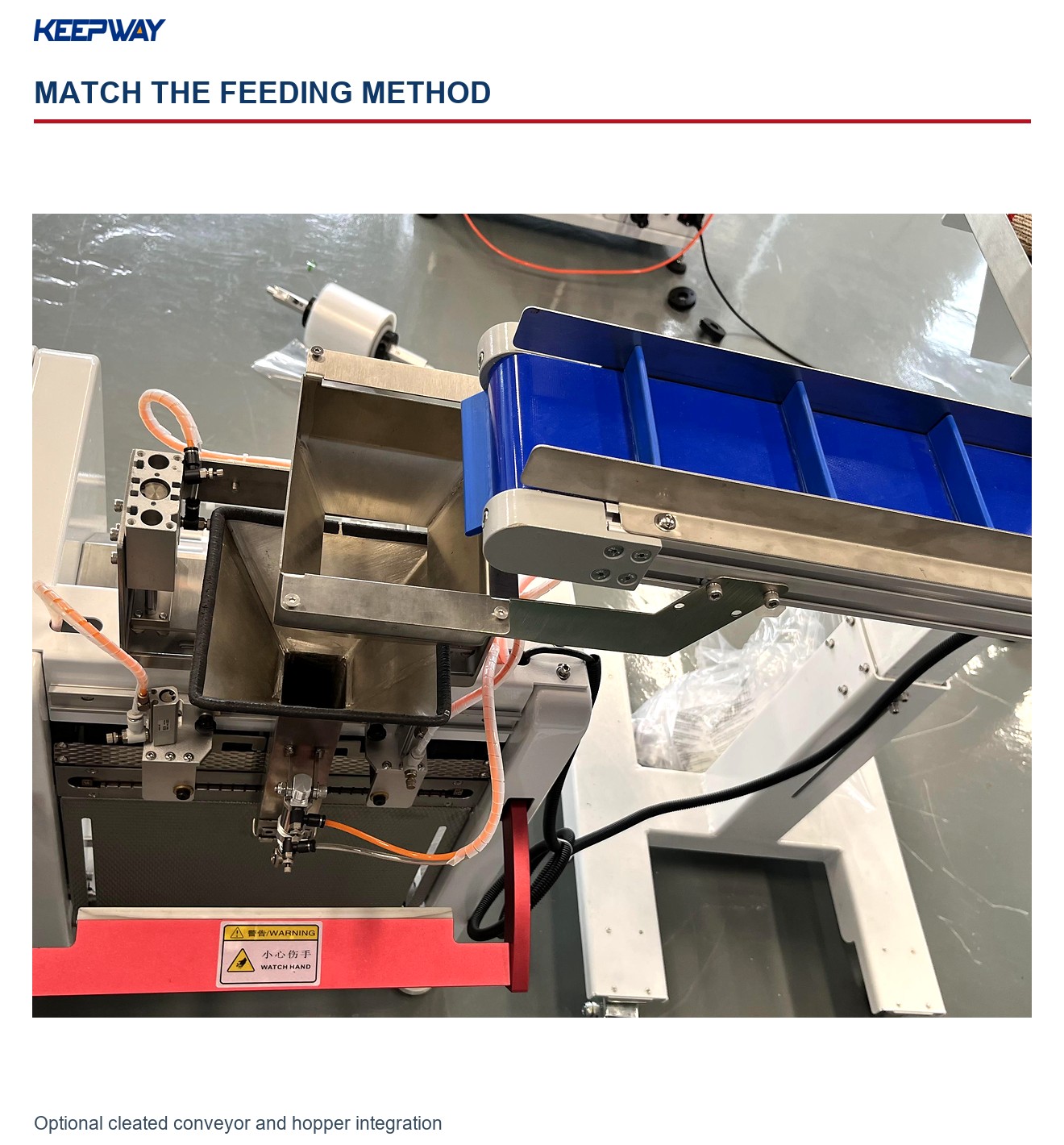

Plan the kit handover. Manual loading or a separately quoted feeder
Show how one complete kit reaches the bag. For an optional feeder, send the required count and sample parts for a trial.

Specify what happens before sealing

The pictured cleated feeder and hopper are optional. Define manual loading, counting or upstream feeding in the quotation; a hopper alone does not establish counting accuracy.

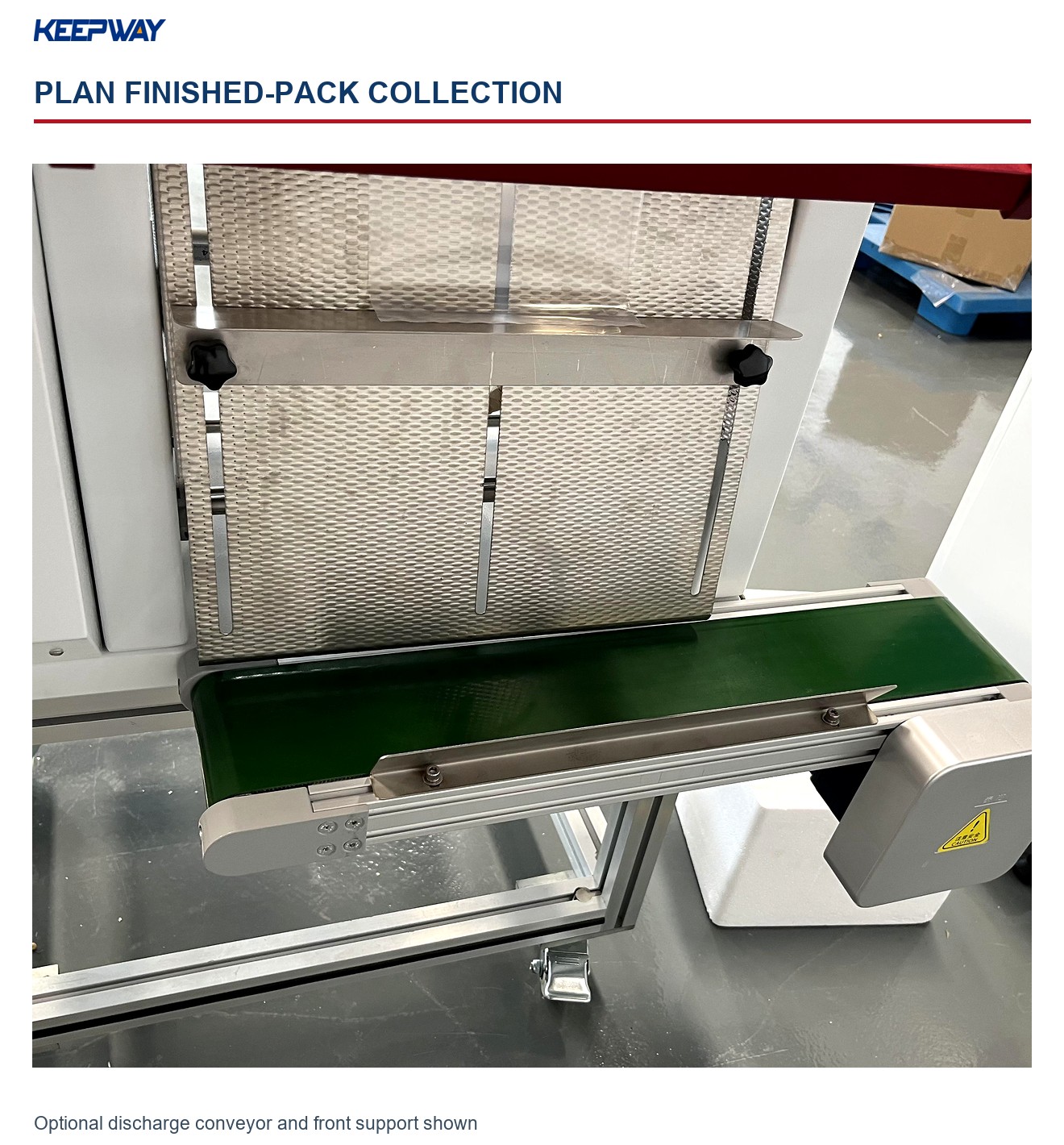

Check a finished pack. Trial pack at discharge
Mark where the finished pack should land and inspect the seal after handling a representative kit.

Agree how finished packs leave the station

Review collection position, support and any optional conveyor with your actual pack weight and layout. Include the outfeed sequence when measuring complete-station output.

Open control cabinet showing wiring and electrical components on the photographed bagging machine
Photographed unit | Components vary by configuration. Component brands and layout are specific to this photographed unit; confirm the quoted configuration. Qualified service personnel only, with power isolated.

Clarify the supplied electrical configuration

Use the pictured cabinet as a discussion reference. Confirm the component list, access space, documentation and local utilities for the ordered machine.

Ask about my bag, feeding and label workflow

KPW-A8 specifications

ModelKPW-A8
Base-machine L × W × H483 × 680 × 570 mm
Bag width60–200 mm
Bag length100–400 mm
Film thickness0.04–0.15 mm
Listed output25 bags/min; sample and loading dependent
Power supply / base ratingAC 120/220 V; 50/60 Hz; 400 W
Compressed air0.7 MPa (7 bar)
Operator interface7-inch HMI; Chinese / English
Start modesFoot switch, start button, push bar or external signal
External signalDry contact; project-specific interface review
Integrated label printingNot included on this standard model

Dimensions are for the base machine, not an optional complete floor-standing line. Confirm the configured utilities, working layout and model-specific operating instructions before installation.

See the bagging workflow

These supplied videos show the product family’s operating concept. They are not separate acceptance tests for every model or optional module. Use your own product, bag and label samples for configuration approval.

Pre-opened bag handling demonstration

Watch on YouTube

Roll-bag sealing workflow

Watch on YouTube

Compare the other bagging configurations

Choose the bag envelope first, then the need for label printing and the actual artwork area.

ModelBag widthLabel print areaSelection focus
KPW-A860–200 mmNo integrated printerSmall-part packing at a manual-loading bench; narrow bags without an integrated printer
KPW-A1260–300 mmNo integrated printerTabletop packing with a wider bag envelope; mixed cable and accessory formats without a printer
KPW-A8-2TR60–200 mm53 × 125 mmNarrow-bag component identification with a 53 × 125 mm adhesive-label print area
KPW-A12-2TR60–300 mm53 × 125 mmWider-bag kits and accessories with a compact barcode label; data and kit handover defined
KPW-A12-4TR60–300 mm107 × 250 mmWide print-area selection for information-rich adhesive labels on matched wider bags

Compare the full pre-opened bagging range · Poly bagging machines · Bagging machine selection guide

Questions before ordering

Can the standard tabletop model print a label?

The standard KPW-A8 has no integrated label-printing module. If identification is needed during packing, compare KPW-A8-2TR; its adhesive-label application step is specified separately.

How should we compare real output?

Agree representative samples, the complete sequence and the observation period. Count accepted finished packs per elapsed minute, including the agreed loading, label handling, replenishment and changeover activities. Record interruptions and rejected packs rather than converting the listed reference into a shift guarantee.

What support is available?

Keepway provides a two-year warranty, free replacement parts and shipping during the warranty period, and lifetime service and technical support. Confirm the supplied configuration and service details in the quotation.

Send a brief for KPW-A8

Include part photos, item count per pack, bag opening and perforation, roll dimensions, the required accepted packs per shift and your workbench layout.

Also include installation country, voltage, compressed-air availability, preferred loading method and your business email or phone number so the proposal can address your application.

Discuss this model and my samples

Use the product enquiry form below. No test result, savings percentage or application approval is implied before the configuration review.

Size the parts and the bag

Illustrated sample guide: Size the parts and the bag. usable opening, parts envelope, seal clearance.
Send a representative assortment, part count and bag dimensions. Mark any edges that could obstruct the opening or seal.
Read the three sample checks
  1. Usable opening — Measure the clear mouth of the bag.
  2. Parts envelope — Measure the longest and bulkiest combination.
  3. Seal clearance — Keep projecting corners clear of the trial seal.
