Wrapping Machine

automatic stretch wrapper pallet wrapping machine with rotary arm

  • Category: Wrapping Machine
  • Views:1310
  • self-wrapping machine
  • speed:6-20r/min
  • voltage:380/220/110
  • type:automatic
  • Product description:The rotary arm wrapping machine refers to a device that uses a rotatable cantilever to rotate around the goods, thereby wrapping the goods. It is mainly suitable for wrapping products that are lighter
  • INQUIRY

How can I compare film coverage around an irregular pallet?

Mark a low corner and the highest carton on a representative load. Review coverage at both points on the completed trial before selecting a wrapping pattern.

Review my wrapping station

On a plan of the packing bay, mark the furthest projection of the load and any equipment inside the proposed sweep. Check the clearance around a rotating wrapping arm.

Cantilever-wrapping-machine

The cantilever wrapping machine is mainly suitable for modern operations with large production volume and high logistics efficiency, and is an equipment that meets the packaging requirements of lighter or heavier goods.

The design of the conveyor line can be adjusted according to needs: roller, belt or chain conveyor lines can be prepared. Cargo (pallet) lifting device, film automatic cutting device, winding film film breaking warning device. Can increase the winding height, increase the winding size, top covering film system, top pressing device.

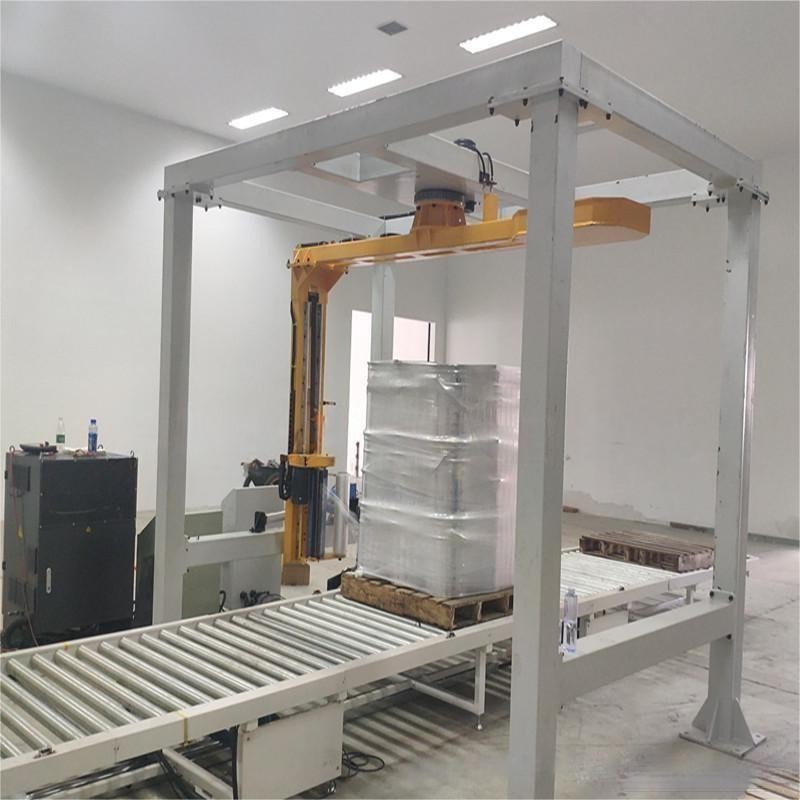

Rotary-arm pallet wrapper surrounding a load on a roller conveyor

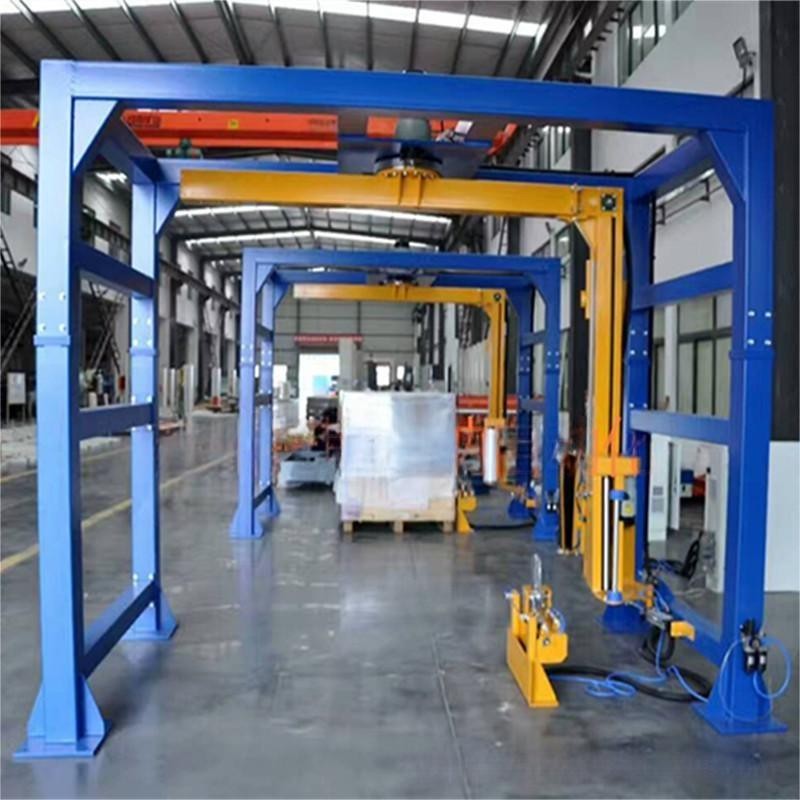

Rotary wrapping arm and film carriage beside a pallet load in a workshop

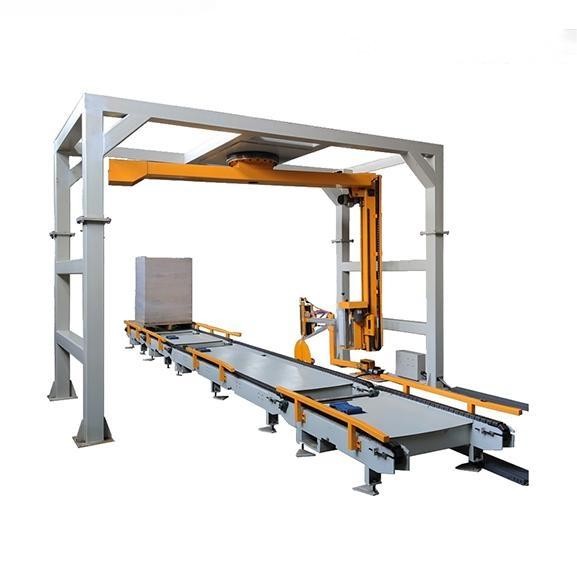

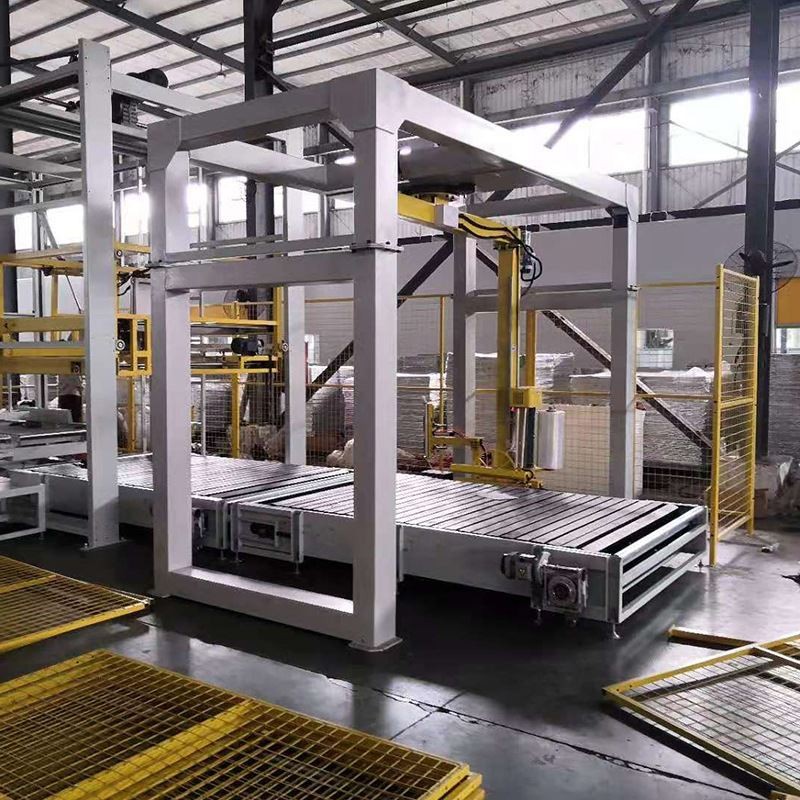

Rotary-arm wrapper frame, conveyor and control-system photo collageGantry rotary arm pallet wrapper with an infeed and discharge conveyor lineRotary-arm wrapping station with conveyor and safety fencing

Sketch the wrapping station

Illustrated sample guide: Sketch the wrapping station. loaded footprint, fixed obstruction, available gap.
Include the loaded pallet footprint and a plan view of fixed obstacles when requesting a layout review.
Read the three sample checks
  1. Loaded footprint — Draw the widest load in its working position.
  2. Fixed obstruction — Mark a post, wall or conveyor near the station.
  3. Available gap — Record the shortest clear distance to the load.
