Hand-Held Pneumatic Waste Stripping Machine

Hand-Held Pneumatic Waste Stripping Machine /Scrap Removing Machine

Introduction of Hand-Held Pneumatic Waste Stripping Machine:

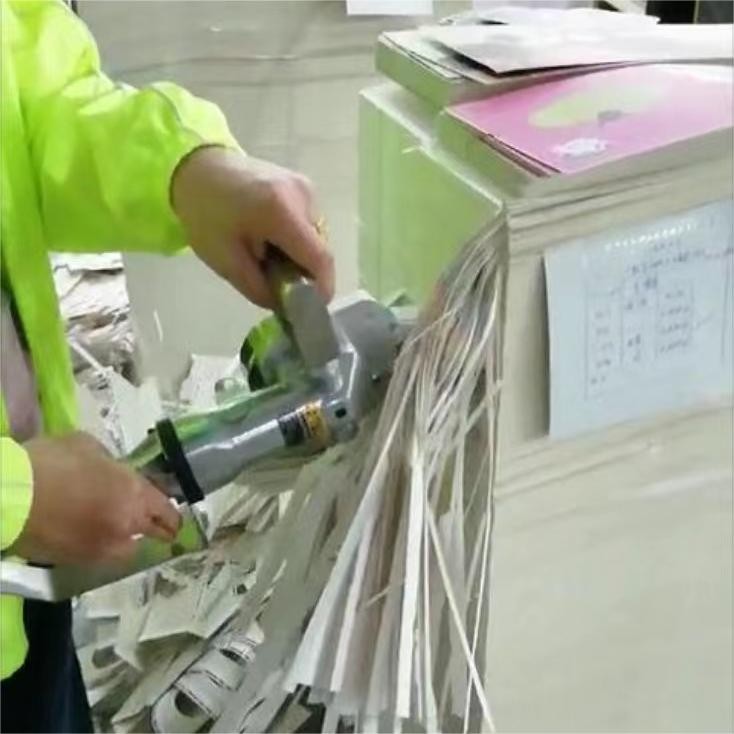

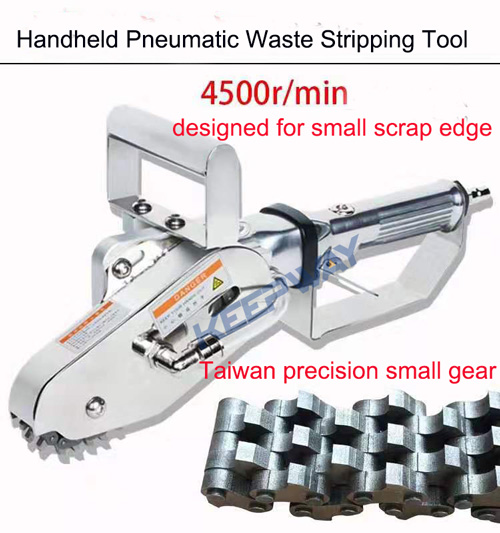

The Hand-Held Pneumatic Waste Strippping Machine is a high-speed cycle operation driven by the air motor to drive the toothed chain, using sharp teeth to pull out the waste paper edge. It is a pneumatic tool used for the waste removal of cardboard, fine corrugated and ordinary corrugated paper in the printing industry. It can replace the manual hammer to remove waste, improve work efficiency and shorten the waste removal cycle.

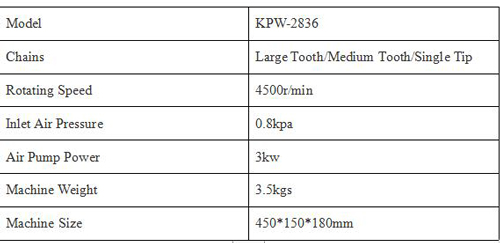

Technology Parameter of Hand-Held Pneumatic Waste Stripping Machine:

KPW-2836 pneumatic waste-stripping toolChain optionsLarge tooth / medium tooth / single tipRotating speed4500 rpmInlet air pressure0.8 MPaAir-pump power3 kWTool weight3.5 kgTool size450 × 150 × 180 mm

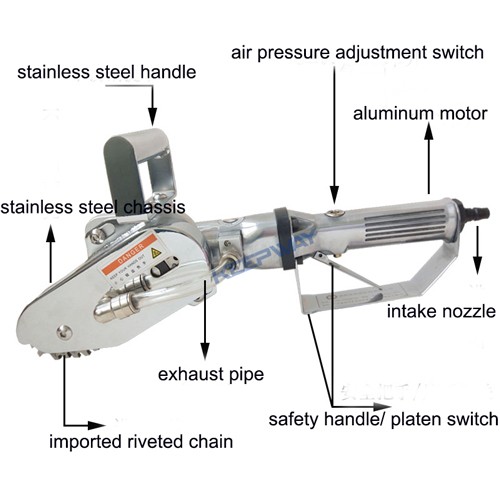

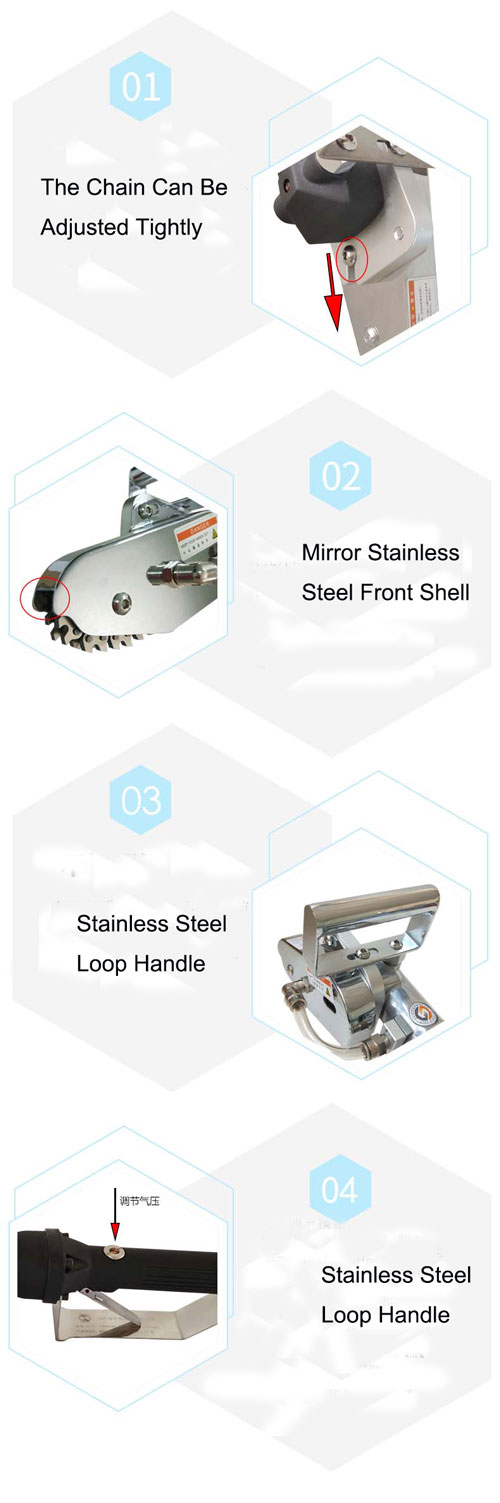

Features of Hand-Held Pneumatic Waste Stripping Machine:

1.The machine has a three-point fixed structure and a closed handle. It is easy to operate and you can learn it right away.

2.Each chain tooth is cut by thread cutting and washing process, and then riveted into strips by hand.

3.The chain material is imported pure white steel, which is durable and wear-resistant.

4.The motor adopts imported genuine and powerful Taiwanese motor, 4500 speeds per minute, strong strength, high work efficiency, suitable for cleaning all paper types.

5.Double-bearing gears are smoother and cleaner.

6.2cm thickening and widening front shell fixed aluminum block, making the machine more safe and stable in use.

7.Mechanized production reduces the risk of industrial injuries and improves production efficiency.

Maintenance of Hand-Held Pneumatic Waste Stripping Machine:

1.Ensure that the air pressure reaches 0.8kpa, the standard specification of gas pipe is used, and the length of gas pipe is preferably within 6m,and the

air pressure loss is minimum.

2.The waste remover needs to be maintained daily, and the pneumatic tool oil should be added daily to prevent the machine from water and rust.

3.The joint of the chain and the gear shall be coated with grease for lubrication to prevent the bearing from abrasion.

4.The air compressor needs to drain the accumulated water regularly to reduce the possibility of water entering the cleaner from the source.

5.Clean up the paper scraps on the machine before going off work every day to ensure that the air outlet and air inlet are not blocked.

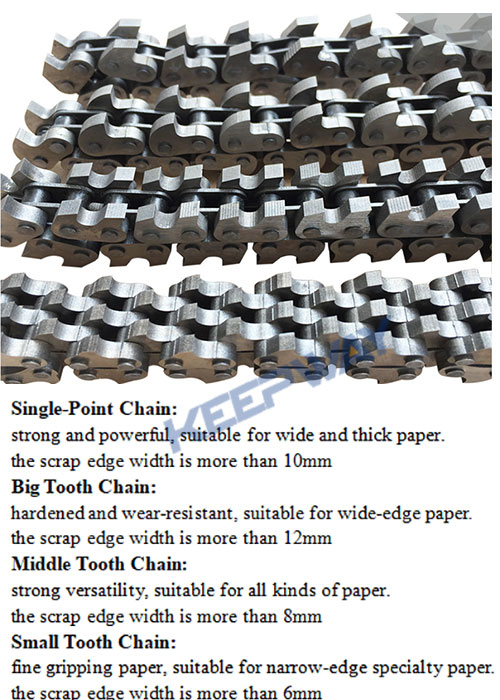

How to Choose Chains:

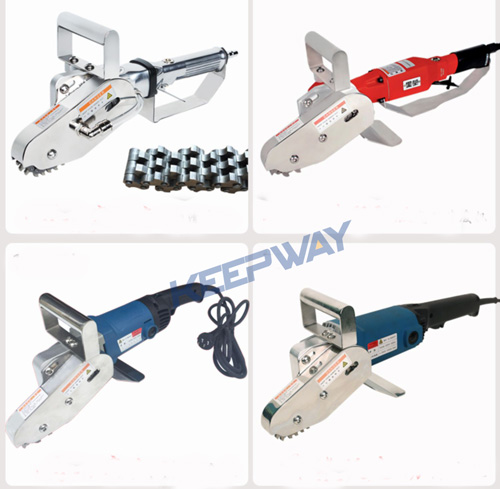

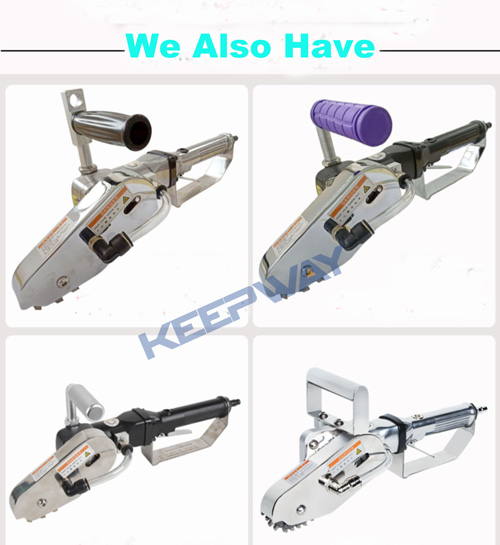

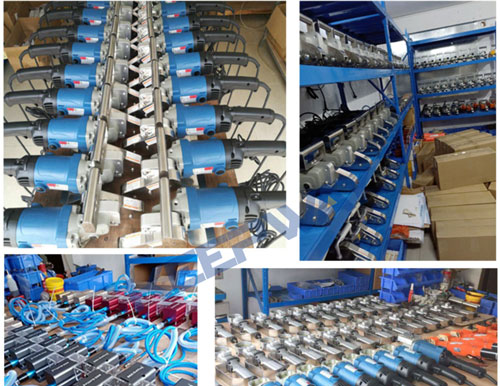

Waste Stripping Tools in Stock and Waiting Your Order:
