KPW-550/650 Horizontal Courier Bag Packing Machine for Apparel

KPW-550/650 Horizontal Courier Bag Packing Machine for Apparel

Product Item : KPW-550 / KPW-650
Category： Poly Bagging Machines
Views：684
Models: KPW-550 and KPW-650
Output: 1200 or 1500 bags/h, depending on model and configuration
Operation: Manual loading with button or sensor-triggered sealing
Bag Materials: PE, poly mailer, pearl film and custom laminated roll bags
Product description：KPW-550/650 horizontal courier bag packing machine for apparel and soft goods, with manual loading, automatic bag opening and sealing, and 1200 or 1500 bags/hour configurations.
INQUIRY

Application fit & configuration

Keep the correct order, bag and label together.

The KPW-550/650 station opens and seals the bag while an operator loads the goods. Review scanning, printing and label application with your real order sequence; ERP/WMS connection is an optional integration.

Manual loadingAutomatic bag opening and sealing

Scanning + labelingListed standard functions

5.5 kWListed power reference

Request a configuration review

KPW-550 / KPW-650 courier-bag packing series
Designed for apparel, textiles and other soft goods packed in PE, poly mailer, pearl-film or custom laminated continuous-roll bags. The operator loads the product manually; bag opening and sealing are automatic.

Machine Overview and Available Output

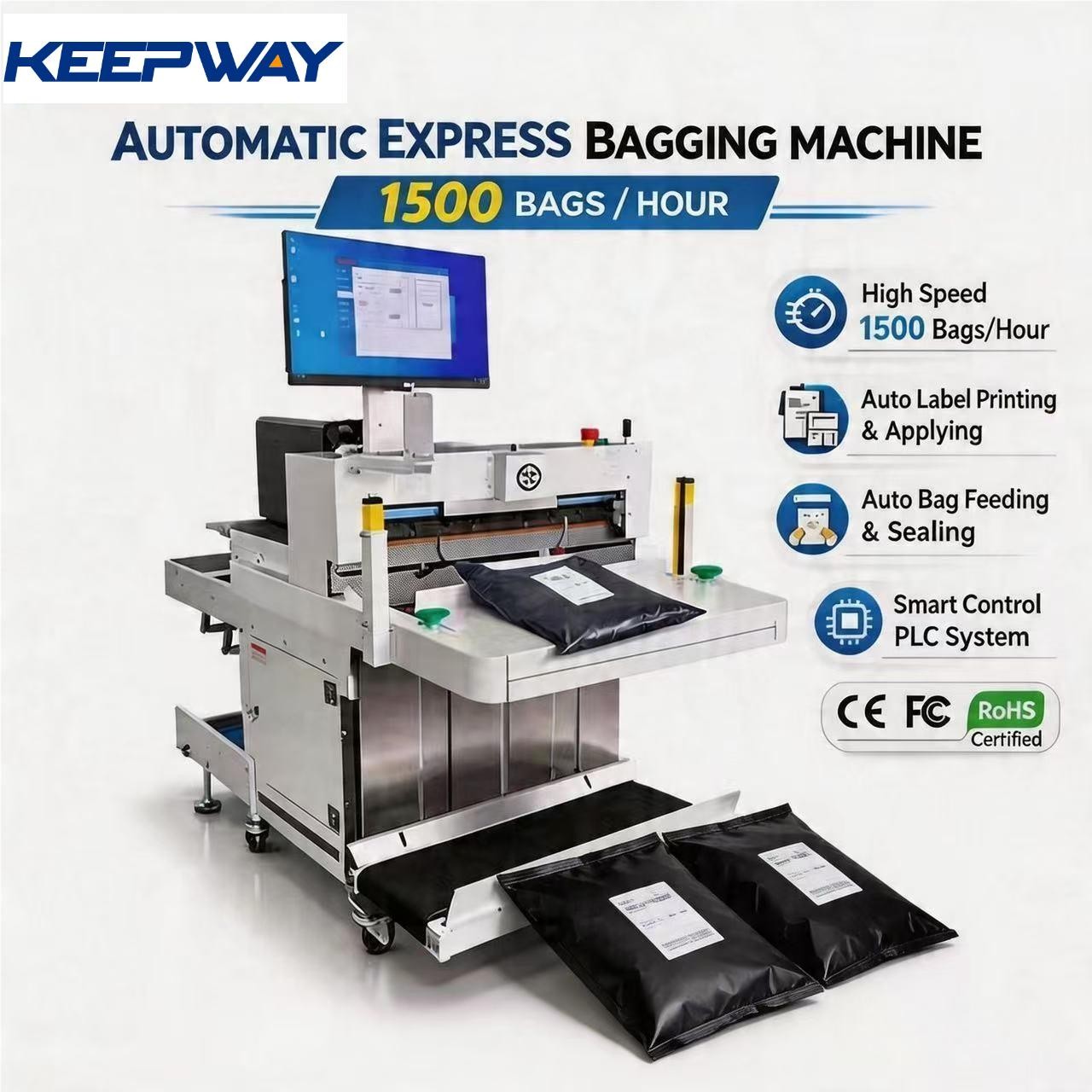

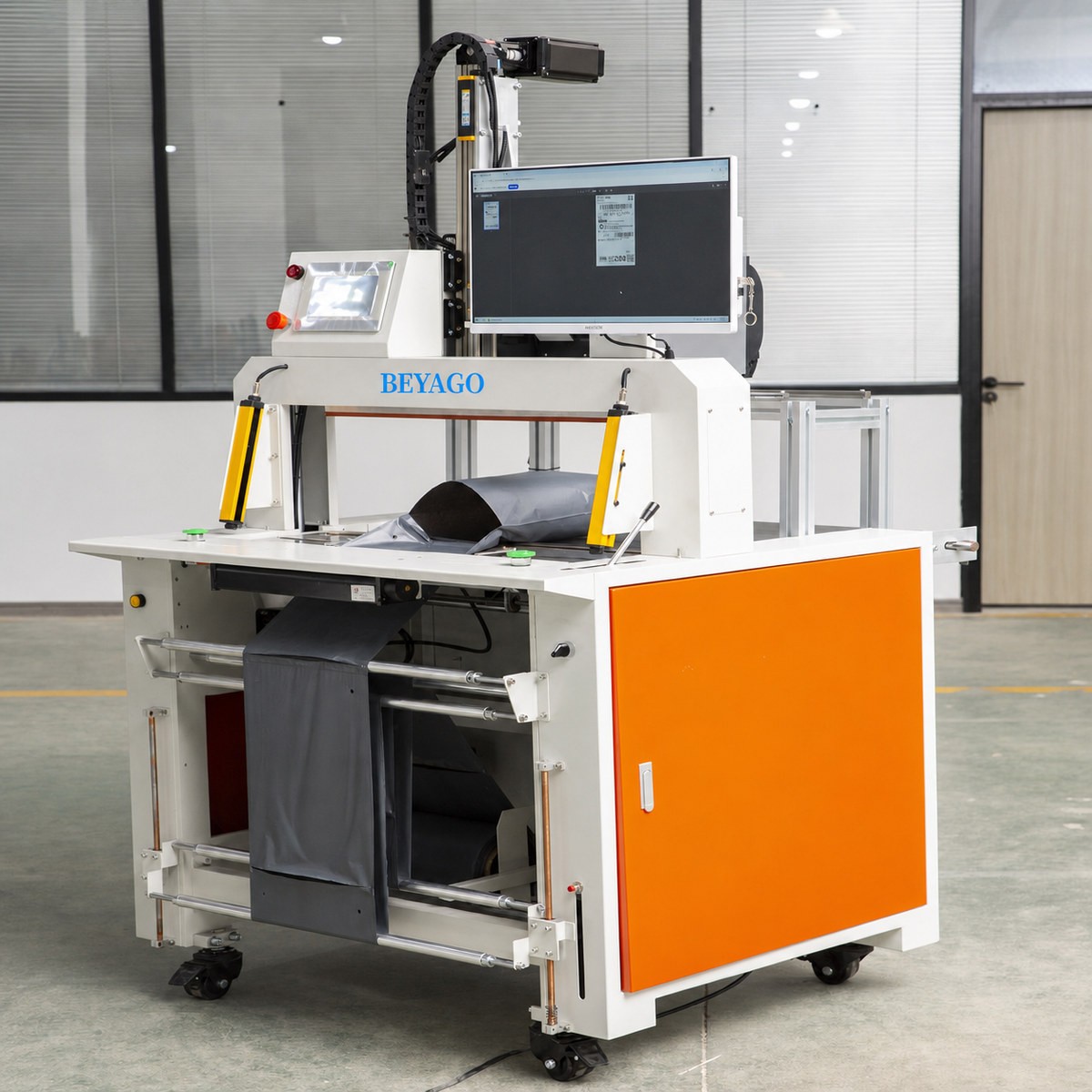

KPW-550 and KPW-650 horizontal courier bag packing machine for apparel — Horizontal packing arrangement for courier bags and soft goods

Courier bagging machine with automatic bag opening label handling and sealing — Available configurations are rated at 1200 or 1500 bags per hour

Watch the Courier Bag Packing Process

Confirmed Technical Specifications

Available models	KPW-550 and KPW-650
Rated output options	1200 bags/h or 1500 bags/h, depending on model and selected configuration
Product loading	Manual loading by the operator
Sealing trigger	Two-hand button control; single-hand button or automatic sensor triggering can also be configured
Standard functions	Automatic bag opening and sealing, barcode scanning, label printing and label application
Optional integration	ERP and WMS connection
Supported bag materials	PE, poly mailer, pearl film and non-standard custom laminated continuous-roll bags
Bag size	Customized to requirement; confirmed range 40–60 cm
Product size and weight	Selected after testing the customer’s products and packing requirements
Voltage	110 / 220 / 380 V; electrical configuration customized for the destination and customer requirement
Power	5.5 kW
Air supply	Specified according to the bag and sealing/cutting material
Machine size	1000 × 1000 × 1800 mm
Machine weight	300 kg
Warranty	Two years for the packaging machine

Flexible Triggering and Product Applications

Two-hand sealing control for horizontal courier bag packing machine — Two-hand operation is available; single-hand or automatic sensor triggering can be configured

Apparel textiles accessories and e-commerce products for courier bag packaging — Suitable for apparel, textiles, accessories and other soft goods after sample testing

Machine Details

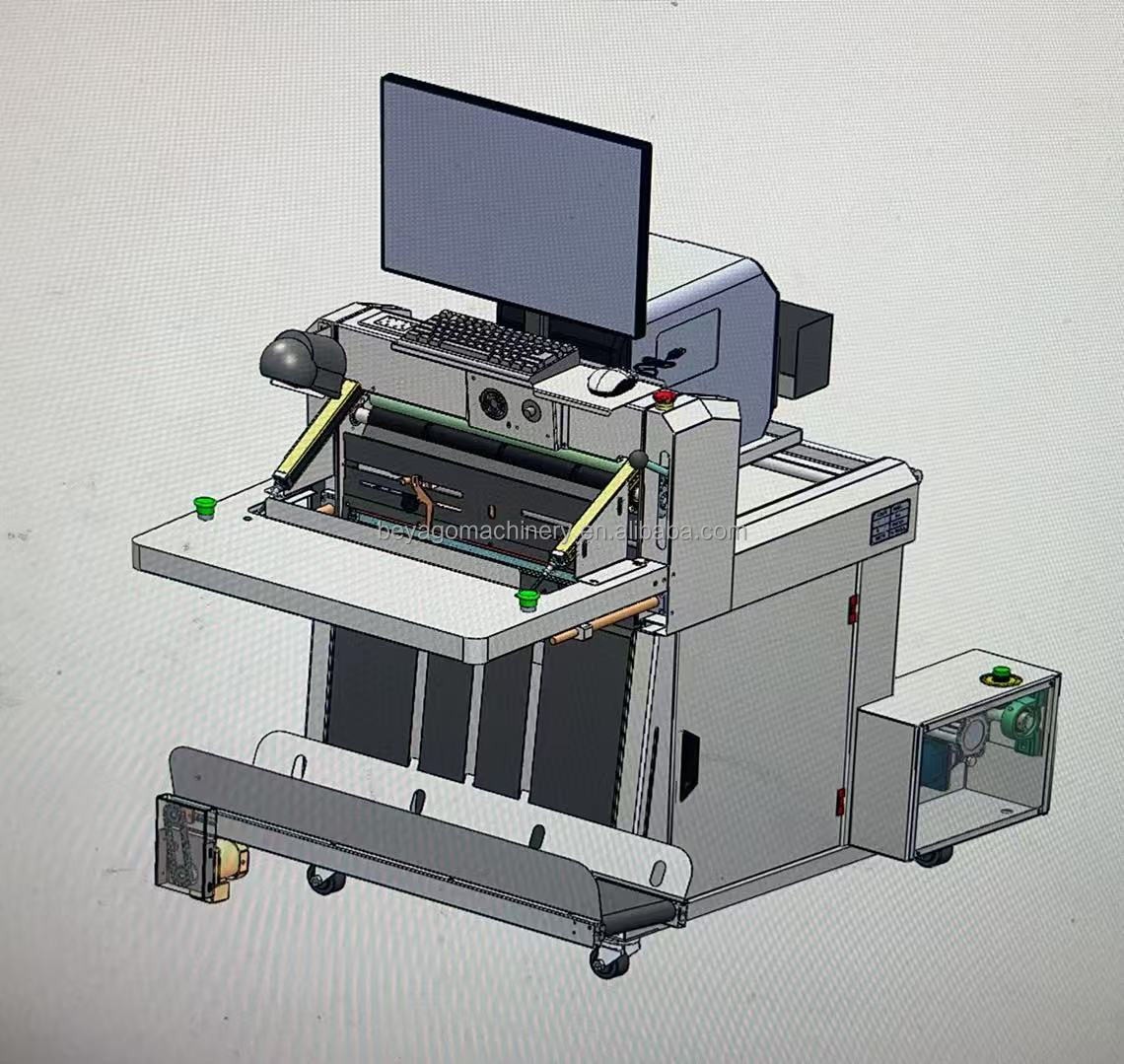

Courier bag packing machine sealing mechanism HMI roll material bag opening system worktable and sensor — Sealing mechanism, HMI, roll-material path, automatic bag opening, worktable, sensor and machine details

Standard Functions and Optional Integration

Automatic bag opening
Opens the continuous-roll bag for manual product loading.

Automatic sealing
Seals the loaded courier bag using the selected trigger method.

Scanning and labeling
Barcode scanning, label printing and label application are included.

ERP / WMS option
System connection is configured when required by the project.

Working Sequence

Load the specified continuous-roll bag material and enter the packing settings.
The machine opens the bag and the operator places the product manually.
Trigger sealing by two-hand buttons, a configured single-hand button or an automatic sensor.
Complete scanning and label handling, then discharge and inspect the packed parcel.

Configuration recommendation: send product samples, bag material and dimensions, target output, label format and destination electrical standard for testing before final machine selection.

Request a KPW-550 / KPW-650 Configuration

Send the product sample information, bag material and size, required output, label workflow, preferred trigger method, destination voltage and any ERP/WMS requirement.

View Poly Bagging Machines View E-commerce Packing Solution Send Packing Requirements

Build an evidence-based quotation

Turn your packing problem into an acceptance check

A readable label becomes wrinkled after bagging

Test the finished parcel, label position and scan result using your bag material, filled size and barcode format.

A size change or reprint breaks the order sequence

Describe mixed orders, missing/duplicate labels and reprints; agree interface scope and acceptance cases before integration.

Rated bagging speed hides manual loading time

Include picking, loading, trigger method, labeling and parcel removal in the timed workflow.

Compare measurable results

Count correctly matched, sealed and scan-accepted parcels over the full trial duration. The page lists 1200 or 1500 bags/hour configuration options; the model-to-output allocation must be specified in the quotation, not assumed.

Bring your hardest product or packing condition

Ask for a bag/label workflow review and a mixed-order sample-test plan. Start with your busiest order type and a difficult parcel size.

Include in your inquiry: Soft-goods samples and size range; bag material/size; order sequence; label sample and barcode; ERP/WMS requirement; output and utilities.

Start with the product or material, its size range and your required output. Use the inquiry form below to provide your contact details; sample shipment and trial scope can then be agreed.

Send requirements for this machine

Two-year warranty: replacement parts and their shipping are free during the warranty period. Lifetime after-sales service is available. A sample-test proposal is not a guarantee of a specific result or a free on-site trial.
