Home > Our Products > Strapping Machine > KPW-8060 Automatic PP Strapping Machine

Strapping Machine

KPW-8060 Automatic PP Strapping Machine

Category： Strapping Machine
Views：3622
Model: KPW-8060
Arch Size: 800 × 600 mm (custom sizes available)
Cycle reference: 1.8 s/bundle; finished-carton output depends on handling
Power options: single-phase, 110/220 V, 50/60 Hz; confirm the supplied configuration
Product description：KPW-8060 automatic PP strapping machine with an 800 × 600 mm aluminium arch, 1.8 s/bundle cycle, 0–60 kg adjustable tension, custom arch options and a two-year warranty.
INQUIRY

Application fit & configuration

Size the carton opening, then test the whole strapping job.

The KPW-8060 feeds and seals PP strap through its arch. Choose around the usable package range, strap specification and number of straps per carton—not the arch’s outside dimensions alone.

780 × 580 mmListed maximum package W × H

8–15 mmListed PP strap width

1.8 s/bundleCycle reference; not a carton-line rate

Request a configuration review

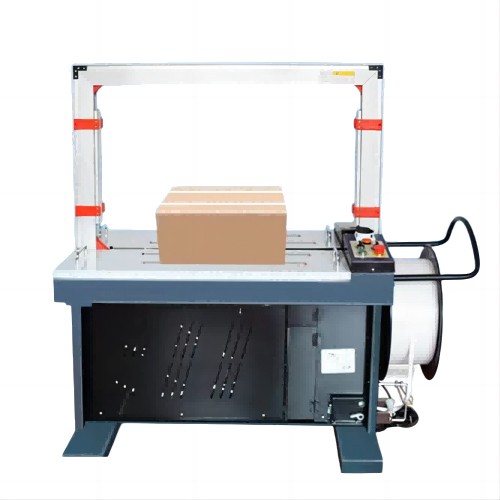

KPW-8060 automatic PP strapping machine
The machine guides PP strap around a carton or packaged product through an aluminium arch, tensions the strap, heat-seals the joint and completes the selected cycle. The current product evidence supports an 800 × 600 mm standard arch and custom arch sizing for other package dimensions.

Automatic Strapping for Cartons and Packaged Goods

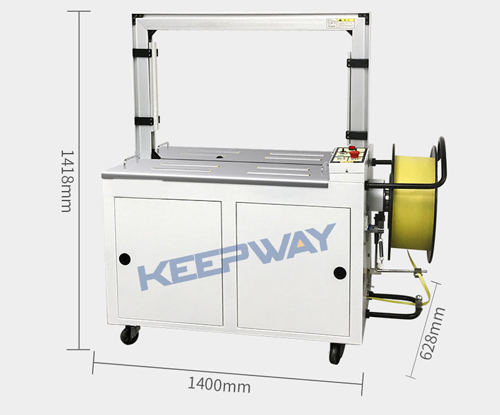

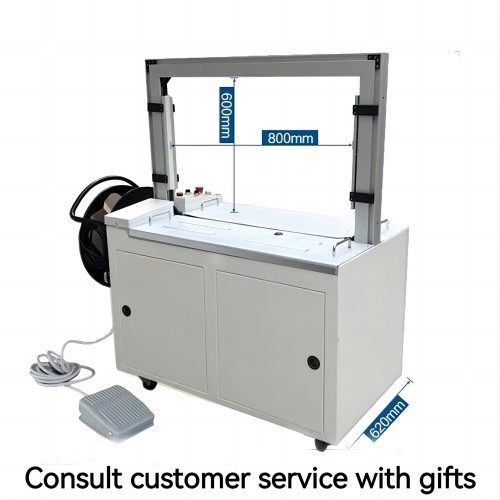

KPW-8060 automatic PP strapping machine overall dimensions — Existing machine-dimension illustration retained as product evidence; confirmed specification is listed in the HTML table

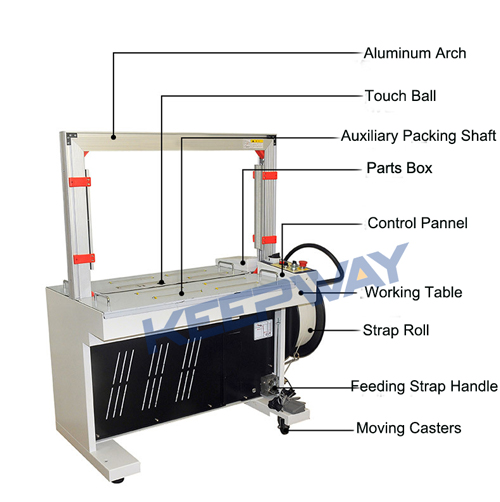

KPW-8060 automatic strapping machine component layout — Aluminium arch, control panel, worktable, strap roll and casters

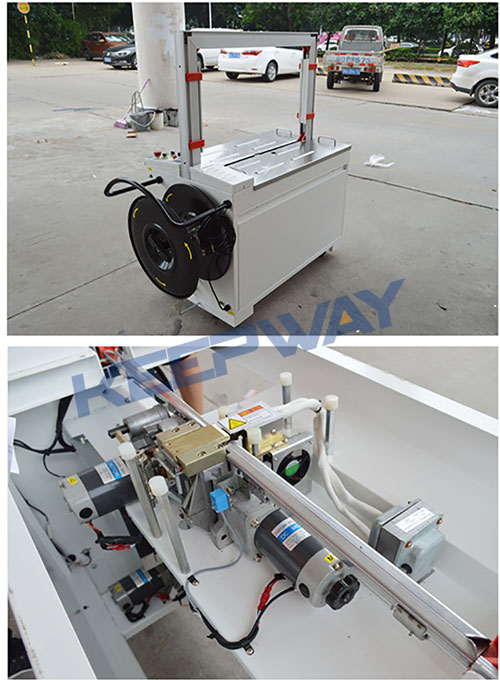

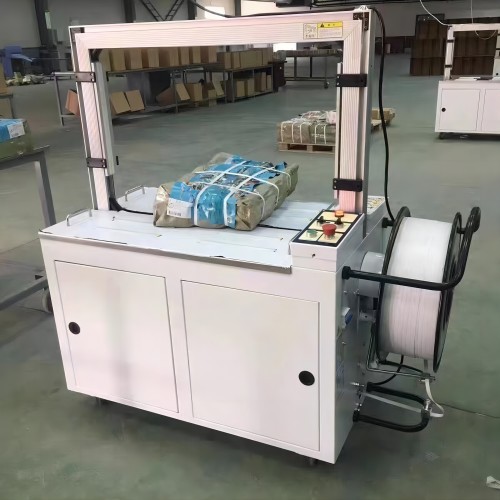

Automatic PP strapping machine exterior and internal mechanism — Machine exterior and internal strapping mechanism

Watch the Automatic Strapping Process

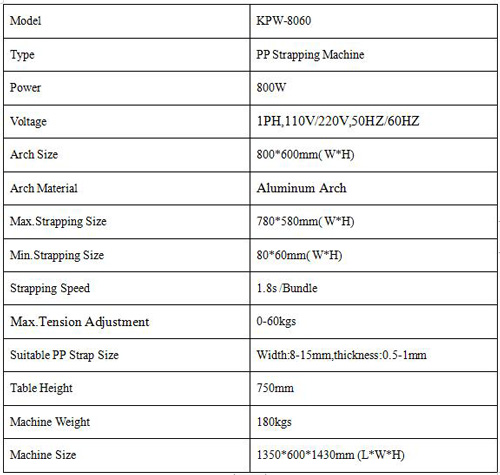

KPW-8060 Technical Reference

Model	KPW-8060
Type	Automatic PP strapping machine
Power	800 W
Power supply	1PH, 110/220 V, 50/60 Hz
Standard arch size	800 × 600 mm (W × H); other arch sizes can be customized to the package
Arch material	Aluminium
Maximum strapping size	780 × 580 mm (W × H)
Minimum strapping size	80 × 60 mm (W × H)
Strapping speed	1.8 s/bundle
Tension adjustment	0–60 kg
Suitable PP strap	8–15 mm wide, 0.5–1 mm thick
Table height	750 mm
Machine weight	180 kg
Machine size	1350 × 600 × 1430 mm (L × W × H)

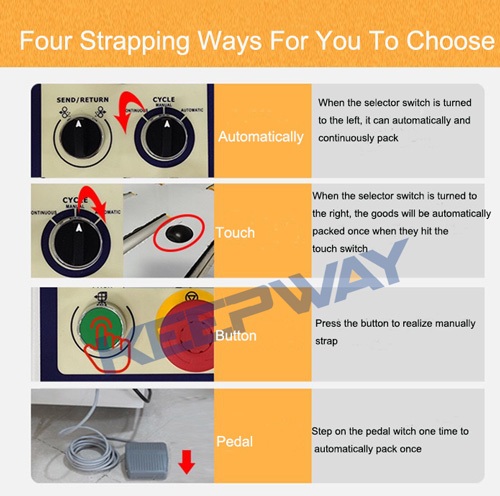

Four Operating Methods

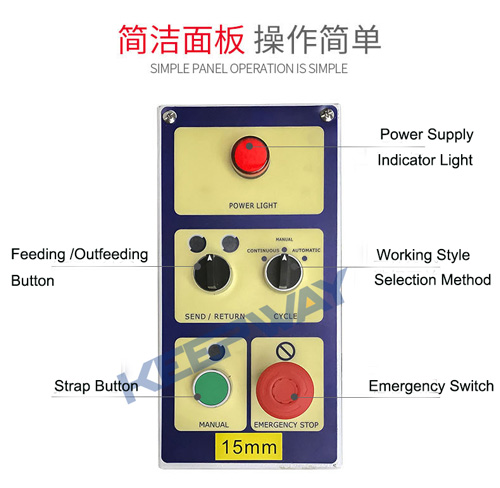

KPW-8060 automatic strapping machine control panel — Feed/return, work-mode selection, manual strap and emergency-stop controls

Continuous automatic
Runs repeated strapping cycles in the selected automatic mode.

Touch triggered
A package activates a single cycle when it contacts the touch switch.

Manual button
The operator starts one cycle from the panel.

Foot pedal
The operator starts one cycle while keeping both hands available for positioning.

Arch, Strap Path and Machine Details

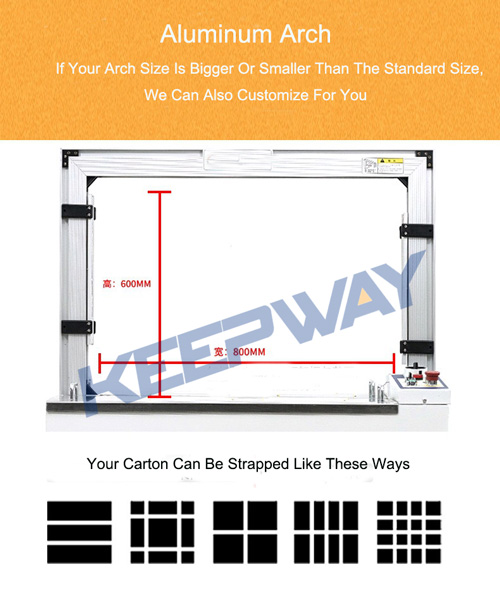

Customizable 800 by 600 millimetre aluminium arch for automatic strapping machine — Standard aluminium arch and example strap patterns

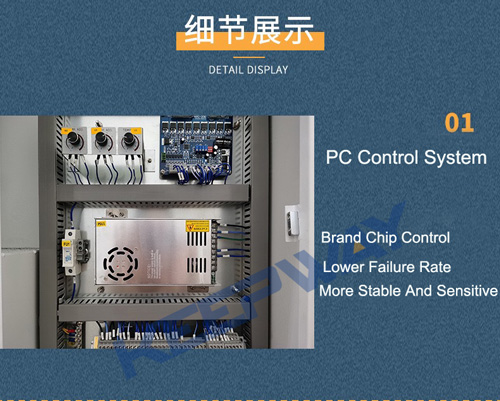

Automatic strapping machine electrical cabinet and control system — Electrical cabinet and control components

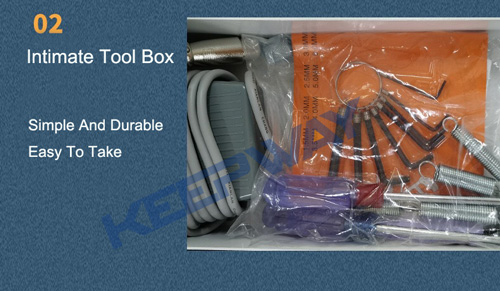

Tool kit supplied with automatic PP strapping machine — Existing tool-kit reference

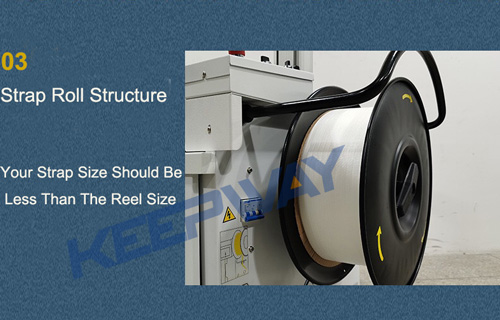

PP strap roll holder on automatic strapping machine — External PP strap-roll holder

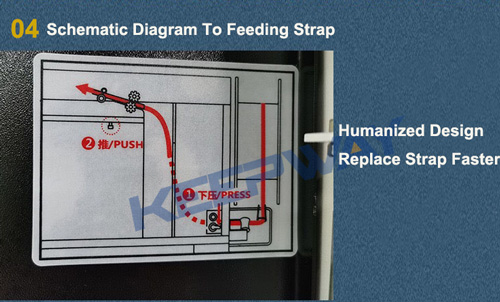

Automatic strapping machine strap-feeding path diagram — Strap-feeding path reference

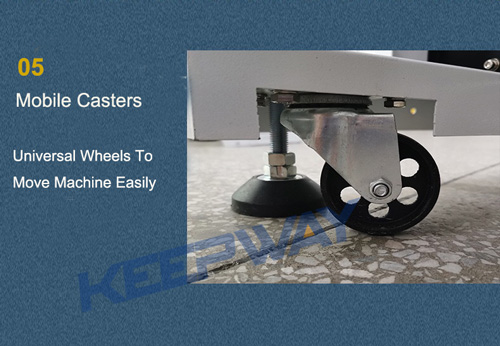

Mobile caster and adjustable foot on automatic strapping machine — Caster and adjustable support foot

Configuration and Application Options

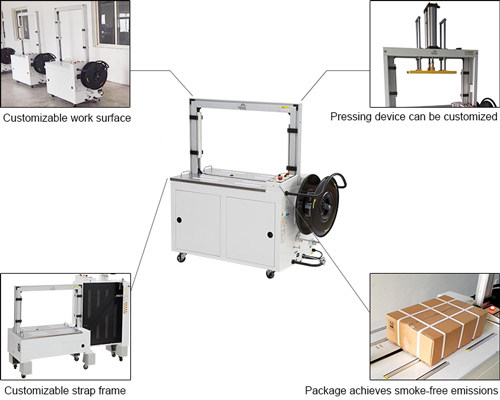

Automatic strapping machine custom worktable arch and top press options — Existing customization examples: work surface, arch/frame and top press

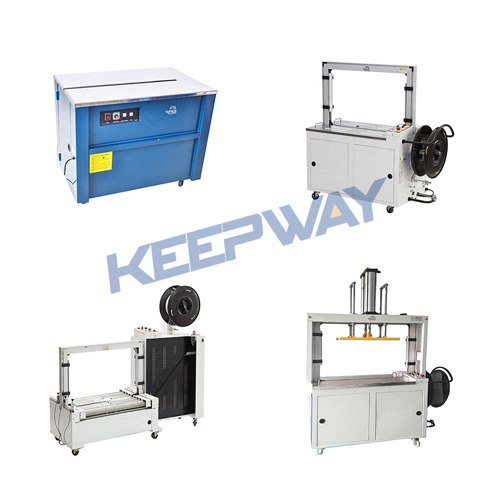

Semi-automatic and automatic strapping machine configuration examples — Other strapping-machine configurations currently shown on the page

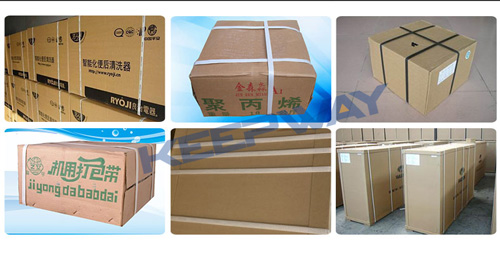

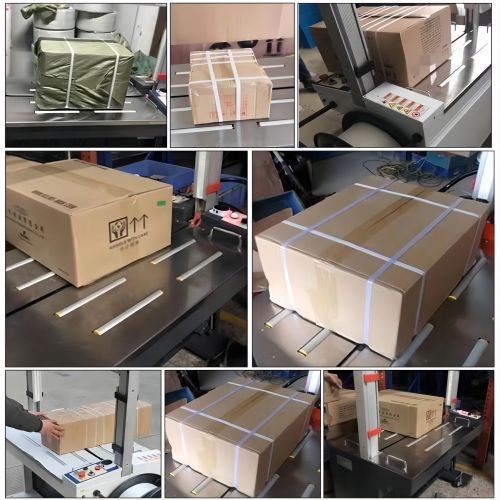

Cartons secured with PP straps in different patterns — Existing PP-strapped carton examples

Information needed for selection

Minimum and maximum package length, width and height
Package weight, surface and required strap positions
Target bundles per minute and daily operating hours
PP strap width, thickness and roll specification
Local voltage, frequency and available phase
Need for a top press, enlarged arch or conveyor integration

Line Integration Examples

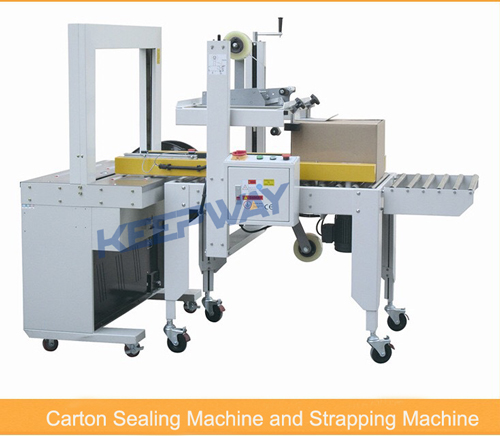

Carton sealing machine integrated with automatic strapping machine — Carton sealing and strapping combination

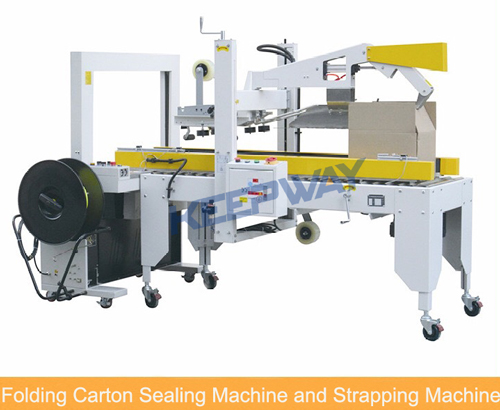

Folding carton sealing machine integrated with automatic strapping machine — Folding carton sealing and strapping line

How the Strapping Cycle Works

Position the package inside the arch and align the required strap location.
Select the operating method and set the strap tension for the package.
The machine feeds, tensions, heat-seals and cuts the PP strap.
Inspect the strap position and joint before the next package enters.

Company, Factory and Delivery Evidence

Keepway factory team certifications packing and delivery information — Existing company, factory, certification, packing and delivery image retained for review

Confirmed configuration basis: machine size 1350 × 600 × 1430 mm and a two-year packaging-machinery warranty for ID 14.

Choose the arch and working arrangement for your cartons

Does an 800 × 600 mm arch accept a package of the same size?

Use the listed package range, not the outside arch dimensions. The standard KPW-8060 configuration lists a maximum strapping cross-section of 780 × 580 mm and a minimum of 80 × 60 mm. Send the smallest and largest carton dimensions, their orientation and strap positions. Packages must pass through the working opening with enough clearance.

Does the automatic cycle mean an unattended packing line?

The machine feeds PP strap through its arch and completes the selected strapping cycle. Carton positioning, turning for a second strap and transfer between machines are separate tasks. State whether an operator will move the cartons or whether you need conveyors, package detection and integration with a carton sealer. Confirm the supplied equipment in the quotation.

How should I calculate the required output?

The listed 1.8 s/bundle is a cycle reference, not a guaranteed finished-carton rate. Provide cartons per minute, straps per carton, carton sizes and the loading method. Check the complete sequence, including positioning, extra strap positions and discharge, with your actual packages.

Which PP strap should I specify?

The current reference is 8–15 mm width and 0.5–1 mm thickness. Also send the roll/core dimensions, package weight and a strap sample or specification. Ask for a tension and joint review on your carton; excessive tension may damage a light carton. PP compatibility does not establish PET or steel compatibility.

Send carton dimensions, PP strap details and target output for a configuration review

Request a KPW-8060 Strapping Configuration

Send package dimensions and weight, required strap positions, target output, PP strap specification, local power standard and any conveyor or top-press requirement.

View Strapping Machines Compare Carton Sealing Send Package Details

Planning a carton sealing and PP strapping station

A carton sealer closes the carton seams with adhesive tape. A PP strapping machine applies a tensioned band around the package. They perform different jobs: specify both operations when your packing process needs both seam closure and strapping.

Packing stage	Information to agree before combining machines
Seal the carton	Confirm the carton dimensions, flap preparation, tape specification and whether carton sizes change between batches or from box to box.
Transfer and position	Agree the conveyor or manual transfer, working height, carton orientation and space for turning a carton when another strap direction is needed.
Apply PP straps	Check package clearance through the selected arch, straps per carton, strap positions, tension and the joint on a representative package.
Check the complete station	Measure output across sealing, handling and strapping together. A machine cycle time alone does not establish the finished-carton rate.

For operator-adjusted batches, review the KPW-FX5050 carton tape sealer. For other carton-handling requirements, compare the carton sealing machine range. A combined station and its transfer equipment must be specified separately in the quotation.

Request a sealing and strapping layout with carton sizes, required cartons per hour, straps per carton, a simple line sketch and destination power supply.

Carton strapping selection and support

Build an evidence-based quotation

Turn your packing problem into an acceptance check

A carton fits the arch label but not the working opening

Check smallest/largest carton orientation and each strap position against usable clearance.

Changing PP rolls leads to feed or joint problems

Record width, thickness and roll/core size; request a run with the intended strap and joint checks at the chosen tension.

The machine runs, but extra straps slow the operator

Include positioning, turning, a second strap and transfer in the timed carton sequence.

Compare measurable results

For a station trial, log accepted cartons, straps/carton, strap lot, elapsed time, jams and rejects. Compare complete cartons/hour; multiplying a single strap-cycle rate omits handling.

Bring your hardest product or packing condition

Ask for an arch-clearance check and a complete strapping-station trial plan, including any sealer/conveyor interfaces.

Include in your inquiry: Carton L × W × H and weight; straps/carton and locations; PP width/thickness/core; loading method; target output and power.

Start with the product or material, its size range and your required output. Use the inquiry form below to provide your contact details; sample shipment and trial scope can then be agreed.

Send requirements for this machine

Two-year warranty: replacement parts and their shipping are free during the warranty period. Lifetime after-sales service is available. A sample-test proposal is not a guarantee of a specific result or a free on-site trial.

Confirm the electrical configuration of your PP strapping station

The listed single-phase voltage and frequency options need one confirmed configuration for the supplied machine. Send your site-supply details together with the carton range and PP strap specification. If conveyors or a carton sealer are requested, identify their separate supply and integration scope in the quotation.

Three items to settle before dispatch

Have your facilities team confirm voltage, phase and frequency at the intended station.
Record the selected machine configuration and any separately supplied equipment in the approved order.
Match the pre-dispatch nameplate and installation documents to that order; resolve discrepancies before connection.

This is a purchasing check. Installation and electrical work require the supplied instructions and qualified personnel.

Strapping machine power supply: order and handover checklist

Download the blank site-supply and order brief

Send my carton and site-supply requirements
