Pallet Stretch Wrapping Machine: Standard & Custom

Product Item : KPW-T1650 / T1850
Category： Wrapping Machine
Views：2390
Standard model: KPW-T1650; custom model: T1850
Standard machine: 1650 mm turntable; listed load up to 2000 kg
Custom options: turntable size, top platen and mast height
Send pallet L × W, loaded height, weight and loading method
Product description：Compare the KPW-T1650 standard pallet stretch wrapper with T1850 custom options for turntable size, top platen and mast height. Send load details for selection help.
INQUIRY

Application fit & configuration

Check loading access and load stability before wrap speed.

The KPW-T1650 rotates the pallet on a turntable. Match the load footprint, total weight and loading method, then agree the film and wrap program for that load.

1650 mmTurntable diameter

2000 kgListed maximum load

Up to 250%Standard powered pre-stretch

Request a configuration review

KPW-T1650 Pallet Stretch Wrapping Machine — Product configuration image. Confirm the supplied model and included equipment in the quotation.

Standard machine or custom configuration

Choose the pallet wrapper around your load

KPW-T1650 · Standard machine

Use the standard turntable pallet stretch wrapper as the starting point. Compare your pallet footprint, loaded height, total weight and loading method with the standard specifications below.

T1850 · Custom machine

Request a configuration for your pallet size and wrapping task. Turntable size, a top platen and mast height can be customized. Final dimensions and the supplied equipment are specified in the project quotation.

Send a load photo for selection help

Start with pallet length × width, loaded height and total weight. Include overhang, fragile or unstable loads, and how you will load the machine. Add a WhatsApp number in the enquiry form if you would like to discuss configuration and available demo videos there.

Three details to settle before a custom quotation

Turntable and pallet fit: provide the pallet footprint and the largest loaded footprint, including overhang. Agree the turntable size and loading access together.
Top platen: tell us whether the load needs support from above and whether its top surface can accept contact. Confirm the platen arrangement for the actual load.
Mast height: provide the required loaded height and available ceiling clearance. Confirm wrapping travel and overall machine height separately.

Specification scope: the technical reference below describes the KPW-T1650 standard machine. T1850 custom dimensions, load limits and included options are agreed for the specific project; do not use the standard-machine figures as a custom-machine specification.

Get a standard or custom pallet wrapper recommendation

KPW-T1650 turntable pallet wrapping reference
The KPW-T1650 uses a 1650 mm turntable, supports loads up to 2000 kg, provides 0–12 r/min turntable speed and includes powered film pre-stretch up to 250% as standard.

Turntable Stretch Wrapping for Stable Pallet Loads

The KPW-T1650 rotates the pallet while the film carriage travels vertically along the mast. PLC settings control wrapping layers and top/bottom reinforcement. A photoelectric sensor detects the load height, while the operator selects the program and positions the pallet on the turntable.

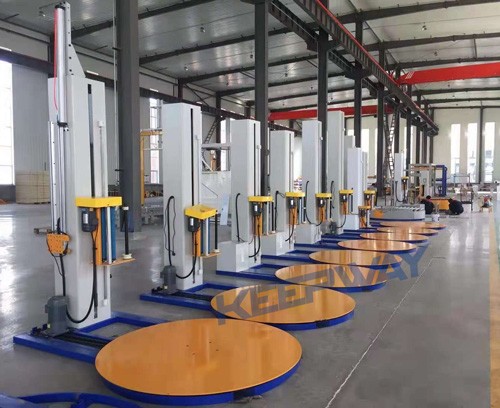

KPW-T1650 turntable pallet stretch wrapping machine with wrapped pallet — KPW-T1650 pallet wrapping machine

Examples of pallet loads wrapped with stretch film — Existing wrapped-load application examples

Watch the Pallet Wrapping Process

KPW-T1650 Standard Machine Specifications

Model	KPW-T1650
Turntable diameter	1650 mm
Turntable height	85 mm
Turntable speed	0–12 r/min
Wrapping size	L500–1200 × W500–1200 × H2000 mm standard; wrapping height can be customized higher or lower.
Maximum load	2000 kg
Machine size	2500 × 1650 × 2450 mm
Machine weight	700 kg
Machine power	1.5 kW
Power supply	110/220/380 V, 50/60 Hz; voltage and phase are configured to customer requirements.
Warranty	24 months
Suitable film	LLDPE stretch film, 500 mm wide, 20–35 μm thick
Film-roll inner diameter	76.2 mm
Film-roll outer diameter	250 mm

Control, Turntable and Film Carriage

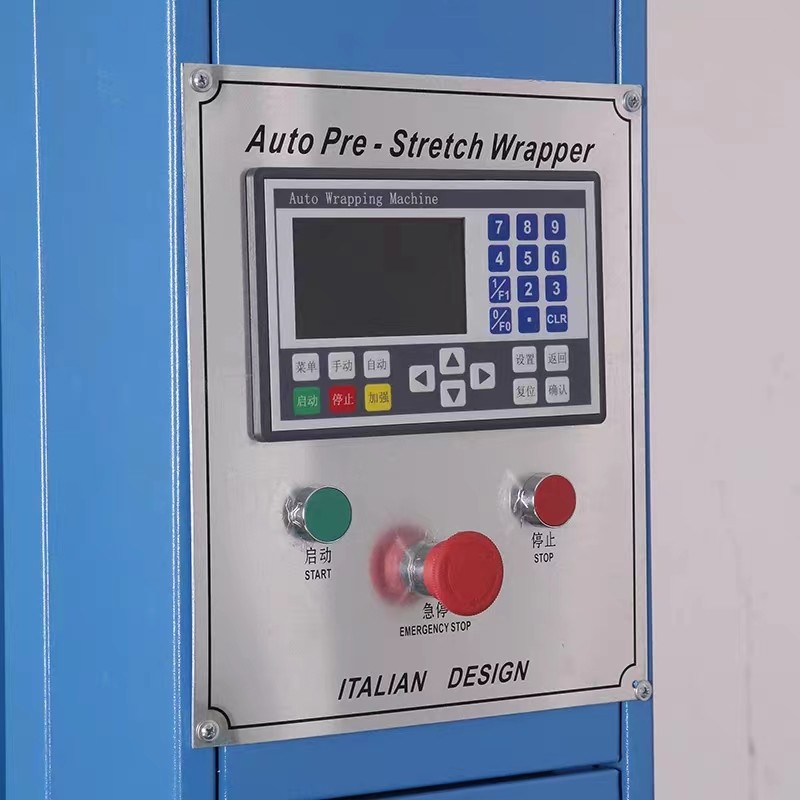

Pallet stretch wrapping machine PLC touch-screen control panel — PLC touch-screen control

Thickened turntable of pallet stretch wrapping machine — 1650 mm turntable structure

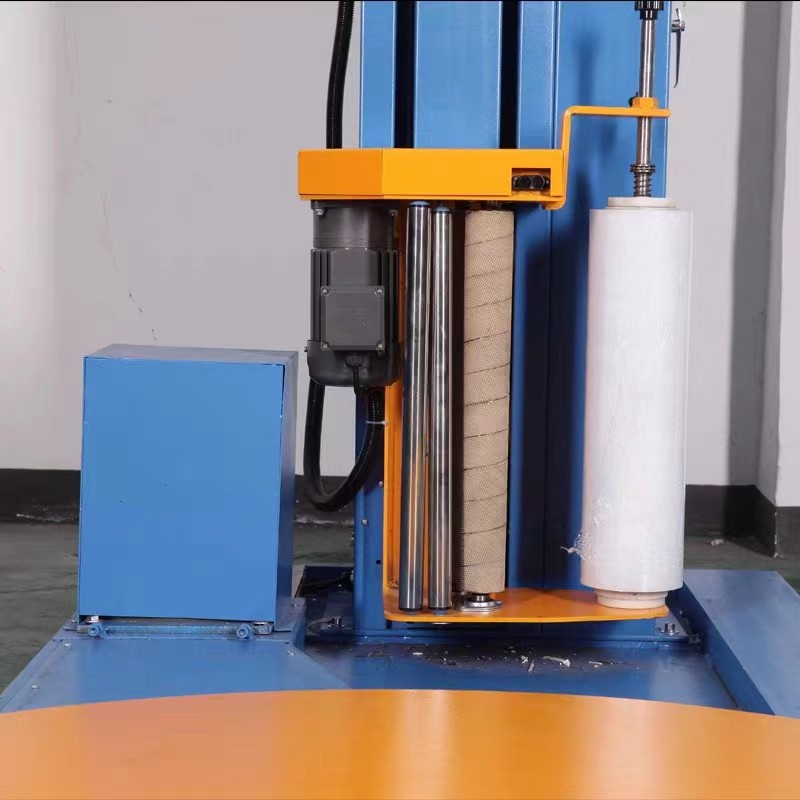

Powered pre-stretch film carriage on pallet wrapping machine — Powered film pre-stretch carriage

Automatic height sensing pallet wrapping machine with wrapped load — Automatic height sensing and wrapped-load reference

Control and Wrapping Functions

PLC programs
Set wrapping layers and top/bottom reinforcement.

Height sensing
Photoelectric sensor detects the pallet-load height.

Variable speed
Turntable, carriage travel and film feed are adjustable.

Powered pre-stretch
Standard powered film pre-stretch up to 250%.

Turntable reset
Returns to a loading/unloading position after the cycle.

Fault monitoring
Fault alarms and a monitoring interface assist troubleshooting.

Forklift access
A forklift slot below the turntable supports machine handling.

Chain drive
Turntable and carriage structures use chain transmission.

Application Examples

Pallet stretch wrapping machine used with cartons bags and industrial pallet loads — Existing pallet-load application collage

Buyer checks before quotation

Maximum pallet length, width, height and total weight.
Load stability and whether a top press is required.
Required film pre-stretch and film-roll specification.
Forklift, pallet truck or conveyor loading method.
Target pallets/hour and required wrapping program.
Local voltage, frequency, phase and safety standard.

How the Wrapping Cycle Works

Place the pallet centrally on the turntable and attach the film.
Select the wrapping program and reinforcement settings.
The turntable rotates while the carriage moves up and down.
Complete the cycle, cut the film and remove the wrapped pallet.

Standard configuration: powered film pre-stretch up to 250%.

Request a Pallet Wrapping Configuration

Send pallet dimensions, weight, load photos, target output, film specification, loading method, local power standard and destination country.

View Wrapping Machines Compare Robot Wrapper Send Pallet Details

Build an evidence-based quotation

Turn your packing problem into an acceptance check

A pallet truck cannot use the proposed loading arrangement

Send the handling method and site sketch; confirm ramp or other access equipment separately in the quotation.

The load fits by weight but is unstable while turning

Review dimensions, centre of gravity and wrap force using the actual load; any top-press requirement needs a selected configuration.

Pre-stretch is treated as an automatic saving percentage

Compare film mass per secured pallet at the same wrap pattern and acceptance criteria, rather than equating the ratio with cash savings.

Compare measurable results

Record loading, film attachment, wrapping, cutting and unloading time. Divide accepted pallets by the full elapsed period; 0–12 r/min is turntable speed, not pallets/hour.

Bring your hardest product or packing condition

Ask for a turntable fit/access check and a proposed load-stability and film-use comparison.

Include in your inquiry: Pallet dimensions and total weight; load photos; forklift/pallet-truck method; target output; film roll; floor sketch and power.

Start with the product or material, its size range and your required output. Use the inquiry form below to provide your contact details; sample shipment and trial scope can then be agreed.

Send requirements for this machine

Two-year warranty: replacement parts and their shipping are free during the warranty period. Lifetime after-sales service is available. A sample-test proposal is not a guarantee of a specific result or a free on-site trial.

Will your pallet truck fit the loading arrangement?

Before approving a wrapper, confirm the approach route, ramp or loading arrangement, truck withdrawal space and the complete installed footprint. Send your actual pallet truck details and a marked-up site sketch.

Use the pallet wrapper loading access checklist
