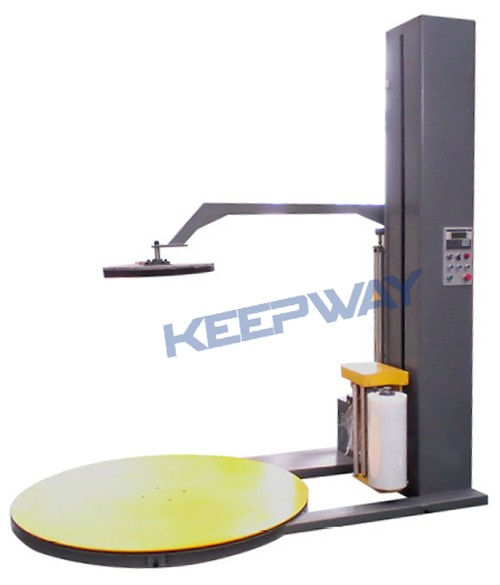

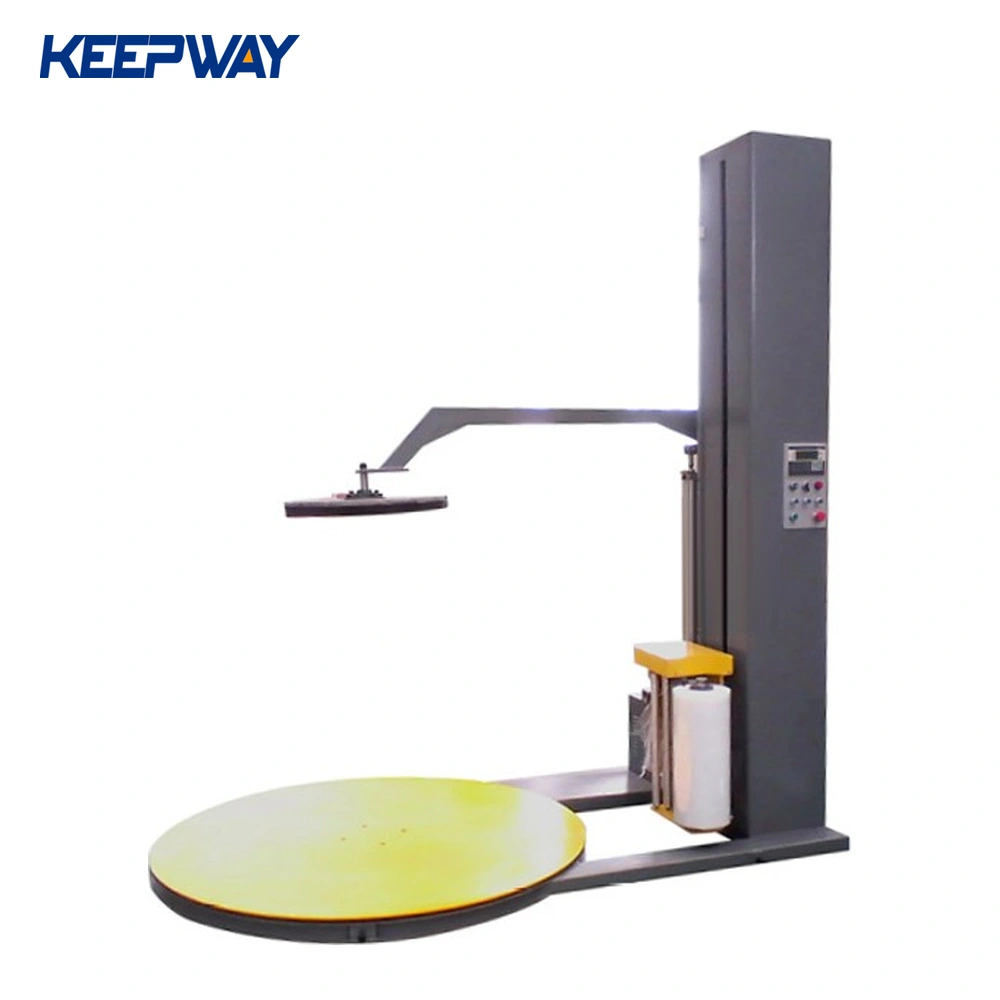

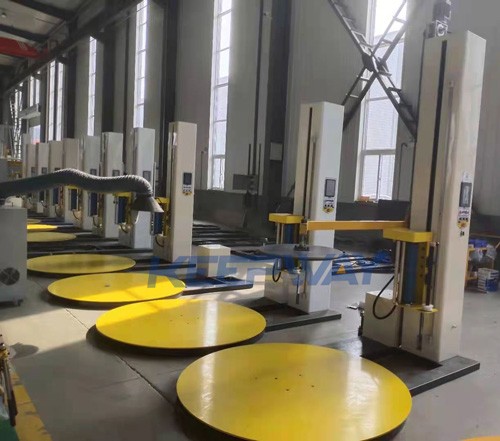

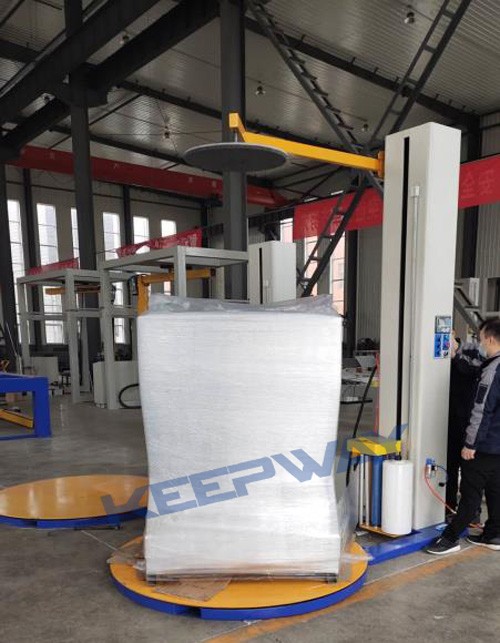

Top Platen Pallet Wrapping Machine

Automatic Top Platen Pallet Wrapping Machine / Stretch Film Packing Machine

Introduction of Top Platen Pallet Wrapping Machine:

The top platen pallet wrapping machine uses LLDPE stretch film around palletized loads. Before selecting the top-pressure configuration, provide the pallet size, total load weight and height, load stability, and photographs of the top surface. Confirm where the platen can contact the goods and the pressure they can tolerate, especially for uneven, fragile or compressible loads.

Check the height limit against the quotation: the summary lists 2000 mm, while the specification image lists 1800 mm. The image also labels top pressure as "20kgs". Ask the supplier to confirm the usable wrapping height, the meaning and adjustment range of that pressure entry, and the supplied model's electrical requirements. Do not use the 2000 kg maximum load as a platen-pressure value.

Trial the quoted configuration with representative loads and film. Check package deformation and load stability during loading, wrapping and unloading, and agree how film is attached and cut. Confirm operator tasks, safeguards and the supplied control functions. Approve the finished load for its intended handling and storage; machine speed or pre-stretch figures alone do not establish throughput, film savings or moisture protection.

Technology Parameter of Top Platen Pallet Wrapping Machine:

Features of Top Platen Pallet Wrapping Machine:

Control System:

1) With a separate PLC programming control system, the number of winding layers and times can be set;

2) The touch screen displays the PLC operation display interface;

3) Photoelectric switch, which automatically senses the height of the goods;

4) The top layer, bottom layer, and the number of reciprocating laps can be set individually;

5) The photoelectric switch is turned on and off; the film breaking and film shortage alarm can be set in the operation screen.

6) The machine has the function of detecting faults. If there is a fault, open the "monitoring interface" to monitor the machine failure

7) The device has a one-key restore to factory settings function. When the user adjusts the parameters of the device in confusion, he can press the one-key restore button to restore the factory settings and reset the parameters.

Turntable Drive:

1) Turntable frequency conversion speed regulation 0～12 rpm adjustable;

2) Turntable motor power: 0.75kw

3) The drive of the turntable is a chain drive, and the positioning is accurate;

4) The turntable is automatically reset, which is convenient for loading and unloading goods on the spot.

5) The bottom of the turntable is equipped with a forklift slot.

6) Thickness of chassis steel plate: 10mm

7) Chassis chain: 12A

Film Carriage System:

1) The film carriage is an AC motor pre-stretching mechanism, equipped with frequency conversion speed regulation;

2) Adjusting the film tension, the pre-stretching can reach 250%;

3) 10A double chain structure, stable and reliable;

4) Film carriage lifting motor power: 0.55kw

5) The raising and lowering speeds of the film carriage and the film feeding speed are adjustable by frequency conversion;

6) The wrapping numbers of the top and bottom are separately controlled;

7) Membrane system follow-up mechanism, just pull it;

8) Install a photoelectric switch on the film carriage to automatically detect the height of the goods.

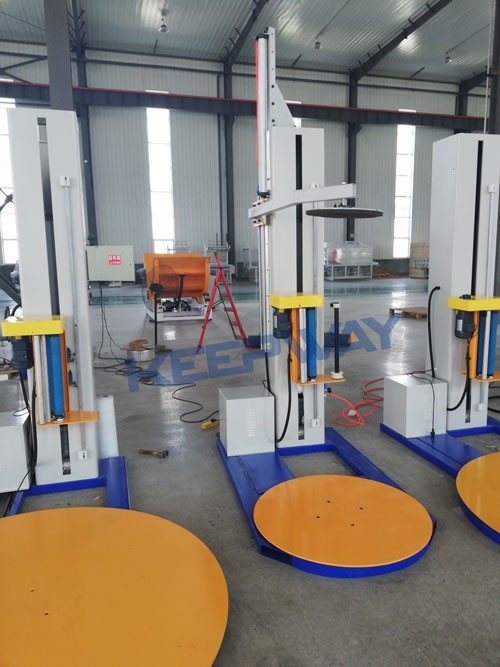

Column Structure:

1) Double chain structure, stable and reliable

2) The lifting chain adopts 10A chain transmission, which has high service life and wear resistance

3) The column has a convenient maintenance module

4) The column box: wall thickness 1.5mm, upper and lower plates 6mm, inner corner reinforcement plate 6mm

Surface Treatment:

The whole machine adopts outdoor plastic powder spraying treatment, which is resistant to abrasion and rust

PLC Programmable Control

Photoelectric Switch, Automatically Sensing The Height Of The Goods
