vertical baler machine manual for waste paper

vertical baler machine manual for waste paper

Category： Baling Machine
Views：2682
Model:10T
Motor:7.5KW
Baler Size:800*400*800mm
Baler Weight:30 to 40kgs
Product description：Review vertical hydraulic balers for waste paper and cardboard. Confirm bale size, manual tying, electrical supply and discharge options for the selected model.
Attachment INQUIRY

Waste Paper Baler Machine /Baling Press Machine

Introduction of Waste paper baler machine/baling press machine:

This vertical hydraulic baler range uses electrical controls and manual bale tying. Match the selected model to the proposed waste paper or cardboard, required bale and handling method. For plastic bottles, film, textiles or other materials, request a material-specific suitability review. Use the confirmed model table below for pressing-force and dimensional references; agree bale weight and complete working-cycle output for your actual material and configuration.

Labeled diagram of a vertical hydraulic baler and its main components

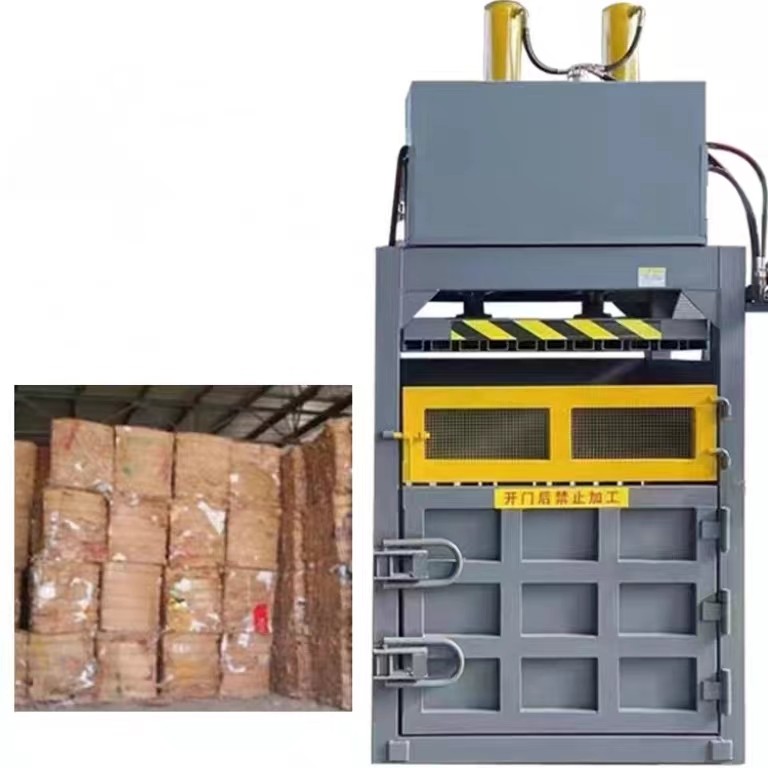

Reconstructed double-cylinder vertical hydraulic baler display with reinforced door and locking handles Reconstructed equipment illustration. Final details depend on the selected configuration.

Two outdoor views of a vertical hydraulic baler

Technology parameter of Vertical Hydraulic Baling Machine:

Vertical hydraulic baler size selection8 ton · single cylinderChamber: 600 × 400 × 950 mm; bale: 600 × 400 × 600 mm; machine: 1260 × 660 × 2150 mm10 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2650 mm20 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2700 mm30 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm40 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm60 ton · double cylinderChamber: 1100 × 750 × 1450 mm; bale: 1100 × 750 × 950 mm; machine: 1600 × 2100 × 3100 mm80 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3200 mm100 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3300 mm120 tonConfirmed bale size: 1100 × 700 × 1800 mm; request the complete selected-configuration drawingConfirm the material, target bale weight, motor option and discharge arrangement for the ordered model. Dimensions do not specify a universal motor or installation package.Confirmed bale dimensions: 30-ton model: 1000 × 600 × 800 mm; 120-ton model: 1100 × 700 × 1800 mm. Share your material and required bale size when requesting a quotation.

Features of Waste Paper Baler Machine:

* Applicable to a practical model for small and medium-sized companies to compress garbage.

* 8T, 10T and 20T configurations are ready to use after connection to the specified electrical supply. Follow the supplied pre-start checks. Confirm setup requirements for other models.

Door-handle and locking arrangements are part of the selected configuration. Follow the model-specific operating procedure; do not use a general product description as the door-opening sequence.

Confirm the motor and electrical supply for the ordered configuration. The confirmed 30T motor is 15 kW; this does not specify the motor for every other tonnage.

* 60T and 80T models can be ordered with optional push-out bale discharge. This option must be specified separately; confirm the arrangement for other models.

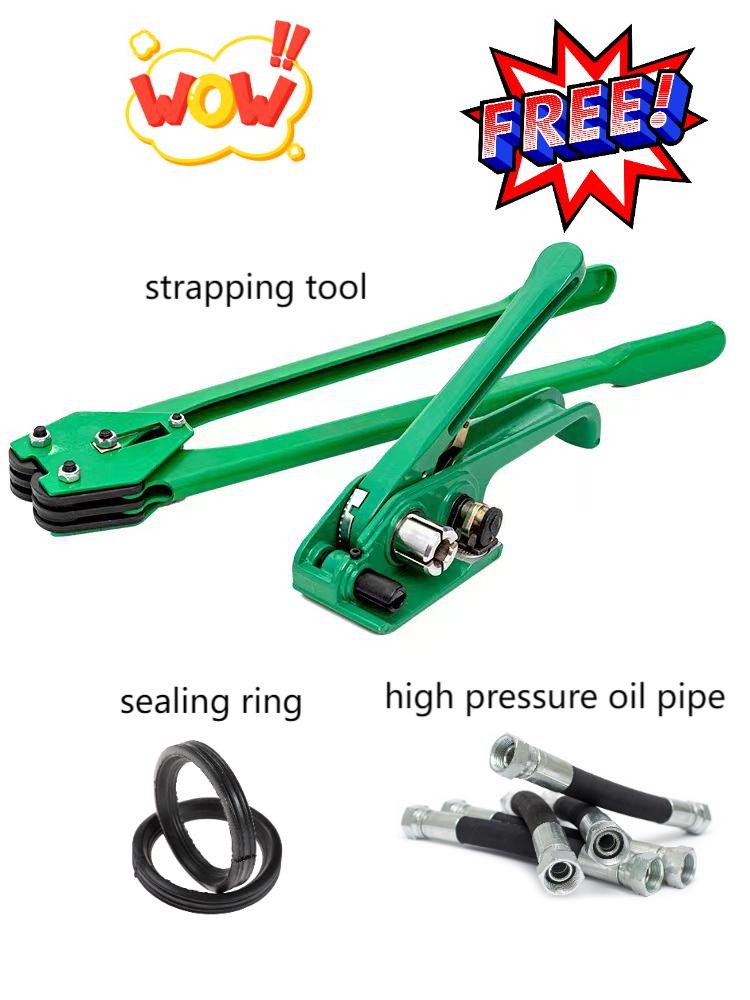

Include hoses and connections in the inspections required by the supplied instructions. Report visible leakage or damage and arrange qualified support before further operation; no leak-free service life is promised.

Request the maintenance instructions and recommended inspection schedule for the actual model. Record faults and service work so that later support uses the same machine history.

Reconstructed vertical baler illustration showing the open door and a close-up of the U-shaped handle Reconstructed equipment illustration. Final details depend on the selected configuration. Installation requirements are confirmed for the ordered model.

Reconstructed equipment illustration. Final details depend on the selected configuration. Bale discharge method varies by model.

What Models We Have:

Larger vertical baler models shown side by side

What Materials Can Bale:

Vertical balers with compressed materials and finished bale examples

Company presentation with facility, workshop, team and document photographs

Installation and optional bale discharge8T / 10T / 20TReady to use after connection to the specified electrical supply; no machine assembly required for these configurations.60T / 80TPush-out bale discharge is available as an optional item. Specify it in the quotation and order; it is not standard equipment.30T motor15 kW for the confirmed 30-ton configuration.Other modelsConfirm installation, electrical supply and discharge requirements for the selected configuration.Complete the pre-start checks in the supplied operating instructions. Confirm local voltage and phase before ordering.

Documentation and operator handover

For an existing unit, include the model, serial number, order reference, installed discharge option and the manual section concerned. For a purchase, add the material, target bale and destination supply.

Send your requirements or support request

Coordinate collection requirements and operator handover

For a new installation or a documentation enquiry, identify the model and the material being baled. Keep collector acceptance separate from operator instructions: bale dimensions, weight and ties need a collection review, while operation and maintenance need the supplied model-specific manual and training.

Start with the details you know

Material photographs and average / peak quantities, with units and time period.
Collector acceptance sheet, or a note that these requirements are still pending.
Site layout, handling equipment and the available electrical supply.

Agree a representative trial and record the actual configuration, finished bale measurements and collector response. A collection approval does not guarantee resale value or a fixed payback period.
