vertical hydraulic carton box press baler machine

Waste Paper Baling Machine /Hydraulic Baling Press Machine

Introduction of Waste paper baling machine/hydraulic baling press machine:

Waste paper baling press machine is mainly used to compress waste paper, plastic bottles, wool, cardboard, cartons, cotton, sand thread, plastic film, woven bags, tires, cans, wheat straw, alfalfa hay, grass, rice husk, peanut shells package.It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.Usually the pressure force of this series is from 10 ton KN to 120 ton KN, the efficiency is 4 ~ 6 pieces per hour. The weight of each piece is from 30 kgs to 500 kgs according to the material.saving space and facilitating storage and transportation

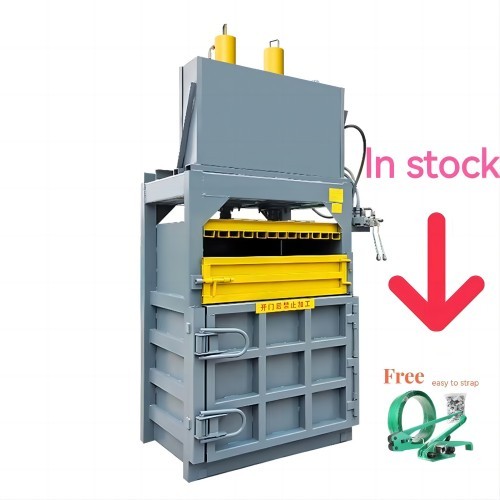

Reconstructed equipment illustration. Final details depend on the selected configuration.

Technology parameter of Vertical Hydraulic Baling Machine:

Vertical hydraulic baler size selection8 ton · single cylinderChamber: 600 × 400 × 950 mm; bale: 600 × 400 × 600 mm; machine: 1260 × 660 × 2150 mm10 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2650 mm20 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2700 mm30 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm40 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm60 ton · double cylinderChamber: 1100 × 750 × 1450 mm; bale: 1100 × 750 × 950 mm; machine: 1600 × 2100 × 3100 mm80 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3200 mm100 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3300 mm120 tonConfirmed bale size: 1100 × 700 × 1800 mm; request the complete selected-configuration drawingConfirm the material, target bale weight, motor option and discharge arrangement for the ordered model. Dimensions do not specify a universal motor or installation package.Confirmed bale dimensions: 30-ton model: 1000 × 600 × 800 mm; 120-ton model: 1100 × 700 × 1800 mm. Share your material and required bale size when requesting a quotation.

Features of Waste Paper Baler Machine:

* Applicable to a practical model for small and medium-sized companies to compress garbage.

* Installation requirements depend on the ordered configuration. Confirm the setup requirements for the selected model.

* U-shaped anti-dropping door handle, easy to unlock, greatly reducing the time cost after packing.

* Motors adopt brand copper core motors with strong power, durability, faster heat dissipation, and guarantee the machine continues to run smoothly.

* Bale discharge is specified by model. Confirm the push-out or tip-out arrangement and any optional equipment for the ordered configuration.

* Imported abrasion-resistant and high-sealing oil pipe with thick pipe wall and strong sealing performance of the connection port to ensure the compression work no oil leaks during operation.

* Low failure rate and durable.

Reconstructed equipment illustration. Final details depend on the selected configuration. Installation requirements are confirmed for the ordered model.

Reconstructed equipment illustration. Final details depend on the selected configuration. Bale discharge method varies by model.

What Models We Have:

What Materials Can Bale:
