horizontal pallet strapping machine

horizontal pallet strapping machine

How to solve the problem of bundling the pallets in the horizontal direction

Strap route and frame clearance

For a palletized load, first mark the required strap route. A horizontal pallet strapping machine applies bands around the sides at selected heights; this is different from a vertical strap routed over the goods and beneath the pallet. The frame can move between agreed band heights, but the complete station also needs specified pallet positioning, transfer controls and safeguards. Confirm frame clearance and lifting travel against the smallest and largest loaded pallet.

Strap compatibility and sample checks

Do not assume PP and PET are interchangeable: confirm the strap material, width and thickness with the quoted head and reel arrangement. For soft cartons or mixed loads, trial the band position, joint and acceptable compression on representative goods.

Complete-station output and quotation

Measure output from pallet arrival through discharge, including the number of bands and operator tasks. Send load photographs, dimensions, weight and a site sketch for a matched quotation; fully unattended operation must be established for the complete ordered system.

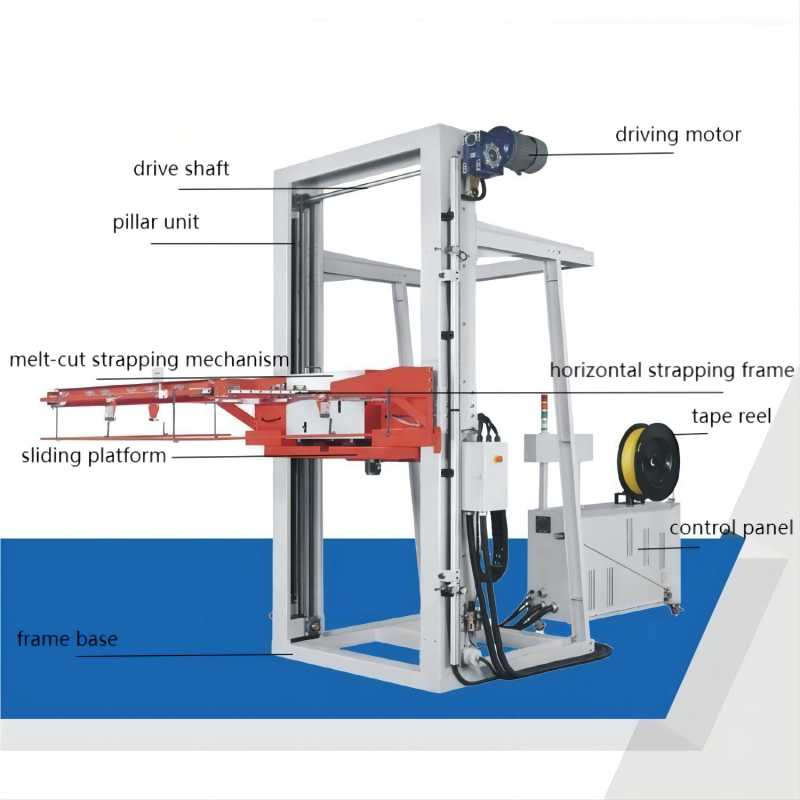

Horizontal pallet strapping machine with labeled frame, lifting pillars, strap reel and control panel
