“Automatic tape wrapping” needs a defined operating sequence. Before ordering, identify the tasks performed by the machine and the tasks that remain with an operator or other equipment.

Specify the operation at each step

1. Prepare the carton. State whether it arrives filled, with its flaps already held or sealed. Do not assume a wrapper includes a carton erector or flap closer.
2. Load and position. Agree the loading method and the carton support. Identify how operators position the required tape path and keep clear of moving parts.
3. Start the wrapping cycle. Confirm the start method, operating safeguards and configured controls in the supplied operating procedure.
4. Inspect and reposition. If bands are required in another direction, state how the carton is turned and who performs that task.
5. Unload and transfer. Identify whether the next movement is manual or performed by separately specified conveying equipment.

A carton that needs manual loading and turning is not an unattended packing line. Similarly, a tape band is not a welded plastic strap. Review strapping equipment separately if that is the required restraint.

Confirm the model and working envelope

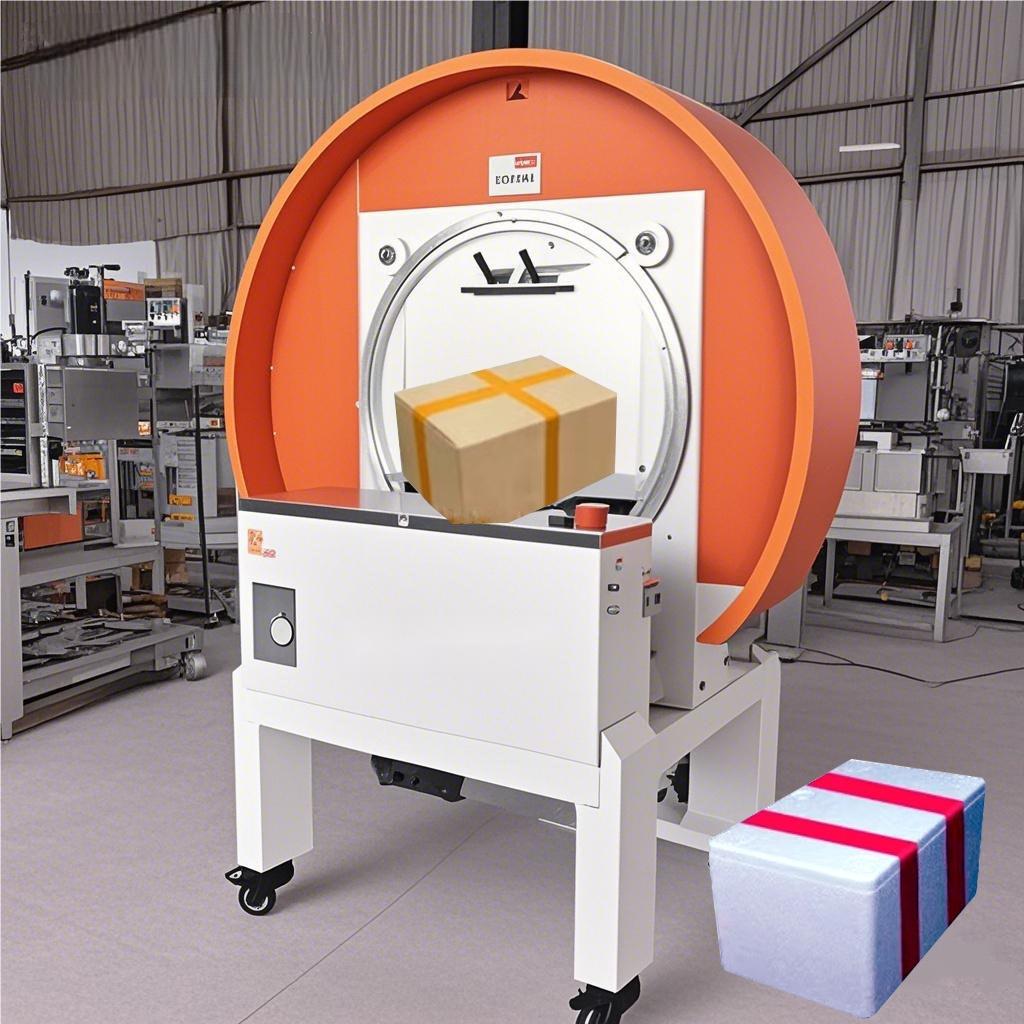

The current linked product is KPW-3040, with a confirmed reference carton footprint of 300 × 400 mm, length × width. Provide the height, filled weight and complete size list before equipment selection. This reference does not define the minimum or maximum carton size. Destination utilities also need confirmation in the quotation.

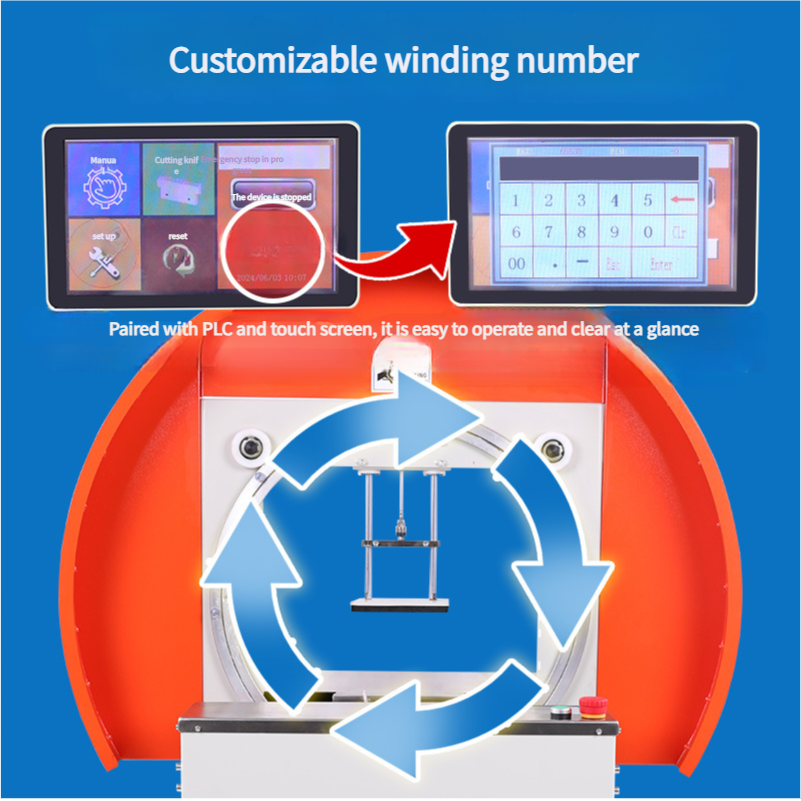

Existing winding-control illustration

Test the workflow, not just the ring movement

Use filled cartons in the order they arrive during the shift. Record accepted output over an agreed interval, including loading, positioning, turning, unloading, tape replacement and rework. Use the same time boundary when comparing the current process and the proposed station.

For changing carton sizes, agree how adjustment is performed and include it in the trial. For lifting tape, inspect the carton-and-tape combination using the compatibility checklist. Adding turns without understanding the failure can increase material use without proving acceptable closure.

Agree the acceptance and support package

• Required tape path and finished-carton appearance.
• Representative carton and tape samples with their identifiers.
• Operator tasks, operating instruction and training scope.
• Expected production sequence and the method for measuring accepted output.
• Wear parts, maintenance responsibilities and support arrangements to be stated in the quotation.

No fixed output increase, tape-saving percentage or labour reduction is promised by this guide. Those outcomes depend on the actual process, materials, configuration and measured trial results.

Describe your station for a matched enquiry

Send filled carton dimensions and weight, a photo with the tape path marked, tape details, available utilities and a short description of loading and unloading. Include the output you need and a reply email. For centre-seam tape closure instead of ring wrapping, review the carton tape sealing machine.
