Tape Wrapping Line: Trial and Integration Checks

Tape Wrapping Line: Trial and Integration Checks


Evaluate a tape-wrapping station using representative cartons, the required tape path and the complete handling cycle. Confirm the quoted configuration before comparing output, tape use or cost.
carton tape wrapping machine, tape wrapping machine, tape packing machine, automatic tape wrapping machine

Identify the Actual Packaging Bottleneck

For e-commerce, logistics or manufacturing, record the current packing job before selecting another machine. Useful observations include:

Operator time for loading, alignment, wrapping and removal.

The carton-size mix and required output during busy periods.

Handling tasks, access and training needs at the proposed station.

Tape position, adhesion, carton condition and rejected packages.

Use these observations to define a repeatable trial.


Match the Tape Path to the Package

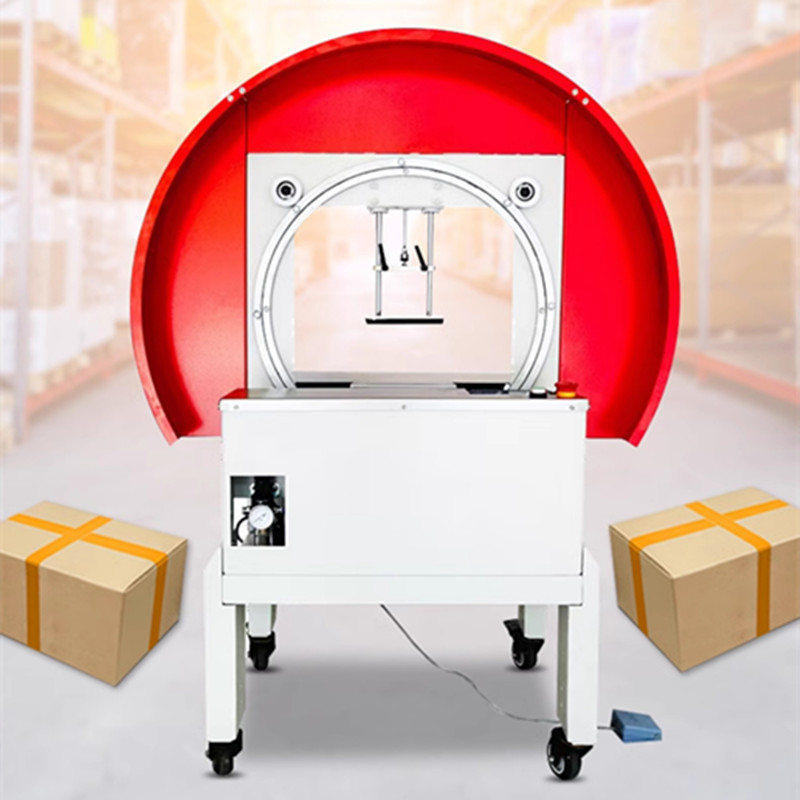

A ring-type wrapping arrangement carries tape around the package. Check the actual tape route on the carton or foam-box sample, including where the joint lies and whether the intended seams are covered. The linked product descriptions support adjustable wrapping circles and induction or pedal control; they do not establish a complete unmanned line or identify the models in these original photographs.

Acceptance Checks for the Proposed Station

Measure Complete-Job Output:
For a tape packing machine trial, count accepted packages over a recorded period. Include loading, alignment, the selected wrapping cycles, removal and interruptions. A cycle figure alone is not a verified boxes-per-hour result.

Check Sealing Quality:
Inspect the tape path, overlap, adhesion and package surface after the expected handling sequence. Record wrinkles, weak joints or damage rather than assuming every wrapped package is acceptable.

Confirm the Configuration:
Use the carton tape wrapping machine information as a starting point for a quotation, then confirm the proposed machine and included options against your sample packages.

Opening and Clearance: Provide minimum and maximum package dimensions, weight and orientation. Confirm the usable opening and any size changeover; do not assume the physical ring diameter is operator-adjustable.

Wrapping Circles: The linked descriptions say the number of circles can be set. Agree the available settings and trial the selected number on your package instead of treating example counts as a universal specification.

Line Integration: Specify conveyor height, transfer direction, package detection, control interfaces and safeguards. Confirm what is supplied and which handling tasks remain with the operator.


Compare Costs with a Recorded Baseline:
Compare tape consumed per accepted package, operator time, rejects, maintenance and the complete installed quotation. Estimate payback from your own volumes and costs; a six-month return or percentage improvement requires supporting measurements, not a general product description.

Application-Specific Checks:

E-commerce Fulfillment: Trial the smallest and largest parcels and the actual peak-period carton mix.

Third-Party Logistics: Check each relevant client package and tape requirement; one successful sample does not validate every shipment.

Food and Pharmaceutical Packaging: Confirm the outer package, contact surfaces, handling conditions and applicable requirements. Tape wrapping alone does not establish temperature control or product protection.

Manufacturing and Distribution: Check finished carton condition, tape positions and the downstream handling route.

Prepare a Matched Quotation Request

Send package photographs, dimensions, weight, tape details, required output and a layout sketch. Use the existing product links to request configuration confirmation and a relevant trial before agreeing the purchase scope.
