Start with a marked photograph of the finished carton. A strip along a flap joint and a tape band around the carton call for different equipment. Deciding the tape path before comparing speed makes the quotation easier to evaluate.
Match the packing job to the equipment
| Required result | Review first | State separately |
|---|---|---|
| Tape along the top and bottom centre seams | Carton tape sealing machine | Flap preparation, size adjustment and upstream feeding |
| A tape band around the carton | Ring tape wrapping machine | Loading, positioning, the band location and unloading |
| Bands in two directions | A specified wrapping sequence | Whether turning or repositioning is manual or included equipment |
| Load restraint using a plastic strap | Strapping equipment | Strap material, tension and package protection |
Tape wrapping is not the same operation as heat-sealing a plastic strap. A completed cross-taped box does not establish that one machine automatically folds, turns and conveys it.
Send the complete carton size and orientation

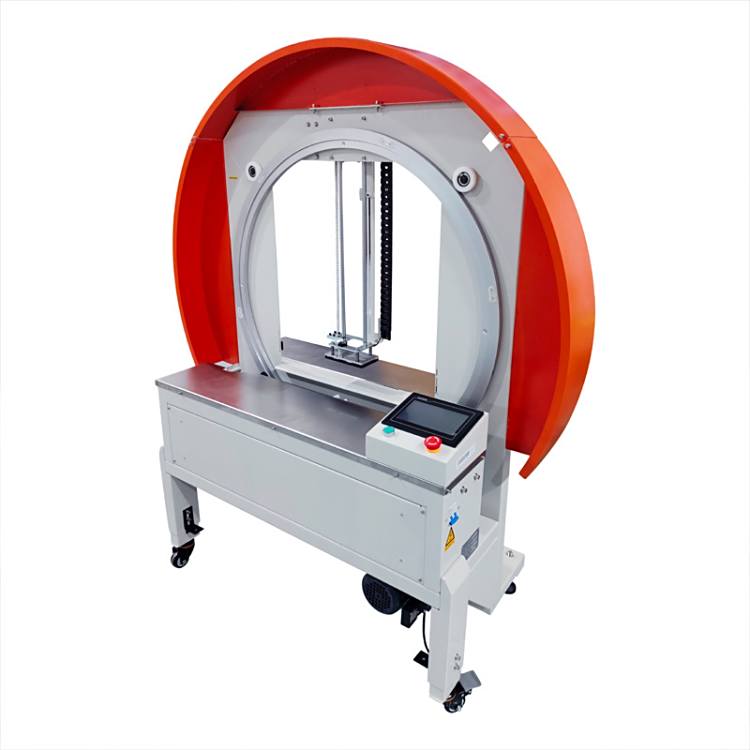

The confirmed model for the linked ring tape wrapper is KPW-3040. Its confirmed reference carton footprint is 300 × 400 mm, length × width. Height and the full permitted carton range still require application confirmation. This footprint must not be read as a maximum, a minimum or a ring-clearance dimension.
Provide all filled sizes, weights, contents support and the way each box will pass through the work area. Include short runs and frequent size changes, not only the easiest carton.
Choose the tape using evidence from the carton
Specify tape width, supplier SKU, roll core and outer diameter, then send the carton contact surface. Printed, coated and recycled-board cartons should be evaluated with the proposed tape. If tape lifts later, record the conditions and timing rather than assuming that more turns will solve the issue.
Use the carton and tape compatibility trial checklist to agree materials, later observations and acceptance criteria.
Compare accepted output and material use
During a sample run, record accepted cartons, rework, tape changes, stoppages and operator tasks over the same period. For tape consumption, count the actual wrap path and turns, overlap, tail and trial waste. Savings can only be estimated against your measured current process and the tested proposal; no universal percentage applies.

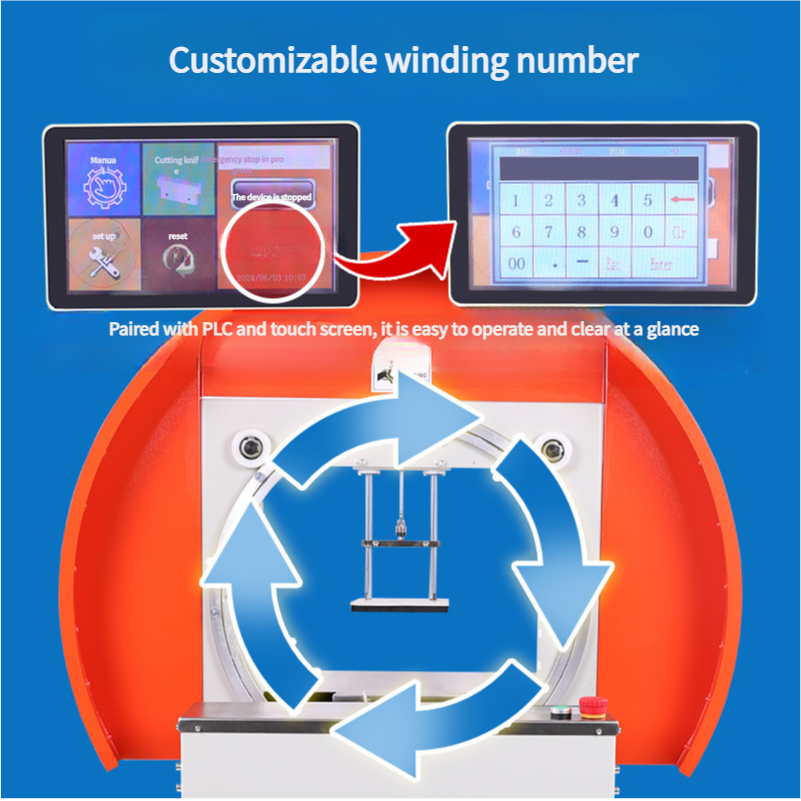

Control-panel illustration from the existing product material
Get a configuration review
Send filled L × W × H, weight, tape details, the marked tape path, target accepted output and available utilities. Add photos of the current packing station and any damaged or reopened cartons. Include a reply email in the enquiry so we can discuss the sample and the required equipment scope.
Review my carton tape wrapping requirement
Have only the carton and a photo? Start there.
Send the filled carton dimensions and weight, plus a photo with the tape path marked. Mention any missing tape or configuration information so it can be reviewed during the discussion.
Download the carton and tape enquiry checklist to organise the remaining details at your own pace.
