Vertical Hydraulic Baling Press Machine for Waste Paper and Plastic

Vertical Hydraulic Baling Press Machine for Waste Paper and Plastic

Category： Baling Machine
Views：3998
Press Force: 8–120 Ton
Bale Weight: 20–500 kg, Material Dependent
10 Ton Bale Size: 800 × 400 × 800 mm
Motor Power: 4–22 kW
Product description：8–120 ton vertical hydraulic baling press series for waste paper, cardboard, plastic, textiles and selected metal materials, with two-year warranty and configurable bale sizes.
Attachment INQUIRY

Keepway vertical hydraulic baling press machine — Vertical hydraulic baling press for recyclable materials

Select the Baler by Material, Volume and Bale Target

Press-force range
8–120 ton

Bale-weight range
20–500 kg, material dependent

Motor range
4–22 kW

Structure
Vertical hydraulic press

Binding
Manual binding; options require confirmation

Typical materials
Paper, cardboard, plastic and textiles

Metal-material models
60/80/100/120 ton

Warranty
Two years

Vertical Hydraulic Baling Press Overview

This vertical hydraulic baler compresses loose recyclable materials into compact bales to reduce storage volume and simplify handling and transport. The existing model table covers press forces from 8 to 120 ton, allowing the machine to be selected according to the material, loose density, daily volume and target bale size.

Typical materials include waste paper, cardboard, plastic bottles, plastic film, woven bags, textiles and straw. Cans and selected metal materials are suitable for the 60, 80, 100 and 120 ton models; final suitability still depends on the material thickness, loose density and required bale.

View the complete baling machine range, compare the scrap metal press baler, or review the horizontal cardboard baler.

Watch the Vertical Baler Working

What buyers should verify

Material loading and door operation.
Downward hydraulic compression cycle.
Manual tying and bale-ejection procedure.
Finished bale size, density and handling method.

Key Machine Features

Vertical structure
Uses a smaller floor footprint than many horizontal baling systems.

Hydraulic compression
The hydraulic system drives the platen to compact loose material.

Anti-drop door handle
The current design uses a U-shaped handle intended to simplify opening after pressing.

Copper-core motor
The existing detail image identifies an all-copper motor for continuous operation.

Sealed hydraulic components
Existing detail images show the cylinder, oil pipes and welded structure.

Optional bale ejection
The current description states that bale-ejection customization can be supplied; configuration must be confirmed.

Machine Details Buyers Can Inspect

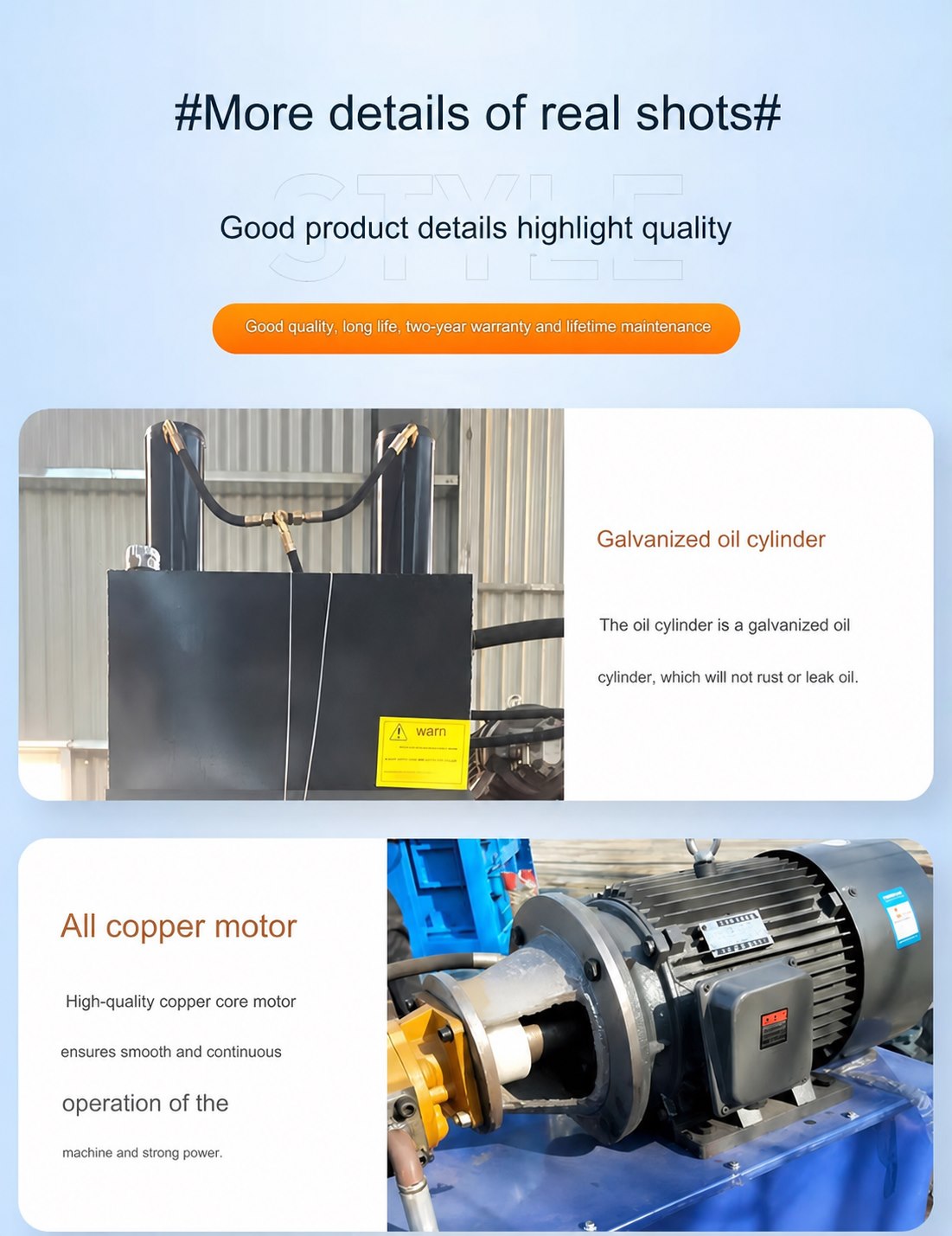

Vertical baler galvanized hydraulic cylinder, copper-core motor and two-year warranty details — Hydraulic cylinder, copper-core motor and two-year warranty details

Vertical baler welded structure and operating handle details — Welded structure and operating handle

Keepway vertical hydraulic baler component identification — Component identification for configuration review

Model Selection

Swipe horizontally to view all model parameters.

Press force	Motor power	Approx. bale weight	Bale size	Machine size	Machine weight	Cans / selected metal materials
8 ton	4 kW	20 kg	600 × 400 × 600 mm	1250 × 650 × 2150 mm	500 kg	No
10 ton	7.5 kW	40 kg	800 × 400 × 800 mm	1450 × 650 × 2600 mm	600 kg	No
20 ton	7.5 kW	80 kg	800 × 400 × 800 mm	1450 × 650 × 2700 mm	650 kg	No
30 ton	11 kW	150 kg	1000 × 600 × 800 mm	1650 × 850 × 2700 mm	750 kg	No
40 ton	11 kW	200 kg	1000 × 600 × 800 mm	1650 × 850 × 2750 mm	800 kg	No
60 ton	15 kW	300 kg	1200 × 800 × 1000 mm	1600 × 2100 × 3100 mm	1300 kg	Yes
80 ton	18.5 kW	400 kg	1200 × 800 × 1000 mm	1700 × 2100 × 3300 mm	1500 kg	Yes
100 ton	22 kW	450 kg	1200 × 800 × 1000 mm	1700 × 2100 × 3900 mm	1600 kg	Yes
120 ton	22 kW	500 kg	1100 × 700 mm (listed cross-section)	1400 × 2000 × 4200 mm	1700 kg	Yes

Bale weights and dimensions are reference values and may vary with material type, loose density, moisture, selected configuration and operating conditions. Final specifications are confirmed in the quotation.

10 Ton Reference Configuration

Press force	10 ton
Motor power	7.5 kW
Approx. bale weight	40 kg, material dependent
Bale size	800 × 400 × 800 mm
Machine size	1450 × 650 × 2600 mm
Machine weight	600 kg

Series selection note: this page covers the complete 8–120 ton vertical hydraulic baler series. The 10 ton unit remains below as a reference configuration for buyers comparing smaller models.

Suitable Materials and Applications

Baled waste paper plastic bottles straw cans and foam materials — Material examples shown on the existing page; suitability depends on the selected model

Retail and warehouses
Cardboard cartons, waste paper and plastic film.

Recycling collection
Plastic bottles, woven bags and selected packaging waste.

Textile operations
Cotton, fabric and other compressible textile materials.

Agricultural materials
Straw, hay and similar loose materials after suitability confirmation.

Real-Machine and Baling Results

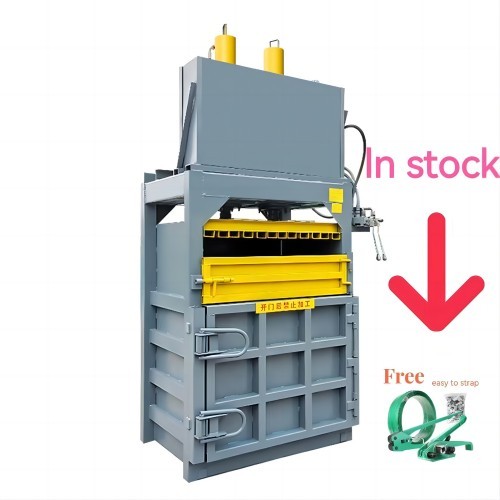

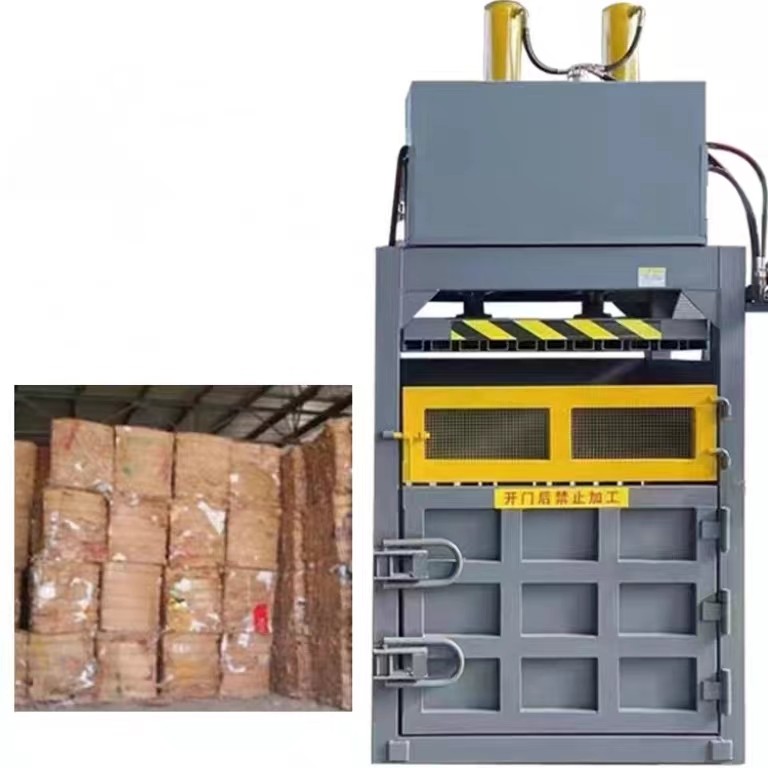

Real vertical hydraulic baling press machine — Real vertical baler configuration

Multiple vertical hydraulic baling press machines — Multiple vertical baler units

Finished bales of cans textiles plastic bottles and cardboard — Examples of finished bales

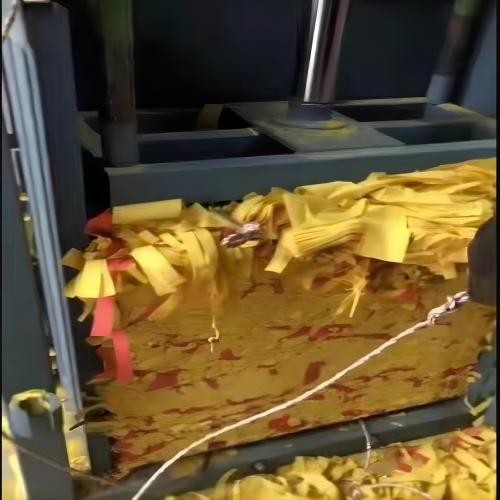

Operator using a vertical hydraulic baling press — Existing operating demonstration

Large compressed plastic bottle bales beside a vertical baler — Existing bale-ejection and finished-bale evidence

Company and Factory Evidence

Company and service: Keepway has more than seven years of relevant production experience, and the warranty period for this series is two years.

Keepway exhibition evidence and more than seven years of machinery-industry experience — Exhibition and company-history evidence

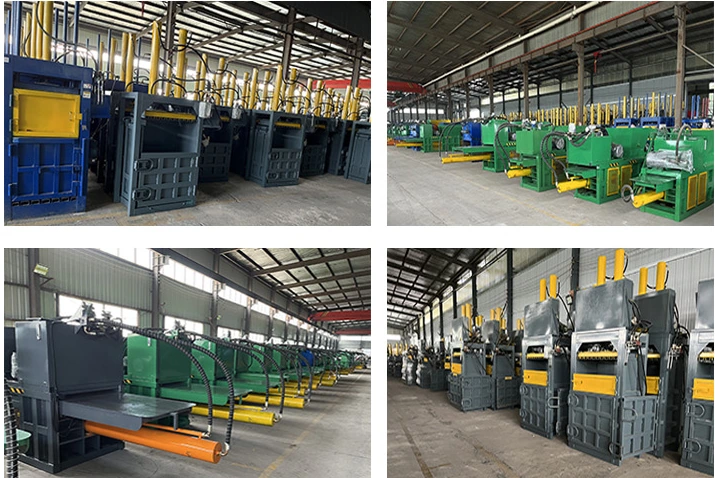

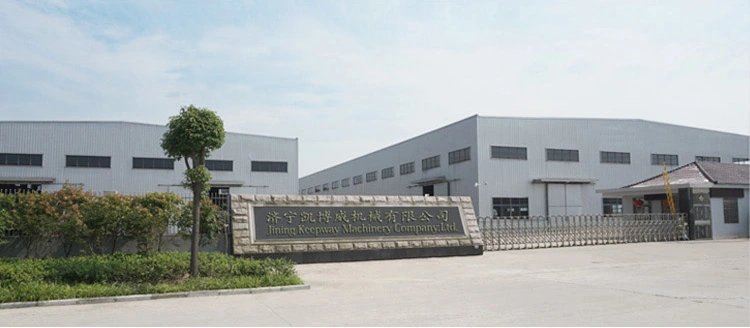

Keepway factory team, more than seven years of experience, two-year warranty and certification evidence — Factory, team, service and certification evidence

Frequently Asked Questions

Which model should I choose?

Selection depends on material type, loose density, daily volume, target bale weight, target bale dimensions, available floor area and installation height.

Does bale weight stay the same for every material?

No. Bale weight changes with material density, moisture, loading method and compression settings. The table values should be treated as reference values.

Is bale ejection automatic?

The current description says bale-ejection customization is available. Confirm the required ejection method when selecting the machine.

Can the machine bale cans or metal materials?

Yes, for the 60, 80, 100 and 120 ton models. Please provide the material type, thickness, loose density and target bale so the selected configuration can be checked.

What is the warranty period?

The confirmed warranty period for this vertical hydraulic baler series is two years.

What site information is required?

Please provide available floor space, ceiling height, power supply, loading method, finished-bale handling method and destination country.

Select a baler around your material and finished bale

Cardboard, plastic film or textiles: what should I send?

Cardboard and waste paper: largest pieces, loose volume per shift, moisture condition and the bale size/weight accepted by your recycler.
Plastic film and woven bags: material type, whether clean or contaminated, loose bulk and how the material expands after pressing. Confirm binding and handling with a representative sample.
Textiles: fibre/material type, offcut sizes, loose density, required bale dimensions and the way the finished bale will be lifted.

Does a 40 ton press always produce a 200 kg bale?

No. Press force and finished bale weight measure different things. Bale weight depends on the material, chamber, loading and compression conditions. The series table is a reference; agree the target on your actual material and the quoted configuration.

What does the Sri Lanka KPW-40T case demonstrate?

The Sri Lanka KPW-40T customer case presents approved machine photographs, anonymised order/shipping documents and that order's technical reference. Its waste-paper bale-weight reference is 150–200 kg. It is not a measured result for every material, and the separate 10 ton reference on this page does not describe the 40 ton order.

How much installation space should I allow?

Check more than the machine footprint: ceiling height, door opening, loading access, tying and bale-ejection space, service access and the route for a pallet truck or forklift. Send a simple site layout, destination country, voltage, phase and frequency.

When should I compare a horizontal baler?

For sustained feeding or higher material volumes, review a horizontal cardboard baler alongside a vertical model. Compare the actual feeding, tying, ejection, available space and staffing arrangement; orientation alone does not establish capacity or automation.

Send your material, daily volume, bale target and site details for a recommendation

Request a Hydraulic Baler Configuration and Quote

Send the material, loose density, hourly or daily volume, target bale weight and size, available installation space, power supply, tying preference and destination country.

Send Your Baling Requirements
