Application fit & configuration
KPW-200T selection starts with scrap type, maximum piece size, thickness and the required finished block. A series motor range does not identify the motor supplied with your machine.
The 5 t machine weight and 2000 × 2500 × 3000 mm overall size apply to the KPW-200T configuration. The 10–20 bales/h output and 18–90 kW motor ranges describe the wider series. Actual output depends on material, feed size, bale settings and operating conditions.

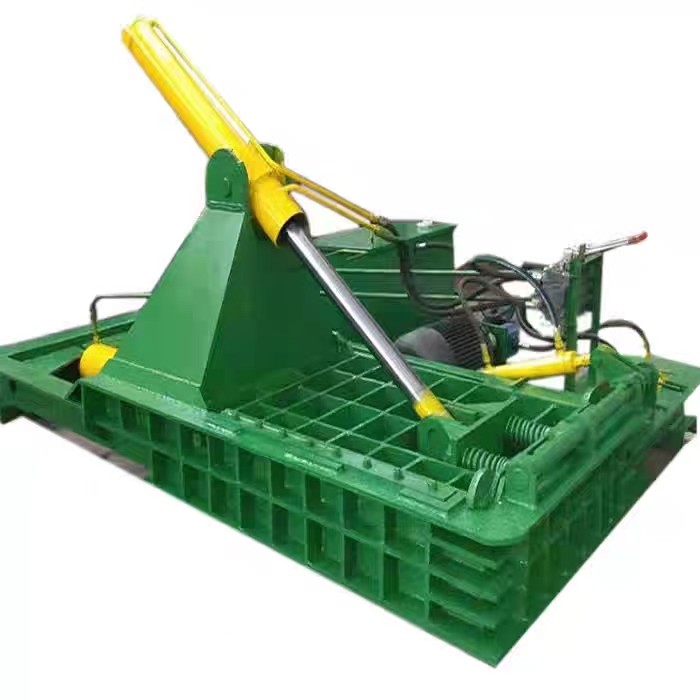

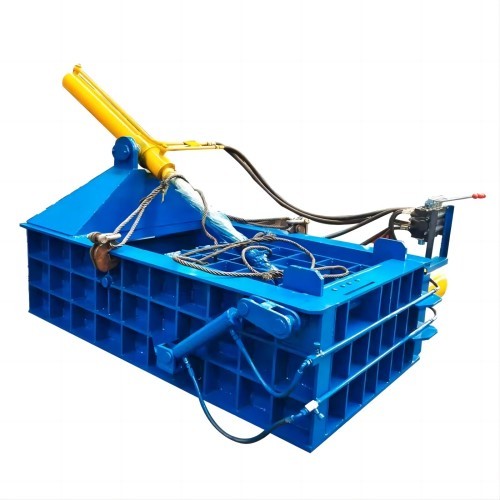

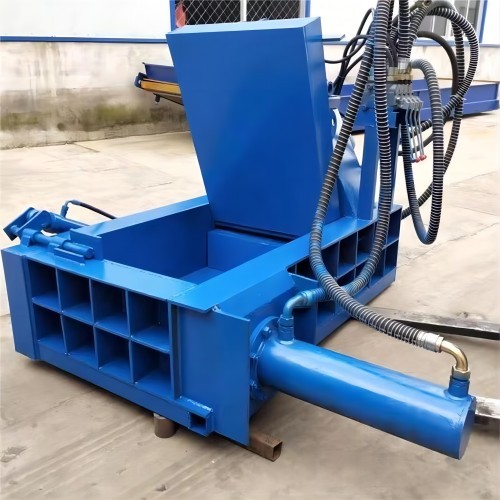

The KPW-200T hydraulic metal press is designed to compress loose scrap into compact, manageable bales or blocks. Reducing the material volume can improve workshop organization, storage, loading and transport before downstream recycling or smelting.

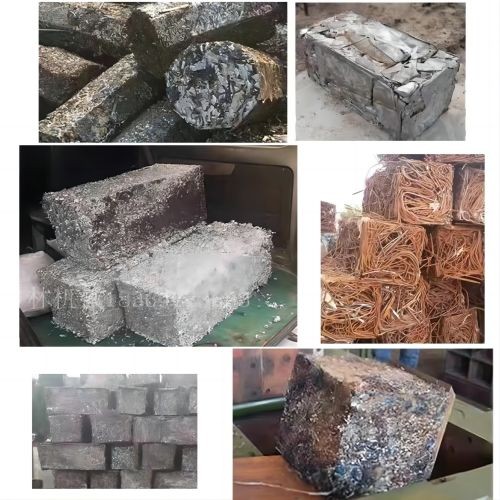

Typical materials shown or listed on the current page include steel bars and offcuts, scrap iron, aluminum scrap and copper wire. Final suitability depends on the material shape and thickness, required bale dimensions, desired output, loading method and discharge method.
Compare the complete baling machine range, the related scrap metal baling machine, and the vertical hydraulic baler series.
| Model | KPW-200T |
|---|---|
| Power type | Hydraulic |
| Applicable materials | Scrap steel, iron, aluminum and copper |
| KPW-200T machine weight | 5 t |
| Overall size | 2000 × 2500 × 3000 mm |
| Nominal pressing force | 2000 kN |
| Hydraulic working pressure | 25–31.5 MPa |
| Compression chamber size | Customized to the application |
| Finished bale size | Customized to the application |
| Series listed output | 10–20 bales/h; actual output depends on material and settings |
| Series motor range | 18–90 kW |
| Power supply options | 110 V / 220 V / 380 V / 450 V; single phase or three phase; 50 Hz or 60 Hz |

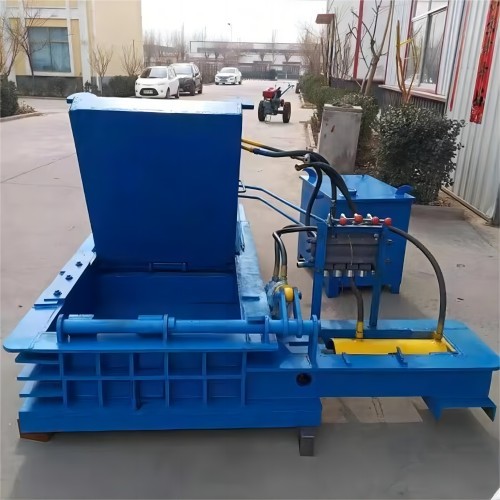

| Bale discharge | After compression, the bale is pushed out of the compression chamber |
| Warranty | 2 years |
Please provide the material type, maximum piece size and thickness, loose density, required bale size and weight, desired hourly output, loading method, available floor space and local power supply.
Yes. Both the compression chamber and finished bale size can be customized. Final dimensions must be matched to the material, press force, loading method and discharge arrangement.
The series output range is 10–20 bales per hour, with a series motor range of 18–90 kW. Actual output and motor selection depend on the material, chamber, bale size and operating requirements.
Voltage options include 110 V, 220 V, 380 V and 450 V, with single-phase or three-phase power and 50 Hz or 60 Hz selected for the destination site.
After compression, the finished bale is pushed out of the compression chamber.
The confirmed warranty for this equipment is two years.

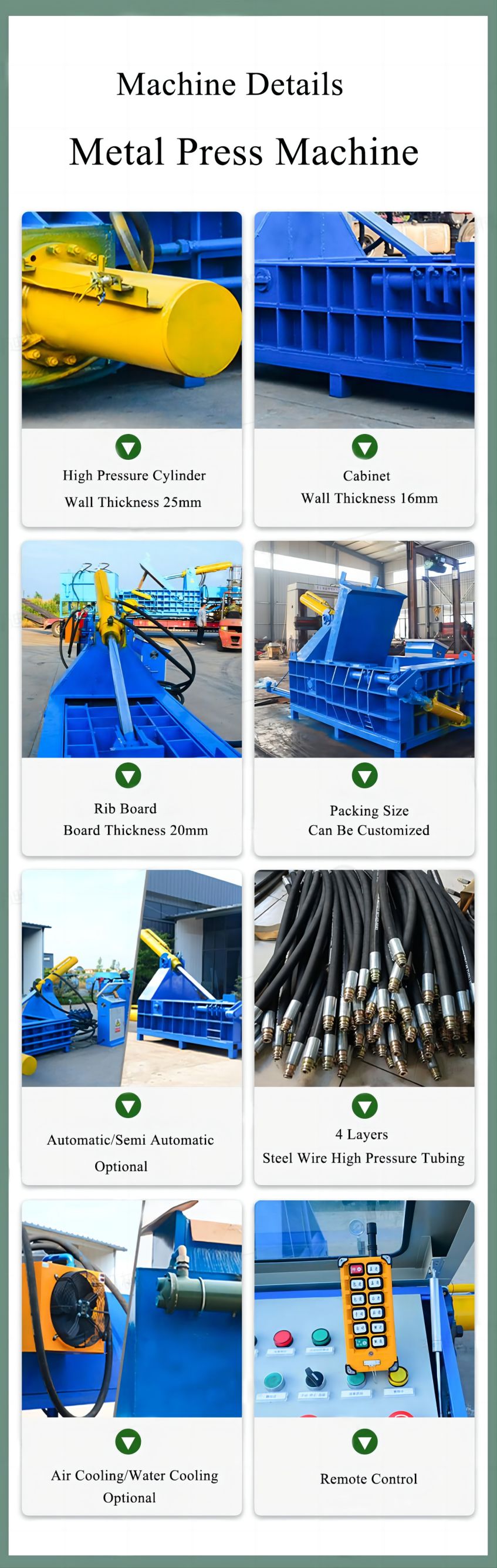

The existing detail image shows automatic and semi-automatic options and a remote-control option. Confirm the required control method in the quotation.

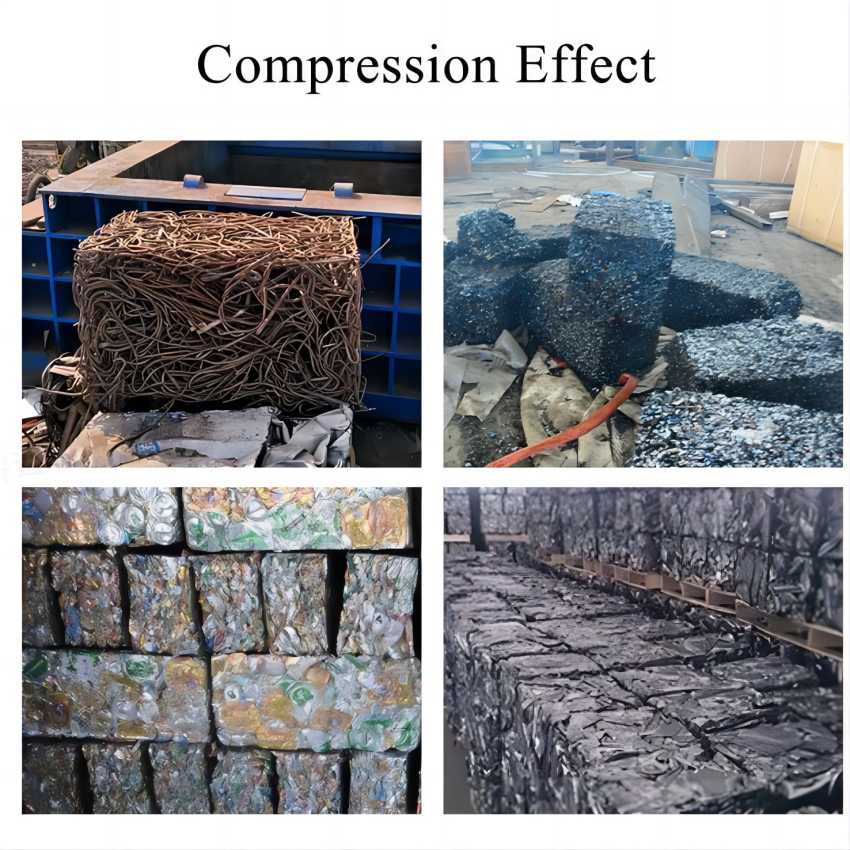

The current page shows or lists steel bars, steel offcuts, iron, aluminum and copper scrap. Suitability for a specific material depends on its dimensions, thickness and the selected machine configuration.
Send your scrap material, maximum piece size and thickness, required chamber and bale size, hourly capacity, power supply and destination country.
Send Your Material and Capacity DetailsBuild an evidence-based quotation
Separate material types and provide thickness, maximum feed dimensions and photographs; agree suitability before loading.
Specify the accepted bale dimensions, target mass, handling equipment and recycler requirements.
Request the selected chamber, rated pressing-force value and unit, motor, discharge arrangement and drawing in one quotation.
For a proposed trial, record material description, input mass, full-cycle time and resulting bale dimensions/mass. Calculate kg/hour from weighed output over the full elapsed test; do not use a no-load hydraulic cycle.
Ask for a material-fit assessment and a model-specific specification sheet before comparing quotations.
Include in your inquiry: Metal types and thickness; largest feed piece; input kg/hour; target block; handling route; utilities and destination.
Start with the product or material, its size range and your required output. Use the inquiry form below to provide your contact details; sample shipment and trial scope can then be agreed.
Send requirements for this machineTwo-year warranty: replacement parts and their shipping are free during the warranty period. Lifetime after-sales service is available. A sample-test proposal is not a guarantee of a specific result or a free on-site trial.
