Automatic Horizontal Cardboard Baler Machine, 60–200 Ton

Automatic Horizontal Cardboard Baler Machine, 60–200 Ton

Category： Baling Machine
Views：1982
Models: 60T / 100T / 120T / 160T / 200T
Output: 8–10 bales/h
Bale Size: 700 × 600 to 1100 × 1250 mm
Approx. Bale Weight: 350–1500 kg
Product description：Five active 60–200T horizontal baler models with 8–10 bales/h listed output, customized conveyors and binding options, and a two-year warranty.
Attachment INQUIRY

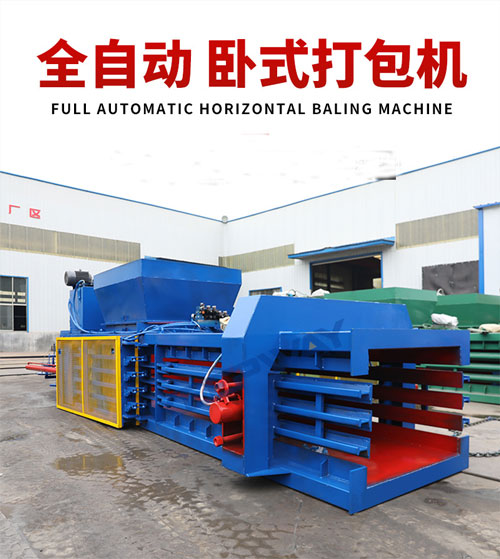

Blue recycling press with feed conveyor and compression chamber — Automatic horizontal baler for high-volume recyclable materials

Select the Horizontal Baler by Material and Bale Target

Five models currently sold
60T / 100T / 120T / 160T / 200T

Listed output
8–10 bales/h

Binding choice
Manual or fully automatic

Warranty
2 years

Automatic Horizontal cardboard baler Overview

This horizontal hydraulic baler is designed to compress large volumes of loose recyclable material into dense bales for storage, handling and transport. The current page shows fully automatic horizontal configurations with hydraulic compression, an adjustable bale outlet and wire-handling features.

Materials supported across the five-model series include cardboard, waste paper, plastic bottles, textiles, straw, aluminum cans and other suitable light metals. Final model selection depends on the material, loose density, required bale dimensions and weight, target output, feeding method, floor space and power supply.

Compare the complete baling machine range, the vertical hydraulic baler series, and the cardboard baler application guide.

Watch the Horizontal Baler Working

What buyers can verify

Horizontal feeding and compression arrangement.
Hydraulic operation and bale-outlet structure.
Machine size and workflow requirements for installation planning.
The existing listed output is 8–10 bales/h; cycle time is configured to the operating requirement.

Real-Machine Views

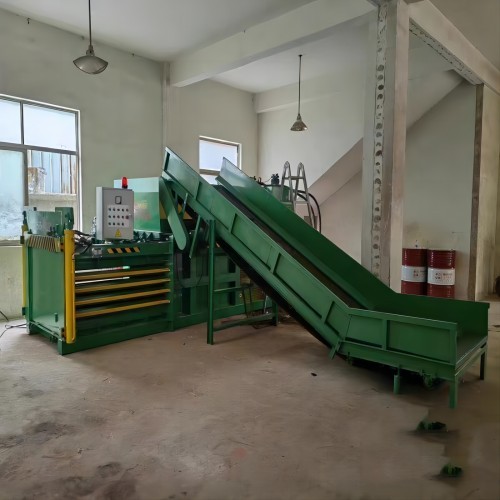

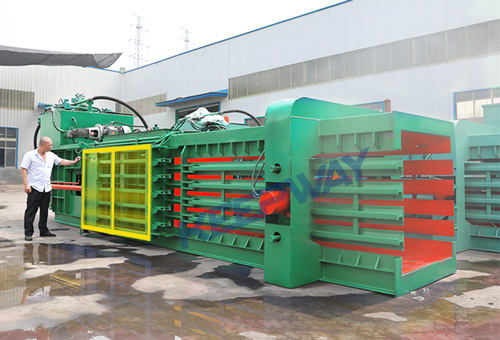

Green automatic horizontal cardboard baler in the factory — Automatic horizontal baler front and feed-section view

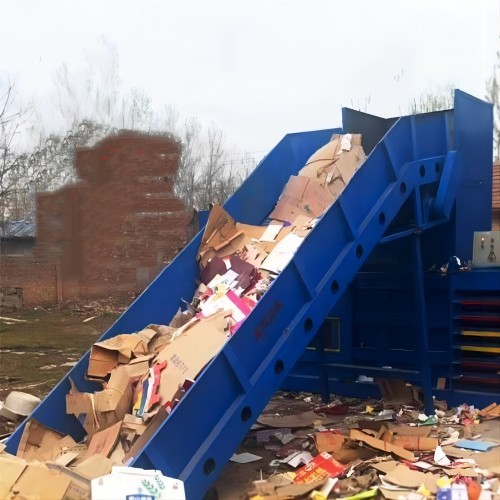

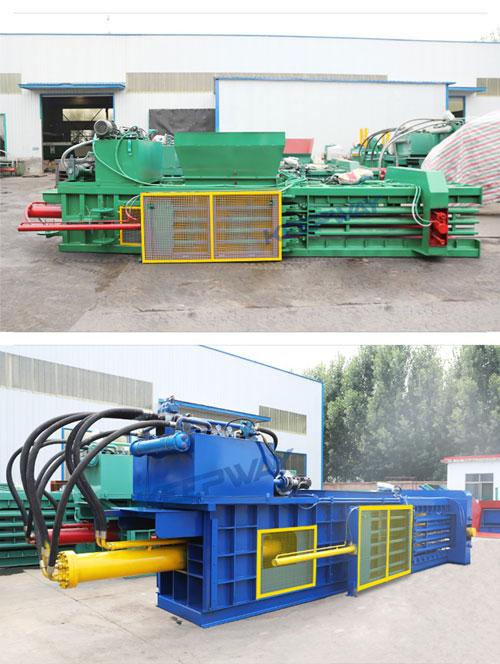

Horizontal hydraulic baler side and hydraulic-system views — Side, outlet and hydraulic-system evidence

60–200 Ton Model Selection

Swipe horizontally to view all model parameters.

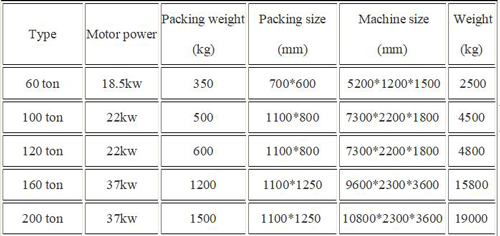

Press force	Motor power	Approx. bale weight	Bale size	Machine size	Machine weight
60 ton	18.5 kW	350 kg	700 × 600 mm	5200 × 1200 × 1500 mm	2500 kg
100 ton	22 kW	500 kg	1100 × 800 mm	7300 × 2200 × 1800 mm	4500 kg
120 ton	22 kW	600 kg	1100 × 800 mm	7300 × 2200 × 1800 mm	4800 kg
160 ton	37 kW	1200 kg	1100 × 1250 mm	9600 × 2300 × 3600 mm	15800 kg
200 ton	37 kW	1500 kg	1100 × 1250 mm	10800 × 2300 × 3600 mm	19000 kg

The values above are transcribed from the current parameter image. Bale weight varies with the material, loose density, moisture and operating conditions. Final specifications are confirmed in the quotation.

Series Configuration Options

Current model range
All five 60T, 100T, 120T, 160T and 200T models are available for sale.

Listed output
8–10 bales per hour; actual output depends on material and settings.

Voltage
Customized for the customer’s site requirements.

Cycle time
Configured according to the required operating process.

Conveyor
Conveyor configuration can be customized as needed.

Binding wires per bale
5–8 binding wires per finished bale.

Binding method
Manual binding or fully automatic binding.

Warranty
2 years for this horizontal baler.

Wire Handling and Compression Details

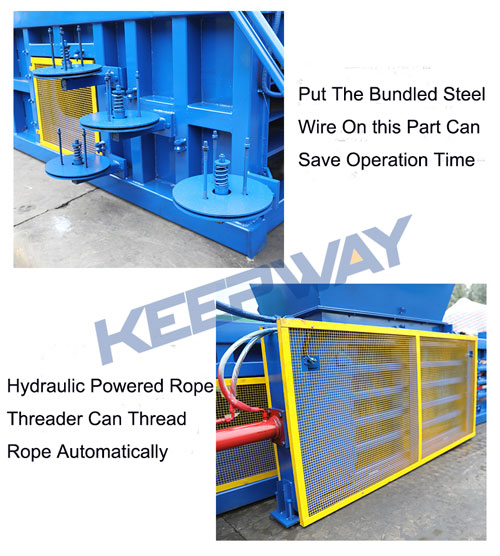

Horizontal baler wire storage reels and hydraulic rope threader — Wire storage reels and hydraulic rope threader

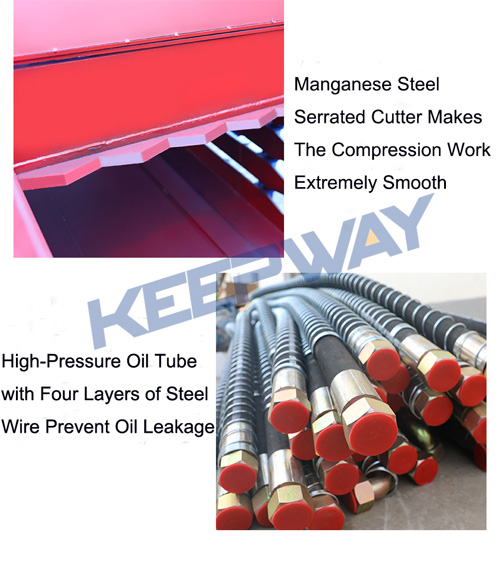

Horizontal baler manganese steel cutter and four-layer high-pressure oil hose — Manganese steel cutter and reinforced high-pressure oil hose

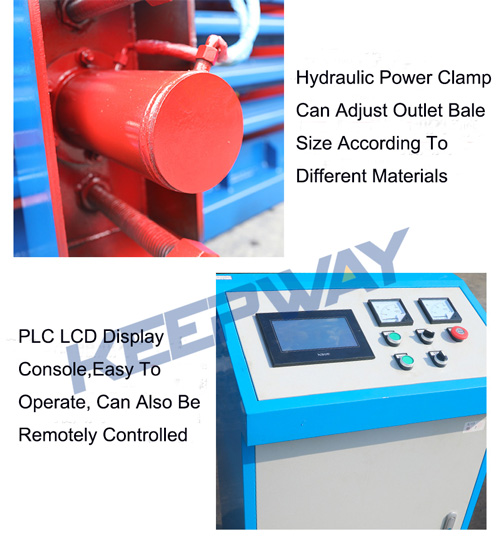

Horizontal baler hydraulic power clamp and PLC control console — Hydraulic outlet clamp and PLC control console

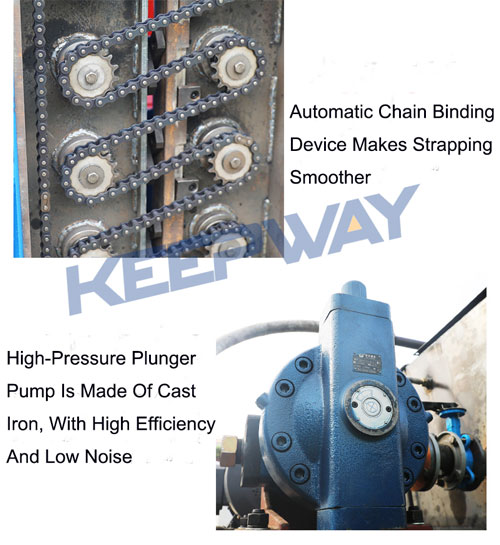

Horizontal baler automatic chain binding device and high-pressure plunger pump — Chain binding device and high-pressure plunger pump

Key Features

Wire storage reels
Keep binding wire positioned beside the machine for organized operation.

Hydraulic rope threader
Supports wire threading for the confirmed 5–8 binding wires per bale.

Serrated cutting knife
Designed to cut excess material during compression.

Reinforced oil hose
Four-layer steel-wire construction is shown in the current detail image.

Hydraulic outlet clamp
Supports adjustment of the bale outlet for different materials.

PLC console
Provides centralized operating controls; remote-control capability is shown on the current page.

Binding configuration
Manual or fully automatic binding can be selected for the project.

Plunger pump
The existing detail image identifies a cast-iron high-pressure plunger pump.

Suitable Materials and Bale Results

Cardboard cans plastic bottles offcuts straw and textile materials for horizontal baling — Material examples shown on the current page

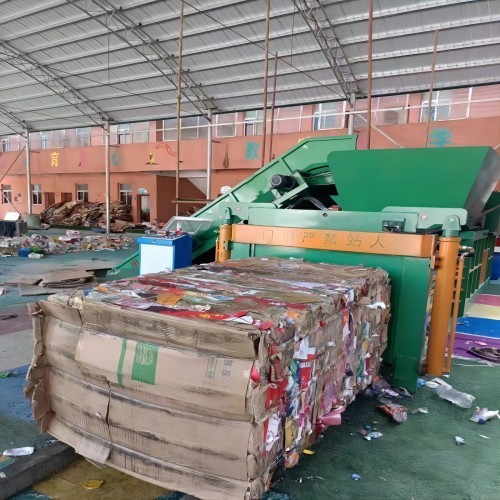

Finished cardboard plastic textile and mixed recyclable bales — Examples of finished bales; density and weight depend on material

Confirmed material scope: aluminum cans and suitable light metals apply to all five models, in addition to the cardboard, paper, plastic, textile and straw examples shown on the page. Final selection still depends on material dimensions, density and required bale.

Loading and Delivery Evidence

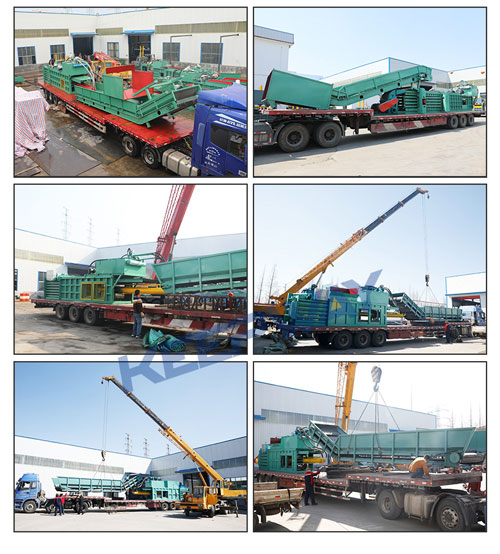

Automatic horizontal cardboard balers loaded onto flatbed trucks by crane — Existing truck loading and delivery photographs

Company and Factory Evidence

Confirmed service term: the two-year packaging-machine warranty shown below applies to this horizontal baler. The original 1.5-year image remains in the backup and is not overwritten.

Keepway horizontal and vertical baler factory team certification and two-year warranty evidence — Keepway baler factory, team, certification and two-year warranty evidence

Frequently Asked Questions

How do I select between the 60, 100, 120, 160 and 200 ton models?

All five models are currently available. Provide the material, loose density, daily or hourly volume, required bale dimensions and weight, loading method, floor space and power supply so the configuration can be matched to actual operating conditions.

What materials can this horizontal baler process?

The series supports cardboard, waste paper, plastic bottles, textiles, straw, aluminum cans and suitable light metals. Material dimensions and density should be supplied for final machine selection.

Is the bale length adjustable?

The current top field states that bale length is adjustable. Confirm the required bale length and binding arrangement before quotation.

What installation information is required?

Please provide the available floor length, width and height, foundation condition, feeding direction, conveyor requirement, bale-removal area and local electrical standard. Voltage, cycle and conveyor configuration can be customized to the project.

How is the bale tied?

The machine can be configured for manual or fully automatic binding with 5–8 binding wires per bale.

What output and warranty are listed?

The existing output statement of 8–10 bales per hour is retained. Actual performance depends on the material and settings. The confirmed warranty is two years.

Request a Horizontal Baler Selection and Quote

Send your material, loose density, hourly volume, target bale size and weight, binding preference, conveyor requirement, available floor space, local electrical standard and destination country.
