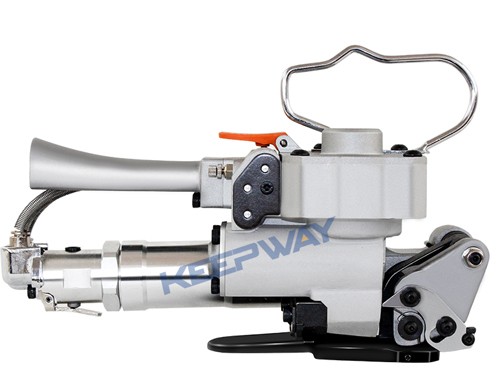

Pneumatic Strapping Tool

  • Category: Strapping Machine
  • Views:605

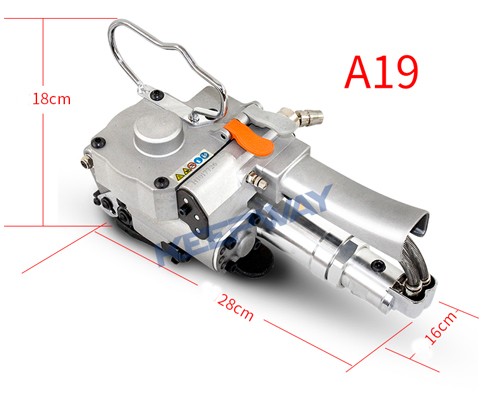

  • Model:A19
  • Strapping Materials:PP/PET
  • Strap Size:Width:13-19mm;Thickness:0.5-1.5mm
  • Machine Weight:3.5kgs
  • Product description:The portable pneumatic baler has a relatively large pulling force and is suitable for tying 16-19mm straps. The pulling force can reach 450KG. It is no problem to pack ordinary PET plastic steel strap
  • INQUIRY

Pneumatic Strapping Tool /Air Strapping Machine


Introduction of Pneumatic Strapping Tool:

Pneumatic strapping tool /air strapping machine is a friction welding type strapping machine. The overlapping thermoplastic straps are combined by the heat generated by the friction movement. The principle is to use the strapping tape to strap the product or package, then tighten it and melt the two ends through the thermal effect or use the package. Machines connected with buckles and other materials.


Technology Parameter of Pneumatic Strapping Tool:

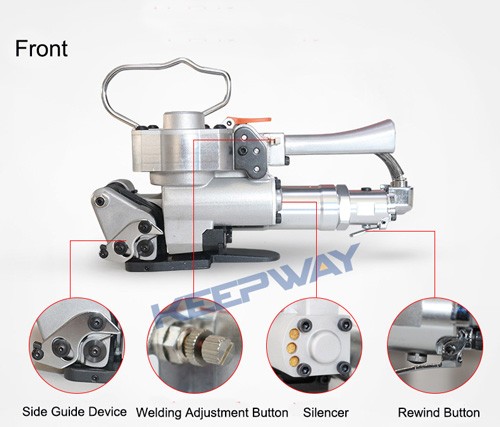

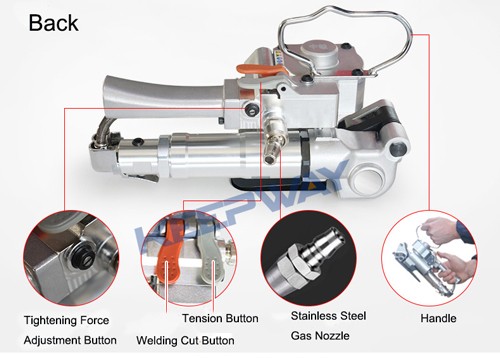

Features of Pneumatic Strapping Tool:

1. Stainless steel gas nozzle: stainless steel gas nozzle, durable and long-lasting, 51# lubricating oil can be used

2. Simple operation: After the strap is ready, press the tightening button, and then press and hold the welding button after tightening until the packing belt is welded and cut.

3. Dedicated muffler device: dedicated muffler device,effectively reducing the noise of the machine vibrator.

4. Rewind button: After packing, press and hold the rewind button until the packing belt is removed from the tension wheel.


How To Use The Pneumatic Strapping Tool:


1. strap installation: Hold the handle and tension with your right hand, and insert the upper and lower parts of the packing belt into the strapping machine.

2. Cut off after vibration: After pressing the right tightening button with your right thumb, press and hold the orange welding button until the strap is welded and cut.

3. Remove the strapping machine: press the handle and tension with your right hand, press the rewind button with the little finger of your right hand until the packing belt is loosened from the tension wheel, and take out the packing machine.


Strapping Effect:
