Electric strapping tools

  • Category: Strapping Machine
  • Views:1647
  • Model:JD13/16
  • Battery Data:11.1V,3000MAH
  • Charging Time:90min
  • Machine Weight:3.0kgs

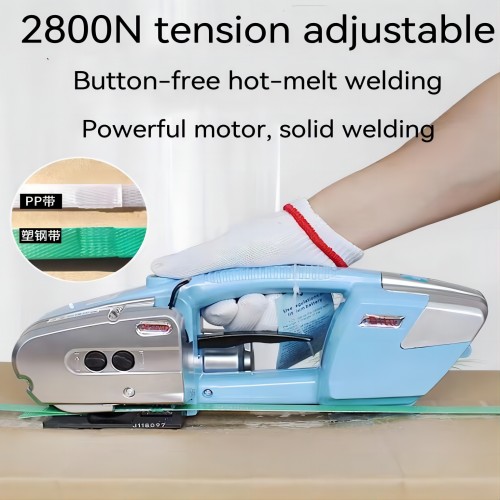

  • Product description:The portable electric baler has a relatively large pulling force and is suitable for tying 16-19mm straps. The pulling force can reach 450KG. It is no problem to pack ordinary PET plastic steel straps
  • Attachment INQUIRY

Electric Strapping Tool /Hand Battery Plastic Strap Packing Machine


Introduction of Electric Strapping Tool:

Electric strapping tool /PP plastic strapping tool /electric packing tool refers to a strapping machine that performs electric tightening, friction buckle, and automatic strapping. Wrap the pp/pet strap from top to bottom, then put the strap joint into the working slot of the machine, and the motor drives the tightening wheel to tighten the strapping and make the buckle through friction. The strap is glued together, and the tape is automatically cut at the end.


Blue battery strapping tool with overall dimension markings

Labeled battery strapping tool front view with tension controls, handle and battery


Labeled battery strapping tool rear view with charging connection and indicator

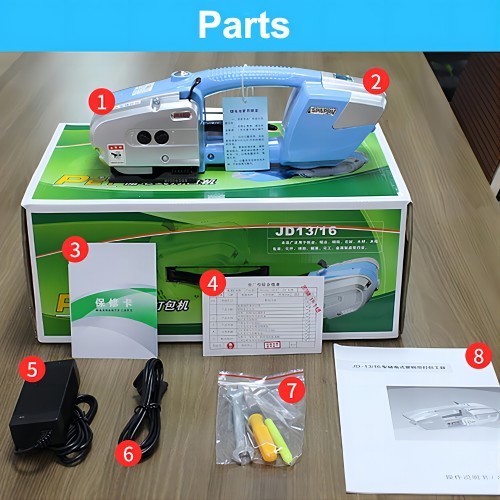

Battery strapping tool kit showing battery, charger, tools and documents


Technology Parameter of Electric Strapping Tool:

Current Keepway warranty: two years. Free spare parts and shipping during the warranty period, plus lifetime service support. This current policy replaces the one-year warranty wording in the older catalogue image below.KPW-JD13/16 battery strapping tool catalogue specification table


Features of Electric Strapping Tool:

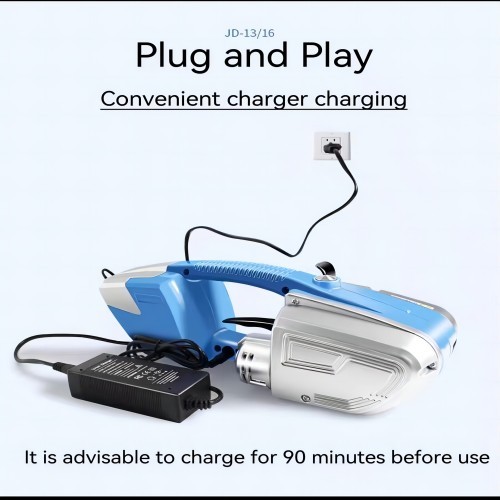

Illustration of charging a strapping tool directly or charging its removable battery

Battery strapping tool handle and lower gripping mechanism close-ups

Battery strapping tool adjustment knobs, motor illustration and indicator light


How To Use The Battery Strapping Tool:

Battery strapping tool operation sequence and strap weld comparison

1. Raise the handle with your right hand, insert the strap with your left hand, stack the upper and lower straps in parallel, and release the handle.

2. Press the tension button and release the button after the tension reaches a certain level.

3. Press the welding button firmly, the strap will be welded and cut off the excess strap.

4. Lift the handle to loosen the strap, and pull the tool to the right away from the strap.

What Models We Have:

Specification comparison chart for five battery strapping tool models

Strapping Effect:

Examples of strapped glass, timber, metal, stone and carton loads

Company collage with factory, workshop, team, documents and packing photographs
