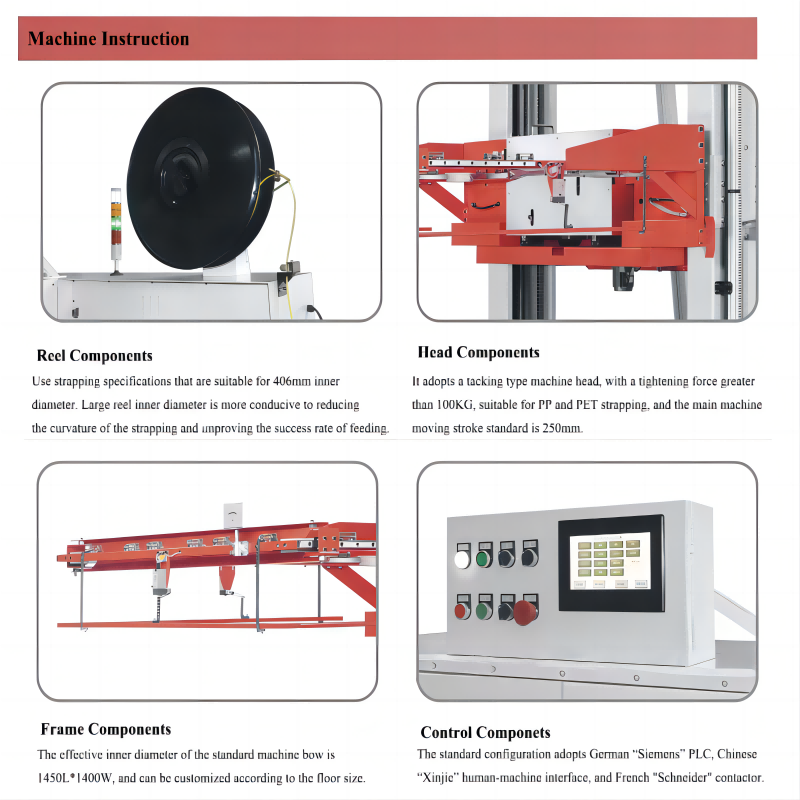

Product description:The horizontal pallet strapping machine is designed for strapping pallet goods produced online. It can realize the automatic strapping of multiple straps with high speed and high efficiency, precise s
Will a horizontal strapping station leave access for loading and service?
Place the station footprint and the largest pallet on the proposed floor plan. Trace truck movement, strap-reel delivery and service access before approving the layout.
For an inline installation, draw the approach, stop position and discharge before specifying a strap route. Check pallet strapping line handoffs.
Photograph all sides of the loaded pallet and mark the desired horizontal strap levels. Give the width and depth at those levels.Read the three sample checks
Loaded width — Measure across the goods at the strap height.
Stack height — Measure the complete loaded stack.
Strap level — Mark the horizontal band position on each face.
Fit a horizontal strapping station into your layout

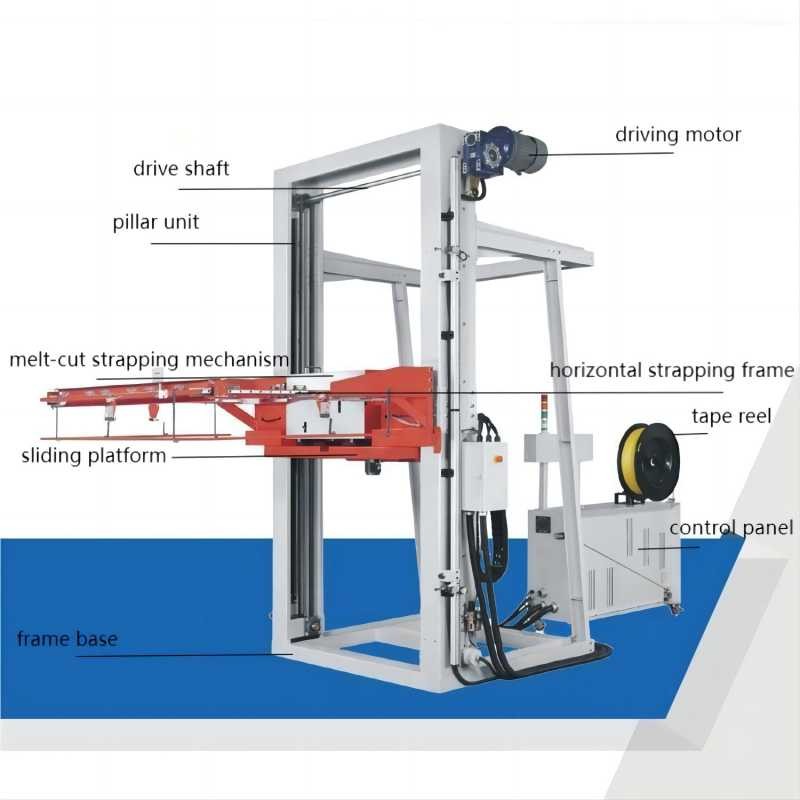

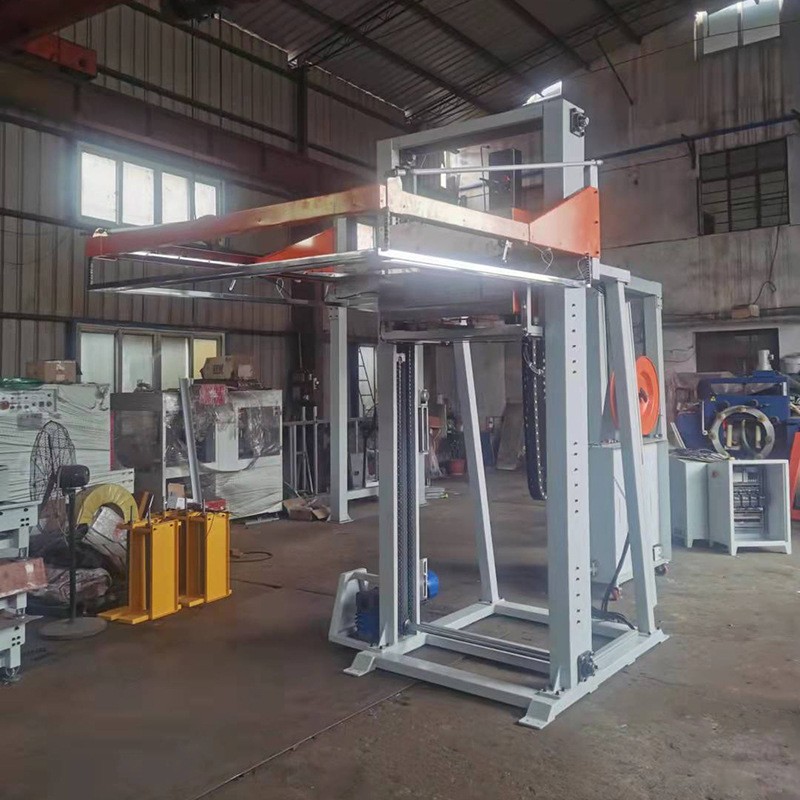

Lifting horizontal frame · Machine outline differs from opening · Layout and access to confirm
Send a dimensioned floor plan, conveyor top height and direction, available service access, site supply, load schedule and planned operating pattern.
Record door openings, turning points and the proposed delivery route. Ask for the shipping and installed dimensions for the ordered configuration, including any assembly work required on arrival.
Leave the working and service space visible
Show the reel-change side, operator position and maintenance access on the drawing. Confirm the maximum movement envelope of the frame and its relationship to surrounding equipment with the responsible integrator.
Check changeover and transfer together
Describe the smallest and largest loads and their travel orientation. Ask the supplier to show the required format adjustments and a full arrival-to-discharge trial; overall machine height does not establish usable load height.

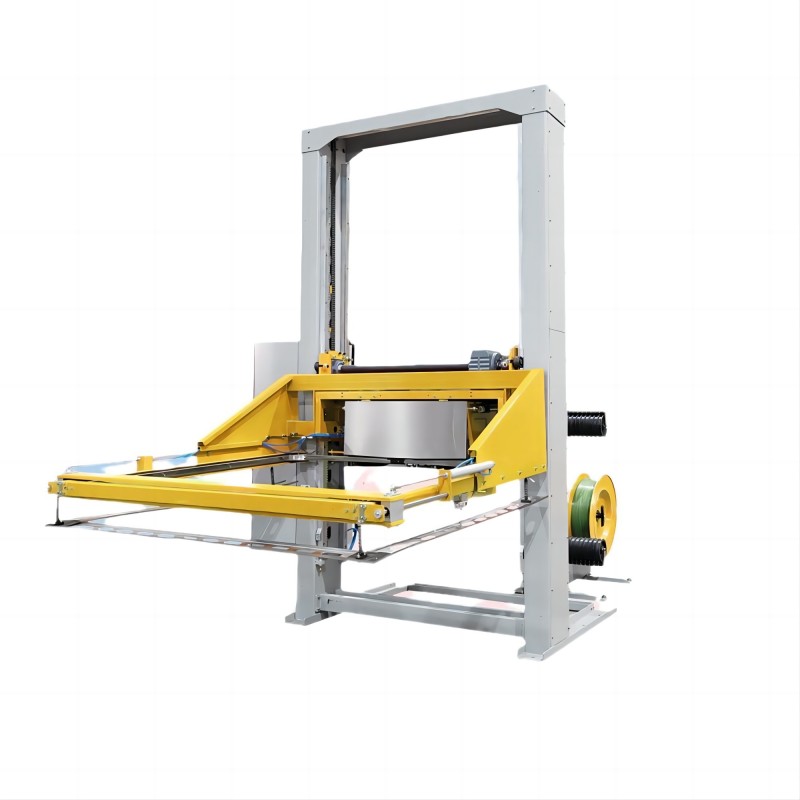

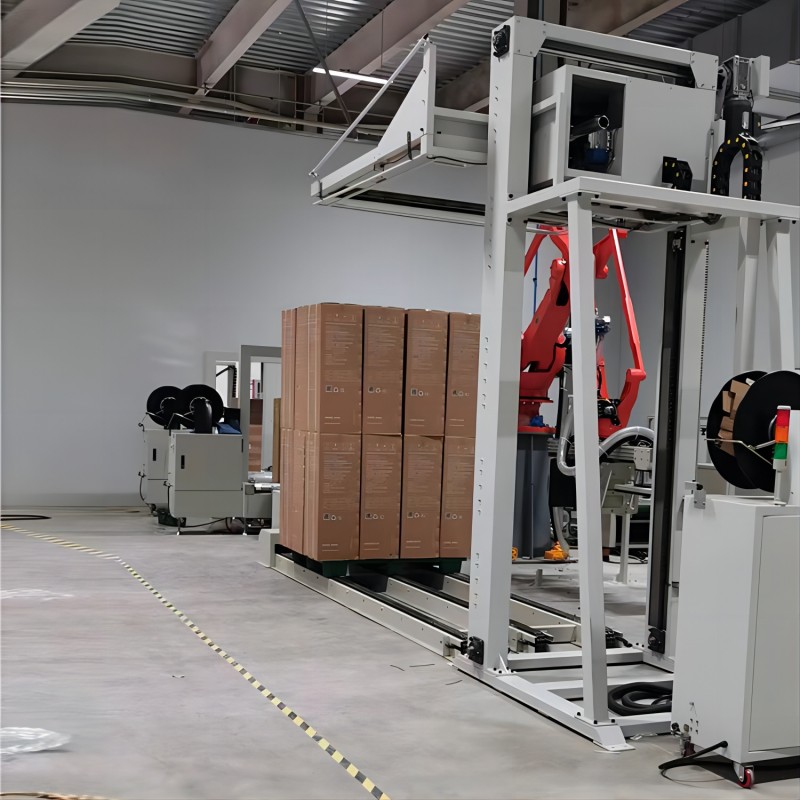

Full automatic horizontal pallet strapping machine

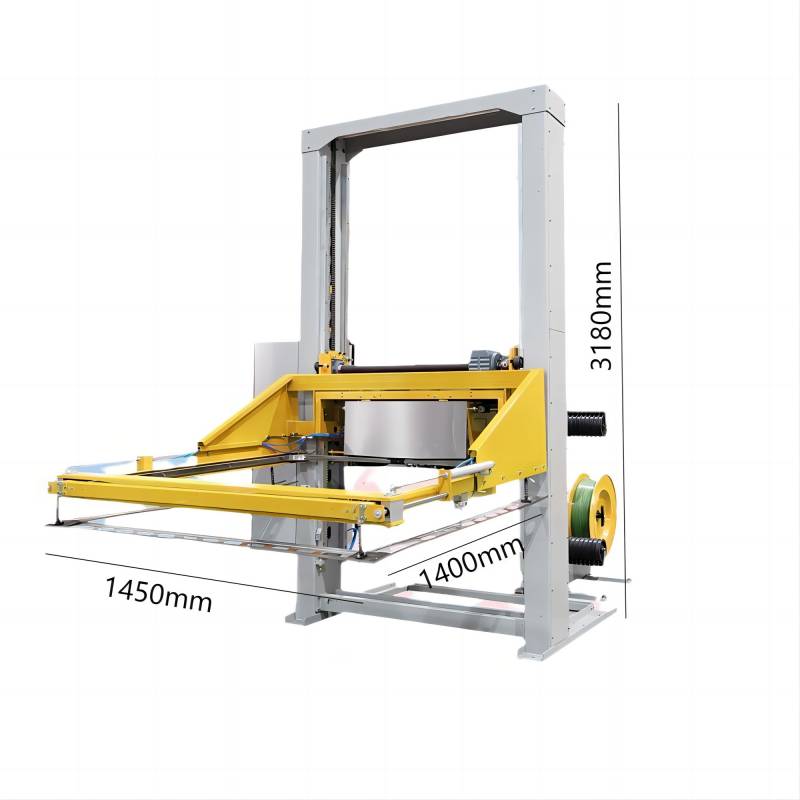

Review this horizontal pallet strapping machine as a station within a measured handling layout. The lifting frame and the adjacent conveyor need coordinated clearances, access and controls. Dimensions marked on an equipment image describe that illustrated outline; they are not a guaranteed pallet opening or the complete space required for installation. Review the horizontal pallet strapping machine selection information for the common load-planning principles.
