Fresh food tray packaging · KPW-P4050

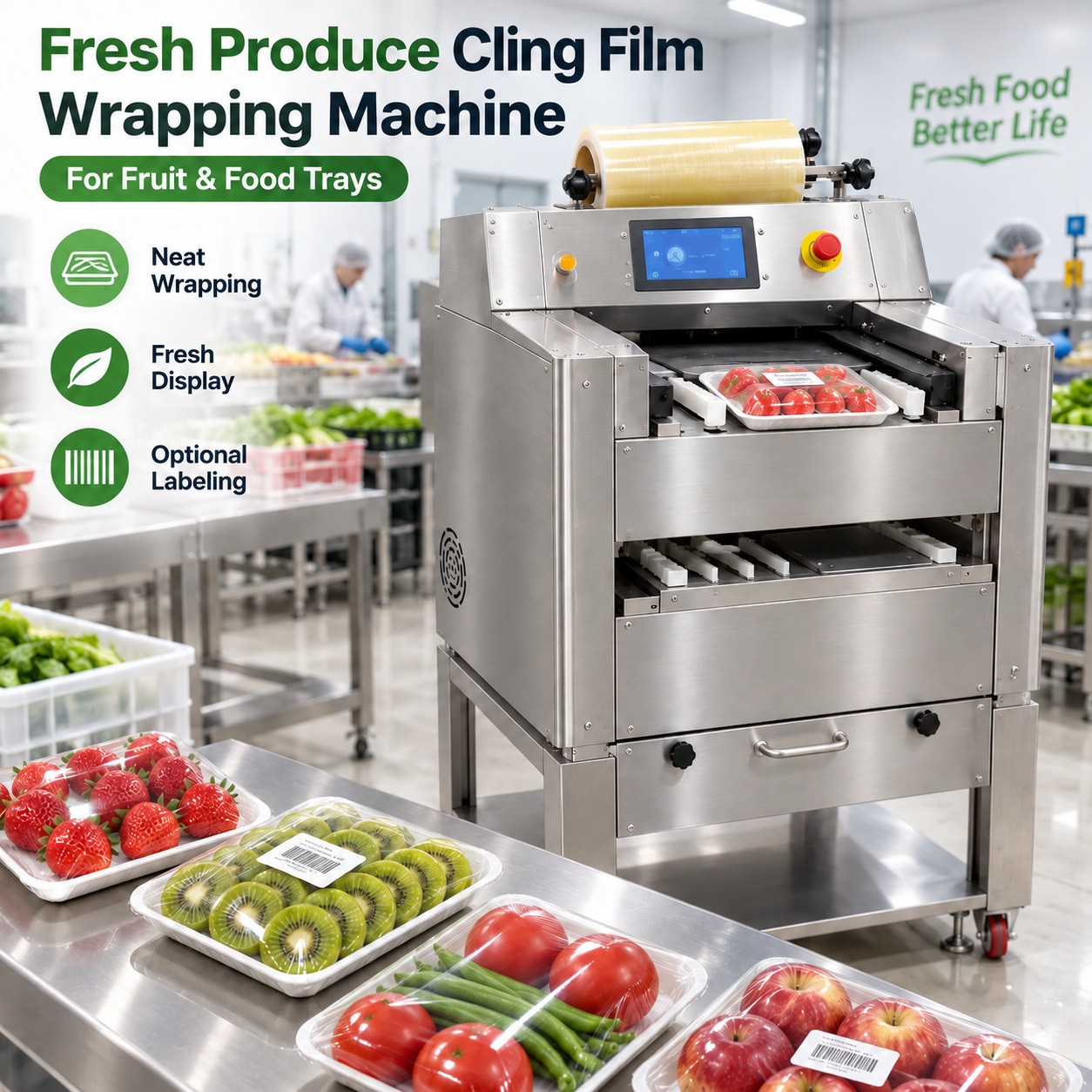

Prepare fruit, vegetables and fresh meat in clear film-wrapped trays for retail display. The KPW-P4050 is a compact food tray wrapping machine with touch controls, a listed output of 10–15 packs per minute and optional real-time label printing.
Reference wrapping capacity
Film width range
Labels applied by hand
For a supermarket produce department, grocery packing room or fresh-food business, selection starts with the loaded tray: its outer size, total height, weight and how the product sits above the rim. Send your smallest and largest packs so the machine and film can be matched to your range.
Compare the standard wrapping setup with the optional label printing workflow.
See the standard wrapping workflow for fruit and vegetable trays, without label printing or application.
Watch this demonstration on YouTube
See the optional label printer workflow. An operator applies each printed label by hand; this is not an automatic label applicator.

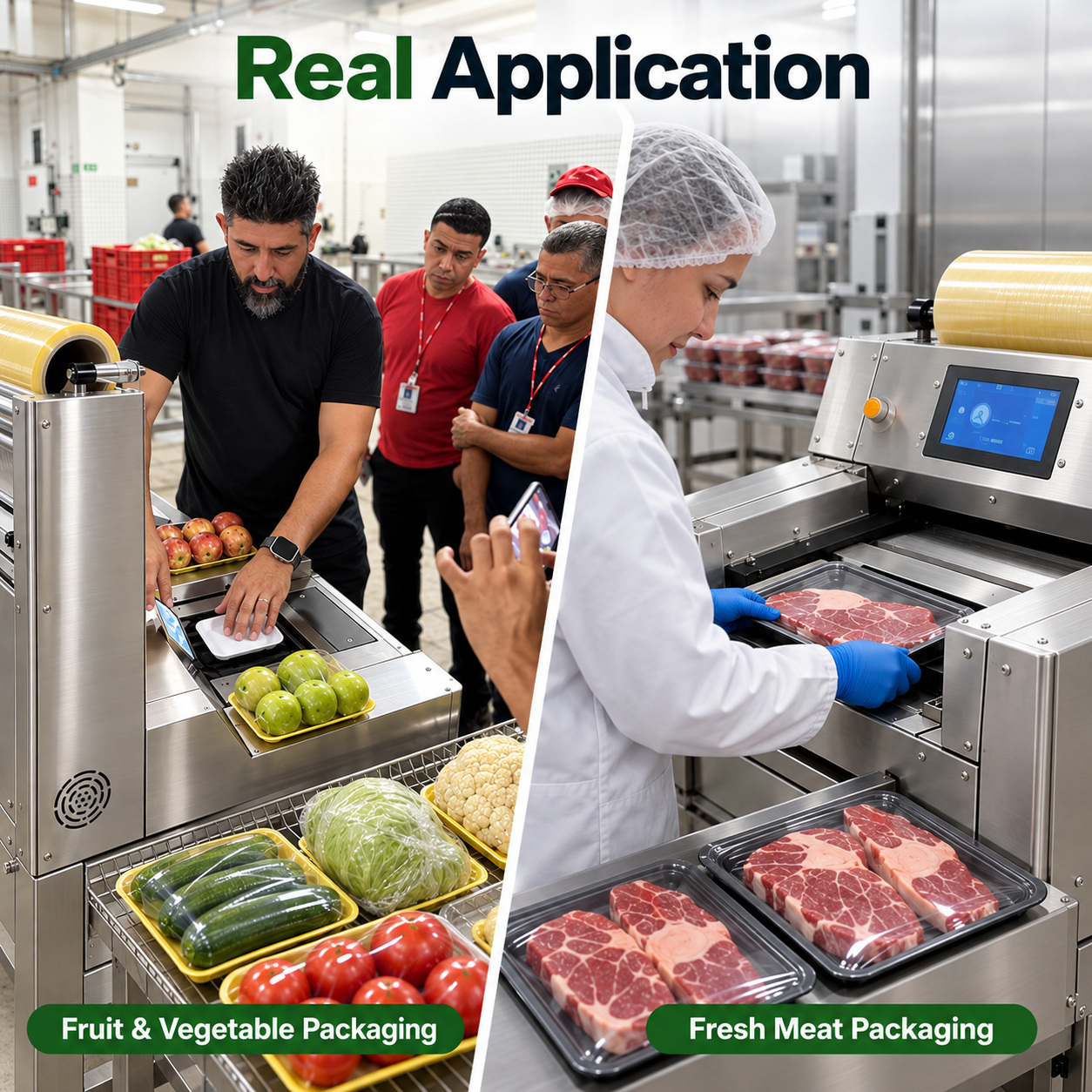

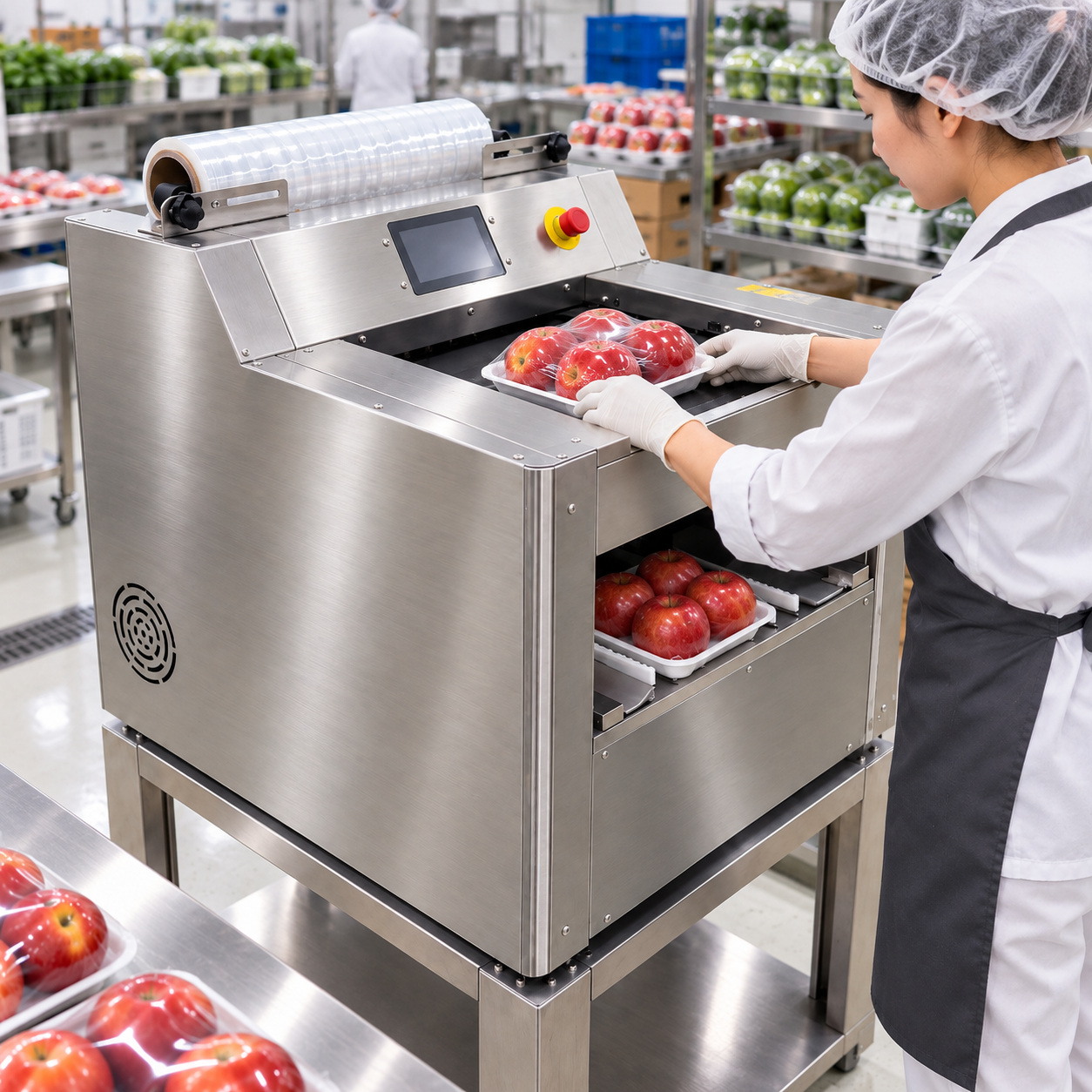

Consider the KPW-P4050 for apples, tomatoes and other produce presented in trays. Check tray rigidity, uneven product height and delicate surfaces before choosing film tension and the final pack arrangement.
For meat trays, include the filled weight, product height and any liquid or absorbent pad in the sample assessment. Evaluate film coverage and handling with your actual tray. Keep chilled products within your established storage and handling process.
The photographs show packaging applications. Final appearance depends on the selected tray, product and film combination.

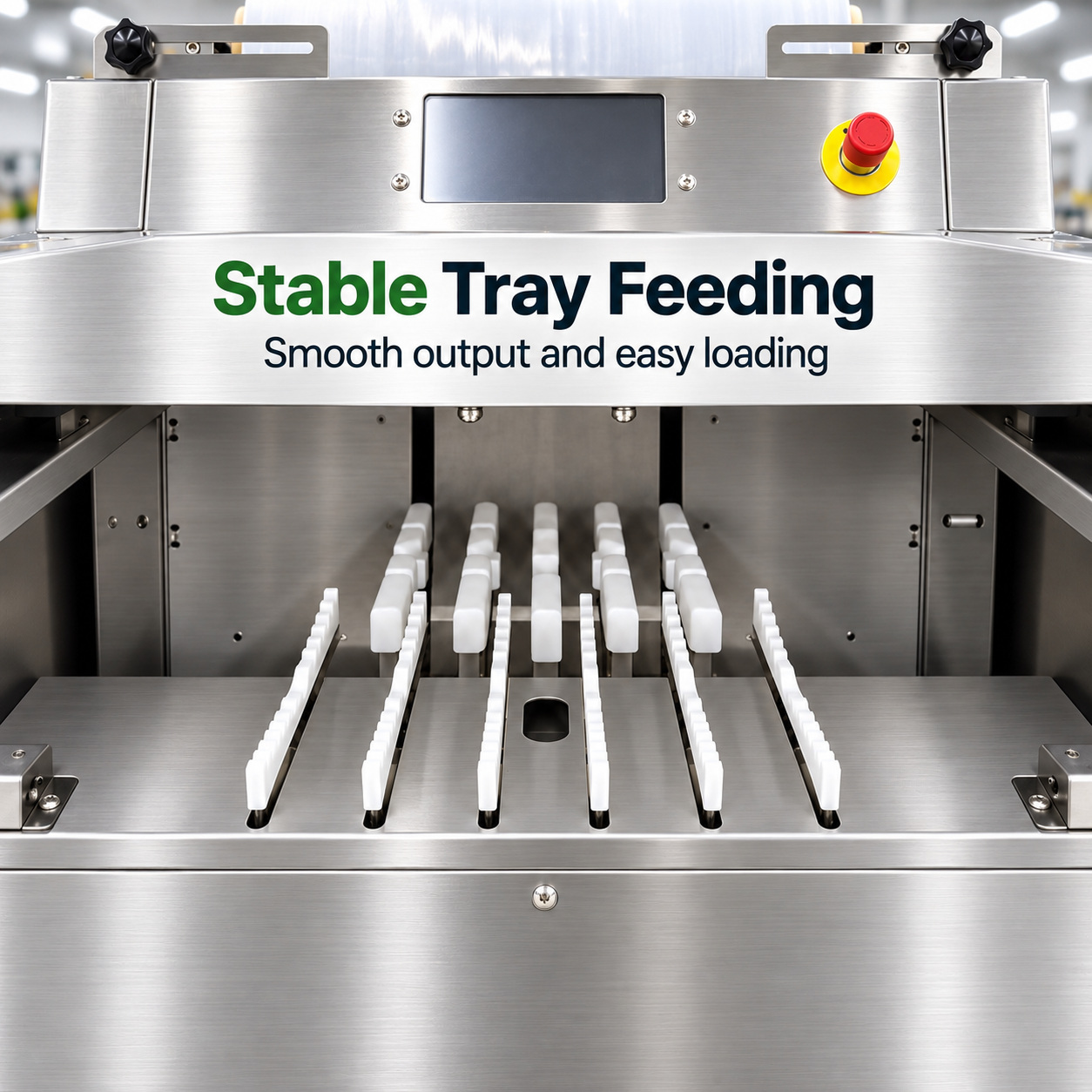

Check support across the tray base and clearance around the filled pack. Lightweight, flexible or unusually shaped trays should be assessed as samples, even when their nominal dimensions fall inside the published range.

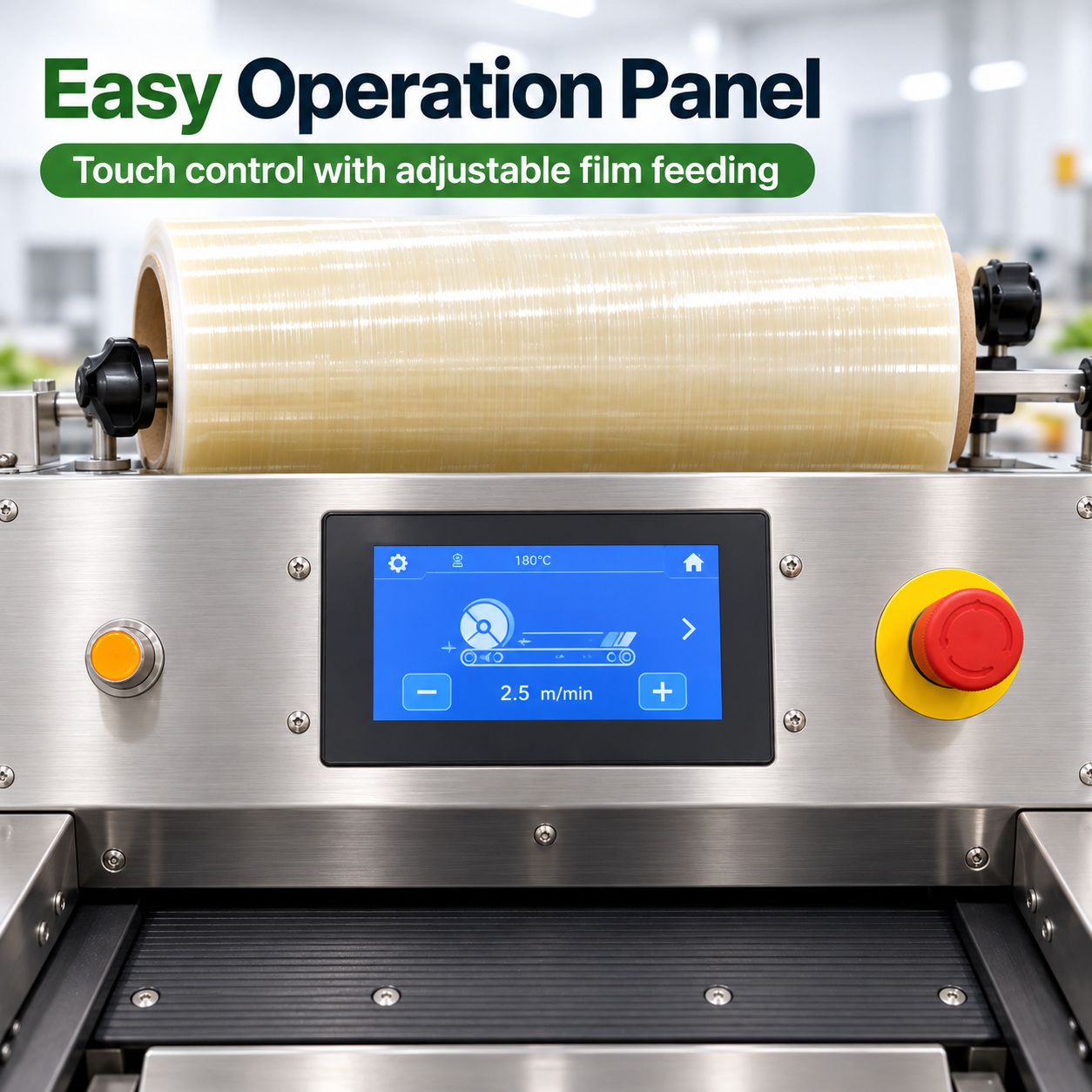

The supplied machine detail shows touch controls and adjustable film feeding. Set the wrapping process for the actual pack and film, following the operating instructions for the delivered configuration.

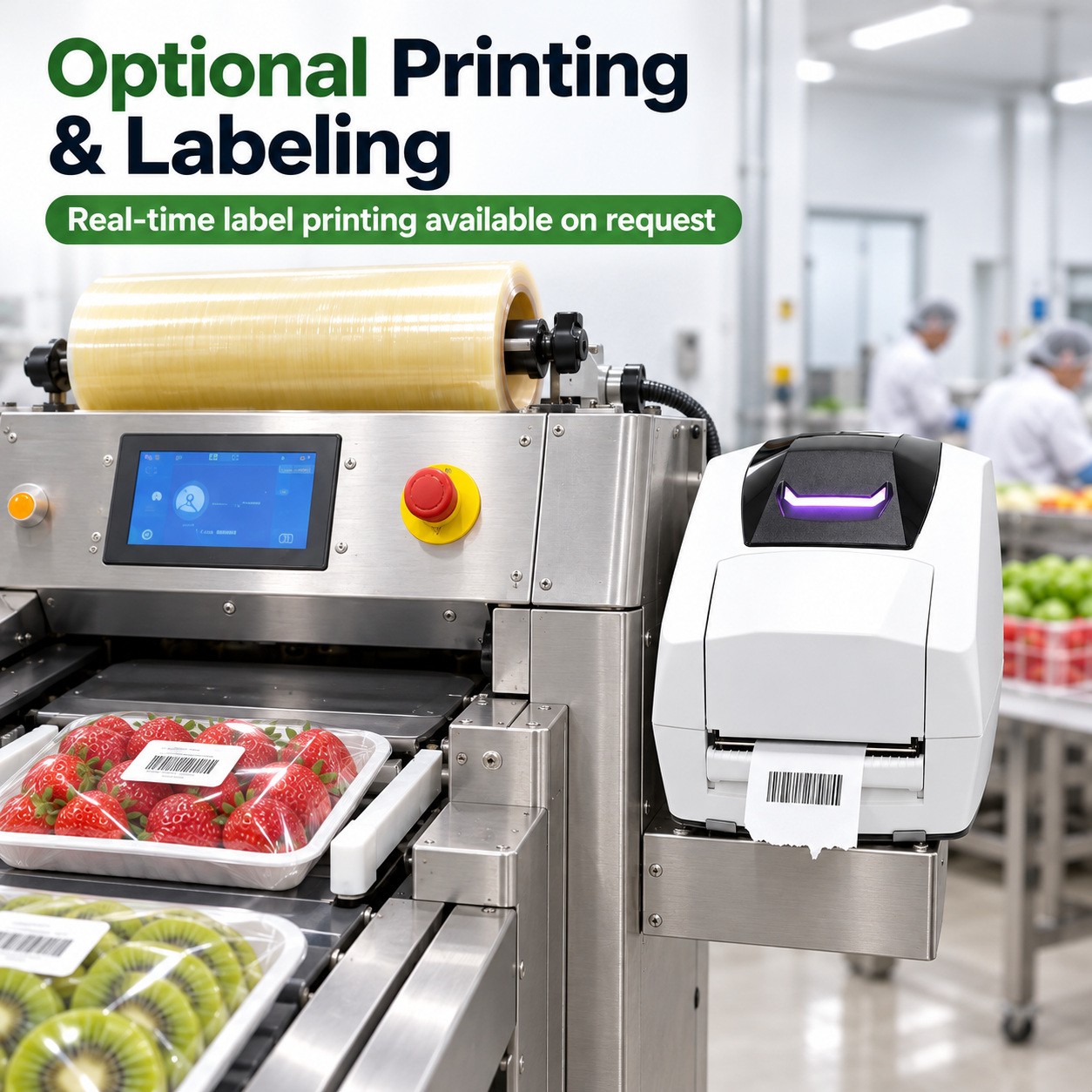

The KPW-P4050 can be supplied with a real-time label printing option. After printing, an operator places the label on the pack. Automatic label application is not included in this confirmed configuration.
Share a sample label and explain the information it needs to carry, such as the product name, barcode, batch or date fields. Printer format, label size and the way data reaches the printer are checked for the quotation.

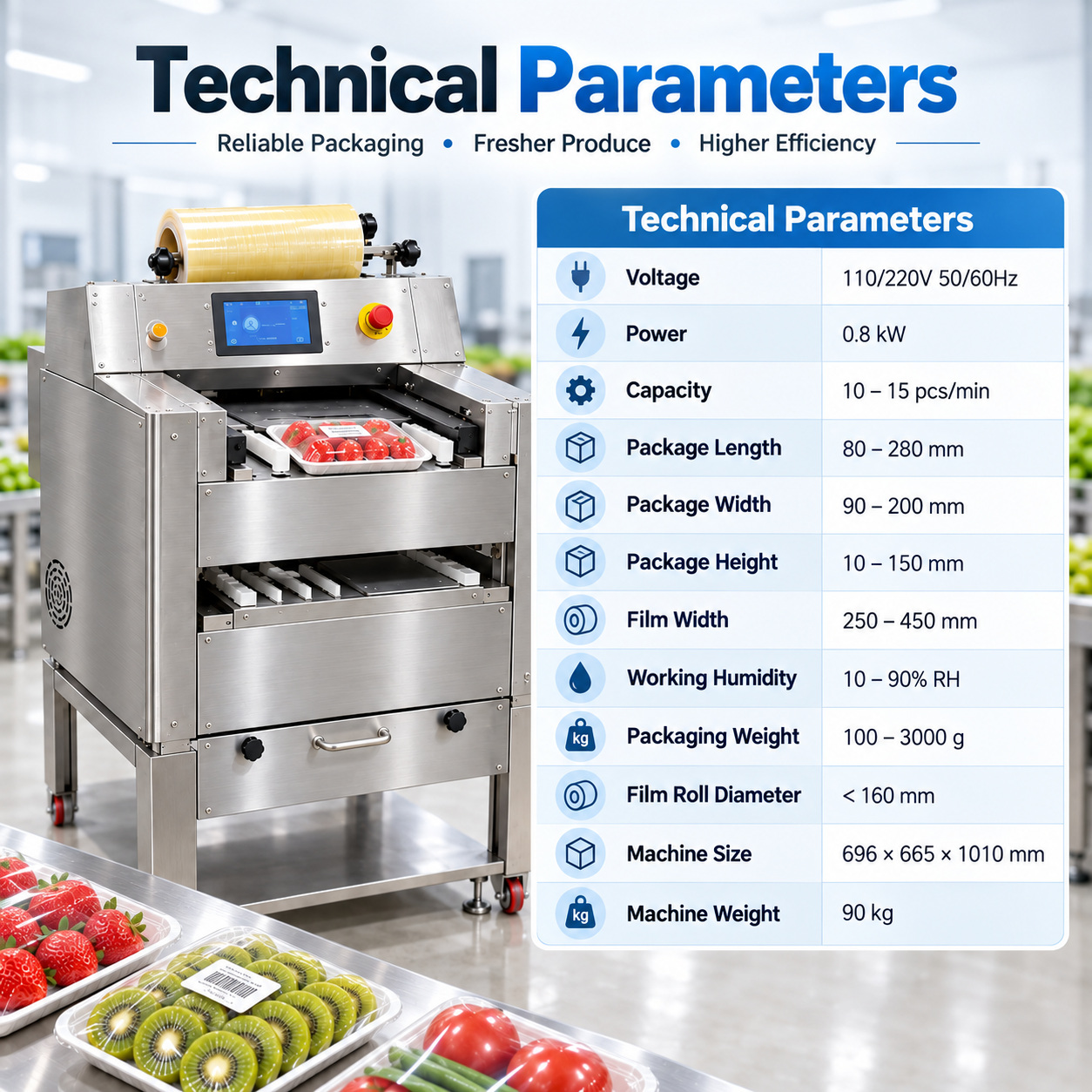

Use these specifications to screen your application, then check the complete loaded pack and film together.
| Model | KPW-P4050 |
|---|---|
| Reference packaging capacity | 10–15 packs/min |
| Package length | 80–280 mm |
| Package width | 90–200 mm |
| Package height | 10–150 mm |
| Package weight | 100–3000 g |
| Film width | 250–450 mm |
| Film roll outside diameter | Less than 160 mm |
| Rated power | 0.8 kW |
| Power supply configurations | 110 / 220 V; 50 / 60 Hz |
| Machine dimensions | 696 × 665 × 1010 mm |
| Machine weight | 90 kg |
| Working humidity | 10–90% RH |
| Optional label function | Real-time label printing; manual label application |
The 10–15 packs/min figure is a reference capacity, not a guaranteed finished-and-labeled output. Product shape, tray handling, film selection and operator tasks affect the actual rate. Confirm the required voltage and frequency when ordering; the listed alternatives do not imply automatic voltage switching.
Record the outside length and width, height including the product above the rim, and total package weight. Include both the smallest and largest formats rather than only a typical tray.
The listed roll width is 250–450 mm and roll outside diameter is below 160 mm. Share the film material, thickness, core size and supplier specification so compatibility can be checked. A suitable width alone does not establish that every film grade will work.
Describe how trays arrive, who loads and removes packs, and whether labels are needed. Use the desired number of finished packs per hour, including manual label application, when discussing capacity.
Agree the sample tray and product range before selection. Useful checks include film coverage, underside finish, tray deformation, product movement and label readability after normal handling.
The KPW-P4050 is intended for food tray wrapping applications such as produce and meat trays. Start with the 80–280 mm length, 90–200 mm width and 10–150 mm height ranges, then check actual trays, product loading and the target output.
No. The confirmed option prints labels in real time, and an operator applies them by hand. Send the intended label layout and data requirements for configuration checking.
The listed 10–15 packs/min is a wrapping reference. Manual loading, unloading, printing and label application can change the complete workflow output. Evaluate your product and operator arrangement before setting a production target.
Begin with the listed 250–450 mm film width and roll diameter below 160 mm. Supply the material, thickness and core specification for compatibility review. Film must also be suitable for the food and handling conditions in your application.
No. Cling film overwrapping covers a tray with wrapping film. Vacuum skin packaging and modified-atmosphere tray sealing are different processes with their own tray, film and equipment requirements. Compare the FZ-400TZ VSP/MAP tray sealer if your specification calls for those processes.
No shelf-life extension or leakproof performance is specified here. Those outcomes depend on the product, film, package design and storage conditions. Define and validate the packaging requirement for your food application.
Send product and tray photos, the smallest and largest filled tray sizes, pack weight, film specification, target finished packs per hour, local power supply and destination. Add a sample label if real-time printing is required.
Choose a configuration around your product
Share your tray dimensions and product photos to start the selection discussion. Include the film you use and whether you need the real-time label printer with manual application.
Explore the cling film wrapping machine category for food tray wrapping selection.
Count accepted, labeled trays and operator time together when reviewing the optional printer. Set the trial around your tray range and the full packing workflow.
