FZ-400TZ Vacuum Tray Skin Packaging Machine

FZ-400TZ Vacuum Tray Skin Packaging Machine

Product Item : FZ-400TZ
Category： Vacuum Packing Machine
Views：386
Machine type: Standalone vacuum tray skin packaging machine
Packaging method: Vacuum skin packaging in trays
Tray layout: Match the mold to the selected tray
Power supply and output: Confirm the quoted configuration
Product description：FZ-400TZ standalone vacuum tray skin packaging machine. Compare tray layouts, skin film and product height to select a configuration for your food packs.
INQUIRY

FZ-400TZ standalone vacuum tray skin packaging

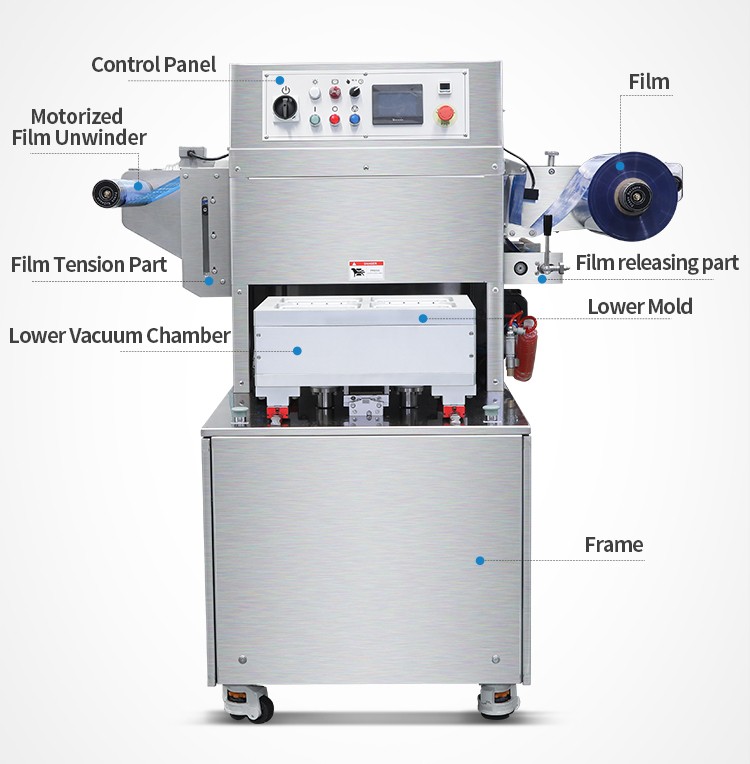

The FZ-400TZ is a standalone machine for vacuum skin packaging in trays. Place the prepared product in a compatible tray and match the skin film, tray mold and settings to the pack. The film follows the product profile to create a close-fitting presentation.

Choose the tray and product together

Tray length and width are only part of the selection. Product height, shape, surface moisture and the required seal area also matter. Send the tray, film and representative food samples so the finished pack can be checked before the configuration is finalized.

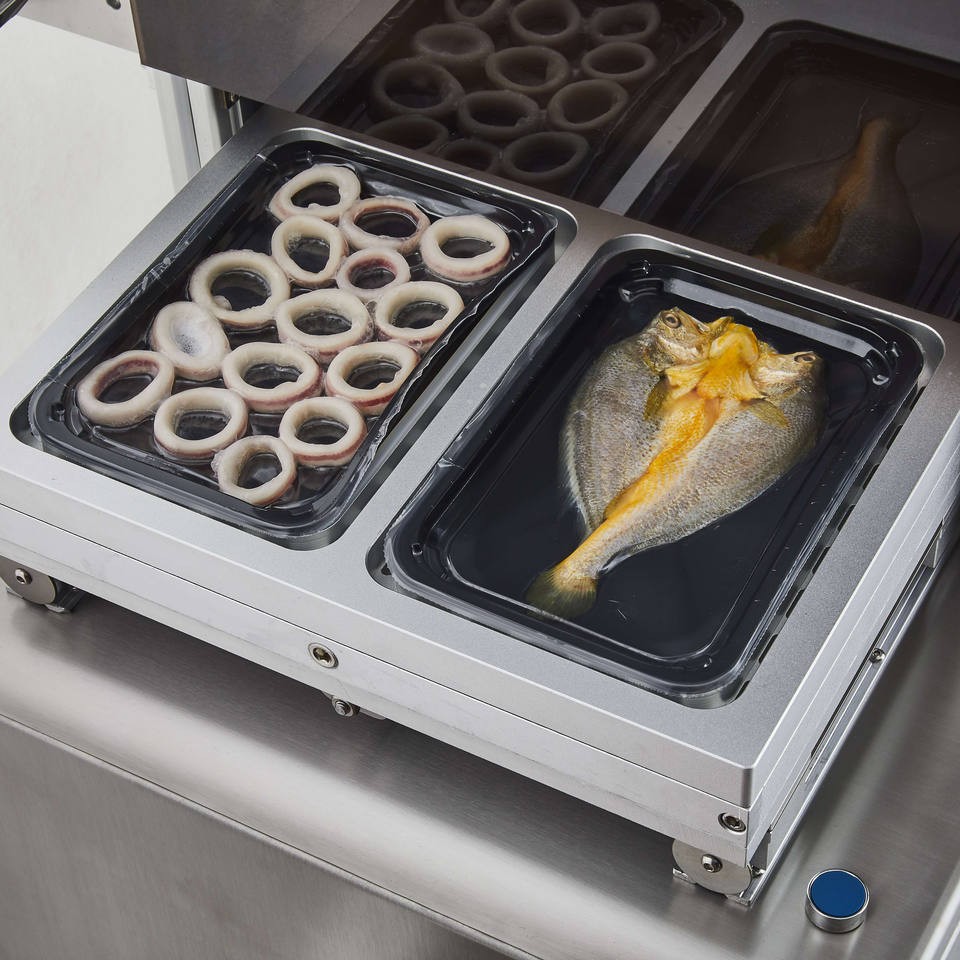

Food trays positioned on a vacuum skin packaging machine loading area — Tray loading example from the supplied product photographs.

FZ-400TZ reference specifications

The supplied model chart gives the following reference values. Confirm the mold, electrical supply and final machine configuration in the quotation.

Item	Reference value
Model	FZ-400TZ
Machine format	Standalone vacuum tray skin packaging machine
Cycle rate	2–3 cycles per minute in the supplied chart; actual output depends on loading, tray layout, product and settings.
Illustrated tray layouts	One 400 × 280 mm tray; two 175 × 260 mm trays; or four 200 × 140 mm trays, subject to the matching mold.
Total power	4 kW
Working air pressure	0.6–0.8 MPa
Equipment weight	190 kg
Tray materials listed	PP, PE, PET and PS. Confirm film, tray and sealing compatibility through sample testing.

FZ-400TZ vacuum tray skin packaging machine specification and tray layout chart — Original FZ-400TZ model chart. Cycle rate is stated as cycles per minute; the number of trays per cycle depends on the mold.

Evaluate the finished skin pack

Check film contact around the product, tray appearance, seal integrity and how the pack handles your intended transport and display conditions. Shelf life depends on the food, hygiene, packaging materials and storage conditions and needs validation for the actual application.

Vacuum skin packed meat and fish tray examples — Finished food-pack examples. Match the tray and film to the product you plan to pack.

Information to send for selection

Tray dimensions and material, with a physical sample if available.
Product type, maximum height and typical loading weight.
Skin film specification and desired presentation.
Required packs per hour and available operators.
Destination country, electrical supply and compressed air availability.

Does tray count equal the cycle rate? No. A cycle may contain one or several trays according to the mold. Allow for manual loading and handling when estimating usable output.
