FZ-400TZ Double-Workstation Vacuum Skin Packaging Machine

FZ-400TZ Double-Workstation Vacuum Skin Packaging Machine

Category： Vacuum Packing Machine
Views：189
Model: FZ-400TZ
Type: Double-Workstation VSP / MAP Tray Sealer
Capacity: 300–500 trays/h
Warranty: 24 months
Product description：FZ-400TZ double-workstation VSP/MAP tray sealer for food packaging, with 300–500 trays/h reference capacity, standard 304 stainless steel and optional gas-control or gas-flushing configuration.
INQUIRY

FZ-400TZ double-workstation food-tray packaging
VSP and MAP are standard processes; gas-control and gas-flushing configurations are optional. Reference capacity is 300–500 trays/h.

Match the Tray Layout to the Required Output

Model
FZ-400TZ

Workstations
2 working stations

Reference capacity
300–500 trays/h

Total power
4 kW

Working air pressure
0.6–0.8 MPa

Industrial Vacuum Skin Packaging Machine Overview

The FZ-400TZ is a double-workstation industrial food-tray machine for VSP and MAP packaging of meat, seafood, cheese and prepared foods. Its 304 stainless steel construction is standard. The machine feeds top film, uses a selected tray mold and completes the configured sealing process. Tray dimensions, top film, container material and process mode must be confirmed with product samples before final selection.

Compare other systems in the vacuum packaging machine category. Include the tray drawing in your inquiry so the mold layout can be checked.

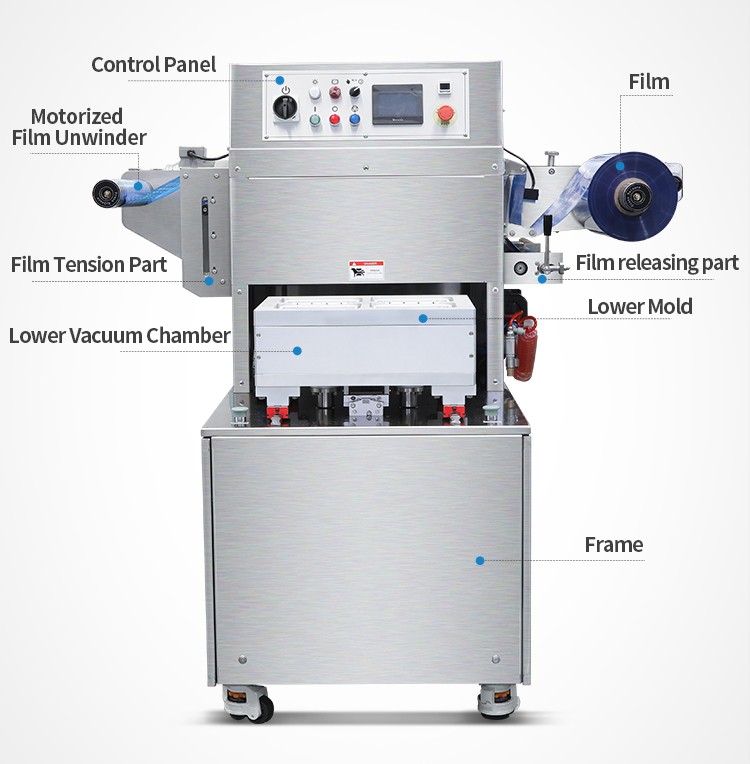

FZ-400TZ vacuum skin tray packaging machine and tray layout diagram — FZ-400TZ machine and existing tray-layout reference

Examples of meat seafood cheese and prepared food tray packaging — Existing vacuum skin and MAP application examples

Watch the Tray Packaging Process

FZ-400TZ Technical Reference

Model	FZ-400TZ
Machine type	Double-workstation tray-mold packaging machine
Existing tray layouts	1 × 400 × 280 mm 2 × 175 × 260 mm 4 × 200 × 140 mm
Packaging cycle	2–3 cycles/min
Reference capacity	300–500 trays/h for the double-workstation tray-mold machine
Container materials	PP / PE / PET / PS
Total power	4 kW
Working air pressure	0.6–0.8 MPa
Equipment weight	190 kg
Standard construction	304 stainless steel
Standard processes	VSP / MAP
Optional configurations	Gas control / gas flushing
Voltage	110 / 220 / 380 V; phase configured to order
Warranty	24 months

Capacity basis: 300–500 trays/h is the confirmed reference capacity for this double-workstation tray-mold machine. The existing parameter image separately lists a 2–3 cycles/min packaging cycle.

Current Machine Features

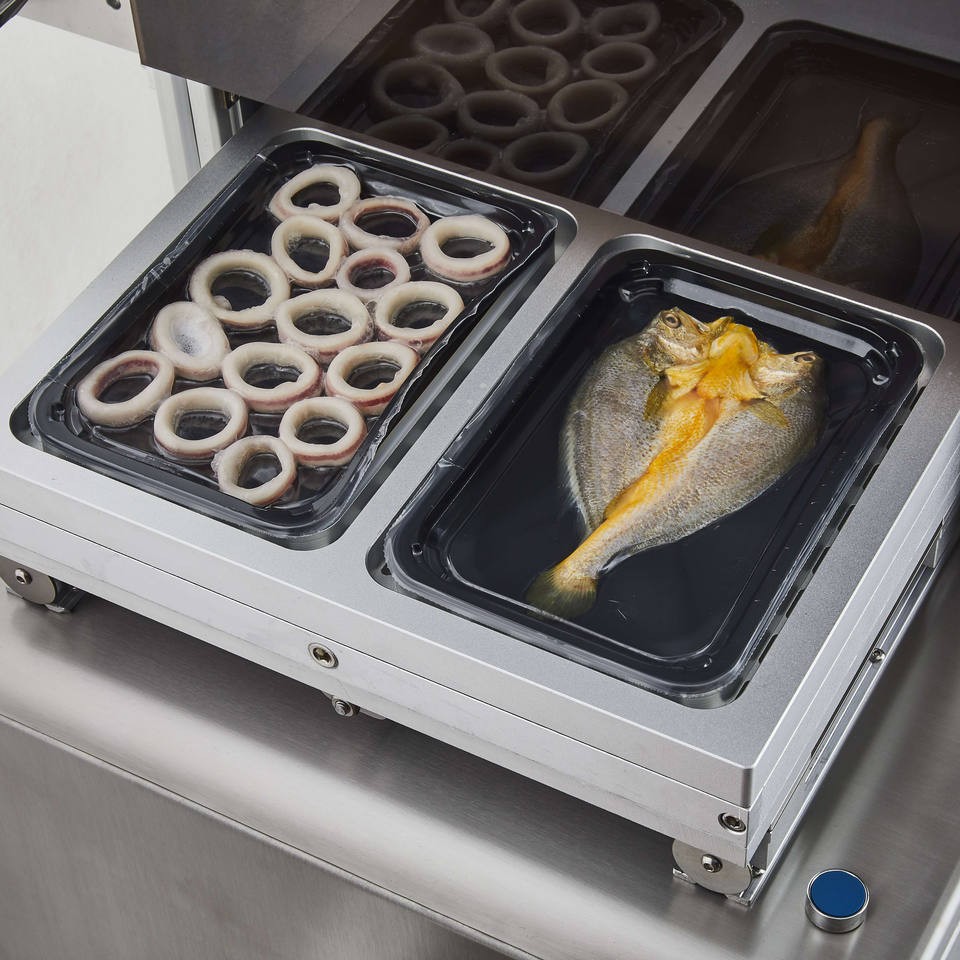

Vacuum tray chamber and sealing area — Vacuum and sealing area shown on the current page

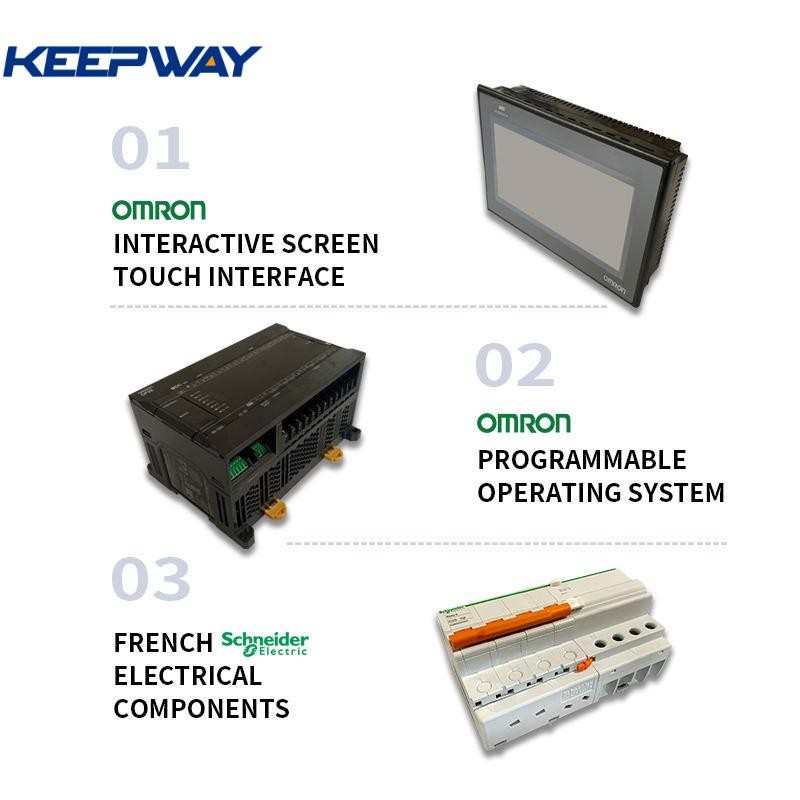

Film feeding system with PLC controlled alignment — Automatic top-film feeding and alignment

Replaceable tray molds and selectable packaging method diagram — Replaceable mold reference and process options

Drive and Construction Detail

High power motor illustration used on current product page — Existing motor and drive-system visual

Buyer checks before configuration

Confirm tray dimensions, flange width and material.
Confirm product height, product temperature and liquid content.
VSP and MAP are standard; gas-control and gas-flushing configurations are optional.
Confirm top-film structure, roll width and supplier compatibility.
Confirm local voltage, phase, frequency and compressed air.
Confirm expected trays/hour for the selected mold layout.

Information Required for a Packaging Test

Food type and product dimensions

Tray drawing and material

Top-film specification

Target trays per hour

Required packaging process

Power, air and destination standard

Request a Tray Packaging Configuration

Send product photos, tray drawing, film details, target trays per hour, selected process, local utilities and destination country.
