Wrapping Machine

Automatic Horizontal Orbital Stretch Film Wrapping Machine

Category： Wrapping Machine
Views：1359
Power Supply: 110/220/380 V, 50/60 Hz, customized to customer requirements
Ring Rotating Speed: 10–20 rounds/min
Conveyor Feed Speed: 20–100 mm/s
Type: Automatic orbital ring wrapper; optional carriage for non-woven fabric/composite paper
Product description：Automatic horizontal orbital stretch film wrapping machine for pipes, profiles, boards, rods and other long products, with 10–20 rounds/min ring speed, 20–100 mm/s conveyor speed and configurable ring
INQUIRY

Application fit & configuration

Wrap long products with the right ring and support layout.

An orbital wrapper carries stretch film around a product moving through the ring. The whole cross-section, protrusions and support points must fit the selected conveyor and guarding arrangement.

10–20 r/minListed ring-speed range

20–100 mm/sListed conveyor range

Optional carriageFor non-woven or composite paper

Request a configuration review

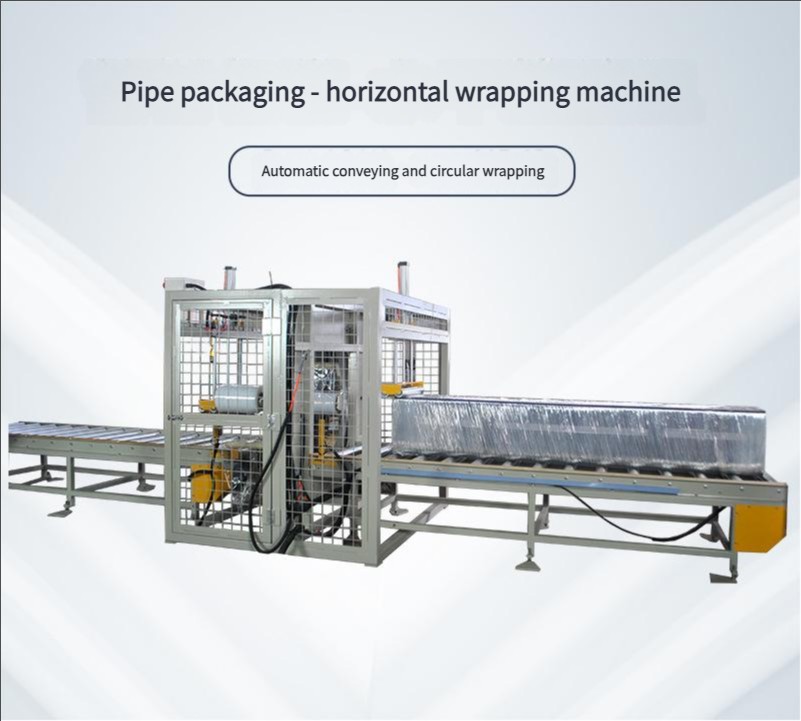

Continuous orbital wrapping for long products
The product travels through a rotating ring while stretch film is applied around the cross-section. Available conveyor-fed configurations cover pipes, profiles, boards, rods and similar long products.

Why B2B Buyers Use an Orbital Wrapper

Long-product packaging
Wraps products that do not suit a pallet turntable.

Adjustable overlap
Film overlap can be set for the required coverage.

Continuous conveying
Works with an infeed and outfeed conveyor layout.

Configurable opening
Ring and film configuration are selected around the product section.

Machine and Conveyor Configurations

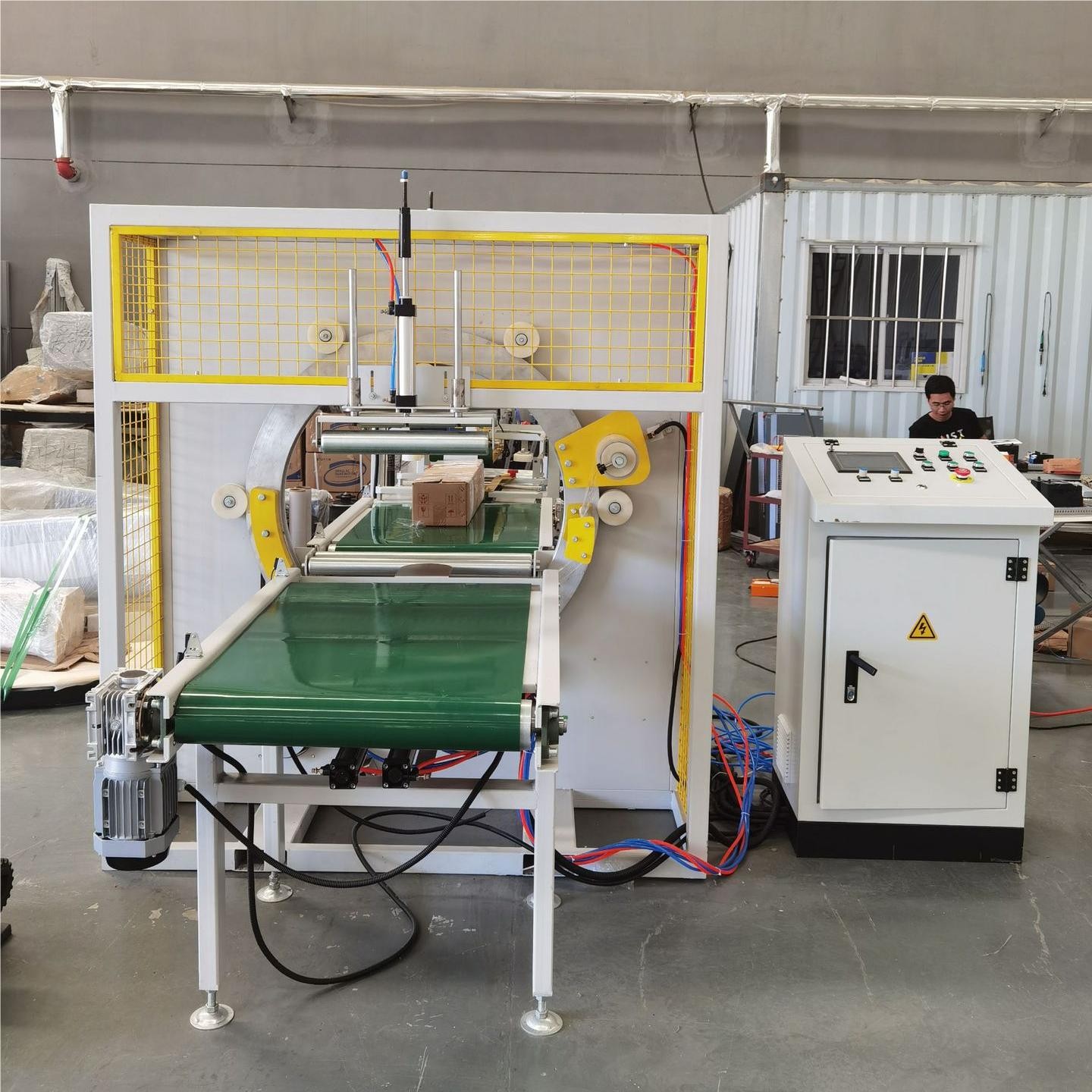

Horizontal orbital stretch film wrapping machine with belt conveyor and safety enclosure — Belt-conveyor orbital wrapping configuration

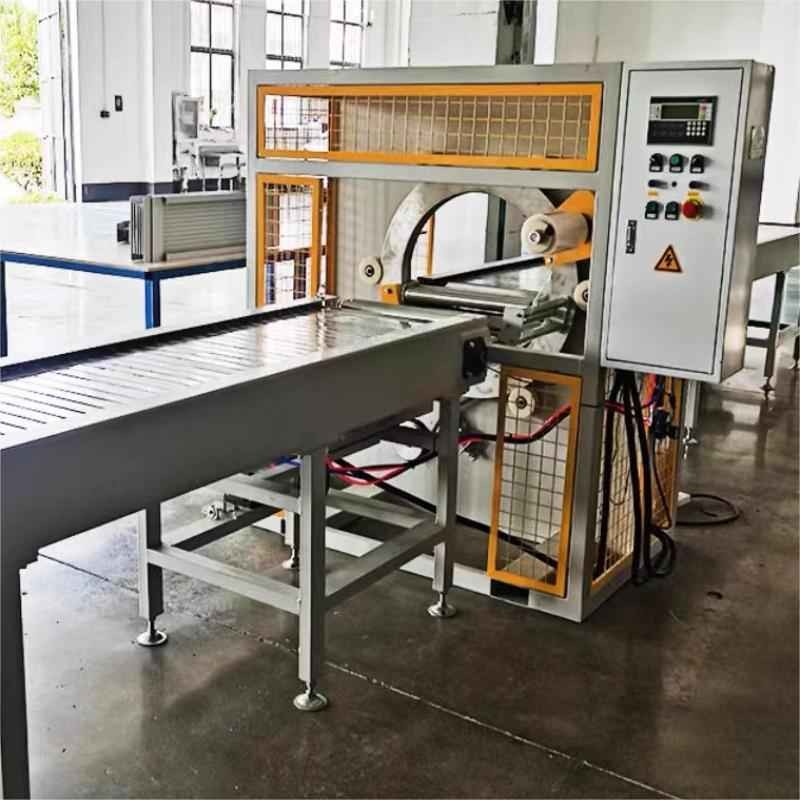

Horizontal orbital wrapping machine with roller conveyor in workshop — Roller-conveyor configuration in the workshop

Watch the Horizontal Orbital Wrapping Process

Technical Configuration Reference

Machine type	Automatic orbital ring wrapper
Power supply	110 / 220 / 380 V, 50 / 60 Hz; voltage and phase are configured to customer requirements.
Ring rotating speed	10–20 rounds/min.
Conveyor feed speed	20–100 mm/s.
Wrapping materials	Stretch film is used with the standard configuration; non-woven fabric and composite paper require an optional film carriage.
Ring opening and conveyor	Configured to product cross-section, length, weight and line layout.

Controls and Film-Handling Details

Orbital wrapping machine film roll holder and ring control wheel detail — Film holder and ring speed control details

Horizontal orbital wrapper control panel and foot pedal detail — Control panel and optional foot-pedal detail

Stretch film roll and guide rollers on orbital wrapping ring — Film roll and guide-roller arrangement

Orbital wrapping ring with film carriage and safety guard — Ring, film carriage and guarding detail

How the Packaging Line Works

Confirm product section, length, weight and support points.
Load the selected film and set conveyor and overlap parameters.
The conveyor moves the product through the rotating wrapping ring.
Inspect coverage and adjust film tension, overlap or line speed as required.

Factory Configuration Examples

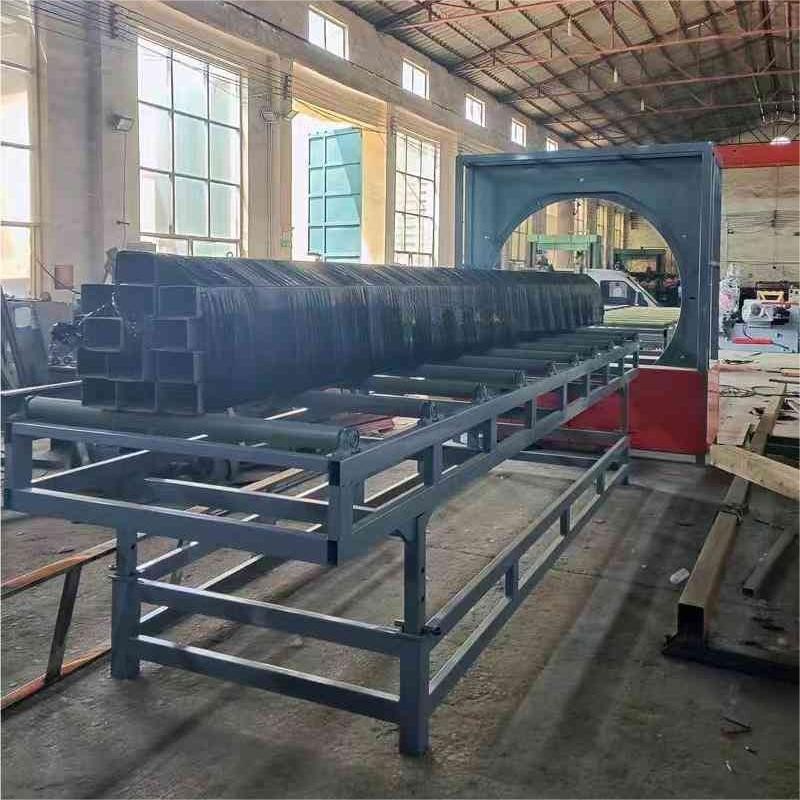

Roller conveyor feeding a horizontal orbital wrapping machine — Conveyor and product-guiding configuration

Multiple horizontal orbital wrapping rings integrated with conveyors — Multi-ring production-line configuration

Information Required for Selection

Product width × height and minimum/maximum length

Product weight and support method

Target line speed and daily output

Film type, width, thickness and overlap

Required ring opening and conveyor type

Infeed/outfeed layout and available floor space

Local voltage, frequency and phase

Required guarding and upstream/downstream signals

Configuration reference: ring speed 10–20 rounds/min; conveyor speed 20–100 mm/s; 110/220/380 V power and phase configured to customer requirements; non-woven fabric and composite paper require an optional film carriage.

Request an Orbital Wrapping Configuration

Send the product drawing, maximum/minimum section, length, weight, target speed, film specification, line layout and local power standard.

View Wrapping Machines Send Product Details

Build an evidence-based quotation

Turn your packing problem into an acceptance check

The nominal ring size does not establish usable clearance

Send a cross-section drawing including corners and protrusions; review the usable opening, carriage and guards.

Long products sag or rotate during transfer

Provide length, weight and support positions; agree infeed, outfeed and guides for the intended loading method.

Faster conveying leaves the wrong overlap

Agree film width, overlap and surface protection together with ring and conveyor speeds, then inspect the full wrapped length.

Compare measurable results

Compare film mass per metre and the accepted coverage at a documented line speed. Record corners, ends, product supports and any separate end protection; orbital side wrapping alone does not establish weatherproof end sealing.

Bring your hardest product or packing condition

Ask for a ring-clearance and conveyor-layout review, followed by an agreed coverage test on your longest and shortest products.

Include in your inquiry: Maximum/minimum cross-section; length and weight; surface sensitivity; support sketch; target speed; film and overlap; line layout.

Start with the product or material, its size range and your required output. Use the inquiry form below to provide your contact details; sample shipment and trial scope can then be agreed.

Send requirements for this machine

Two-year warranty: replacement parts and their shipping are free during the warranty period. Lifetime after-sales service is available. A sample-test proposal is not a guarantee of a specific result or a free on-site trial.
