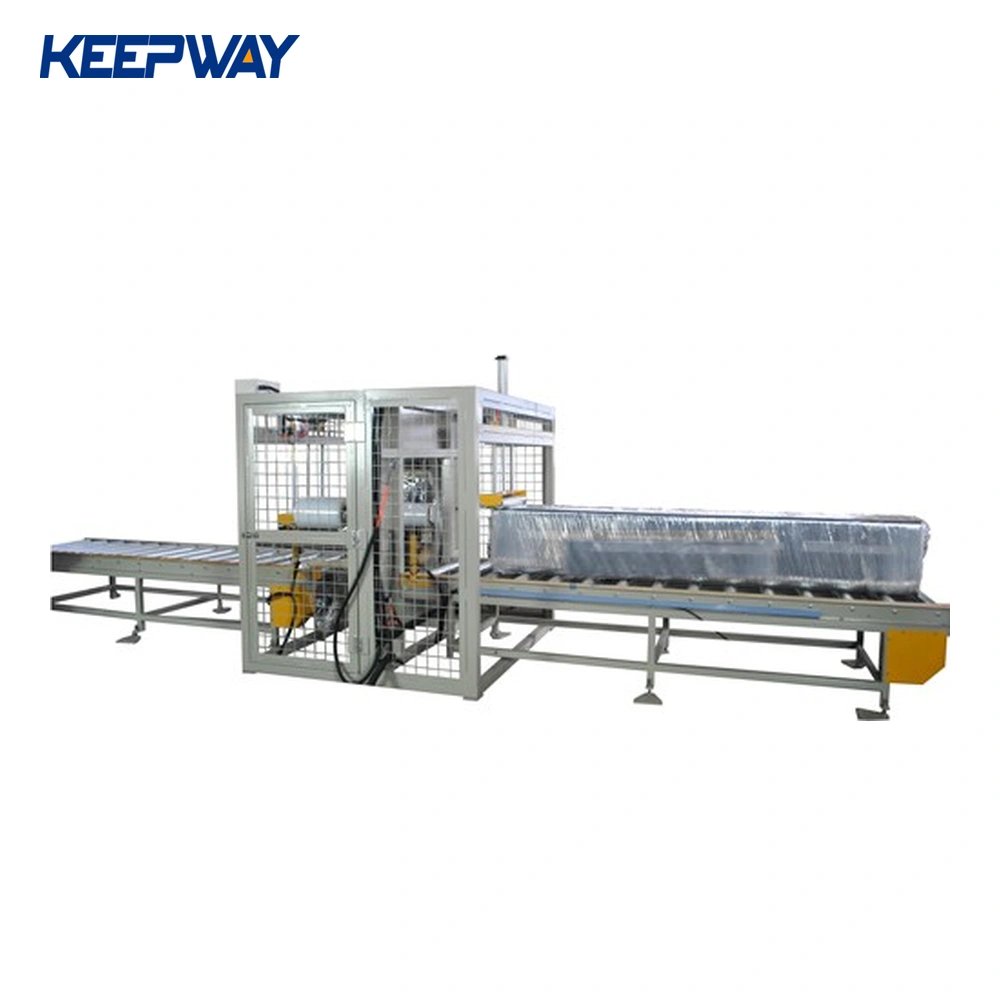

Horizontal Stretch Wrapping Machine

  • Category: Wrapping Machine
  • Views:512
  • Model:KKPW-SP1000
  • Wrapping Size:Width:300 to 650mm Height:300 to 650mm
  • Max.Load:100-1000kgs
  • Power Supply:380V,50HZ,3 Phases
  • Product description:Let’s talk about the usage scenarios of the horizontal winding machine. First of all, it is long goods, such as pipes and long cartons. Since such goods are usually long and difficult to be placed ver
  • Attachment INQUIRY

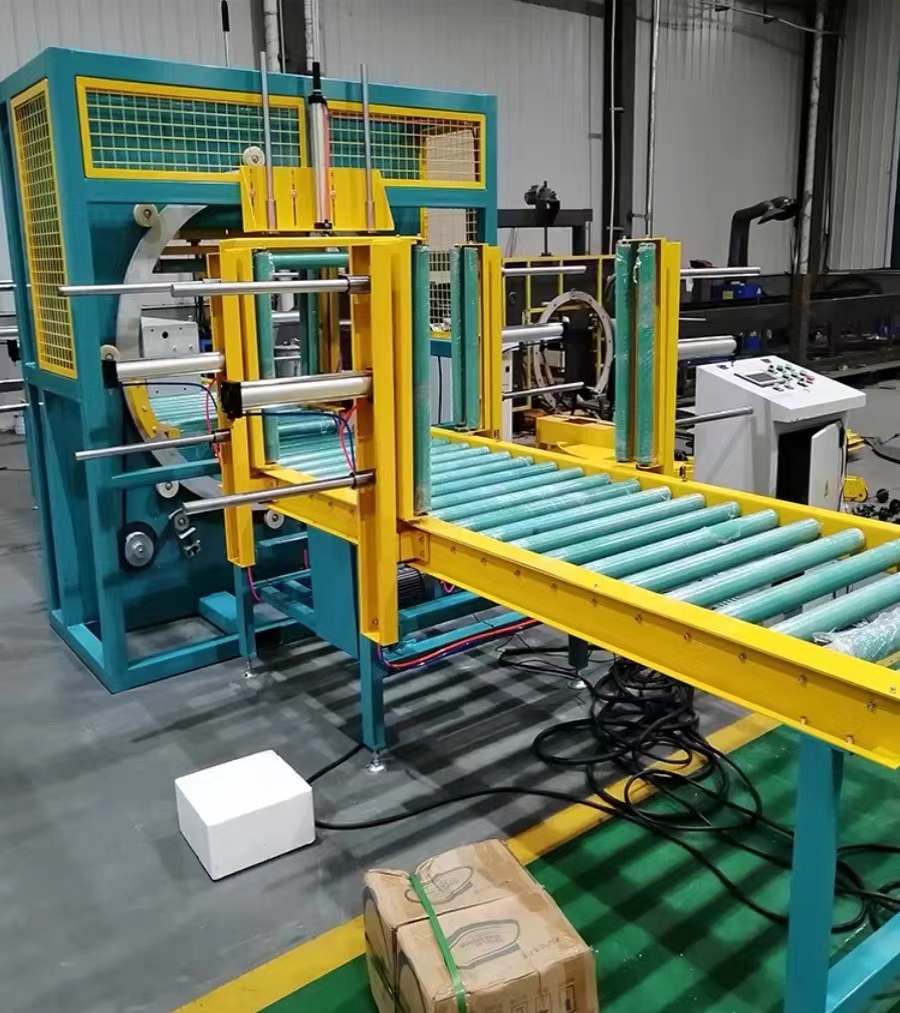

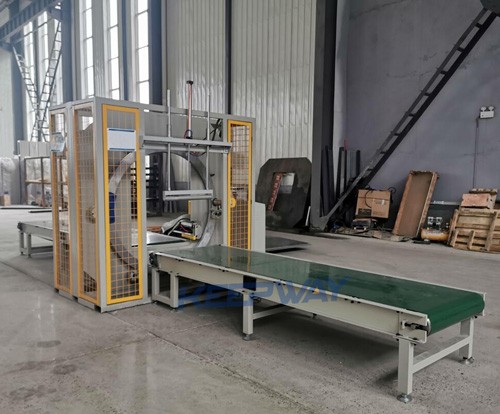

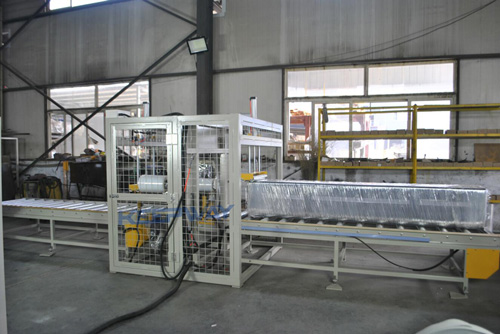

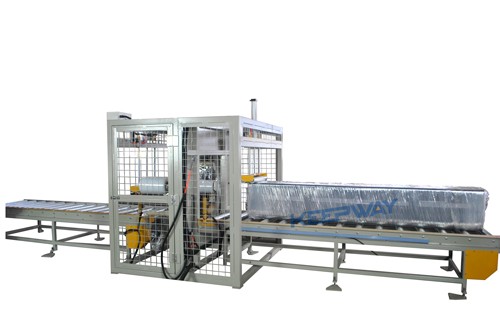

Automatic Horizontal Stretch Wrapping Machine / Profile Stretch Packing Machine


Introduction of Automatic Horizontal Stretch Wrapping Machine:

Horizontal stretch wrapping machine/horizontal film packing machine is suitable for packaging all kinds of elongated objects. Widely used in plastic profiles, aluminum, plates, pipes, dyed fabrics, building materials, steel and other industries. The principle is that the packaging material rotates around the goods moving at a constant speed through a vertical rotation system, and at the same time, the tension of the packaging material is adjusted by the stretching mechanism to pack the object into a tight whole, and form a spiral regular packaging on the surface of the object. Beautiful, dust-proof and moisture-proof. It has the characteristics of stable performance, simple operation and reliable use. It can realize automatic packaging and unmanned operation production, reduce the number of workers and reduce labor intensity. Improve product packaging quality and enhance market competitiveness.

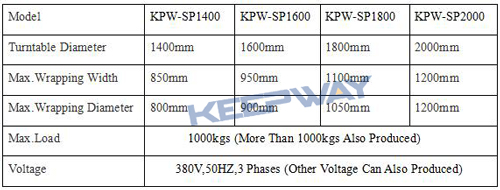

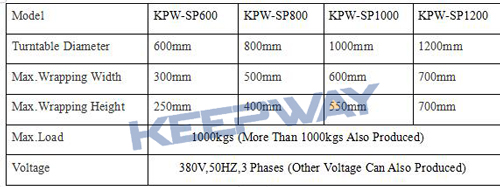

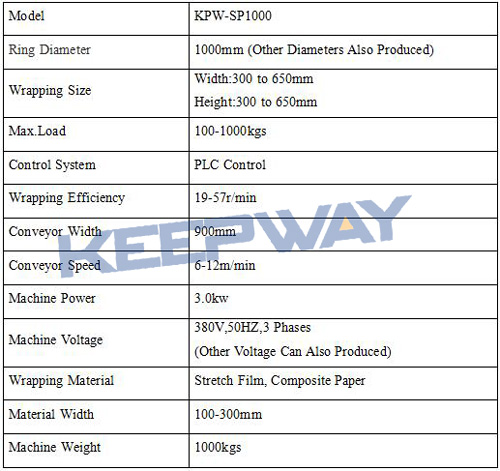

Technology Parameter of Automatic Horizontal Stretch Wrapping Machine:


Features of Automatic Horizontal Stretch Wrapping Machine:

Control System:

1) With a separate PLC programming control system, the number of winding layers and times can be set;

2) The screen displays the PLC operation display interface;

3) Photoelectric switch, which automatically senses the height of the goods;

4) The top layer, bottom layer, and the number of reciprocating laps can be set individually;

5) The photoelectric switch is turned on and off; the film breaking and film shortage alarm can be set in the operation screen.

6) The machine has the function of detecting faults. If there is a fault, open the "monitoring interface" to monitor the machine failure

7) The device has a one-key restore to factory settings function. When the user adjusts the parameters of the device in confusion, he can press the one-key restore button to restore the factory settings and reset the parameters.

Turntable Drive:

1) T2) The drive of the turntable is a chain drive, and the positioning is accurate;

4) The turntable is automatically reset, which is convenient for loading and unloading goods on the spot.

5) The bottom of the turntable is equipped with a forklift slot.

6) Thickness of chassis steel plate: 10mm

7) Chassis chain: 12A

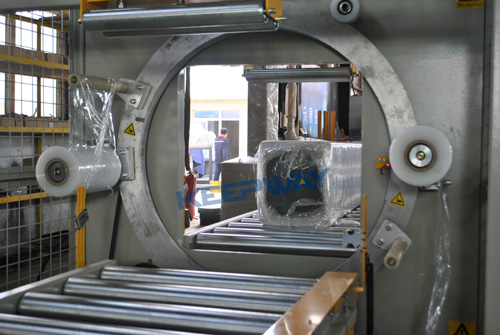

Film Carriage System:

1) The film carriage is an AC motor pre-stretching mechanism, equipped with frequency conversion speed regulation;

2) Adjusting the film tension, the pre-stretching can reach 250%;

3) 10A double chain structure, stable and reliable;

4) The raising and lowering speeds of the film carriage and the film feeding speed are adjustable by frequency conversion;

5) The wrapping numbers of the top and bottom are separately controlled;

6) Membrane system follow-up mechanism, just pull it;

78) Install a photoelectric switch on the film carriage to automatically detect the height of the goods.

Column Structure:

1) Double chain structure, stable and reliable

2) The lifting chain adopts 10A chain transmission, which has high service life and wear resistance

3) The column has a convenient maintenance module

4) The column box: wall thickness 1.5mm, upper and lower plates 6mm, inner corner reinforcement plate 6mm

Surface Treatment:

The whole machine adopts outdoor plastic powder spraying treatment, which is resistant to abrasion and rust

PLC Programmable Control

Photoelectric Switch, Automatically Sensing The Height Of The Goods

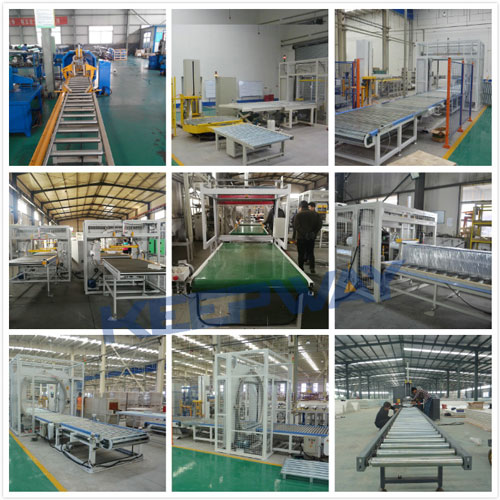

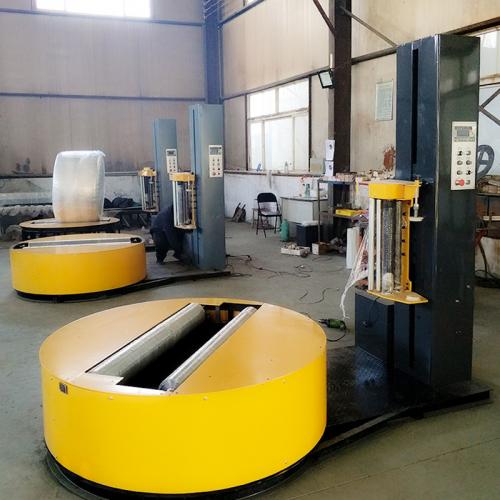

What Other Models We Have:
