   Home > Our Products > Strapping Machine > Desktop Paper and OPP Banding Machine for Cable Coils, Card Stacks and Cartons

Strapping Machine

Desktop Paper and OPP Banding Machine for Cable Coils, Card Stacks and Cartons

  • Category: Strapping Machine
  • Views:1918
  • Model:KPW-SDJ150
  • Max. bundle size:470 × 205 mm (W × H)
  • Min. bundle size:30 × 10 mm (W × H)
  • Power supply:Single phase, 110 or 220 V, 50/60 Hz. Specify your site supply.
  • Product description:Review the KPW-SDJ150 desktop bander for paper or OPP bands. Check bundle limits and request a printed-band trial for cable coils, card stacks or closed cartons.
  • INQUIRY

Will a preprinted band put the logo in the right place on every pack?

Start with one marked pack and a section of your printed roll. Mark the logo position, the overlap and how far the print may move. Ask for consecutive samples at your smallest and largest pack sizes. Check logo placement as well as loose coils, marked card edges or dented carton corners.

Identify the face that should show the print and where the overlap can land on the finished bundle. Prepare artwork for a pre-printed band trial.

If a connector or projecting hose end affects loading, mark the clear opening before selecting an arch layout. Compare an open arch for coils with a loose lead.

Keep cables, cards and cartons as separate sample jobs

A mixed-product banding enquiry should list each product family separately. A successful card-stack sample does not establish the same setup for coiled cables or delicate cartons.

Review my bundle and band specification

Position the printed band

Illustrated sample guide: Position the printed band. bundle width, bundle height, display area.
Mark the front panel and seam on a pack photo. If the logo must land in the same place on every pack, send the roll artwork, repeat length and allowable variation. Request a positioning trial on each pack size before ordering.
Read the three sample checks
  1. Bundle width — Measure each pack size at the proposed band.
  2. Bundle height — Record the smallest and tallest finished stacks.
  3. Display area — Mark fixed print, overlap and visible wording.

Introduction of Automatic OPP/Paper Banding Machine:

Measure the width and height of the finished bundle where the band will sit. The standard KPW-SDJ150 lists a maximum bundle cross-section of 470 × 205 mm. For a soft cable coil, also show the connector position. For a cake carton, measure the closed carton with its insert in place.

Check the standard KPW-SDJ150 band widths and bundle limits before sending the sample brief.

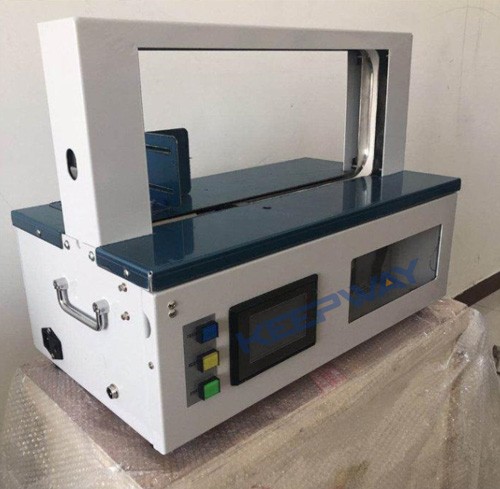

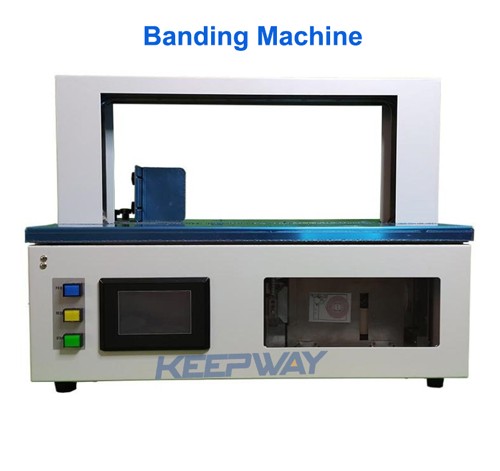

Reconstructed tabletop banding machine display with arch, control screen and band-roll viewing windowReconstructed equipment illustration. Final details depend on the selected configuration.


Technology Parameter of Automatic OPP/Paper Banding Machine:

KPW-SDJ150 paper / OPP banding machineBand materialPaper / OPPMaximum bundle size (W × H)470 × 205 mmMinimum bundle size (W × H)30 × 10 mmBand width20 / 30 mmAdjustable tension5–50 NBanding speedLess than 3 seconds per bundlePower80 WPower supplySingle phase, 110 / 220 V, 50 / 60 HzMachine weight35 kgMachine size (L × W × H)642 × 354 × 476 mmThe maximum bundle size refers to the product cross-section. For a different arch opening, send the required clear width and height for a separate quotation. For a printed band, include the artwork repeat and preferred seam location.


Features of Automatic OPP/Paper Banding Machine

Banding machine feature icons for band feeding, tension and temperature adjustment


Banding examples and details of the reel access, guide, foot switch and handle

Small carton secured with a paper band on the banding-machine table

Band material and finished-pack examples

Paper band rolls and examples of banded cartons and printed items

Company profile with workshop, team, documents and packing photographs

What to agree for this banding job

Check cable contact and coil shape

Submit the proposed coil and identify any connector or jacket that must avoid band pressure.

Review flat and crushable packs separately

On a card stack, mark the band location and check whether cards shift or show edge marks after removal. On a filled, closed cake carton, inspect the lid and corners for dents and check clearance above the product.

Sample acceptance plan

Create one test record per product family with material, geometry, band specification and accepted result.

This is a proposed review, not a published test result. Agree the samples, conditions and scope before arranging a trial.

Send a brief for a matched quotation

Send the smallest and largest bundle width × height, a photo of each pack, the proposed band material and width, acceptable logo position and required finished packs per hour. Ask for the quoted roll width, arch opening and sample result together.

Send my banding requirements

Two-year warranty, free replacement parts and their shipping during the warranty period, and lifetime after-sales service.
