   Home > Our Products > Strapping Machine > Paper and OPP Banding Machine for Folded Textiles and Curtains

Strapping Machine

Paper and OPP Banding Machine for Folded Textiles and Curtains

  • Category: Strapping Machine
  • Views:1884
  • Model:KPW-SDJ150
  • Max. bundle size:470 × 205 mm (W × H)
  • Min. bundle size:30 × 10 mm (W × H)
  • Power supply:Single phase, 110 or 220 V, 50/60 Hz. Specify your site supply.
  • Product description:Check paper or OPP banding for folded fabrics and curtains. Compare fold recovery and band marks, then send bundle dimensions for an arch and sample quote.
  • INQUIRY

Which band will hold folded curtains without leaving a visible line?

Prepare two matching folds from the same fabric lot. Band one and store both under the conditions your customer uses. After opening, inspect the pile and fold edge in the same light and record how long any contact line remains. Repeat on the smallest and bulkiest folds before agreeing the roll and tension setting.

Specify a textile bander as a custom configuration

For folded textiles, define the uncompressed bundle and acceptable finished shape. The custom arch and band arrangement must be agreed separately from the standard KPW-SDJ150 reference chart.

Review my bundle and band specification

Check the folded textile

Illustrated sample guide: Check the folded textile. folded width, free height, fabric contact.
Send folded samples and identify fabric finish, expected holding strength and the surfaces to inspect after opening.
Read the three sample checks
  1. Folded width — Measure the bundle across the band line.
  2. Free height — Measure before applying a band.
  3. Fabric contact — Mark a visible fabric area to check for marks.

Introduction of Automatic OPP/Paper Banding Machine:

Measure the folded width and uncompressed height where the band will sit. Record the smallest bundle and the bulkiest curtain separately. A finished-pack measurement helps distinguish product clearance from the requested arch opening.

Compare the standard band widths and bundle limits with the folded sample before requesting a custom opening.

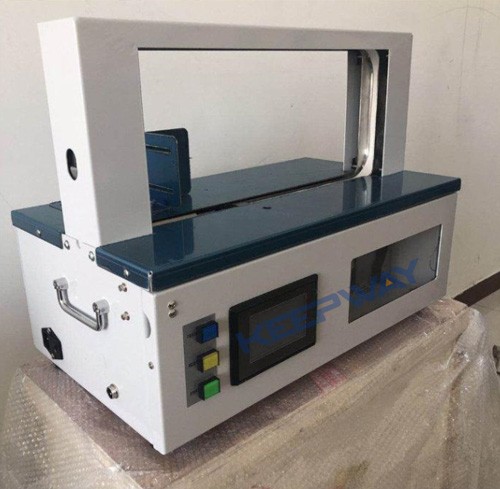

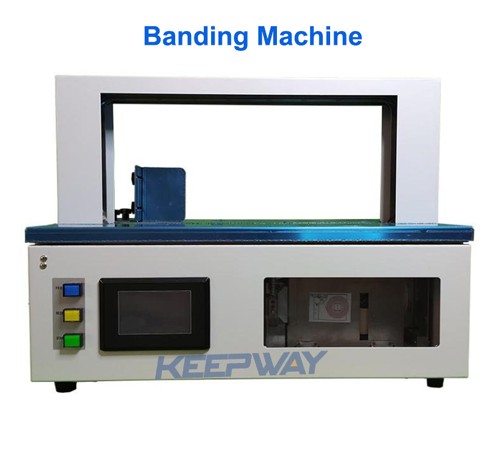

Reconstructed tabletop banding machine display with arch, control screen and band-roll viewing windowReconstructed equipment illustration. Final details depend on the selected configuration.


Technology Parameter of Automatic OPP/Paper Banding Machine:

KPW-SDJ150 paper / OPP banding machineBand materialPaper / OPPMaximum bundle size (W × H)470 × 205 mmMinimum bundle size (W × H)30 × 10 mmBand width20 / 30 mmAdjustable tension5–50 NBanding speedLess than 3 seconds per bundlePower80 WPower supplySingle phase, 110 / 220 V, 50 / 60 HzMachine weight35 kgMachine size (L × W × H)642 × 354 × 476 mmThe standard reference lists 5–50 N adjustable tension and 20 or 30 mm band widths. If the pack needs a different arch opening, send the clear width and height you require. Agree the roll width and trial setting for your fabric in the quotation.


Features of Automatic OPP/Paper Banding Machine

Banding machine feature icons for band feeding, tension and temperature adjustment


Banding examples and details of the reel access, guide, foot switch and handle

Small carton secured with a paper band on the banding-machine table

Band rolls and finished-pack examples

Paper band rolls and examples of banded cartons and printed items

Company profile with workshop, team, documents and packing photographs

What to agree for this banding job

Review fabric marking and recovery

Provide the real fabric and fold; inspect the contact area and shape after band removal.

Define the requested arch

Use the complete bundle section and handling clearance when requesting a custom opening.

Sample acceptance plan

Record material, fold, band width, finished shape and visible marking under the agreed sample conditions.

This is a proposed review, not a published test result. Agree the samples, conditions and scope before arranging a trial.

Send a brief for a matched quotation

Send a fabric sample or marked photo, the folded width and height, the face that will be displayed, the proposed paper or OPP band, and the number of finished packs required per hour.

Send my banding requirements

Two-year warranty, free replacement parts and their shipping during the warranty period, and lifetime after-sales service.
