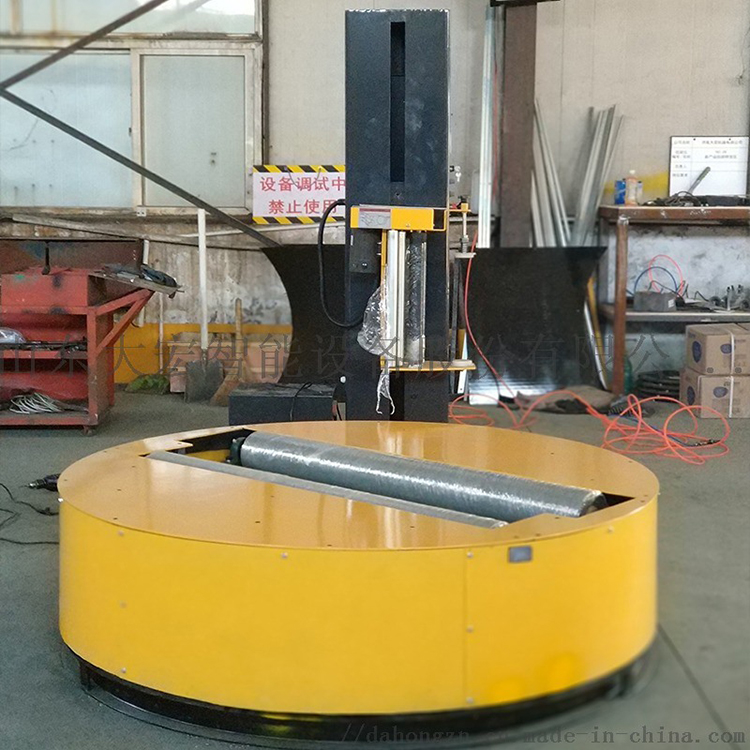

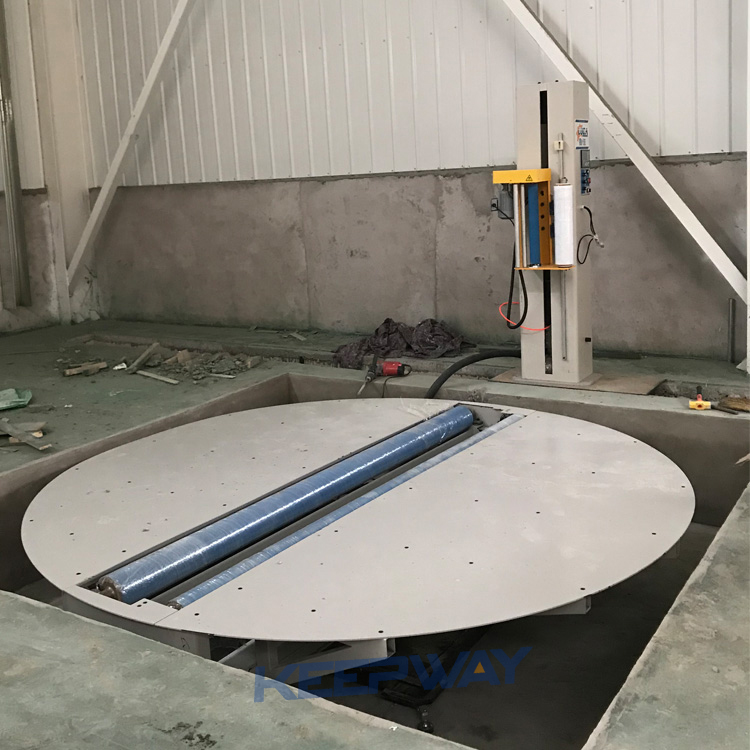

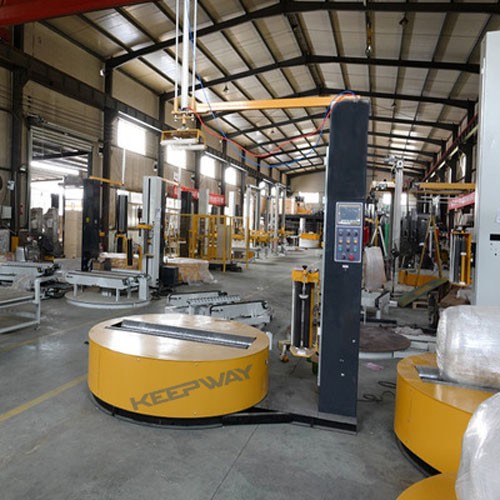

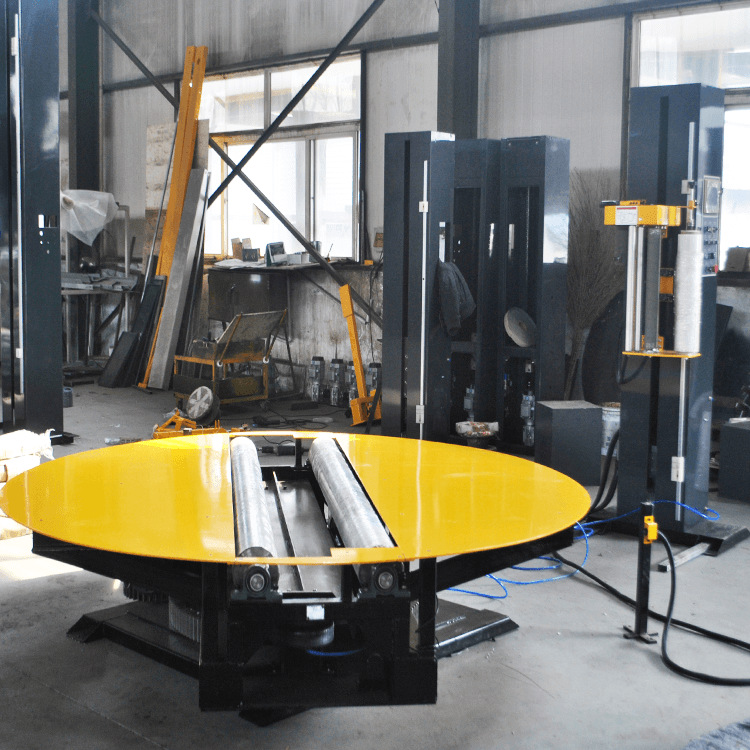

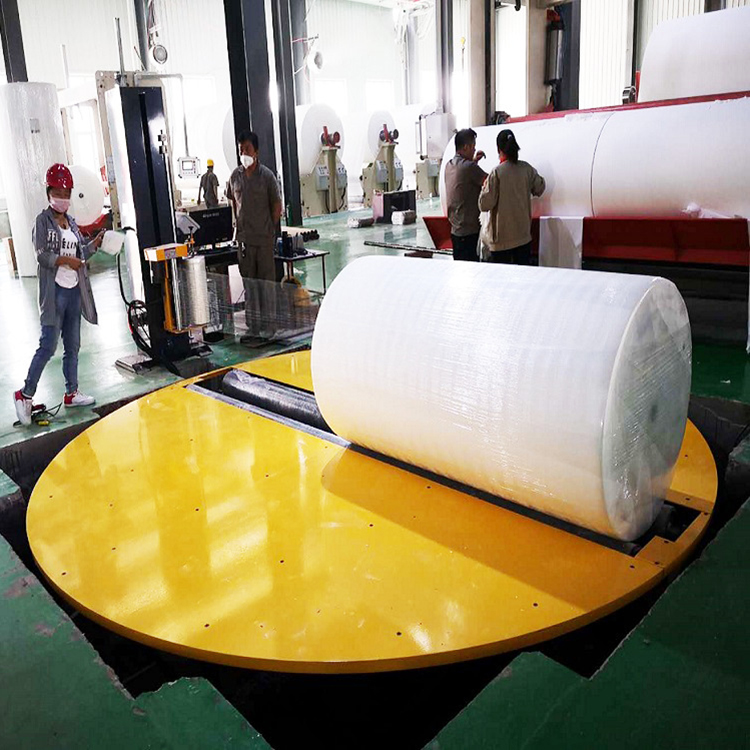

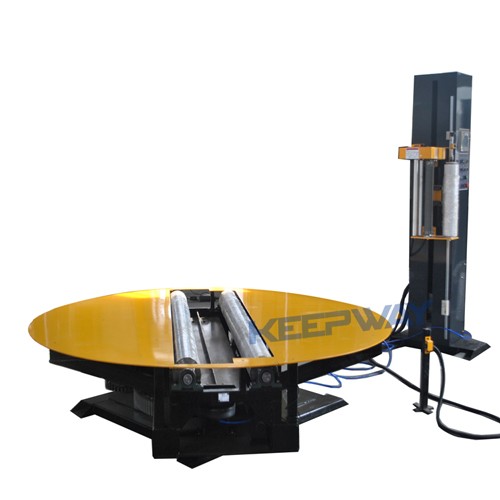

Automatic Reel Stretch Wrapping Machine

  • Category: Wrapping Machine
  • Views:521
  • Model:KPW-YT2000
  • Wrapping Width:800 to 1600mm
  • Wrapping Diameter:500 to 1500mm
  • Max.Load:2000kgs
  • Product description:The paper roll stretch pallet wrapping machine is a highly efficient wrapping equipment designed for paper roll packaging, widely used in papermaking, printing and other industries. The machine wraps
  • INQUIRY

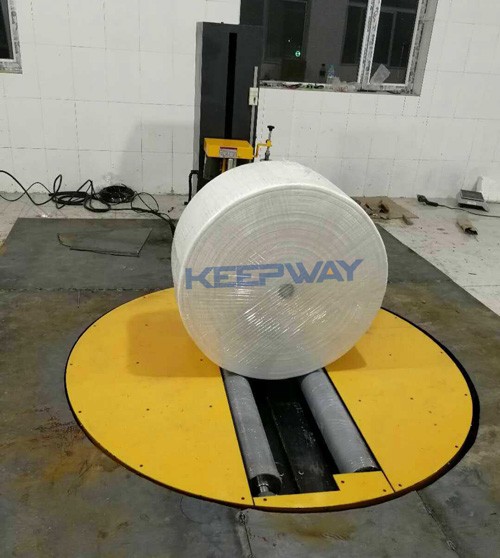

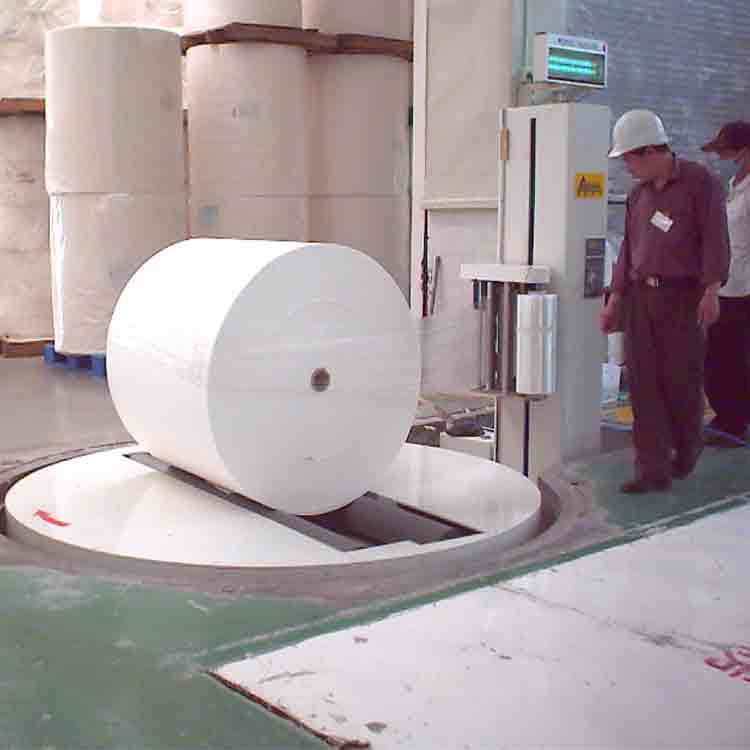

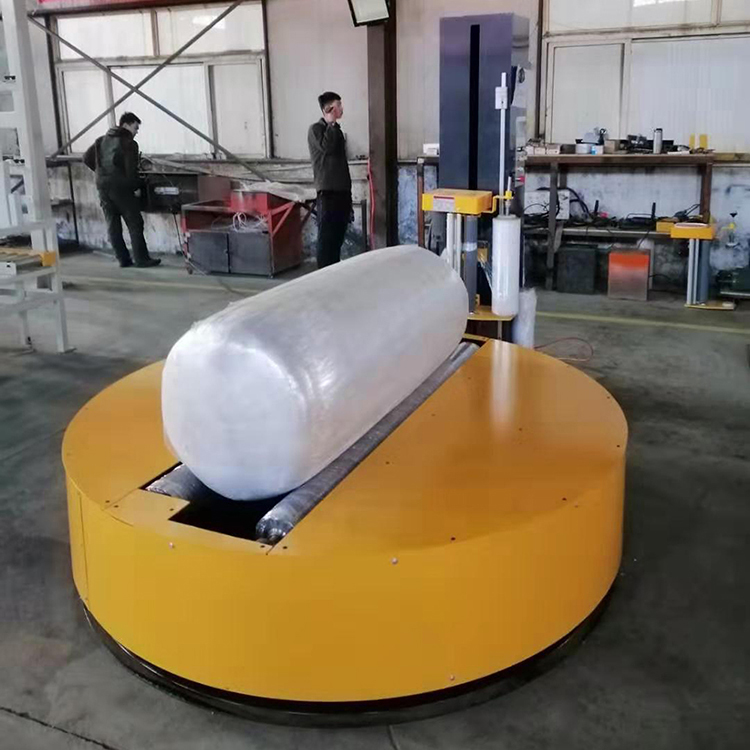

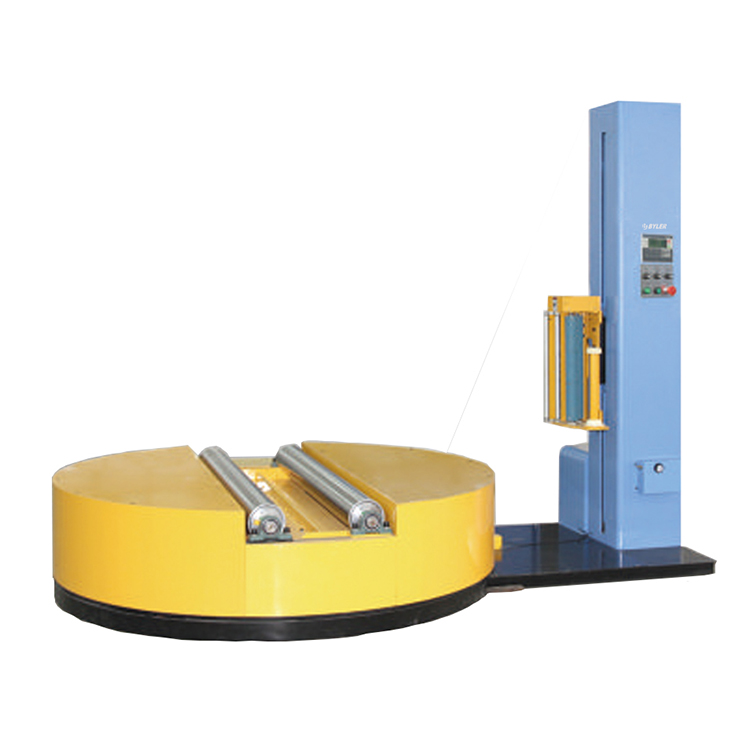

Automatic Reel Stretch Wrapping Machine /Roll Stretch Packing Machine


Introduction of Automatic Reel Stretch Wrapping Machine:


Automatic reel stretch packing machine /roll stretch wrapping machine /cylinder stretch wrapper is a kind of stretch packaging machine designed for outer packaging of cylindrical products. This machine is mainly suitable for the round surface wrapping of a single cylindrical or multiple cylindrical sheet-like objects. It can be applied to both light and heavy products, and has the functions of dust-proof, moisture-proof and cleaning. At the same time, according to the actual needs of packaging, automatic ejection, automatic online, composite packaging and other equipment can be selected.

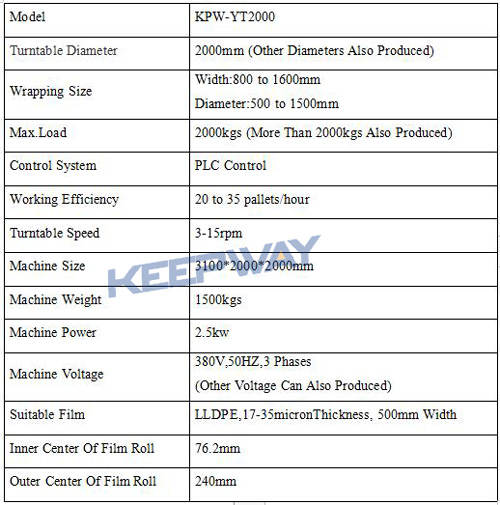

Technology Parameter of Automatic Reel Stretch Wrapping Machine:


Features of Pallet Wrapping Machine:

Control System:

1) With a separate PLC programming control system, the number of winding layers and times can be set;

2) The screen displays the PLC operation display interface;

3) Photoelectric switch, which automatically senses the height of the goods;

4) The top layer, bottom layer, and the number of reciprocating laps can be set individually;

5) The photoelectric switch is turned on and off; the film breaking and film shortage alarm can be set in the operation screen.

6) The machine has the function of detecting faults. If there is a fault, open the "monitoring interface" to monitor the machine failure

7) The device has a one-key restore to factory settings function. When the user adjusts the parameters of the device in confusion, he can press the one-key restore button to restore the factory settings and reset the parameters.

Turntable Drive:

1) Turntable frequency conversion speed regulation 012 rpm adjustable;

2) The drive of the turntable is a chain drive, and the positioning is accurate;

3) The turntable is automatically reset, which is convenient for loading and unloading goods on the spot.

Film Carriage System:

1) The film carriage is an AC motor pre-stretching mechanism, equipped with frequency conversion speed regulation;

2) Adjusting the film tension, the pre-stretching can reach 250%;

3) 10A double chain structure, stable and reliable;

4) The raising and lowering speeds of the film carriage and the film feeding speed are adjustable by frequency conversion;

5) The wrapping numbers of the top and bottom are separately controlled;

6) Membrane system follow-up mechanism, just pull it;

7) Install a photoelectric switch on the film carriage to automatically detect the height of the goods.

Column Structure:

1) Double chain structure, stable and reliable

2) The lifting chain adopts 10A chain transmission, which has high service life and wear resistance

3) The column has a convenient maintenance module

4) The column box: wall thickness 1.5mm, upper and lower plates 6mm, inner corner reinforcement plate 6mm

Surface Treatment:

The whole machine adopts outdoor plastic powder spraying treatment, which is resistant to abrasion and rust

PLC Programmable Control

Photoelectric Switch, Automatically Sensing The Height Of The Goods

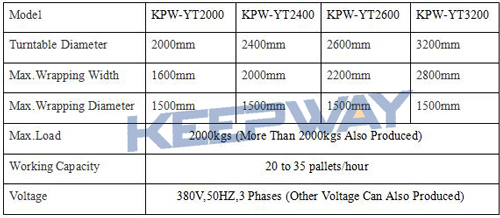

We Also Have Other Models:
