Plastic Bag Sealing Machine

Heat Sealing Machine For Plastic Bags

Category： Plastic Bag Sealing Machine
Views：2145
power：750w
sealing width：5-20mm
Conveying load：8kgs
Sealing thickness：0.08-0.8mm
Product description：Continuous band sealers for heat-sealable plastic and laminated bags. Compare bag orientation, coding and quote requirements with Keepway.
INQUIRY

Choose a continuous band sealer for your bags

Seal the open mouth of pre-filled bags as they move along a conveyor. Start with your bag material, filled weight and required output so we can review the configuration.

Send Your Bag Sealing Requirements

Which bags can a band sealer seal?

Review heat-sealable plastic bags, foil-laminate pouches and composite bags with Keepway. For aluminium foil or kraft-paper packaging, specify the inner sealing layer: the outside appearance of the bag is not enough to select temperature and speed. Send a sample or the film specification for a compatibility review.

Horizontal or vertical bag sealing?

A horizontal conveyor is useful when the filled bag can lie flat. If the product can spill when tilted, ask about a vertical layout that keeps the bag upright. Confirm the bag height, filled weight, support arrangement and sealing-head position for the selected machine.

A continuous band sealer suits a repeated flow of pre-filled bags; a hand-operated impulse sealer may suit occasional batches. Choose using the required bags per minute and the way operators load the product. Review our plastic bag sealing machine range for other layouts.

Date and batch coding

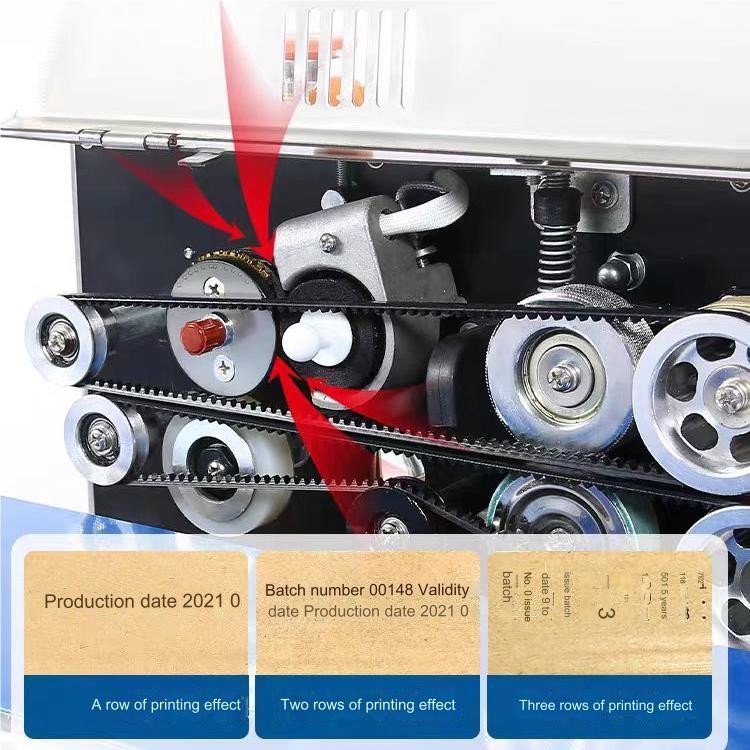

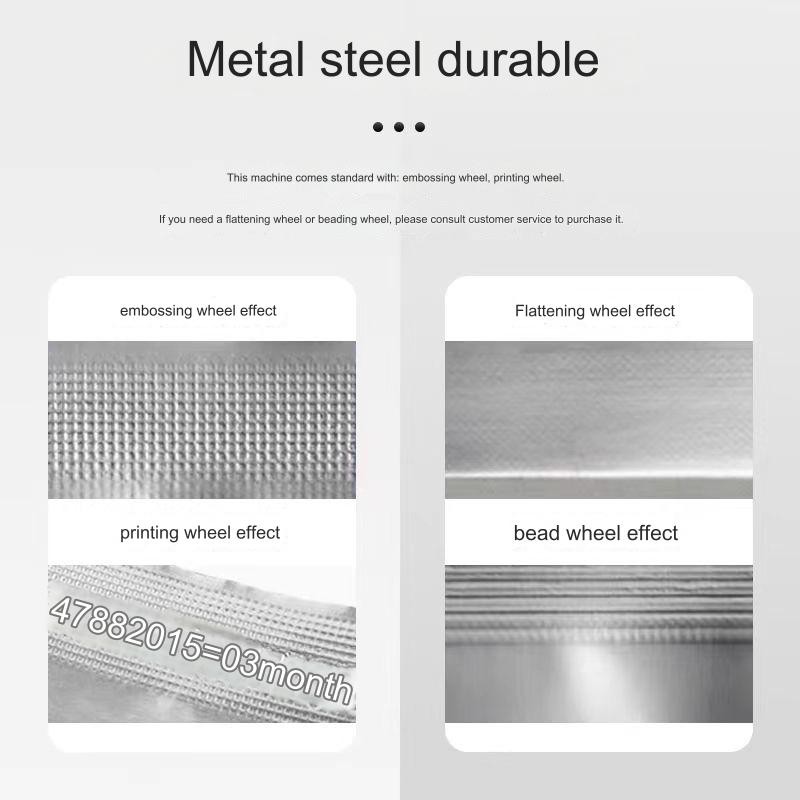

Ask about an embossing or printing wheel when a date or batch code is needed at the seal. Specify the text, character size and required position. The gallery shows several configurations; coding, air inflation and counting equipment should be confirmed in the quotation.

Reference specifications and configuration checks

The values below are the existing catalogue references on this page. Confirm them against the selected model and your bag sample before ordering.

Power	750 W listed; specify the destination voltage, frequency and plug.
Seal width	5–20 mm listed; confirm the required finished seal.
Conveyor load	8 kg listed; confirm the weight of each filled bag and simultaneous loading.
Sealing thickness	0.08–0.8 mm listed; confirm material structure and whether the quoted range refers to one layer or the combined sealing layers.

What to send for a quotation

Bag material, inner sealing layer, film thickness and bag dimensions.
Product being packed, filled weight and whether the bag must remain upright.
Target bags per minute, working hours and loading arrangement.
Date or batch code requirements, destination country and power supply.

Ask Keepway to review your bag sealing requirements

Machine video and illustrated details

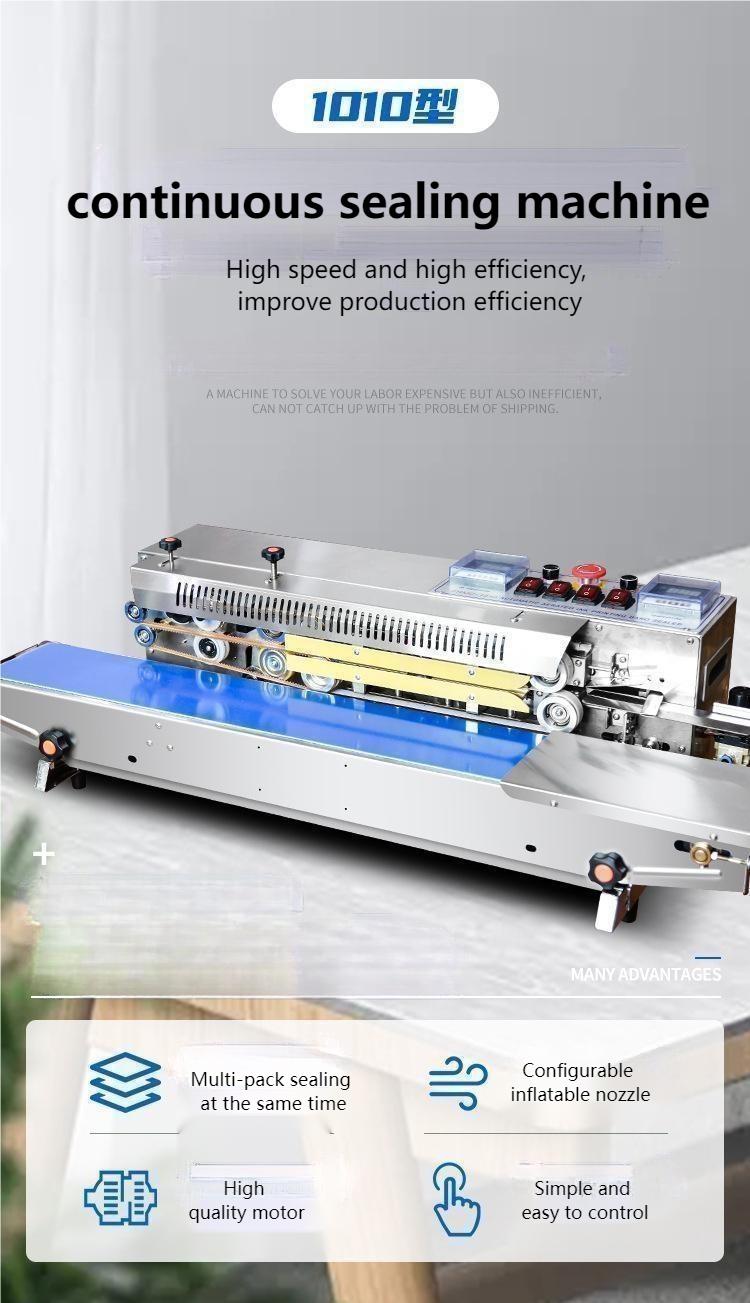

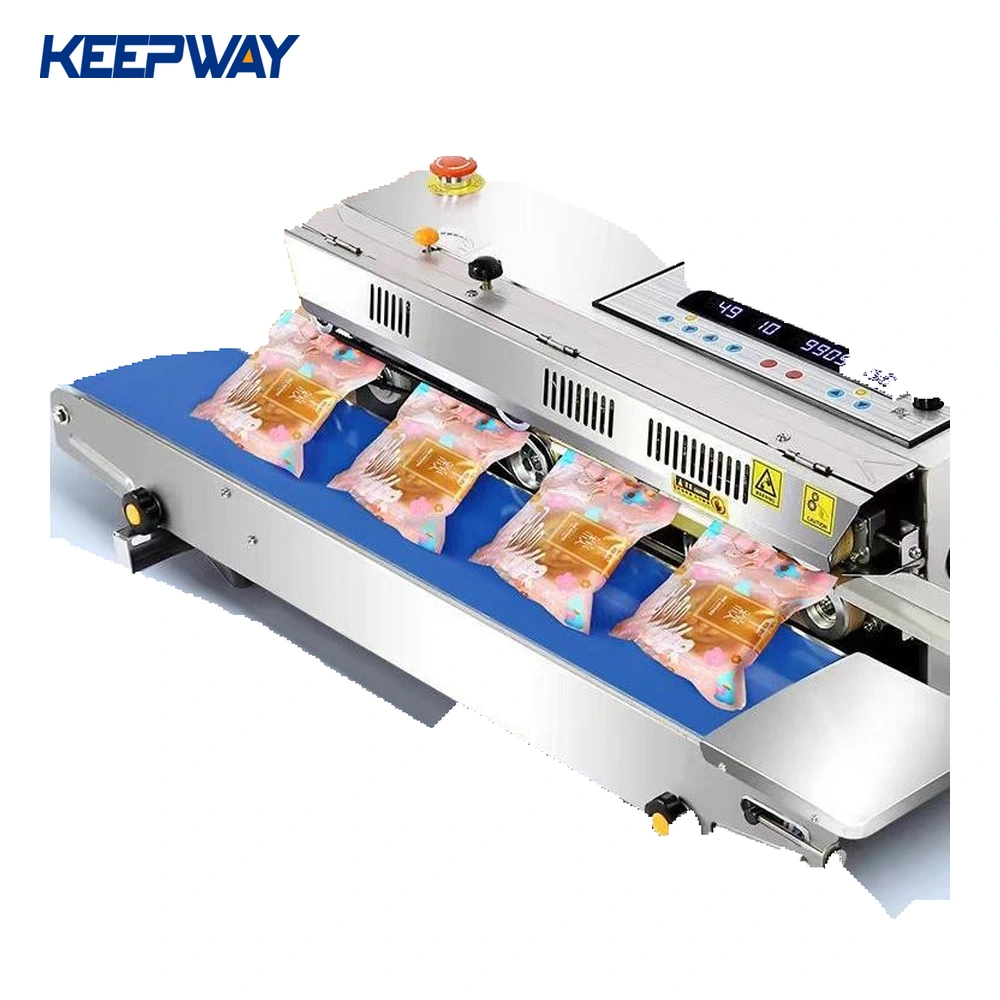

Horizontal continuous band sealer with blue conveyor, shown as a 1010-series configuration — Horizontal conveyor layout. The picture is labelled 1010 series; confirm the exact model and included equipment in the quotation.

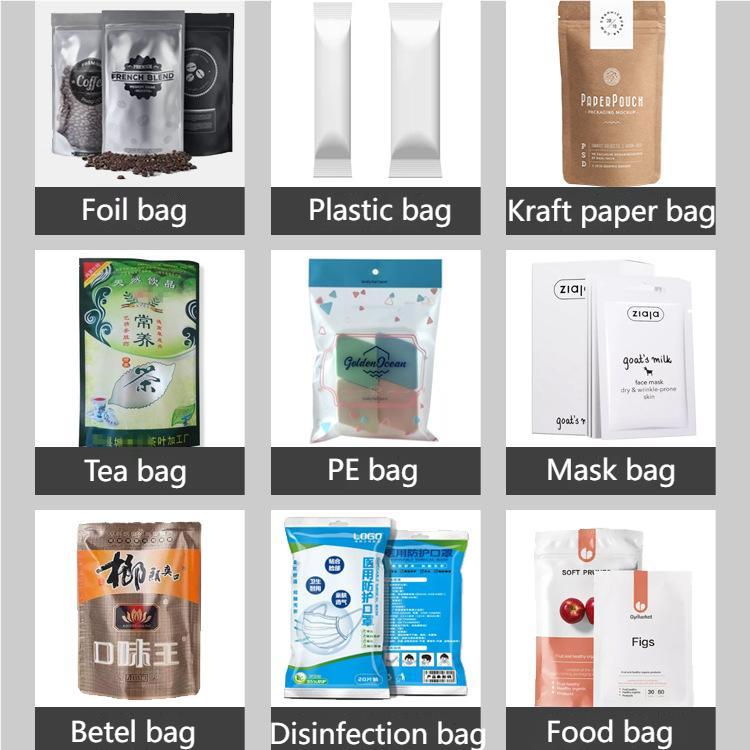

Examples of plastic, foil-laminate and paper-laminate bags for heat-sealing material review — Bag appearance alone does not establish compatibility. Foil and kraft-paper laminates need a suitable heat-sealable inner layer.

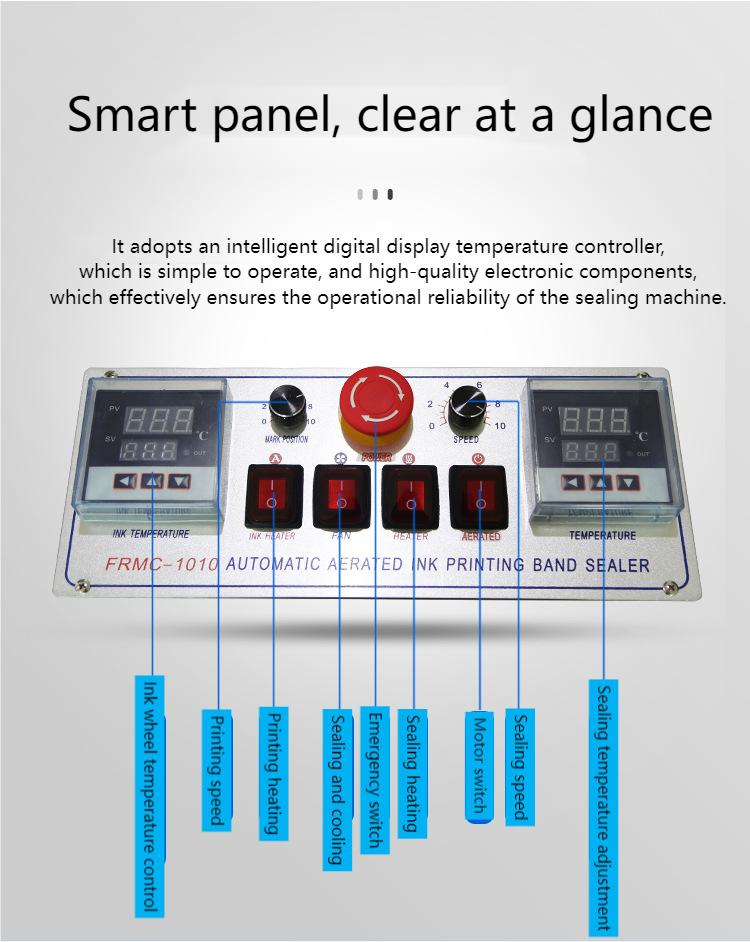

FRMC-1010 control panel with sealing and ink temperature displays, speed controls and emergency stop — Controls shown on the FRMC-1010 configuration. Coding and air-inflation equipment shown in the gallery must be specified when ordering.

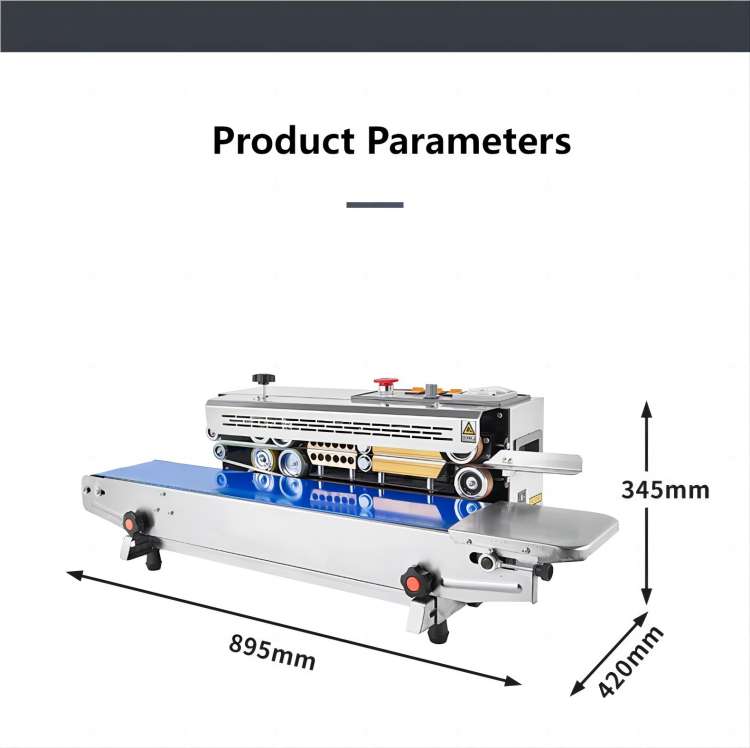

Illustrated band sealer dimensions: 895 mm long, 420 mm deep and 345 mm high — 895 × 420 × 345 mm in this illustration. Check the dimensions of the quoted configuration before planning bench space.

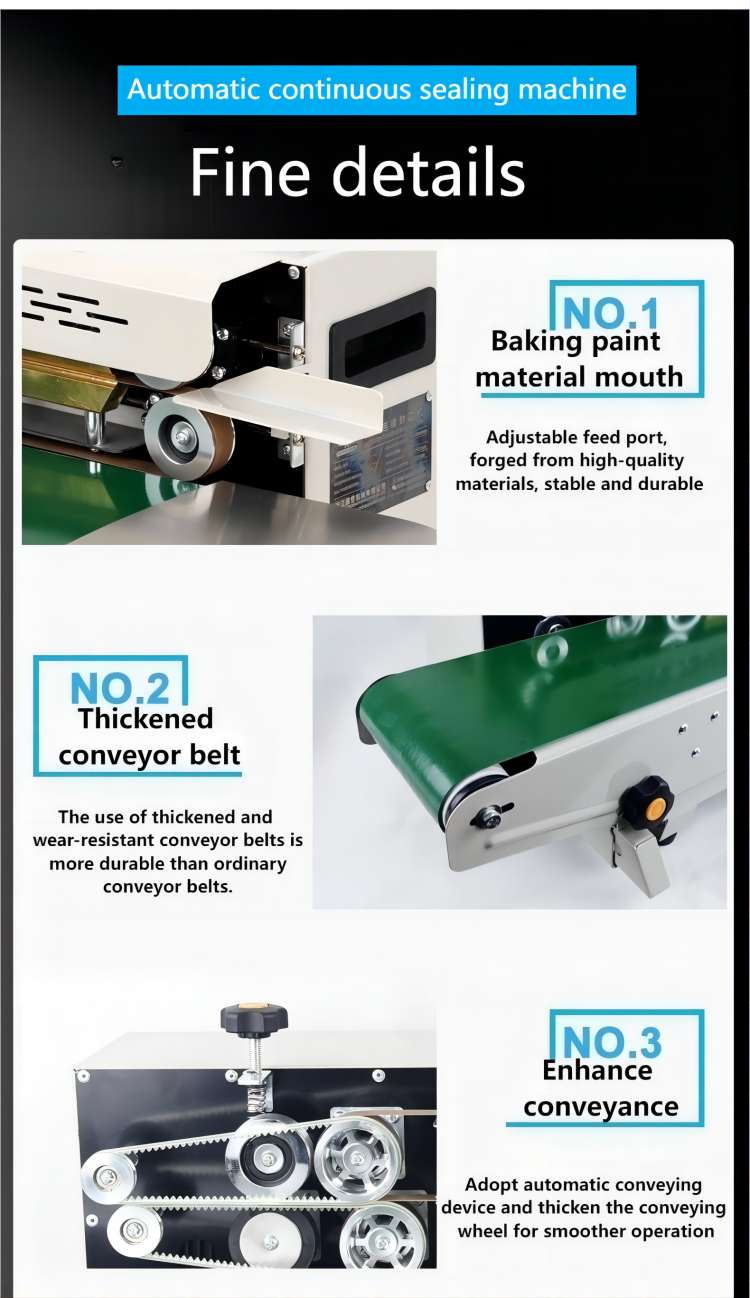

Band sealer detail views of the bag inlet guide, conveyor belt and transport rollers — The inlet guide aligns the bag mouth; the conveyor supports the filled bag as it passes through the sealing section.

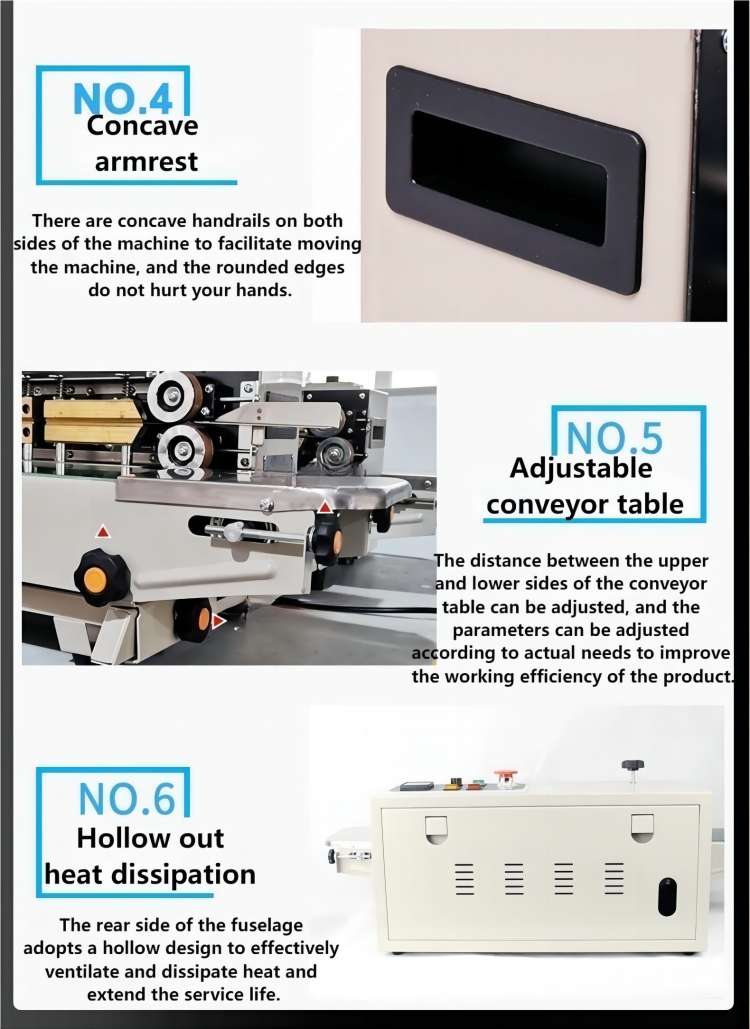

Band sealer carrying handle, conveyor adjustment knobs and rear ventilation openings — Conveyor adjustment and handling details shown on the illustrated machine.

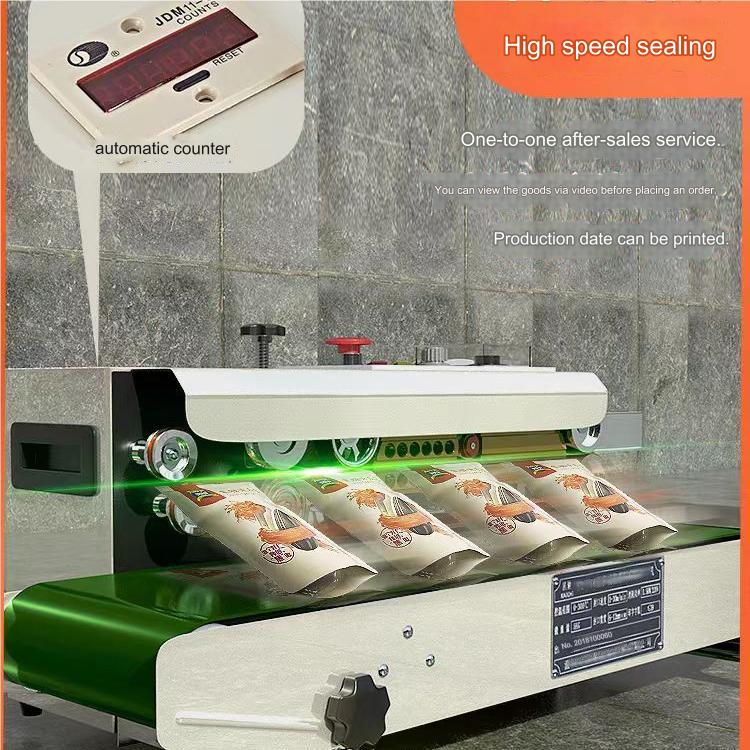

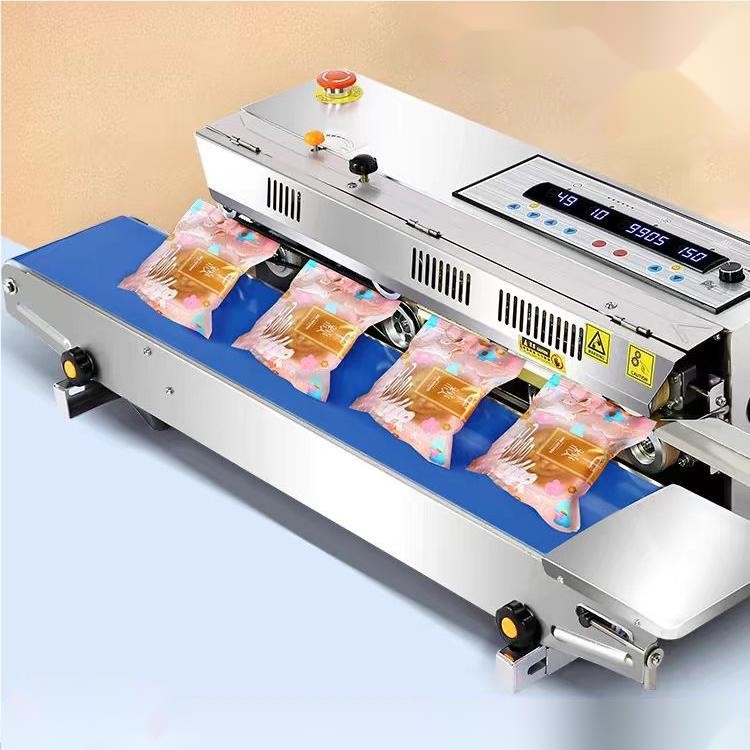

Filled pouches passing through a horizontal band sealer with a counter shown in the inset — Horizontal pouch-sealing example. Actual output depends on bag size, loading, film and settings; confirm whether a counter is required.

Before selecting your machine

Match the bag sample and required seal to the quoted model. Discuss seal testing and any application-specific documentation with Keepway, especially when the pack must meet a defined packaging specification.

Request a configuration and quotation

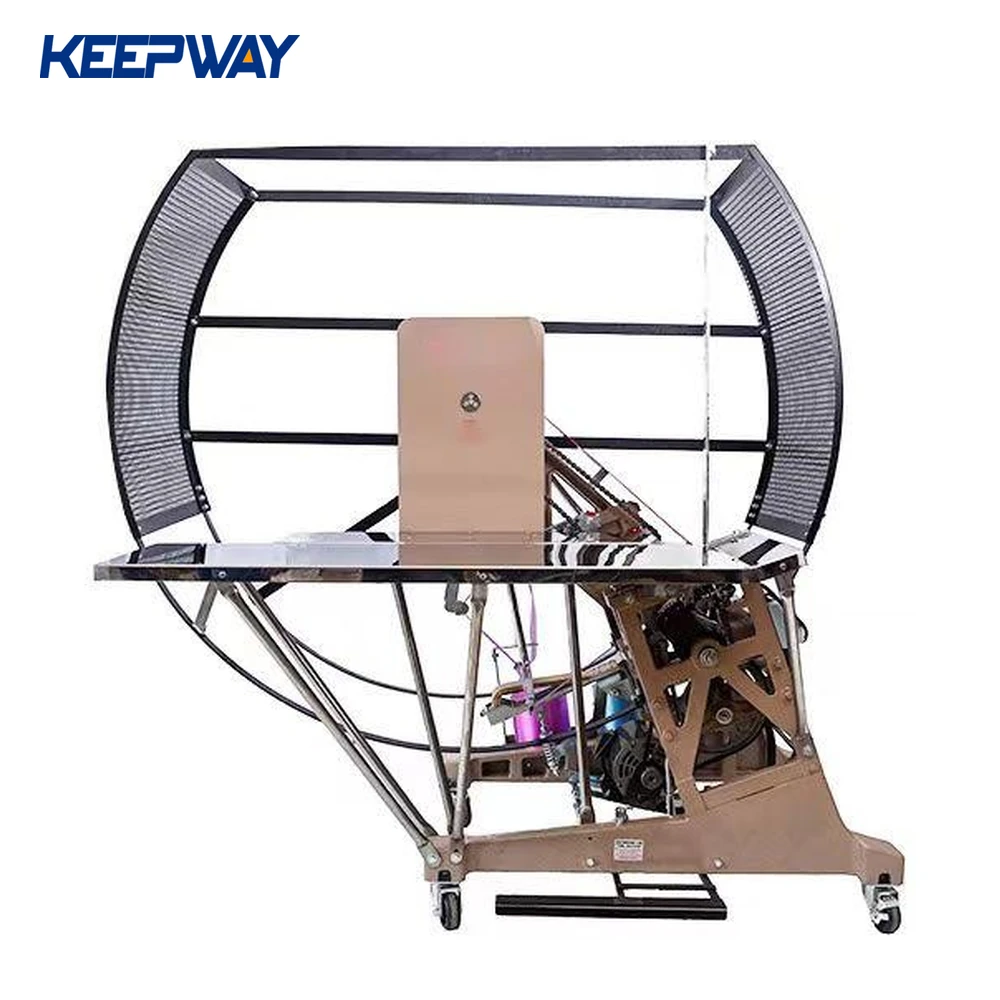

PREVIOUS：Rope Binding Machine NEXT：Automatic PE Rope Binding Machine for Cartons and Bundles
