Automatic Mobile Pallet Threading Strap Strapping Machine with PP PET Belt

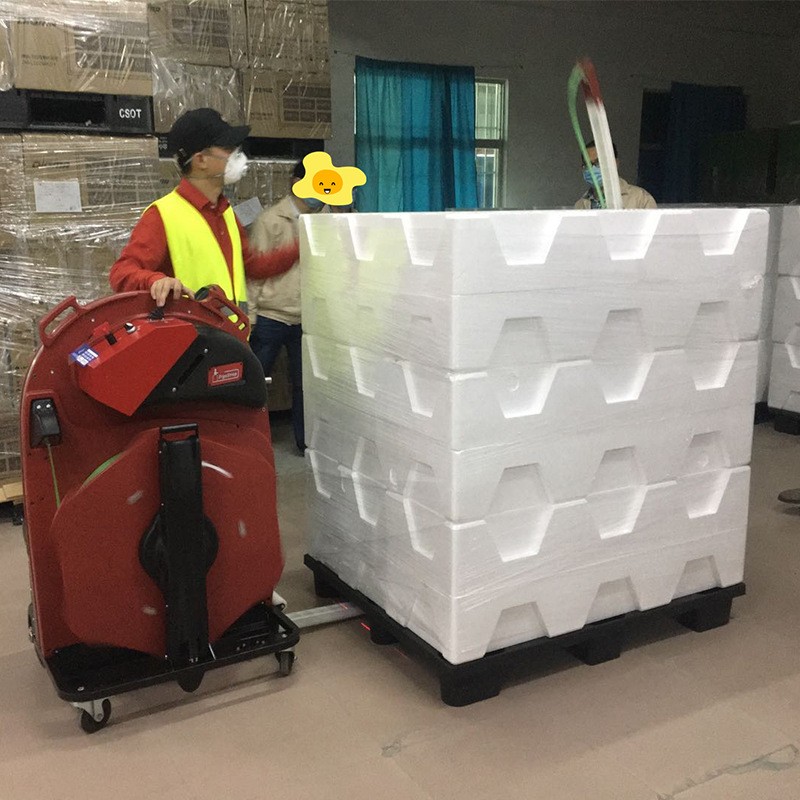

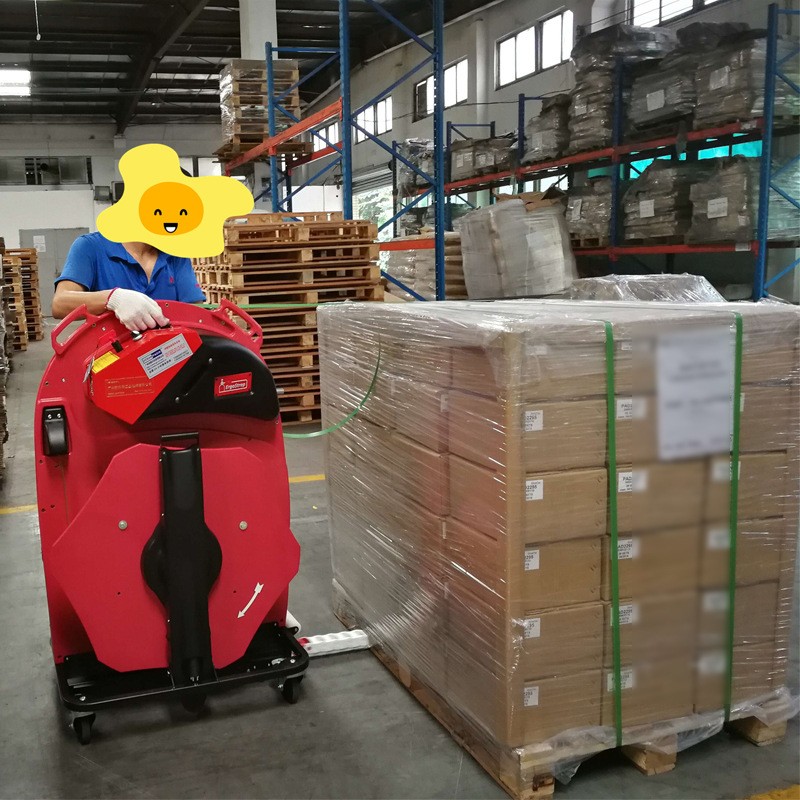

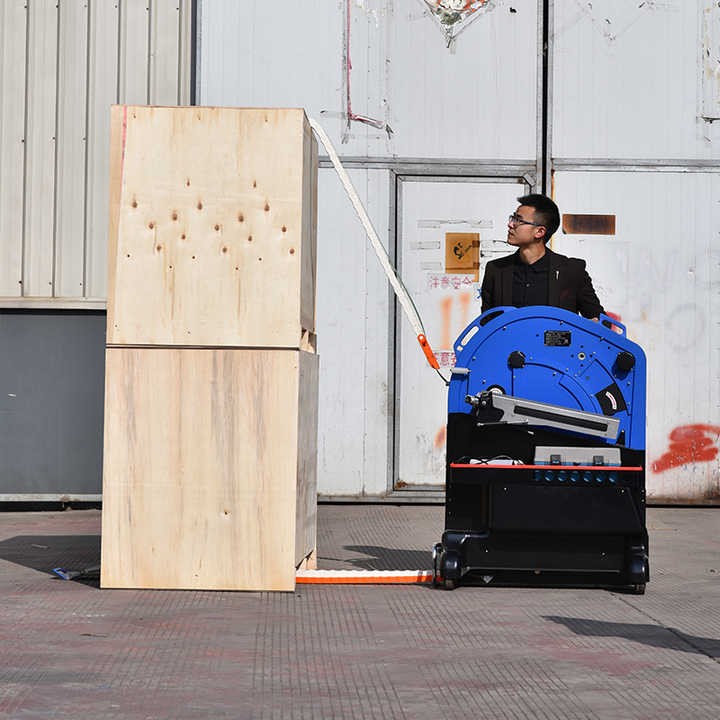

The electric chain threading strap strapping machine is a popular product in the packaging industry. It allows you to complete the strapping work elegantly, without bending over, and one person can operate it from one side. Just bring the strapping machine close to the side of the pallet, and then the chain gun will pull the strap under the pallet and then over the pallet, and then the sealing head will tighten the strap and weld it firmly. Mobile pallet threading strapping machine is widely used for strapping heavy and tall products, pallets or high pallets, which can reduce labor and production costs.

TP-800: approximately 600 strap-threading operations per full charge; output varies with package size and operation.

Features of threading pp/pet belt machine strapping machine:

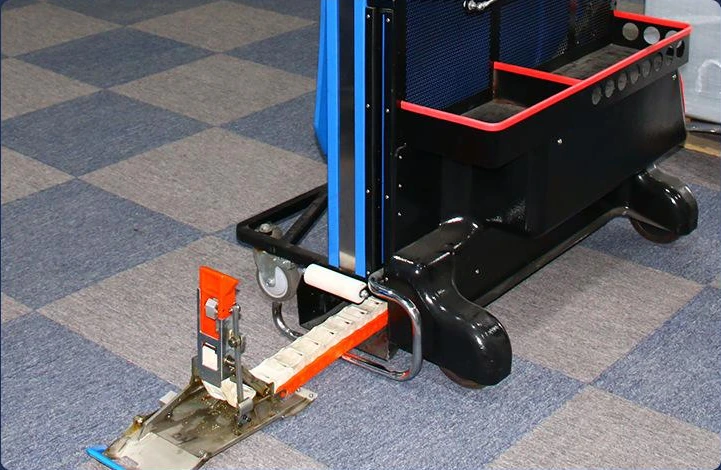

1. This system adopts highly innovative chain rolling technology. After the chain rolling carrying strapping tape passes through the bottom of the packaged goods and surrounds the goods, the tape is delivered to the operator. The operator only needs to grab the strapping tape and put it on the strapping machine head, and the machine head is used to realize automatic tightening, welding and packaging operations.

2. The system is based on ergonomic design, which meets the needs of single-person operation and saves labor, and there is no need to bend over to thread the strapping tape, which reduces the fatigue intensity of the operator.

3. Human-computer interactive touch screen control, the smart touch screen can adjust the packaging parameters, which is convenient and fast. 4. Patented design, fast strapping and packaging speed, the average time is less than 10 seconds (depending on the size of the packaged items), central integrated lithium battery power supply, short charging time, long operation time (approximately 600 strap-threading operations per full charge, depending on package dimensions and operating conditions)

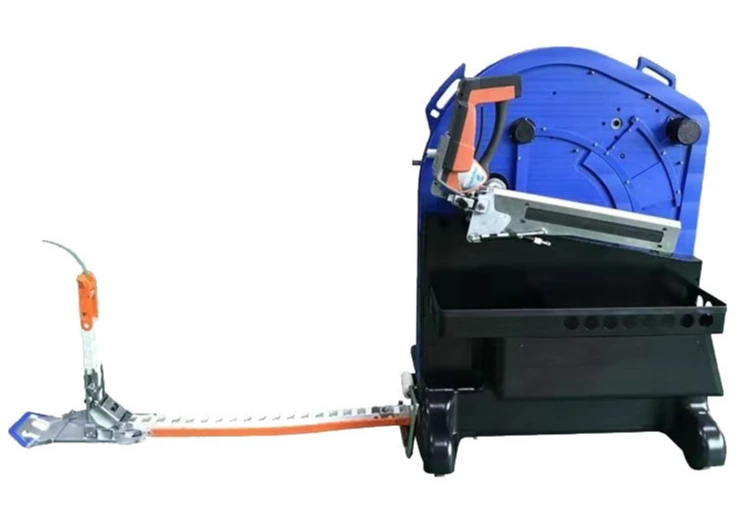

TP-800 pallet strap-threading machineMachine size (L × W × H)950 × 750 × 1250 mmMachine weight100 kgMaximum package height2400 mmMaximum package width2000 mmChain length7000 mmStrap materialPP / PETStrap width / thickness12–19 mm / 0.6–1.3 mmStrap core diameter / height406 mm / 150 mmPallet ground clearance75 mmMinimum width200 mmHorizontal / vertical threading speed40 / 60 m per minuteStrap-threading operations per full chargeApproximately 600Charging timeApproximately 3.5 hoursOperating voltageDC 23.6–28.8 VBattery performance varies with the package dimensions and operating conditions.

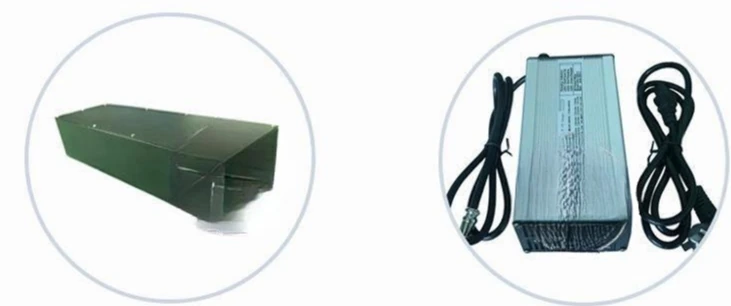

TP-800 battery and chargerBattery typeLithium batteryBattery pack29.6 V / 32 AhBattery weight10 kgCharging voltage / current33.6 V / 10 ADischarge current45 ACharger inputAC 100–240 V, 50–60 HzCharger outputDC 33.6 V, 10 ACharging timeApproximately 3.5 hoursStrap-threading operations per full chargeApproximately 600Charger operating temperature−5 to 45 °CCharger storage temperature−40 to 70 °C
