baling press machine hydraulic waste paper recycling baler press machine/vertical hydraulic cardboard box baling press

Waste Paper Baling Machine /Hydraulic Baling Press Machine

Introduction of Waste paper baling machine/hydraulic baling press machine:

Plan cardboard and waste-paper compression around the required bale and the available loading, tying and removal space. This range uses hydraulic compression, electrical controls and manual bale tying. Select the model from the confirmed table below, and review any other proposed material separately. Bale weight and finished bales per hour depend on the selected configuration, material and complete work cycle; confirm these in the quotation or an agreed trial.

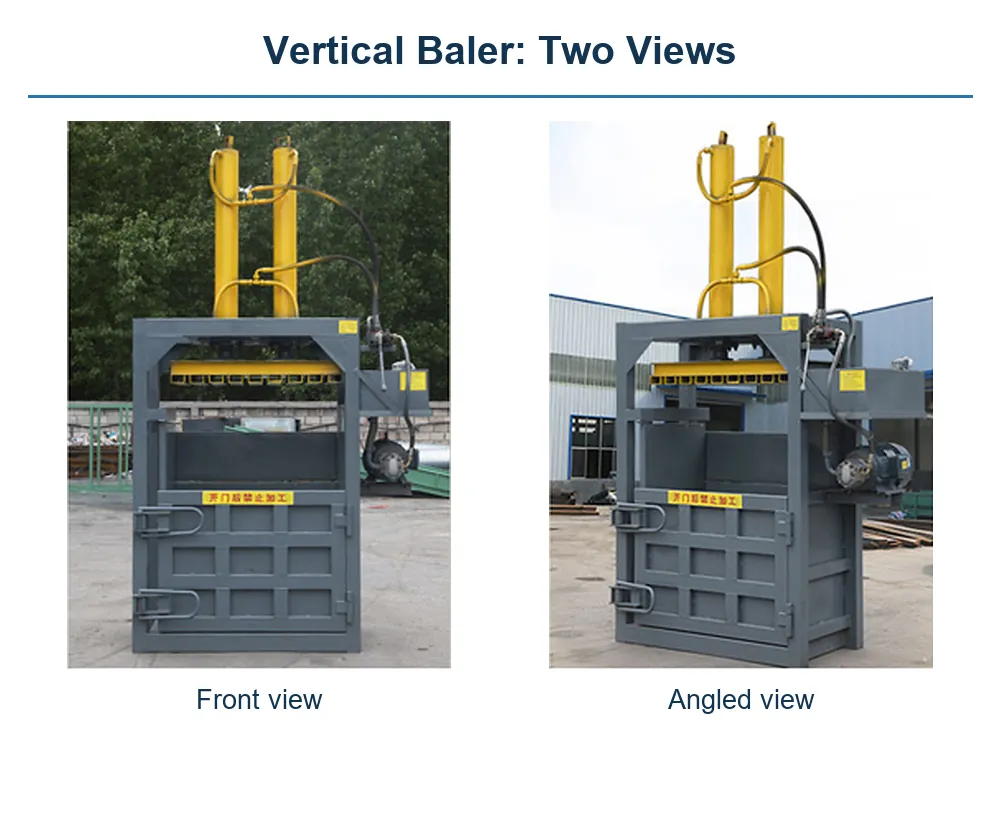

Technology parameter of Vertical Hydraulic Baling Machine:

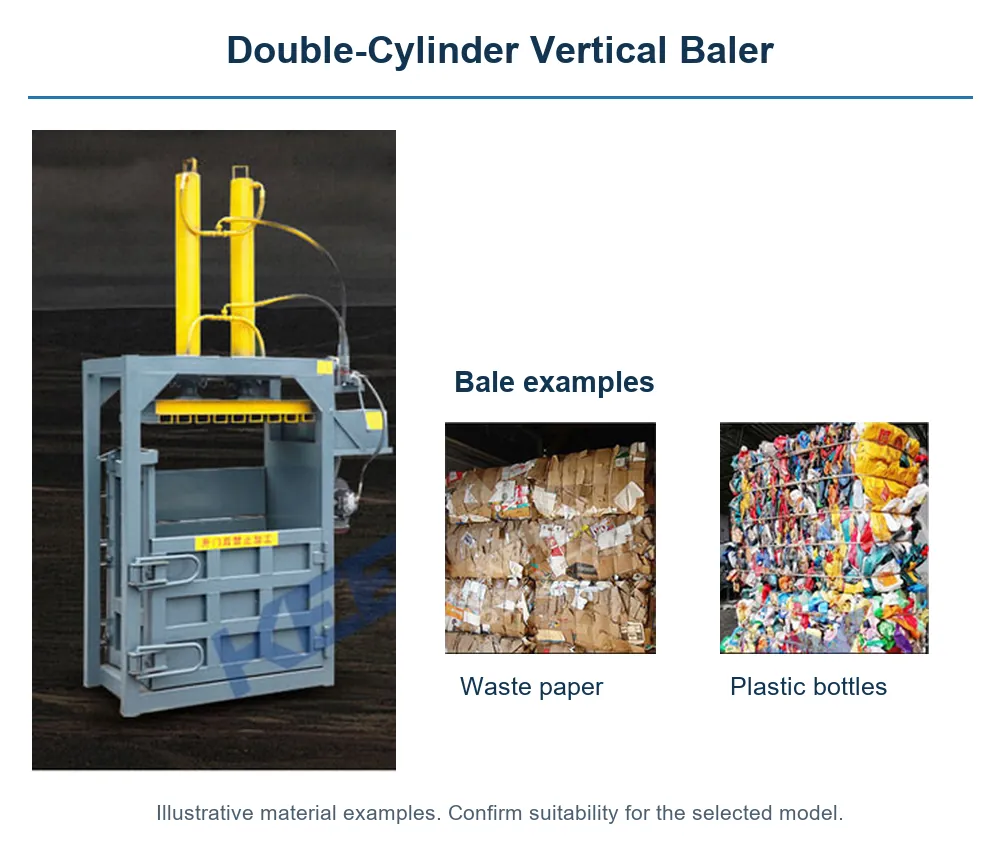

Vertical hydraulic baler size selection8 ton · single cylinderChamber: 600 × 400 × 950 mm; bale: 600 × 400 × 600 mm; machine: 1260 × 660 × 2150 mm10 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2650 mm20 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2700 mm30 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm40 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm60 ton · double cylinderChamber: 1100 × 750 × 1450 mm; bale: 1100 × 750 × 950 mm; machine: 1600 × 2100 × 3100 mm80 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3200 mm100 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3300 mm120 tonConfirmed bale size: 1100 × 700 × 1800 mm; request the complete selected-configuration drawingConfirm the material, target bale weight, motor option and discharge arrangement for the ordered model. Dimensions do not specify a universal motor or installation package.Click or tap the image to view full-size specifications.

Features of Waste Paper Baler Machine:

* Applicable to a practical model for small and medium-sized companies to compress garbage.

* 8T, 10T and 20T configurations are ready to use after connection to the specified electrical supply. Follow the supplied pre-start checks. Confirm setup requirements for other models.

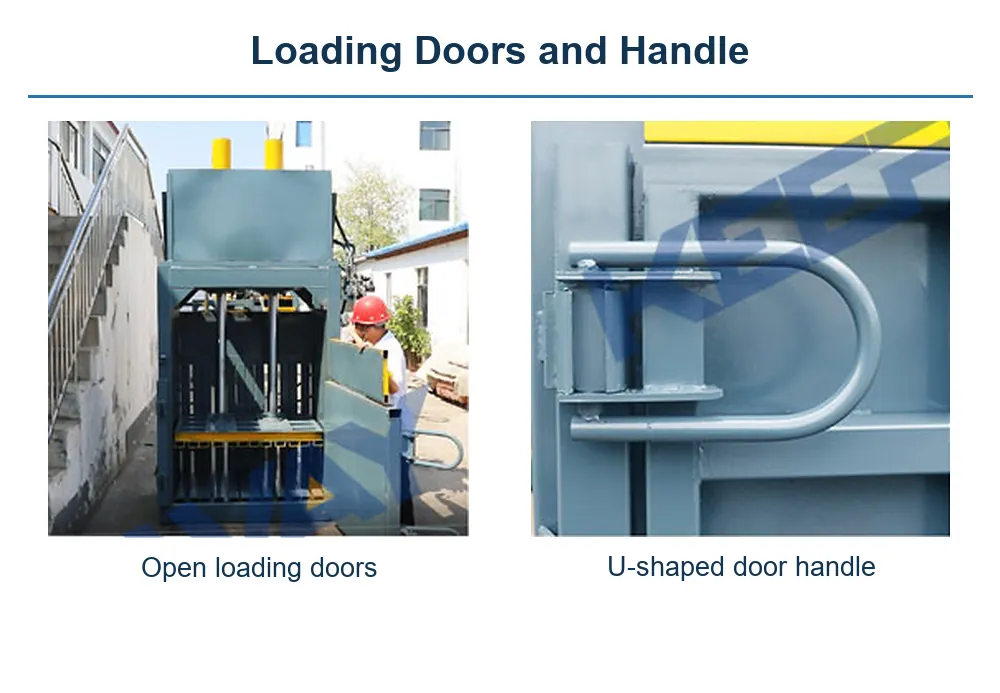

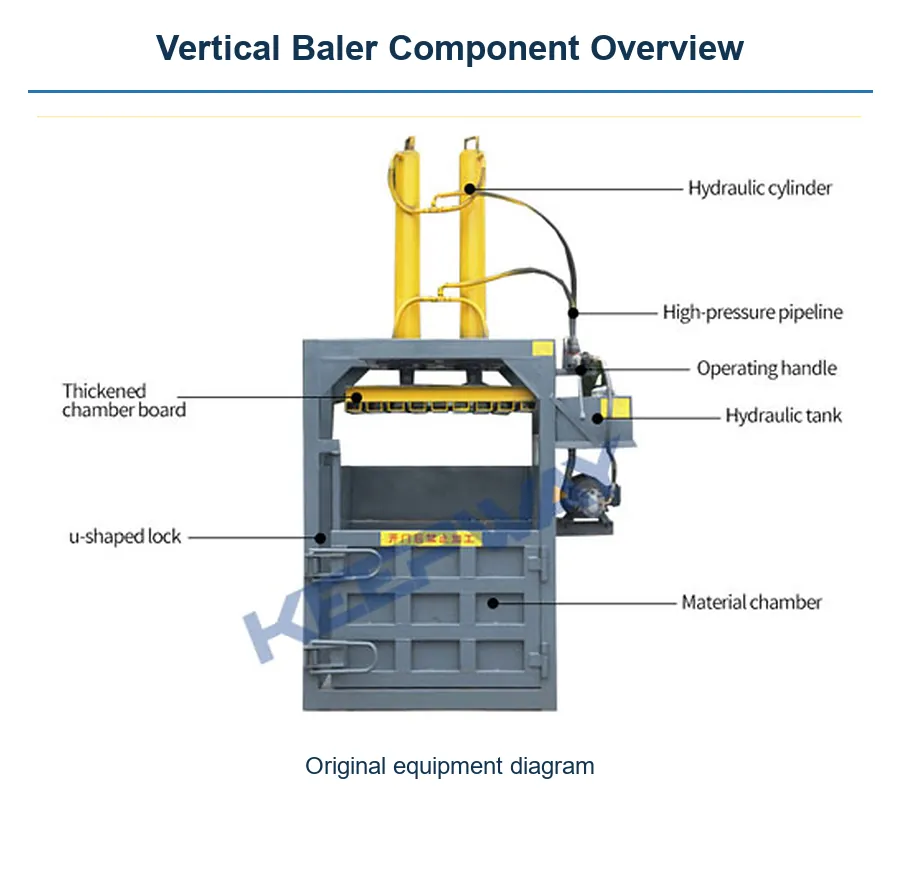

Door-handle and locking arrangements are part of the selected configuration. Follow the model-specific operating procedure; do not use a general product description as the door-opening sequence.

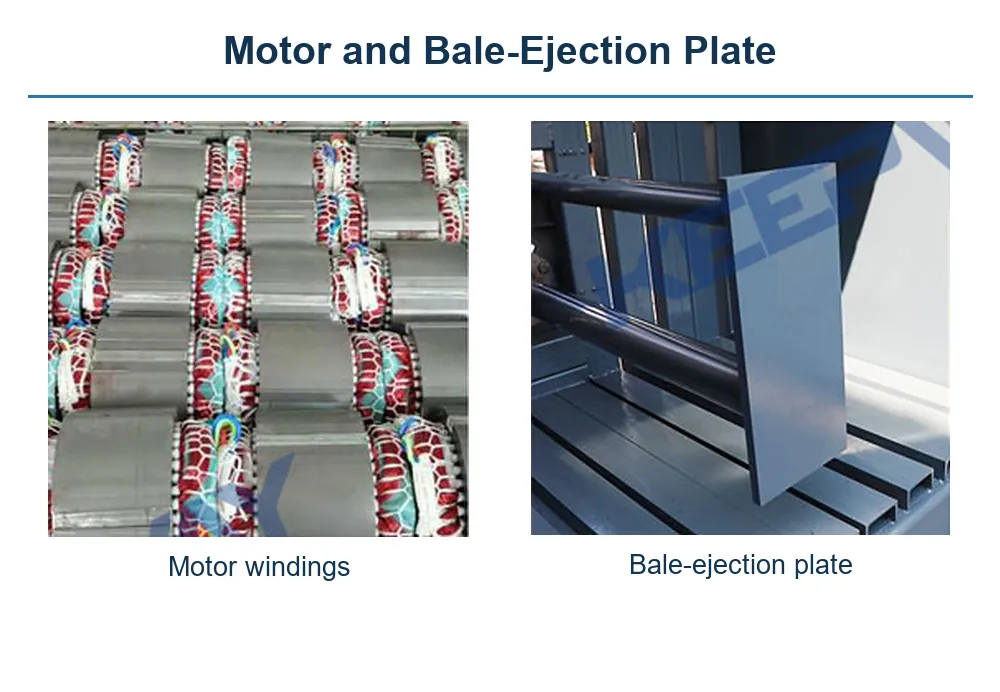

Confirm the motor and electrical supply for the ordered configuration. The confirmed 30T motor is 15 kW; this does not specify the motor for every other tonnage.

* 60T and 80T models can be ordered with optional push-out bale discharge. This option must be specified separately; confirm the arrangement for other models.

Include hoses and connections in the inspections required by the supplied instructions. Report visible leakage or damage and arrange qualified support before further operation; no leak-free service life is promised.

Request the maintenance instructions and recommended inspection schedule for the actual model. Record faults and service work so that later support uses the same machine history.

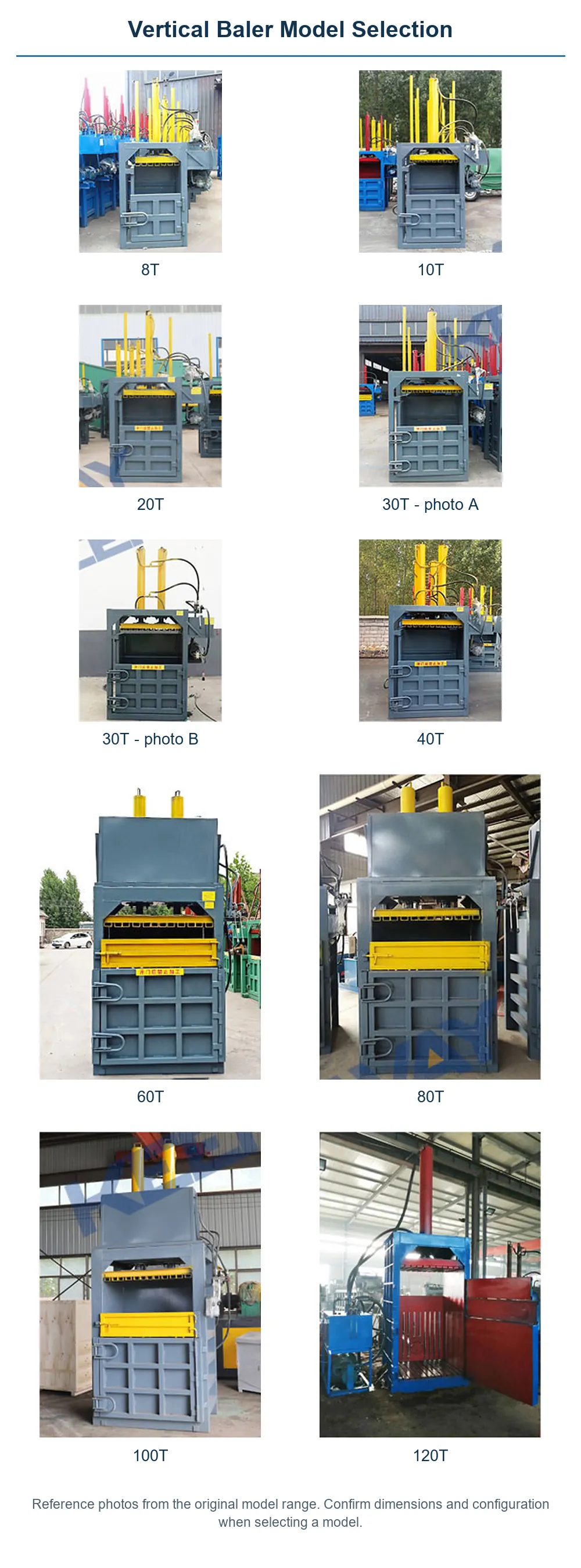

What Models We Have:

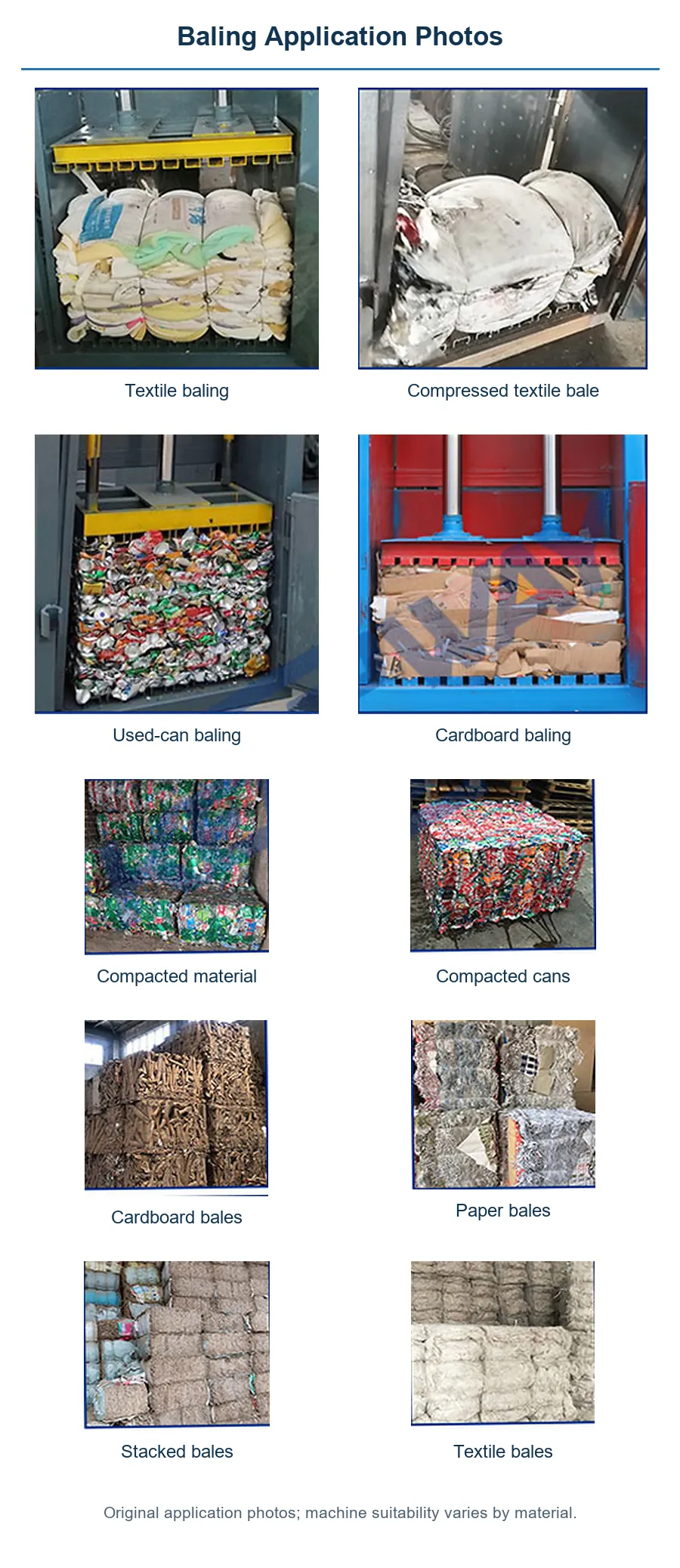

What Materials Can Bale:
