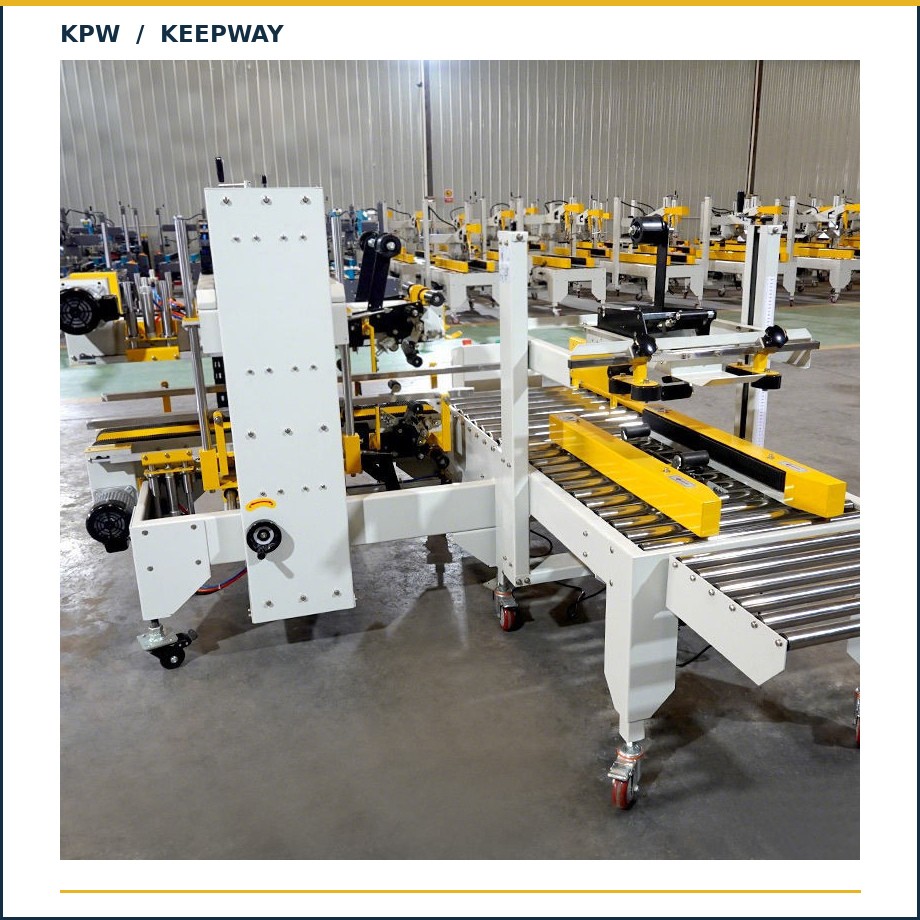

The Keepway four-corner carton sealer is an edge-sealing station normally used with an inline carton sealer to complete an H-shaped tape seal. It is intended for buyers who need edge sealing in addition to the center-seam sealing stage, whether they are planning a new packing line or reviewing an existing one.
Specify the edge-sealing machine on its own or request a review of the paired arrangement. The required carton range, tape pattern and line connections should be confirmed for your application before selecting the configuration.
Where this machine fits
Also described as a four-edge carton sealer or carton edge sealing machine, this equipment belongs to the carton sealing machine range. Its role is the edge-sealing stage in the carton-closing process.
An H-sealing requirement involves more than a straight center strip of tape. The center-seam and edge-sealing stages work together to produce the required pattern. When requesting a quotation, distinguish between adding the four-corner station and purchasing the equipment needed for both stages. Confirm in the quotation whether the inline sealer, edge station and transfer conveyors are included.
This distinction is especially useful when comparing offers described as an “H-sealing carton machine” or an “H-type case sealing line.” Compare the sealing tasks and supplied equipment, rather than relying on the product name alone.
Planning the H-sealing workflow
1. Confirm the incoming carton condition. Identify the carton style, filled weight and condition of the flaps before sealing. State whether flap closing is handled by an operator or by another machine; do not assume that a four-corner sealing station includes flap folding.
2. Identify the center-sealing stage. In the paired workflow, the inline carton sealer handles the center-seam stage. For an existing line, provide its model, photographs and a short operating video. For a new line, include this stage in the requested supply scope. For a center-seam machine example, see the KPW-FX5050 carton tape sealer; carton fit and line interfaces must be checked before pairing.
3. Match the edge-sealing stage. Confirm the tape positions needed to complete the H pattern. A marked carton photograph is useful for showing the required coverage and avoiding confusion between carton edges, center seams and a tape wrap around the box.
4. Check the transfer between machines. Review carton orientation, conveyor height, available floor space and the connection to upstream and downstream equipment. The final transfer arrangement must be checked against the selected equipment; a particular turning direction or conveyor layout should not be assumed.
5. Agree on an acceptance check. Use representative filled cartons and the intended tape to assess tape placement, adhesion at the edges and finished carton handling. Evaluate the required line output with the actual loading and transfer arrangement, rather than treating a conveyor speed as finished cartons per minute.
Carton sealing line demonstration
Line demonstration with flap folding and four-corner taping. Flap-folding and other line equipment are not implied to be included with the four-corner sealer; the supplied equipment is confirmed in the quotation.
Information for machine selection
A useful configuration review starts with these details:
| Selection item | What to provide |
|---|---|
| Carton dimensions | External length × width × height for the smallest, largest and most frequent cartons |
| Carton condition | Carton style, filled weight, photographs and any bulging or deformation |
| Production mix | Same-size batches or mixed sizes, plus how often sizes change |
| Sealing pattern | A marked photograph showing the required tape positions, including the top and bottom requirements |
| Target output | Required finished cartons per minute and how cartons reach the sealing section |
| Existing equipment | Inline sealer model, photographs, conveyor dimensions and layout |
| Tape | Intended tape type and dimensions, or a sample specification |
| Supply scope | Edge-sealing station only, or a paired arrangement with the other required equipment |
For the technical review, also identify the site's available electrical supply and any compressed-air facilities. These are site details for configuration matching, not a statement that every machine configuration requires the same utilities. Confirm installation connections, control interfaces, guarding, accessories and spare parts in the final quotation.
Adding edge sealing to an existing line
If your current carton sealer already completes the required center seams, focus the enquiry on the interface to the new edge station. Include a layout sketch with the direction of travel and the space available around the machines.
Carton compatibility must be checked across both stages. A carton accepted by one machine may still fall outside the working range of another. Likewise, the requested output depends on the complete arrangement, including feeding, spacing, transfer and discharge. State your target and operating conditions so the proposed combination can be reviewed as a system.

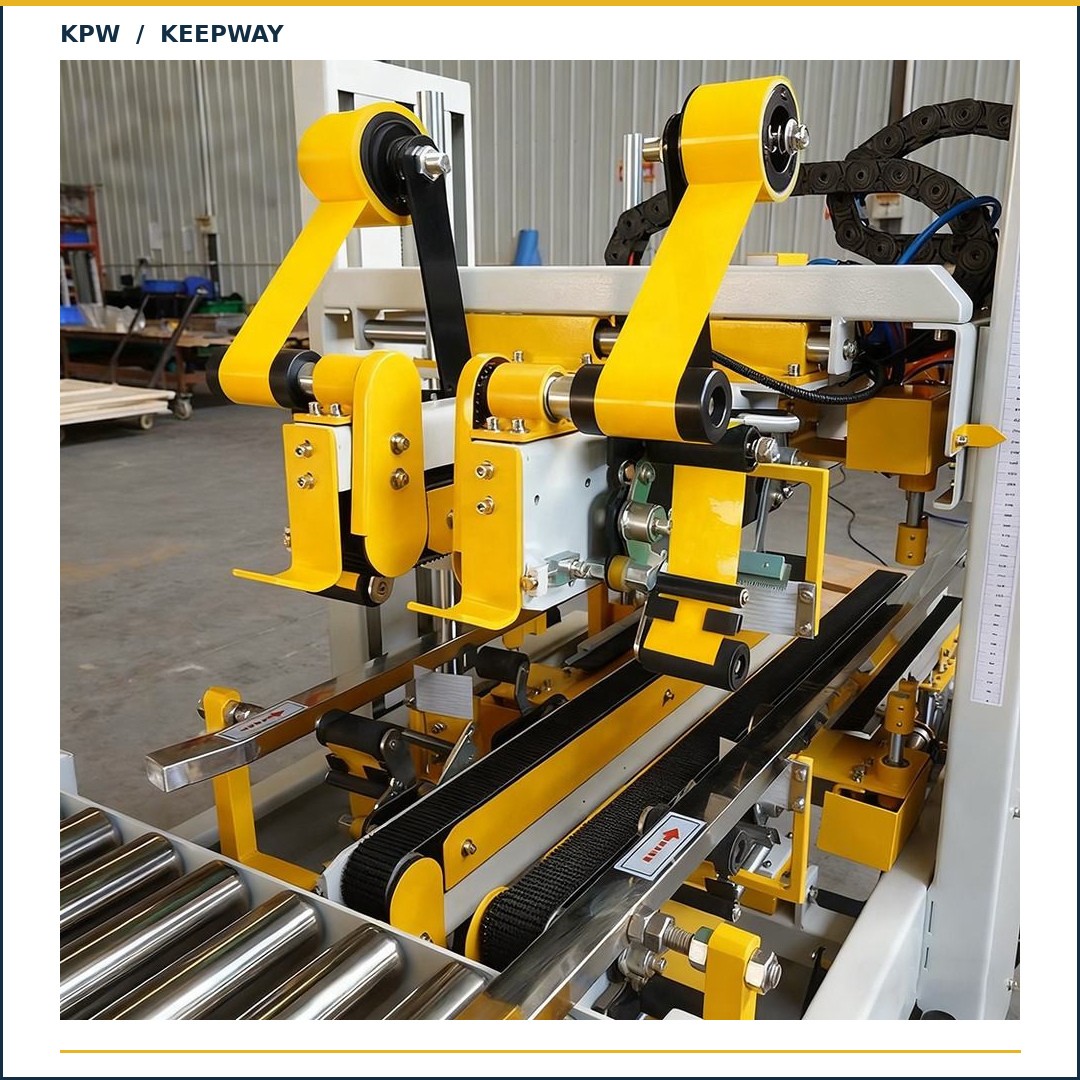

Four-corner taping and finished carton
Four-corner taping and a finished-box demonstration. Use representative cartons and tape to confirm the required tape pattern and finished result for your application.
Frequently asked questions
Can this machine complete H-sealing by itself?
The four-corner machine is normally paired with an inline carton sealer to complete H-sealing. It should be specified as the edge station unless the quotation explicitly includes the other equipment required for the complete process.
Is a four-corner sealer the same as a carton erector?
No. A carton erector forms cartons from flat blanks. This product belongs to the carton-sealing process. If your project also requires carton forming or flap folding, identify those tasks separately in the line specification.
Can it process mixed carton sizes without adjustment?
Confirm the adjustment method for the proposed configuration. “Four-corner” describes the sealing task; it does not establish automatic size detection or random-size operation. Provide your carton mix and changeover frequency when enquiring.
Does H-sealing make a carton waterproof?
An H-shaped tape pattern is not a waterproof or hermetic sealing specification. If moisture protection or another packaging performance requirement matters, state the requirement and assess the complete carton, tape and packing method.
Request a configuration and quotation
Send Keepway your carton dimensions, required tape pattern, target output and existing line photographs. Tell us whether you need the four-corner carton sealer only or a paired H-sealing arrangement. These details provide the basis for reviewing the equipment scope and confirming the specifications in your quotation.
