Automatic vertical side seal pallet strap packing machine line

KPW-150: define the pallet and strap route

KPW-150 configuration · Approx. 15 straps/min reference · Load dimensions by project

Send loaded-pallet length, width, height and weight; underside photographs; required strap positions; current strap specification; pallets per shift; and site voltage, phase and frequency.

Request a matched configuration

Show the underside, not only the top

Send views of the pallet base, deck boards, runners and fork-entry direction. Mark each required strap route. A load that fits the visible frame may still need a different guide or transfer arrangement.

Agree the band contact

Include load height, overhang, fragile contact surfaces and any edge protectors. Ask for a joint and load trial using the intended strap. The tension value alone is not evidence that a soft or uneven load will remain undamaged.

Count completed pallets

Record positioning, each required strap, movement between positions and discharge. Keep rejected cycles and stops in the trial log. Confirm output for the selected number of bands and actual load.

Compare strapping with stretch wrapping · Compare mobile threading and a fixed pallet station

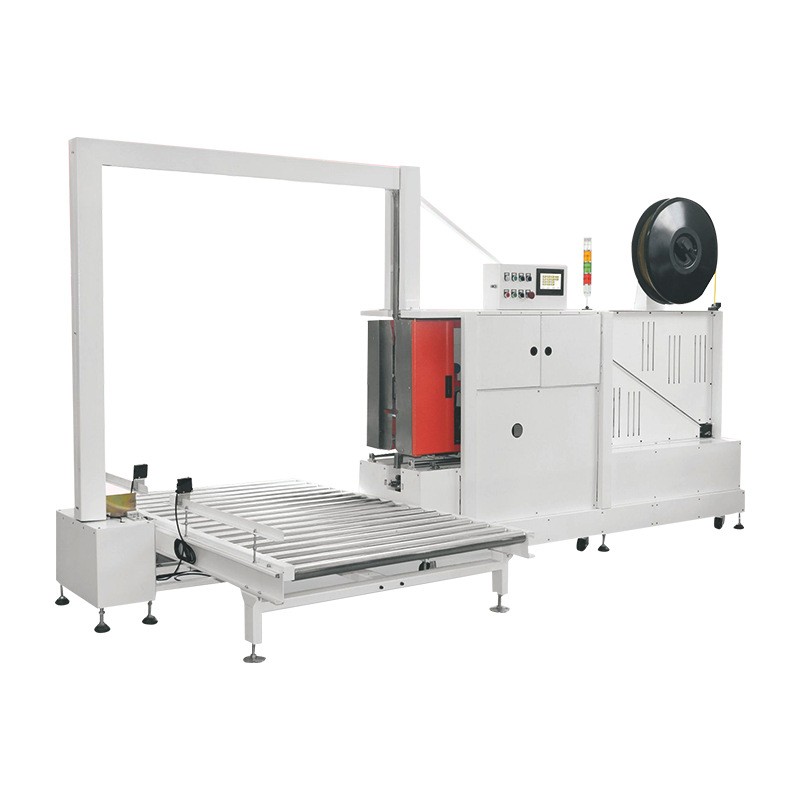

Automatic Pallet Strapping Machine

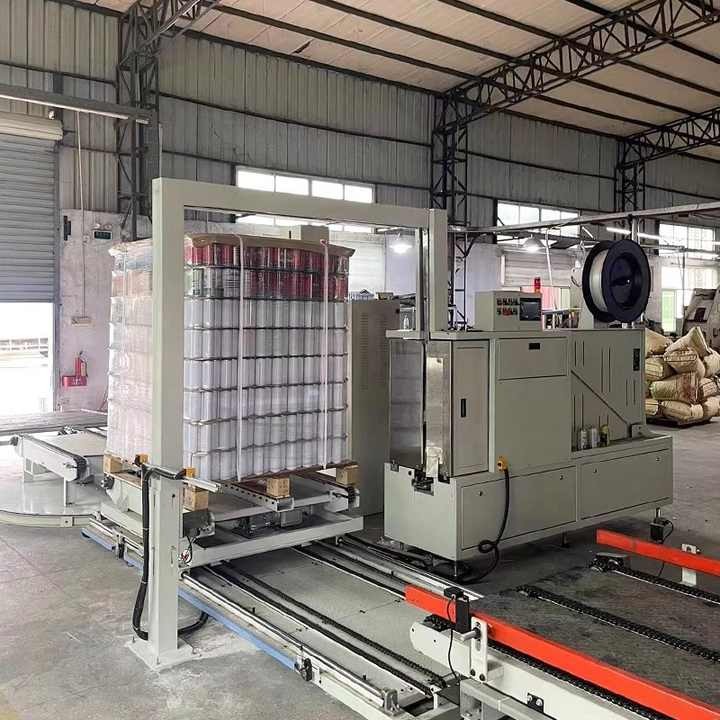

The KPW-150 side-sealing pallet station applies straps to a specified load and route. Review the loaded pallet, underside access and proposed guide arrangement before ordering. Conveyor handling and controls must be defined for the quoted installation. The confirmed reference is approximately 15 straps per minute, not 15 completed pallets per minute.

Review the station against your actual load and handling process. Establish the required band route and a matched strap/joint combination, then document the complete project boundary.

Output check: the confirmed reference is approximately 15 straps per minute. Completed pallets per hour also depend on the required band count, positioning and transfer cycle.

Control scope: confirm the sensors, positioning method and control interfaces in the quotation. Automatic product identification and guaranteed cosmetic results are not established by this listing.

Cost comparison: record the required staffing, actual strap use, accepted pallets, rejects and stops during an agreed trial. No fixed labour saving or operating-cost reduction is promised.
