Semi Automatic Flat Labeling Machine

  • Category: Flat Labeling Machine
  • Views:514
  • Model:KPW-BP120
  • Labeling Speed:30-60pcs/min
  • Applicable Product Size:L(20mm~200mm);W(20mm~150mm);H(0.2~120mm)
  • Label Size:Width:15-120mm;Length:15-100mm
  • Product description:Semi-automatic flat labeling machine is a device used to mark information on flat objects. It is easy to operate, efficient and practical. It is suitable for production lines in various industries and
  • Attachment INQUIRY

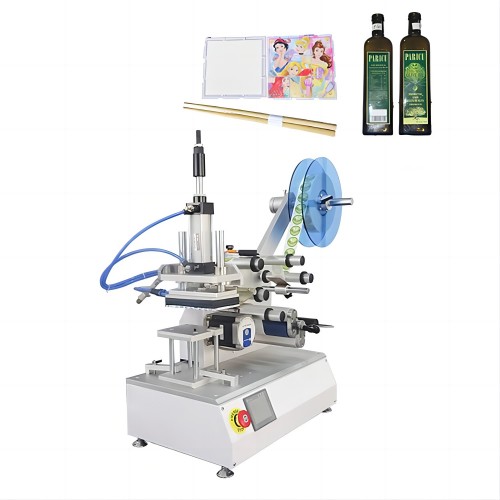

Semi Automatic Flat Labeling Machine/Plane Label Machine


Introduction of Semi Automatic Flat Labeling Machine:


Semi automatic flat labeling machine/plane label machine is widely used in cosmetics, food, medicine, daily chemicals, electronics, toys, hardware, plastics and other industries. It uses roll-on labeling. It is suitable for all kinds of flat, curved, concave and convex surfaces, squares, and hexagons. Labeling of bottles or other irregular surfaces; use self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, two-dimensional code labels, transparent labels, etc., with pedal and automatic labeling methods. The equipment has high stability, good labeling effect, no bubbles, no wrinkles, and high labeling accuracy.

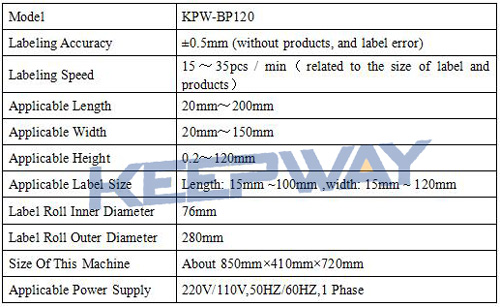

Technology parameter of Semi Automatic Flat Labeling Machine:


Features of Semi Automatic Flat Labeling Machine:

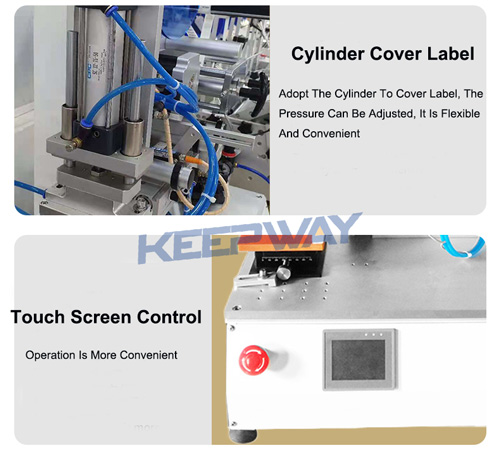

1.Color touch screen control, luxurious style, powerful data memory function; can save adjusted parameters, support to save 50 sets of data, next time you paste this product, you only need to call up the set of data, easy adjustment, convenient and fast .

2.All parameter adjustments of the touch screen are visible operations, no need to adjust by feeling, and there is more speed adjustable function. The operator can set the labeling speed by himself, instead of being set by the factory program and cannot be changed.

3.Powerful function, can be used for labeling of flat, circular and concave surfaces of various work pieces, and can be used for labeling of irregular work pieces;

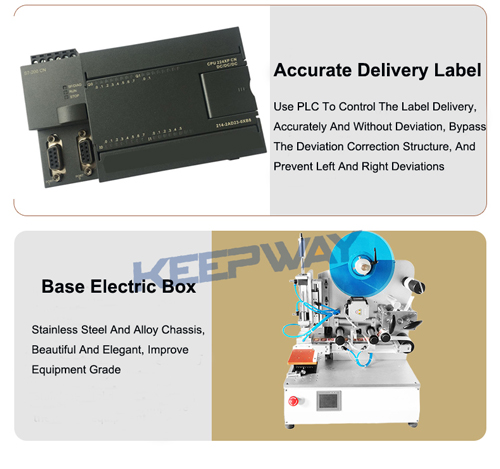

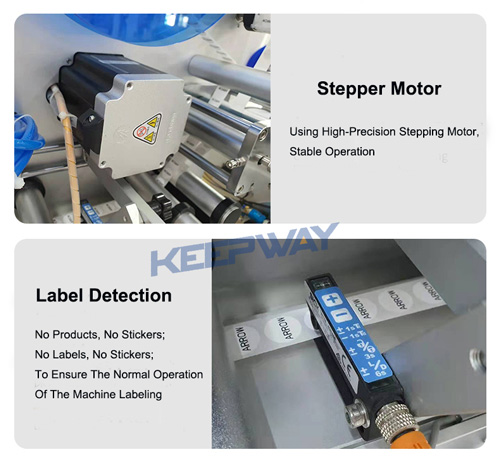

4.Accurate labeling and high stability, using PLC + subdivided stepping motor to drive the label feeding, accurate label feeding; the feeding mechanism is equipped with a brake function to ensure that the label is tightened and the label detection is accurate; the label deflection correction mechanism prevents the label Offset left and right

5.Durable and durable, the circuit and the air circuit are arranged separately, and the air circuit is equipped with a purification device to prevent the moisture in the air from invading the electrical appliances and prolong the life of the equipment; the whole machine adopts high-grade aluminum alloy and stainless steel materials, and the quality is firm;

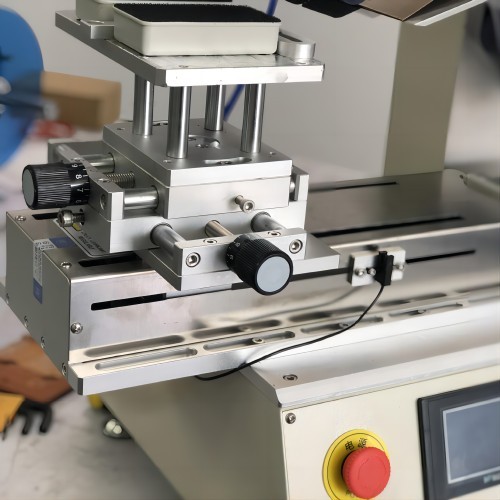

6.Easy to adjust, equipped with adjustable height and low stroke function, labeling products of different heights, no need to change jigs repeatedly;

Beautiful appearance, using bottom-mounted computer white electric box, with stainless steel and high-grade aluminum alloy, beautiful and generous, and upgrade the equipment level;

7.With two labeling control methods, manual/automatic, workers can choose to use sensors or foot pedals to control labeling according to their needs; set manual and automatic control buttons, and the length of the label can be adjusted arbitrarily;

8.Optional functions and components:

Hot coding,/printing function;

Automatic feeding function;

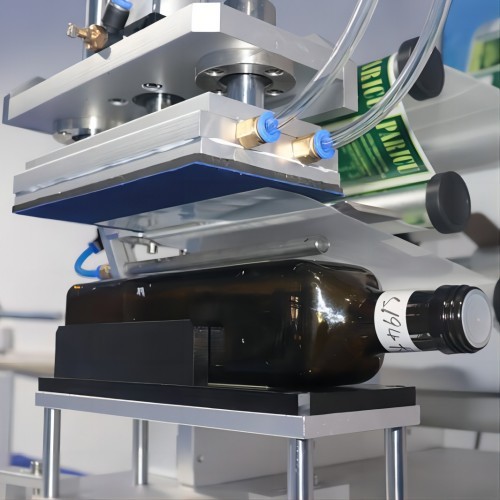

Labeling Effect:
