Horizontal radial strapping machine for pallets

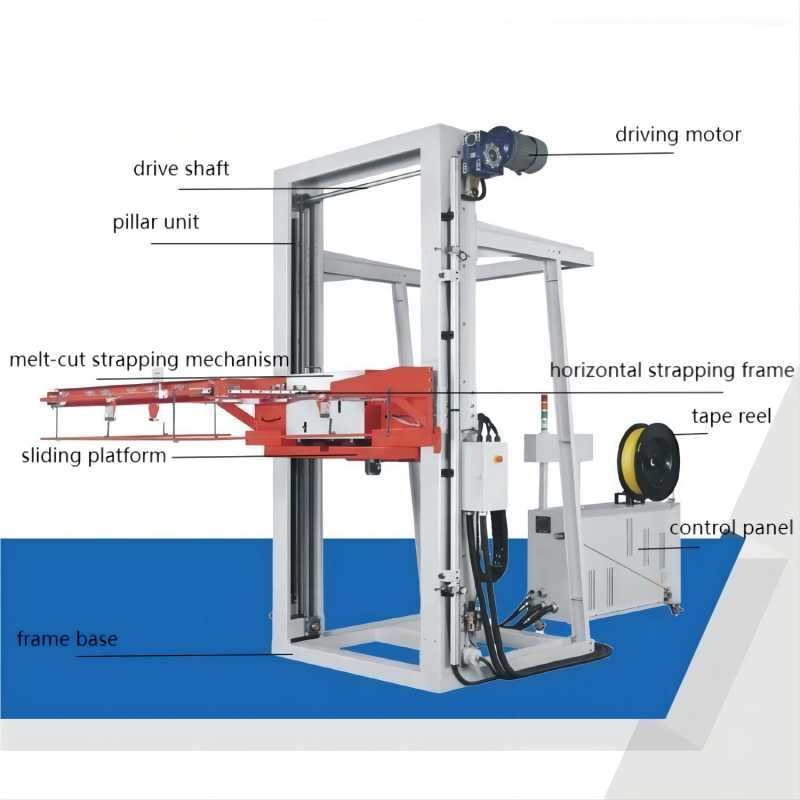

A horizontal pallet strapping frame applies bands around the sides of a load at selected heights.

Selection starts with the loaded pallet, required band positions and handling arrangement.
The frame movement and strapping sequence are configured for the ordered station. Confirm the strap material and finished joint with the quoted strapping head; a horizontal band should not be assumed to pass beneath the pallet.

1. Selection checks for a horizontal pallet strapping station:

1) Complete-cycle output:

Assess output using accepted pallets and the complete cycle, including positioning, frame movement and discharge. A strapping-head cycle alone does not establish pallets per hour or labour savings.

2) Load and frame fit:

Provide the smallest and largest loaded pallet dimensions and weights. Check the frame clearance, lifting travel and desired band heights for the quoted configuration.

3) Controls and safeguards:
Specify pallet positioning, transfer controls, guarding and detection in the quotation. The moving frame alone does not establish that these items are included.

4) Finished-load checks:

Agree the band positions, finished joint and acceptable compression using a representative load. Strapping alone is not a guarantee against transport or storage damage.

2. Review the proposed operating sequence with the equipment configuration:

1) Adjust parameters:

Agree band count, heights, strap specification and tension for the load, using the instructions and setup procedure for the supplied equipment.

2) Place items:

Position the loaded pallet within the agreed station and frame clearance. Confirm the conveyor or other transfer arrangement rather than assuming a workbench.

3) Strapping sequence:

Confirm the ordered frame movement and banding sequence, together with the required positioning and transfer controls.
4) Joint formation:

Confirm the joining method and strap compatibility with the quoted head. Review the finished joint on the intended load instead of assuming every machine uses the same heat-sealing or friction process.

5) Complete packaging:

Agree how the completed pallet is checked and discharged, including operator responsibilities and any conveyor controls.

3. Load examples and application information to supply for review:

1) Logistics industry:

For a palletized logistics load, send load photographs, dimensions, weight and a drawing of the required strap route. Confirm the complete packing specification for the intended transport conditions.

2) Food industry:

For palletized cartons containing food products, describe the outer packaging and allowable compression. This pallet-load review does not establish suitability for directly bundling bread, cakes, candies or other unpackaged food.

3) Electronic and electrical industry:

For palletized electronics or appliances, submit the complete packed-load dimensions, weight and any contact-surface restrictions for review. Product protection must be assessed for the actual packaging.

4) Furniture industry:

For palletized furniture, provide the load outline, weight, proposed contact points and strap heights for review. Do not assume the station will accommodate every shape or prevent transport damage.

Select the station against the actual pallet load and required band route, not a general efficiency or safety claim.

A band around the sides differs from a route over the load and beneath the pallet. Mark the required route before the machine configuration is agreed.

Keep the load, strap specification, band count and heights recorded when reviewing a trial; a different load or transfer arrangement needs its own assessment.
For bands around the sides of a pallet load, review the horizontal pallet strapping machine. Use the product page’s INQUIRY button with load photographs, dimensions and weight, marked strap heights and a conveyor or site sketch. Confirm the included handling equipment and controls separately.
