Shrink Packing Machine

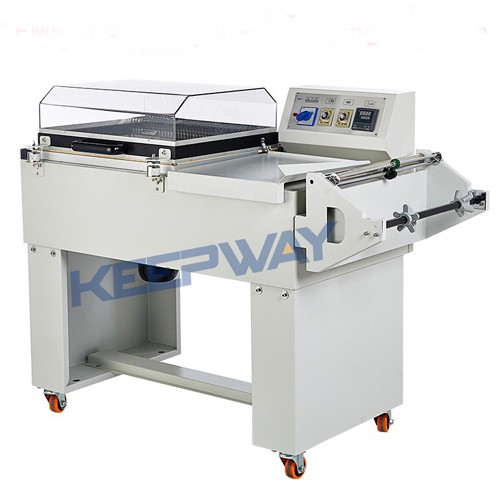

Heat Shrink Wrap Sealing Machine L-Bar

  • Category: Shrink Packing Machine
  • Views:2373
  • Model:KPW-FM5540
  • Max.Packing Size:540*390*290mm
  • Packing Speed:500 to 800p/h
  • Power Supply:220V,50HZ,1 Phase
  • Product description:sealing and cutting 2 in 1shrink wrapping packing machine /heat shrink wrap machine is can integrates sealing and shrinking. The sealing knife adopts an L-shaped structure to complete closed shrink pa
  • Attachment INQUIRY

How can we evaluate our chamber-shrunk display pack?

Mark the display face and preferred seam position on a real sample. Compare corner film, remaining wrinkles and label readability after the pack has cooled.

For a staffed shrink station, include the area needed to handle a finished pack when comparing layouts. Plan the L-seal loading and unloading space.

KPW-FM5540 · L-BAR CHAMBER SHRINK WRAPPING

Match a chamber shrink wrapper to your finished pack

The KPW-FM5540 combines L-shaped film sealing and shrinking in one machine. Start with the product in its final saleable arrangement: measure its length, width and height, include any tray or insert, and decide how the operator will load and remove it. A sample pack is more useful than selecting by a machine name alone.

For individually wrapped boxes or grouped small items, compare the appearance of the seal, film tightness and the handling time for your actual product. For conveyor-fed bundles, also review the sleeve sealer and separate shrink tunnel.

Request an FM5540 sample-pack reviewCheck size, output and film requirements

Installation dimensions: the legacy dimension illustration and specification image disagree. Request the confirmed installation drawing, including open-lid clearance, before planning the workstation.

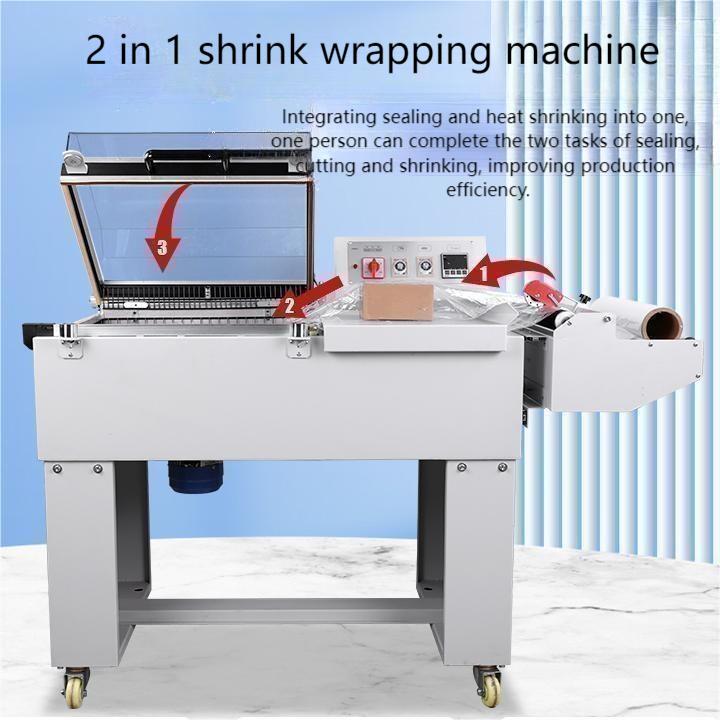

See the film-loading and wrapping workflow

The semi-automatic FM5540 combines L-shaped film sealing and chamber shrinking. Review product placement, heat exposure and the finished pack with your own samples. Machine-cycle settings do not include all operator handling or prove an energy saving.

Follow the film path and check the working space

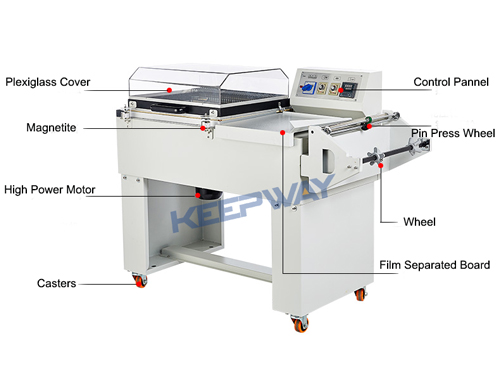

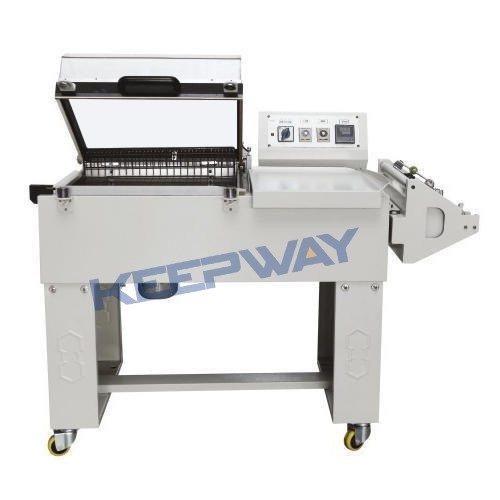

Chamber shrink wrapper component diagram with lid, controls, film rollers and casters
Component reference: cover, controls, film support and casters. Request the confirmed layout with room to open the cover and change the film roll.
Legacy specification images — installation dimensions awaiting confirmation

The two historical images below disagree on overall dimensions. They are retained for reference only; do not use the machine-size labels to set installation clearances. Product packing size, sealing area and machine footprint are separate measurements.

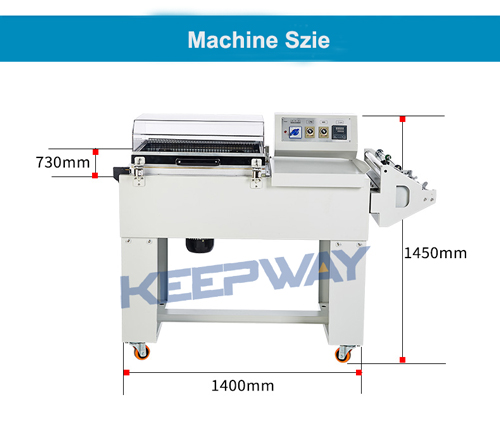

Chamber shrink wrapping machine diagram with overall dimension callouts
Legacy machine-size illustration. Overall dimensions and lid condition require confirmation.

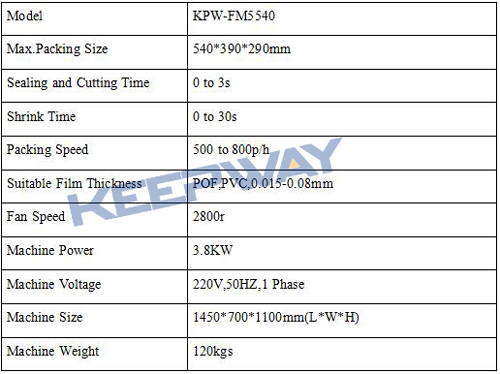

KPW-FM5540 chamber shrink wrapper specification table
Legacy FM5540 specification chart. The machine-size row conflicts with the illustration; request the confirmed drawing.

Details that matter during a sample run

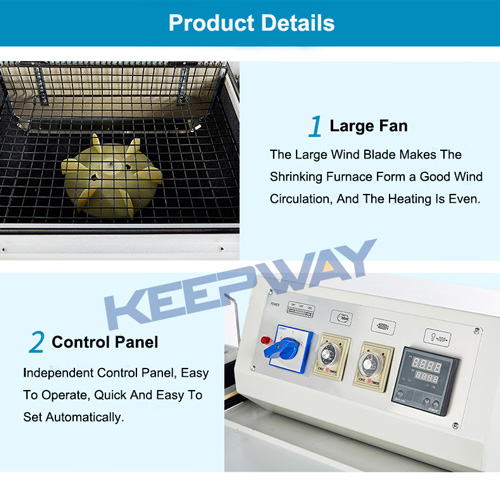

Chamber shrink wrapper fan and control panel detail photos
Fan and control-panel details. Record the selected settings together with film, pack dimensions and accepted output.

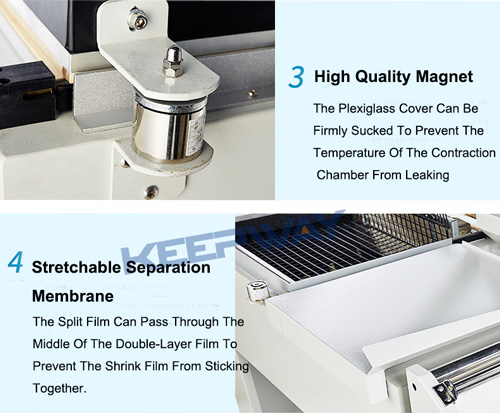

Chamber shrink wrapper lid magnet and film separator detail photos
Lid magnet and film-separation components. Confirm the delivered arrangement and model-specific instructions.

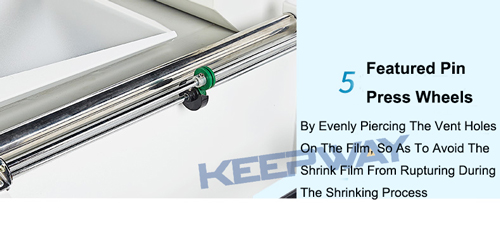

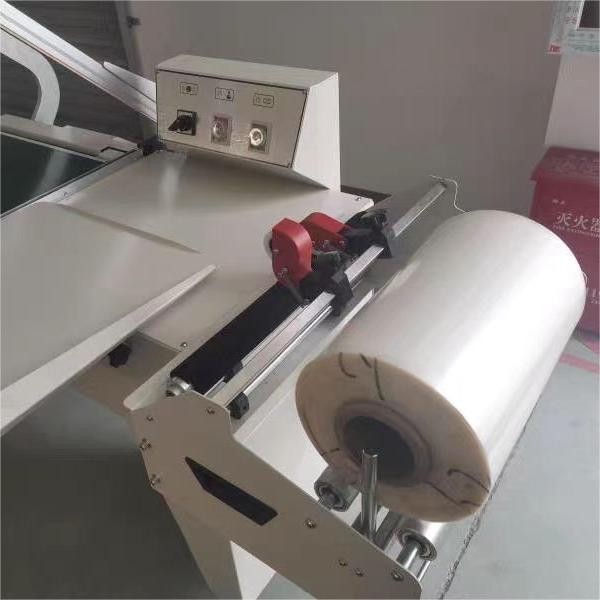

Close-up of a chamber shrink wrapper film roller with perforating pin wheels
Film roller and perforating pin wheels shown on the machine. Agree the perforation and finished appearance for the selected film; these images do not demonstrate barrier performance.

Choose the packing workflow before comparing output

L-bar chamber wrapping for individual packs

Check whether one operator can position the product in the film, complete the chamber cycle and remove the pack without a bottleneck. Include film loading, product changeovers and replenishment when planning a shift.

When to compare a separate tunnel

If your requirement includes conveyor transfer or product bundles, compare the complete sealing-and-shrinking layout. A chamber machine and a sleeve sealing line use different packing workflows; choose around the required pack format and handling arrangement.

FM5540 specification and quotation checklist

Selection pointPublished referenceConfirm for your order
Product envelopeThe page lists a maximum packing size of 540 × 390 × 290 mm.Submit the complete pack dimensions and orientation. Allow space for film placement and sealing; a listed envelope alone does not confirm that every shape fits.
OutputThe catalogue lists 500–800 packs per hour.Request a timed sample run with your product, film and operator workflow. Record accepted packs and handling time before using this figure in a production plan.
Power supply220 V, 50 Hz, single phase is listed.Give the destination country and actual site supply. Confirm the quoted configuration before ordering for a different voltage or frequency.
FilmMatch the film to the product and sealing process.Provide film material, thickness, roll width and roll dimensions, or request a proposed film specification and sample result.
Pack appearanceEvaluate the finished wrapped product.Agree seal position, corner appearance, film clarity and acceptable distortion or heat exposure for the product.
WorkstationInclude loading, sealing, shrinking and unloading.Send a layout or site photo and explain how packs arrive, leave and change between sizes.

Questions about a compact L-bar shrink wrapper

Is the packing size the same as the sealing-bar size?

No. The product envelope, sealing area and usable space around a positioned product are different checks. Send all three product dimensions and a photo so the proposed arrangement can be checked with the film.

Will every product reach the listed hourly output?

The catalogue output is a reference. Film behaviour, product size, shrink settings and loading time affect the complete cycle. Ask for a repeatable demonstration that includes the operator's work and records acceptable finished packs.

Does the shrink pack provide a moisture barrier or medical packaging?

Sealing and shrinking alone do not establish a moisture barrier, tamper-evident performance or suitability for medical packaging. Define the required pack performance and validate the finished product, film and process for that use.

Can I use the film already in my workshop?

Send its material and roll specification before ordering. The film must suit the sealing and shrinking process as well as the product's heat sensitivity; the word “shrink film” alone is not enough to confirm a match.

How should I compare the FM5540 with a sleeve shrink line?

Start with the required finished pack, individual items or bundles, and then compare product transfer and output. Use the sleeve shrink wrapping selection page to prepare the alternative layout and utilities for comparison.

Send one complete packing requirement

Include product photos, smallest and largest pack dimensions, pack weight, daily quantity, target appearance, film details and destination power supply. We can then discuss a sample test and a matched quotation.

Send product and film details

Two-year warranty, free replacement parts and shipping during the warranty period, and lifetime service and technical support.

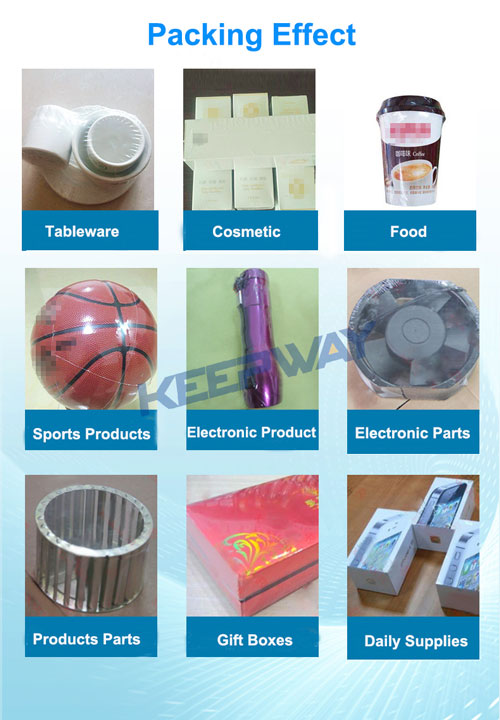

Finished-pack examples

Shrink-wrapped containers, cosmetics, books, electronics and boxed product examples
Illustrative wrapped-product examples. These are pack-format references, not evidence that every pictured material or product is approved for the same settings.

Send my product, film and target finish

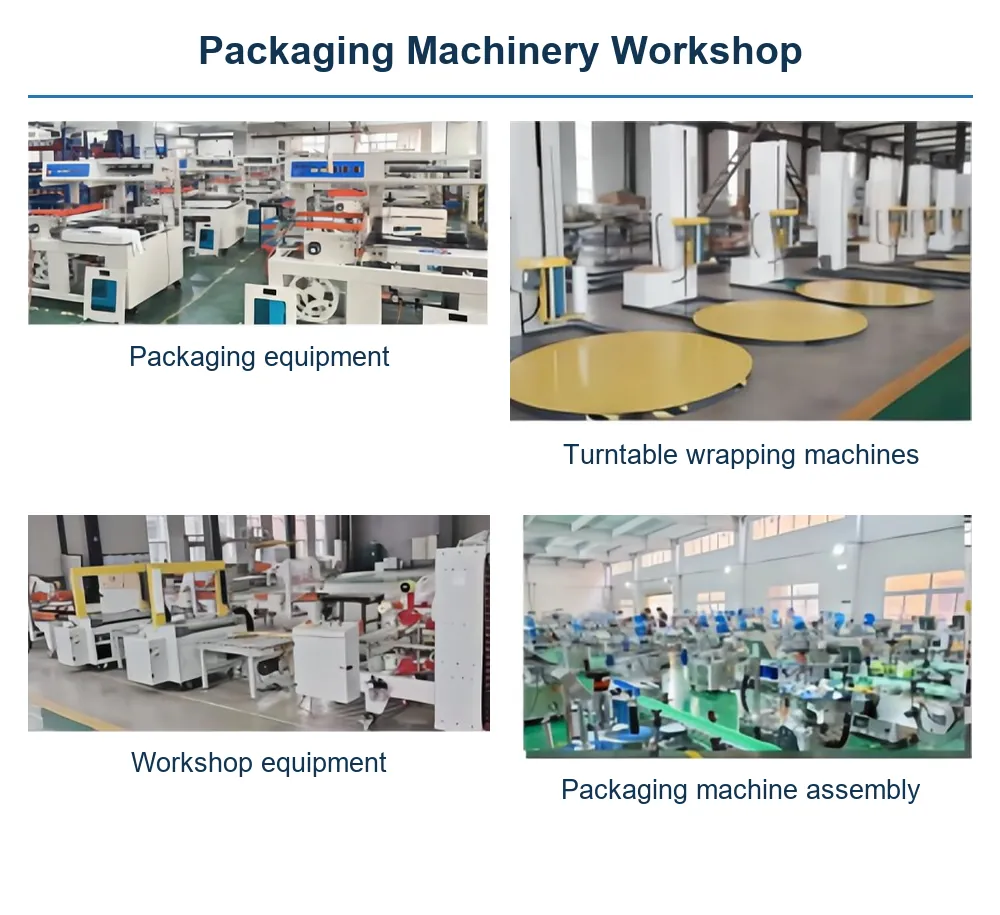

Company, support and shipping photographsJining Keepway Machinery Company: Factory exteriorPackaging Machinery Workshop: Packaging equipment, Turntable wrapping machines, Workshop equipment, Packaging machine assemblyOur Team and Office: Original company photo collectionOriginal Keepway document and certificate gallery; request machine-specific documentationTwo-year warranty, free replacement parts and shipping during warranty, and lifetime service and technical supportPacking and Loading: Equipment dispatch, Wooden packing case, Container loading, Forklift loading, Equipment transport

Define the wrapped pack

Illustrated sample guide: Define the wrapped pack. pack width, pack height, film seam.
Record the assembled size and film specification. Mark any display panel where a seam would hide the printed face.
Read the three sample checks
  1. Pack width — Measure the assembled pack before adding film.
  2. Pack height — Include raised corners, lids and inserts.
  3. Film seam — Mark the preferred seam or display face.
