Carton Sealing Machine

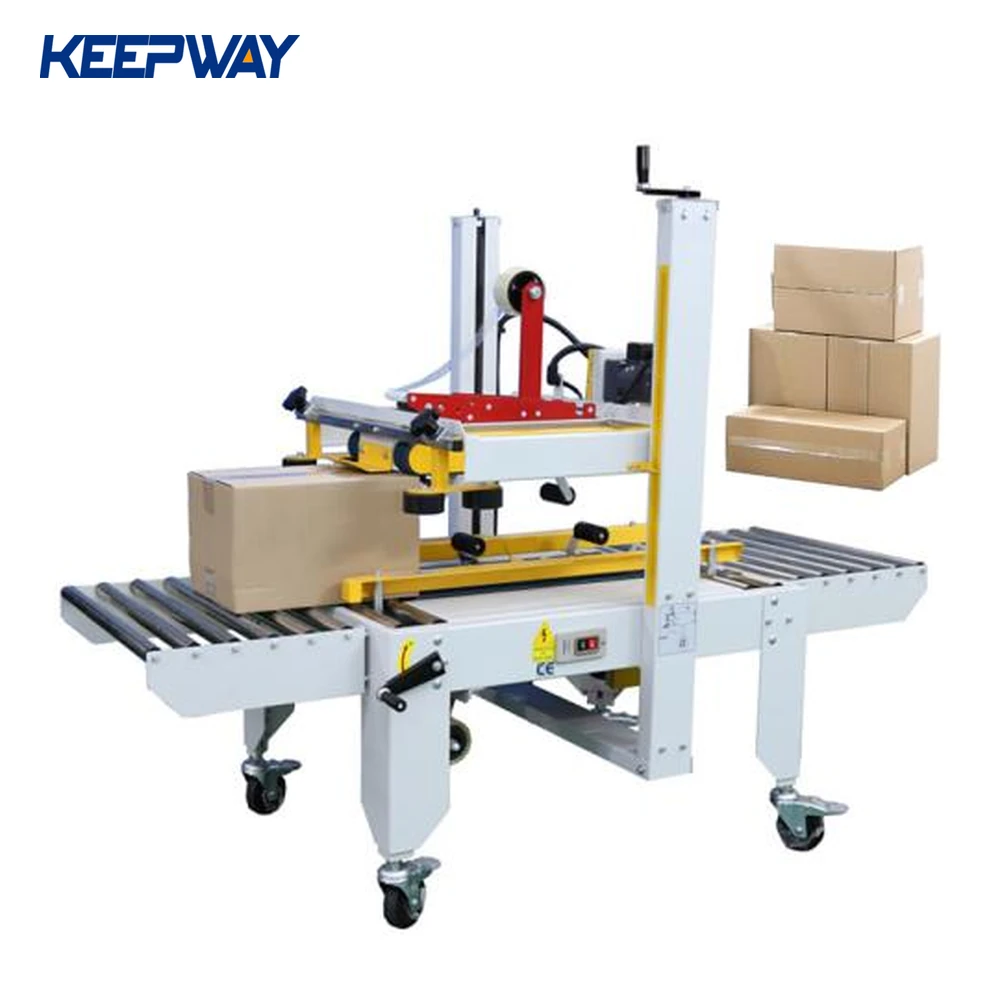

Automatic Flap Folding Tape Sealing Machine for Carton Box

  • Category: Carton Sealing Machine
  • Views:2536
  • Model:KPW-FX5050
  • Max.Sealing Size:500*500mm(W*H)
  • Min.Sealing Size:120*110mm(W*H)
  • Power Supply:1PH,110V/220V,50HZ/60HZ
  • Product description:Review carton tape sealing and confirm flap folding, size adjustment and line equipment in the quotation. Test filled cartons to assess output, tape use and seal quality.
  • INQUIRY

Do our incoming flaps arrive in the correct condition for folding?

Film several filled boxes as the packing operator releases them. Ask for a folding trial with the most uneven flap position and check for tucked or damaged corners.

Review my carton seal

Time the last acceptable carton of one size and the first acceptable carton of the next during a representative run. Time a carton sealer changeover.

Carton Sealing Machine / Carton Packing Machine


Introduction of Carton Sealing Machine:

This page presents carton tape sealing with BOPP adhesive tape. Confirm top-and-bottom tape application, flap-folding stages and the feeding and discharge method for the quoted machine. The illustrations include manual width and height adjustment and several machine combinations; they do not establish automatic changeover for mixed-size cartons or that every pictured unit is included. Send the carton size range, filled weight, flap condition, tape specification and actual arrival sequence. For a trial, measure accepted cartons across loading, any size adjustment, sealing, removal and rework, then record tape used over the same run.

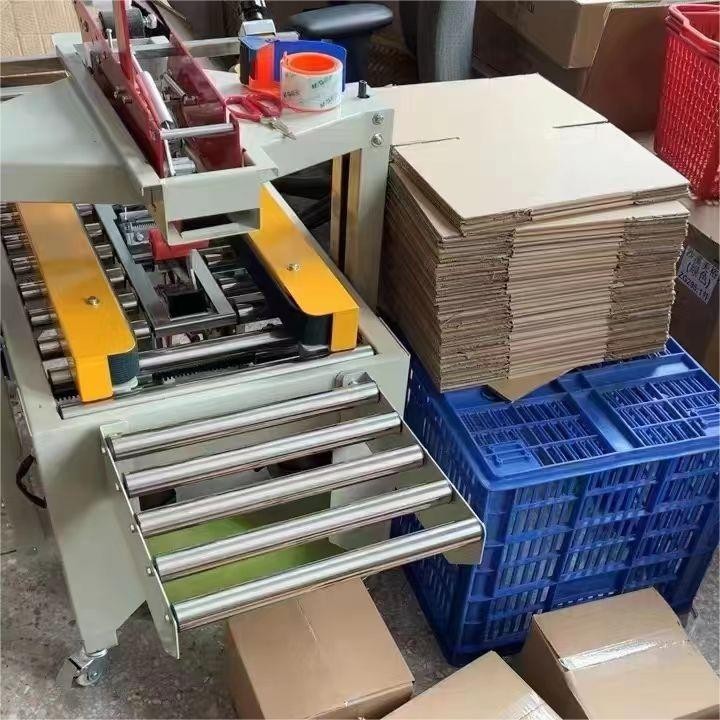

Side view of a carton tape sealing machine with roller conveyors

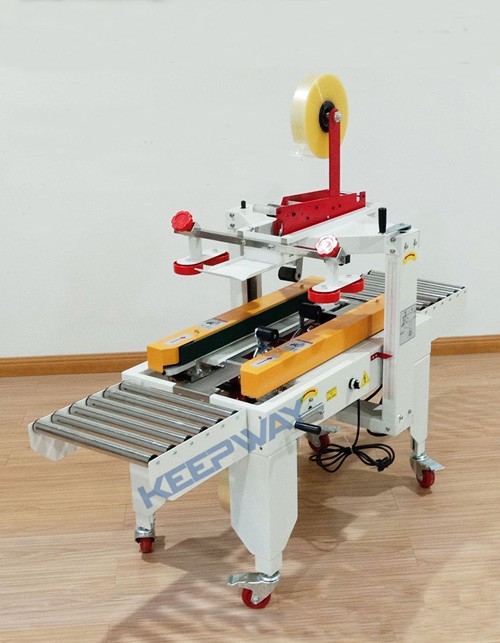

Labeled carton sealer showing tape roller, side belts and adjustment handles

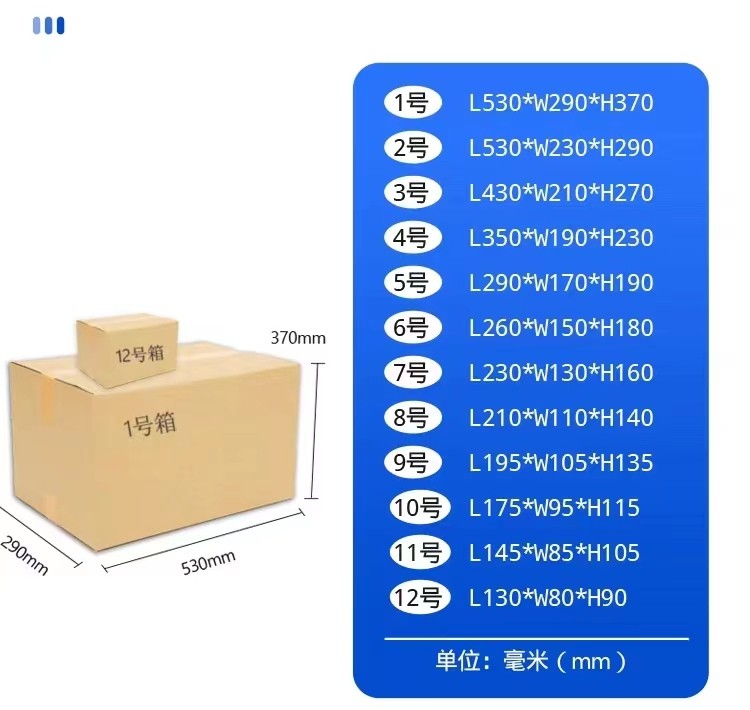

Carton size comparison chart with bottles for scale


Features of Carton Sealing Machine:

Separate power switchSeparate power switchHeight reference scaleHeight reference scale

Carton transport rollersCarton transport rollers

Tape smoothing brushTape smoothing brushSide conveyor beltSide conveyor belt

Caster brake lever and bracketCaster brake lever and bracket


How Do You Adjust Sealing Width And Height:

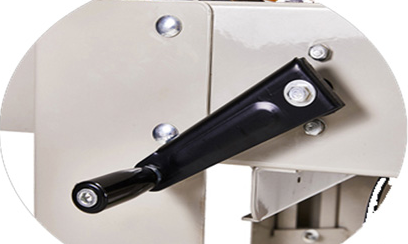

Manual width adjustmentManual width adjustment

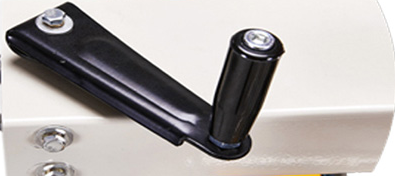

Manual height adjustmentManual height adjustment

What Models We have:

KPW-FX5050X and KPW-FX5050 carton sealing machine specification comparison

Specification comparison for KPW-FX4050, KPW-FX4030 and KPW-FX6050 carton sealers


Recommended Combination:

Two carton sealing machines arranged for cross-shaped taping



Carton tape sealing machine connected to an arch strapping machine

Carton tape sealing and labeling equipment joined by a conveyor

Check the closed carton

Illustrated sample guide: Check the closed carton. box width, box height, flap seam.
Send the smallest and largest filled cartons with their flaps closed. Photograph the top seam and note the tape width.
Read the three sample checks
  1. Box width — Measure the filled carton across its top.
  2. Box height — Measure it after closing the flaps.
  3. Flap seam — Photograph any gap, bulge or uneven flap.
