automatic top press pp strapping machine for clothes

  • Category: Strapping Machine
  • Views:1299
  • Product description:Pressurized baling machine, also known as pressurized baling machine, is specially designed for packing bulky items under pressure. The air pressure is designed according to user requirements, and pne
  • INQUIRY

Can one compression setup serve light and heavy clothing packs?

Compare the lightest and densest folded packs with their usual protective wrapping. Record bundle rebound and inspect the top garments at the strap line for each.

Review my textile pack

Open the sample after the usual time in storage and inspect the contact points before accepting the compression setup. Check garments for fold and strap marks.

automatci strapping machine with pressure

Pressurized balers are widely used in food, medicine, hardware, chemicals, clothing, postal and other industries. They are suitable for carton packaging, paper packaging, parcel letter packaging, medicine box packaging, light industry packaging, hardware tool packaging, ceramic product packaging, automobile packaging, etc. Automatic packaging and strapping of various sizes of goods such as accessories packaging, daily chemical product packaging, cultural and sports product packaging, equipment packaging, etc.

Compression strapping machine with strapped carton and soft-package examples

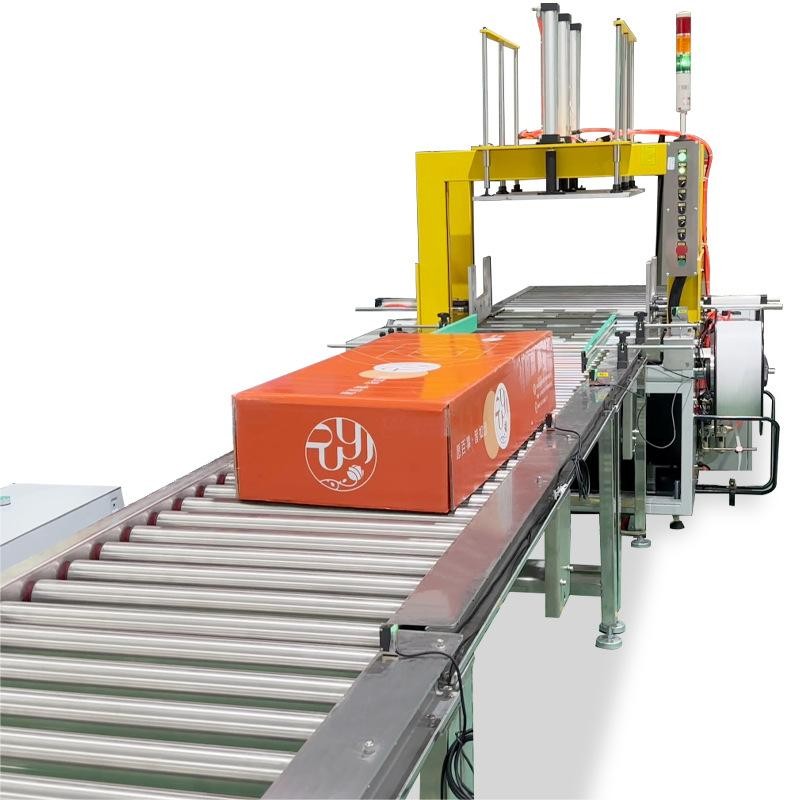

Compression strapping station integrated with a carton roller conveyor

More product details

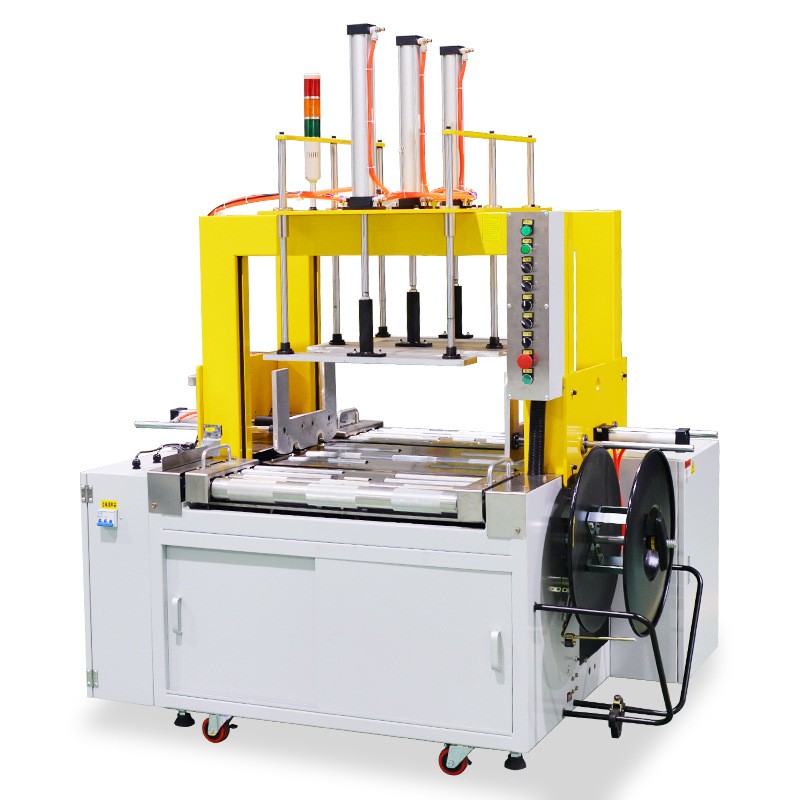

Compression strapping machine pressure head, access doors and control details

Real product pictures

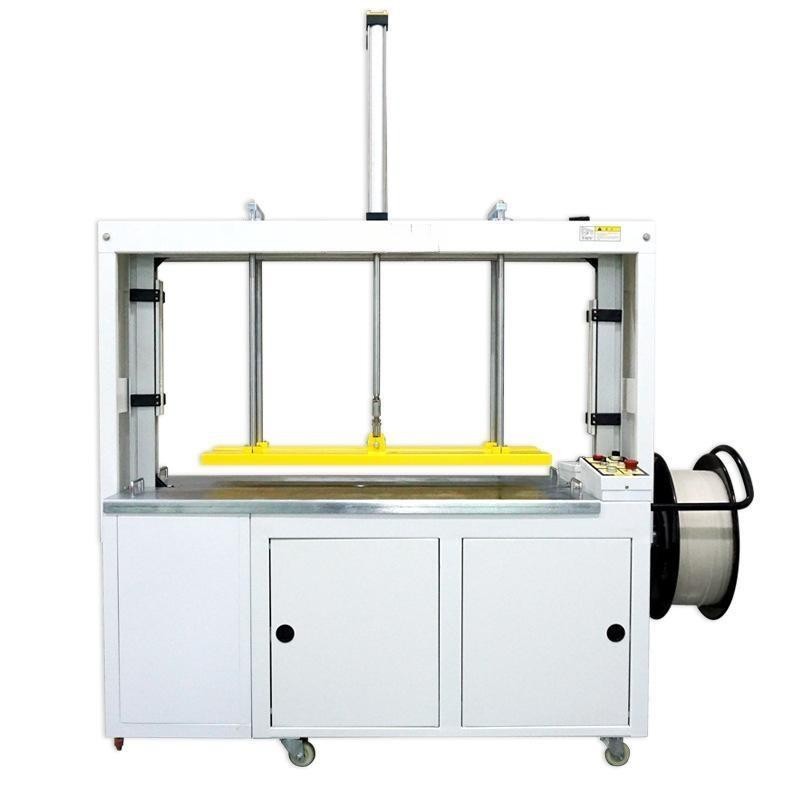

Front three-quarter view of a white compression strapping machine

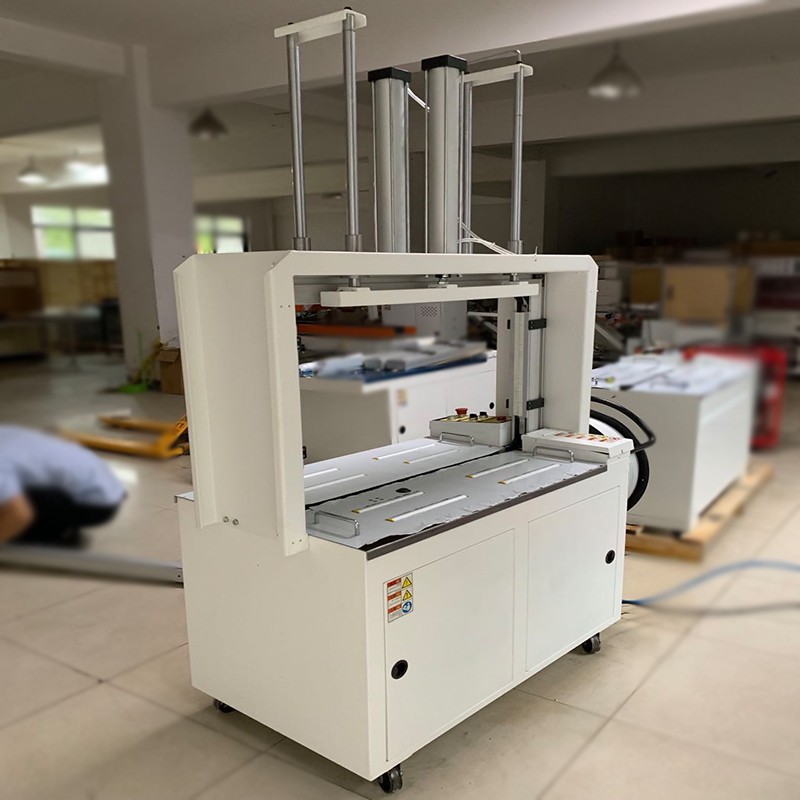

Opposite-angle view of a white compression strapping machine


Maintenance and lubrication of the baler: It is best to perform maintenance and lubrication of the machine regularly. First of all, pay attention to keeping the machine dry. Do not let it get exposed to rain or put anything with moisture on it.
Maintenance method: Remove chips or dirt from the machine once a week. Clean, maintain and lubricate the upper slide plate, middle knife and front top knife as mentioned in the previous section once a month. Once every three months, in addition to the above two maintenances, add some lubricating oil to all parts (shaft, center) and bearings. Replenish the oil in the reducer wheel box every two years.
It is important to note that several parts must not be refueled: a. Feed and return rollers. bAll belts. c. Sliding piece and surroundings. When refueling, do not add too much to avoid malfunction of the microswitch due to oil immersion.

Measure the soft bundle

Illustrated sample guide: Measure the soft bundle. folded width, free height, outer layer.
Send folded dimensions and a photo of a typical stack. Agree how to assess rebound and marks after the trial.
Read the three sample checks
  1. Folded width — Measure at the fullest part of the stack.
  2. Free height — Record the uncompressed bundle height.
  3. Outer layer — Show where the band will contact the fabric.
