KPW-P9080 Clothing Compression Strapping Machine

KPW-P9080 Clothing Compression Strapping Machine

Category： Strapping Machine
Views：1101
Model: KPW-P9080
Power: 1200 W
Working area: 900 × 800 mm
Cycle speed: 2 seconds/cycle
Product description：KPW-P9080 clothing compression strapping machine for compact garment bundles with a 900 × 800 mm working area and a 2-second cycle.
INQUIRY

KPW-P9080 Clothing Compression Strapping Machine

The KPW-P9080 compresses folded clothing, garments and suitable textile packs before strapping. Its pressure plate reduces loose volume while the strapping system secures the bundle for handling, storage and shipment.

Confirmed Technical Data

Model	KPW-P9080
Application	Folded clothing, garments and suitable textile packs
Working area / maximum package size	900 × 800 mm (90 × 80 cm)
Power	1200 W
Voltage options	110 / 220 / 380 V
Cycle speed	2 seconds/cycle
Air supply	Customized according to the required configuration
Machine dimensions	2000 × 1500 × 2200 mm
Machine weight	320 kg
Warranty	2 years for the packaging machine

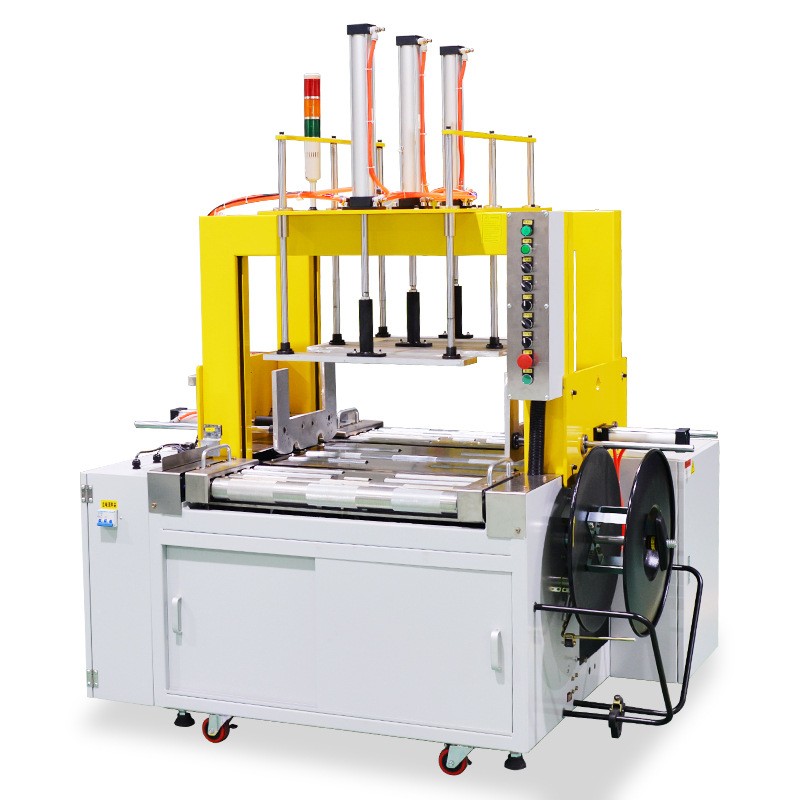

Compression and Strapping Area

KPW-P9080 pressure plate worktable and strapping detail

The equipment configuration is selected according to bundle dimensions, product compressibility and the required strapping method. Final air-supply details are confirmed for each order.

Clothing Compression Strapping Machine Application

Garment factories, clothing warehouses and apparel shipment preparation. Buyers should provide the loose bundle size, target compressed size, bundle weight and required daily throughput for configuration review.

Recommended RFQ Information

Product or material to be compressed
Loose and target compressed bundle dimensions
Bundle weight and expected daily quantity
Required voltage and available air supply
Manual or automatic operating requirements

Configuration note: Voltage and air-supply arrangements are selected according to the order. Confirm the ordered model, bundle size and site utilities before production.

Compare other strapping machine solutions or contact Keepway with your product and bundle specifications.

automatci strapping machine with pressure

Pressurized balers are widely used in food, medicine, hardware, chemicals, clothing, postal and other industries. They are suitable for carton packaging, paper packaging, parcel letter packaging, medicine box packaging, light industry packaging, hardware tool packaging, ceramic product packaging, automobile packaging, etc. Automatic packaging and strapping of various sizes of goods such as accessories packaging, daily chemical product packaging, cultural and sports product packaging, equipment packaging, etc.

More product details

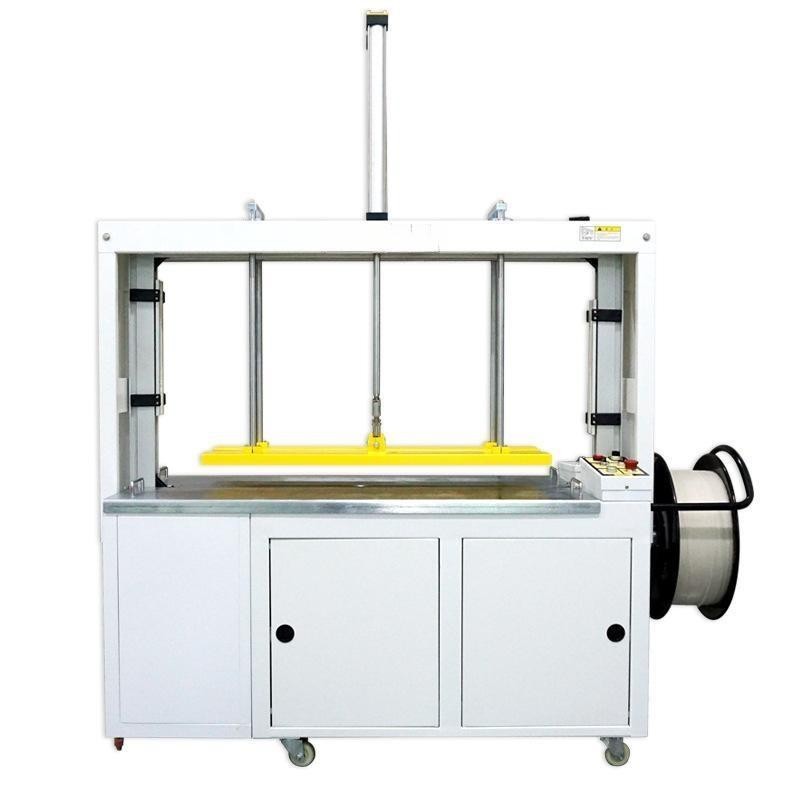

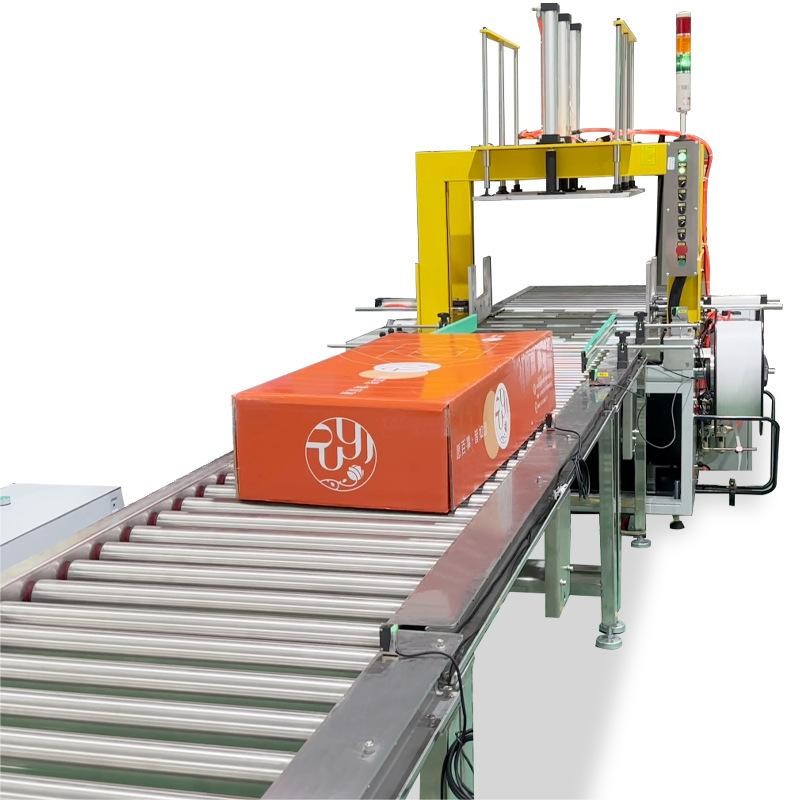

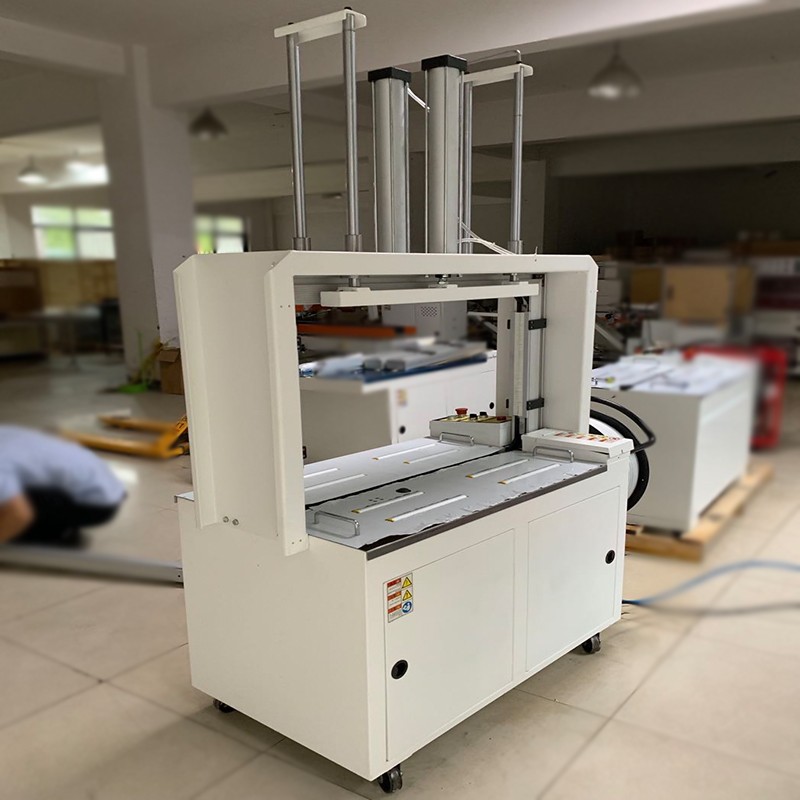

Real product pictures

Maintenance and lubrication of the baler: It is best to perform maintenance and lubrication of the machine regularly. First of all, pay attention to keeping the machine dry. Do not let it get exposed to rain or put anything with moisture on it.
Maintenance method: Remove chips or dirt from the machine once a week. Clean, maintain and lubricate the upper slide plate, middle knife and front top knife as mentioned in the previous section once a month. Once every three months, in addition to the above two maintenances, add some lubricating oil to all parts (shaft, center) and bearings. Replenish the oil in the reducer wheel box every two years.
It is important to note that several parts must not be refueled: a. Feed and return rollers. bAll belts. c. Sliding piece and surroundings. When refueling, do not add too much to avoid malfunction of the microswitch due to oil immersion.
