Home > Our Products > Wrapping Machine > Horizontal Pillow Packing Machine, 40–23

Wrapping Machine

Horizontal Pillow Packing Machine, 40–230 Bags/Min

Horizontal Pillow Packing Machine, 40–230 Bags/Min

Product Item : 75
Category： Wrapping Machine
Views：978
Packing Speed: 40–230 bags/min
Machine Weight: 500 kg
Voltage: 110/220/380 V, 50/60 Hz
Machine Size: 4020 × 745 × 1450 mm
Product description：Horizontal pillow packing machine with 40–230 bags/min listed speed, dual-servo control, color-mark tracking and configurable bag styles for food and daily products.
INQUIRY

Application fit & configuration

Prove the film and product combination before choosing speed.

A horizontal flow wrapper must support the product through the infeed, forming and sealing stages. Product shape, printed film and seal requirements should be reviewed as one setup.

40–230 bags/minListed range; product-dependent

100 recipesListed parameter-set storage

4020 × 745 × 1450 mmListed machine dimensions

Request a configuration review

Horizontal pillow packing for food and daily products
Listed speed 40–230 bags/min with dual-servo control, color-mark tracking and selectable bag styles.

Confirm Product Size, Film and Required Output

Listed speed
40–230 bags/min

Machine weight
500 kg

Voltage
110 / 220 / 380 V
50 / 60 Hz

Machine size
4020 × 745 × 1450 mm

Horizontal Pillow Packing Machine Overview

This continuous horizontal wrapping machine forms film around products, makes the longitudinal seal and cuts individual pillow packs. The current page presents applications for regular products in food and non-food production, with touch-screen settings and photoelectric color-mark tracking for printed film.

Compare more equipment in the wrapping equipment category and read the flow-wrapping application guide.

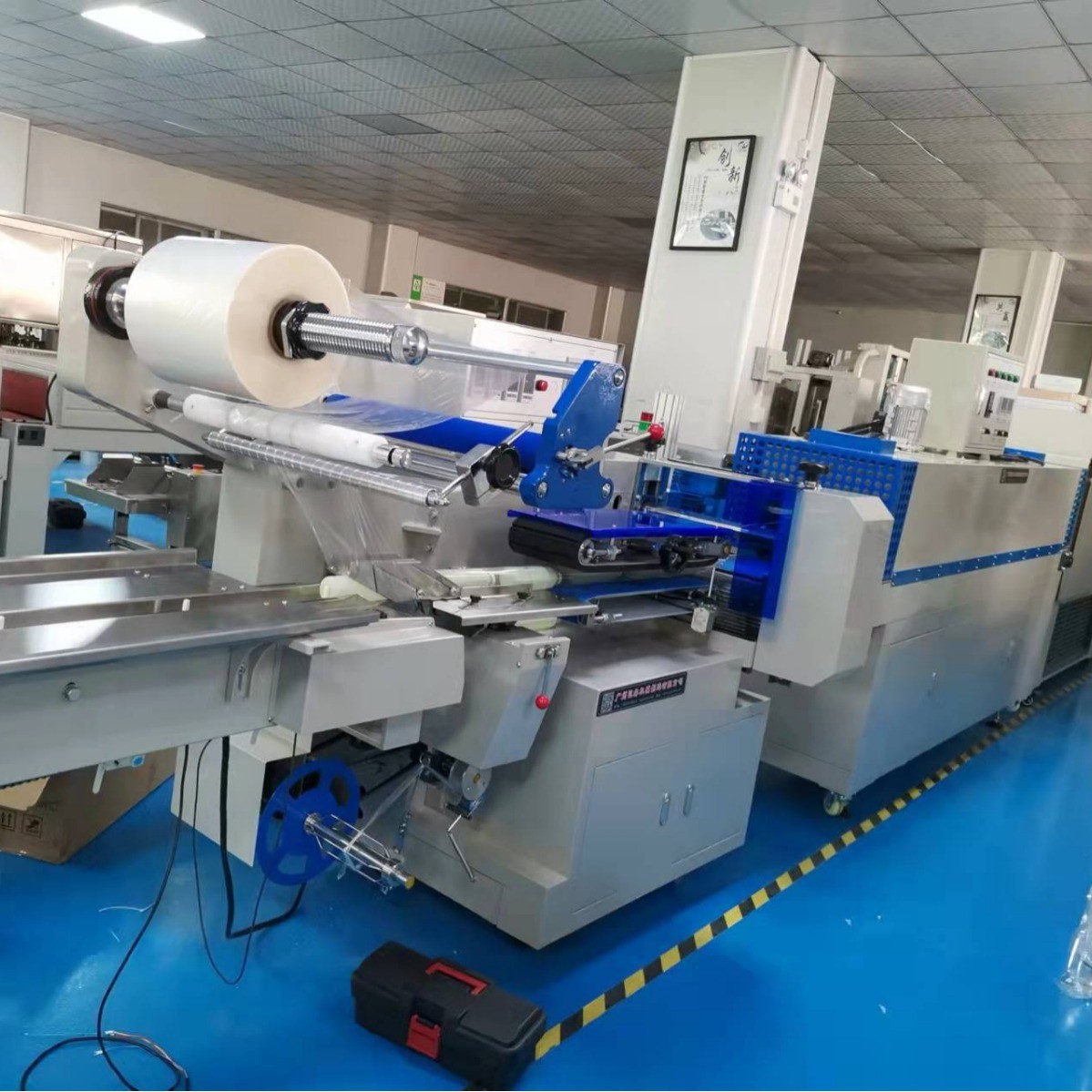

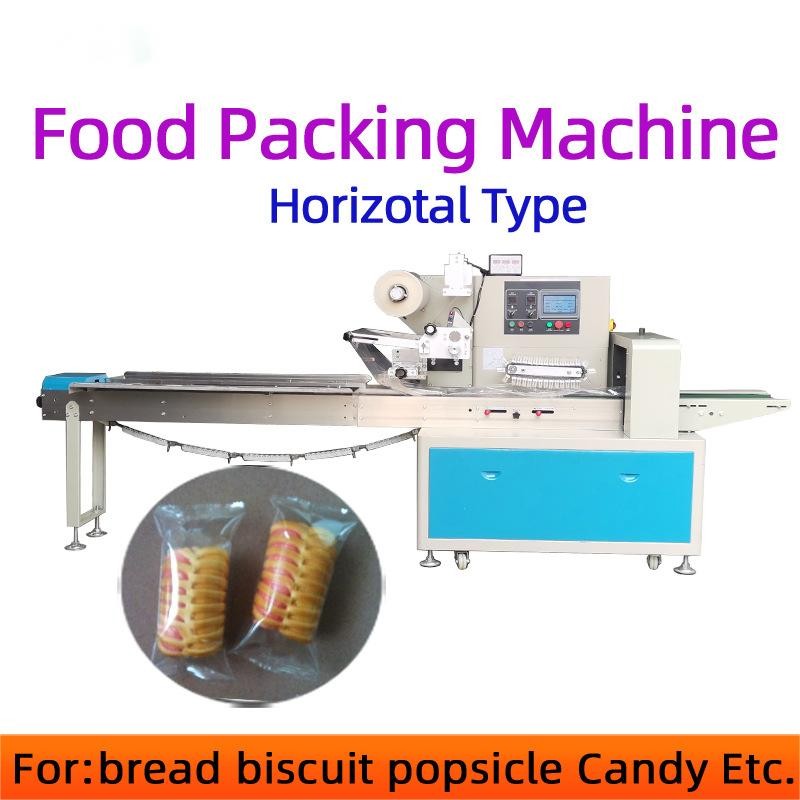

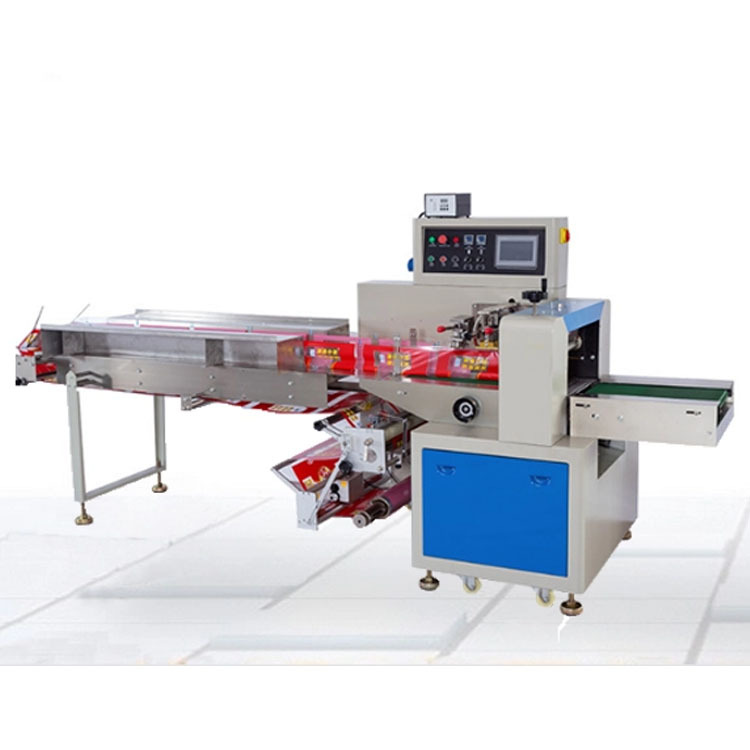

Horizontal conveyor wrapper with touch controls and film feed — Current horizontal pillow packing machine

Examples of boxed food cups rolls and household products — Existing food and non-food packaging examples

Watch the Pillow Packing Process

Current Technical Reference

Machine type	Horizontal pillow / flow wrapping machine
Listed packing speed	40–230 bags/min
Machine weight	500 kg
Voltage	110 V / 220 V / 380 V, 50 Hz / 60 Hz
Machine dimensions	4020 × 745 × 1450 mm

Final machine configuration is selected according to product size, film width, bag length, required speed, local power supply and any air requirement.

Control and Packaging Features

Dual-servo control
Bag length can be set without prolonged empty running.

Touch-screen recipes
Stores up to 100 packaging parameter sets for repeat production.

Fault diagnosis
Fault information is displayed for operator troubleshooting.

Color-mark tracking
Photoelectric registration supports printed-film cut positioning.

Positioning stop
Helps avoid hot-knife sticking and unnecessary film waste.

Material-length detection
Supports flexible packaging through automatic product-length detection.

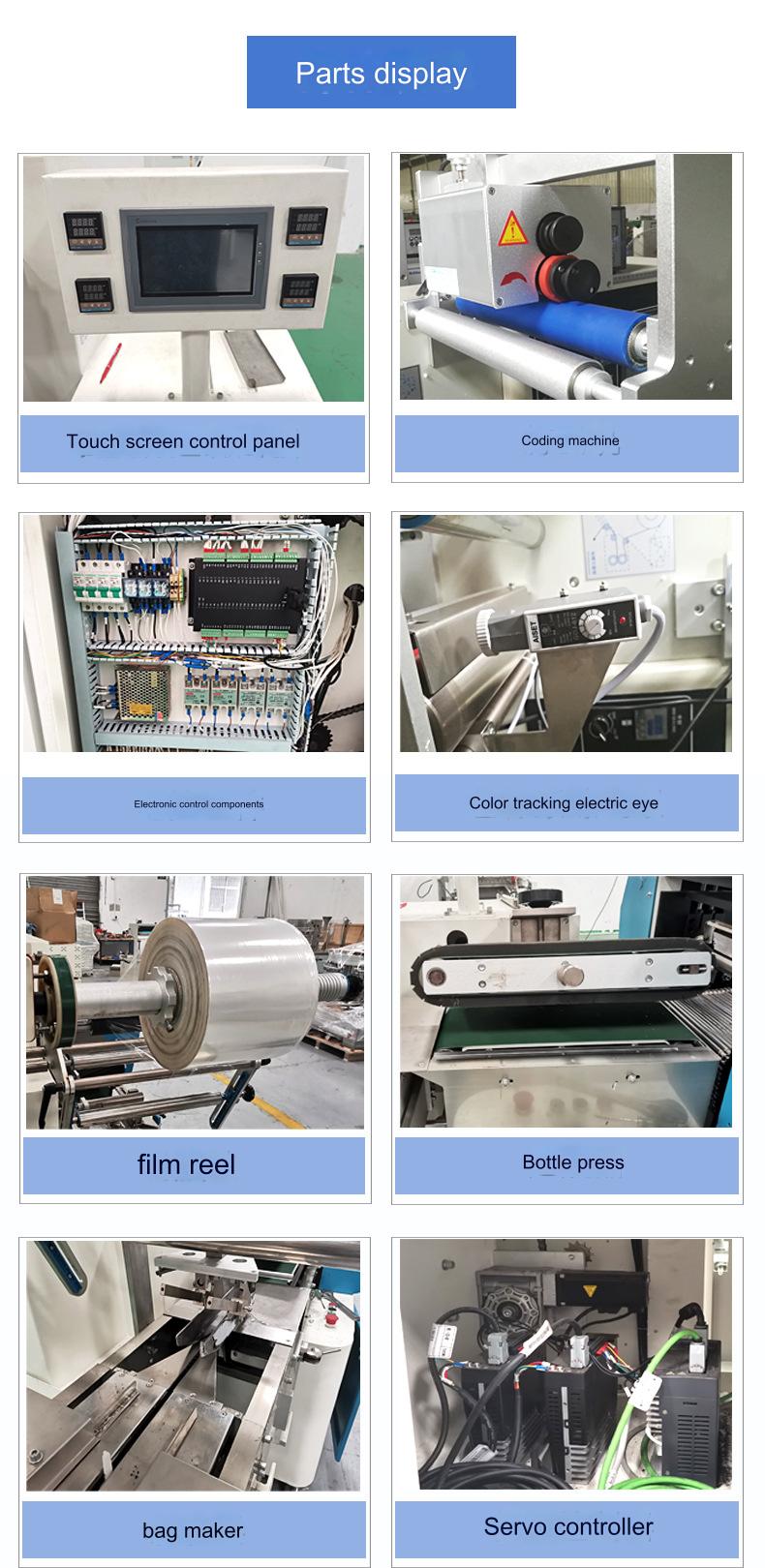

Touch screen film reel sensor and drive components of wrapper — Existing control, film and drive component details

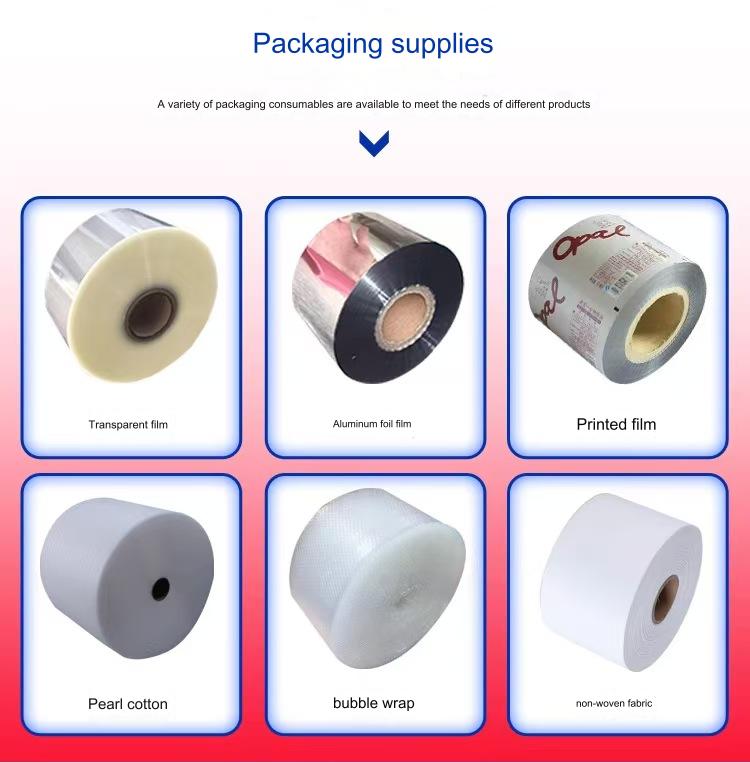

Examples of transparent printed and specialty packaging films — Existing consumable-film examples

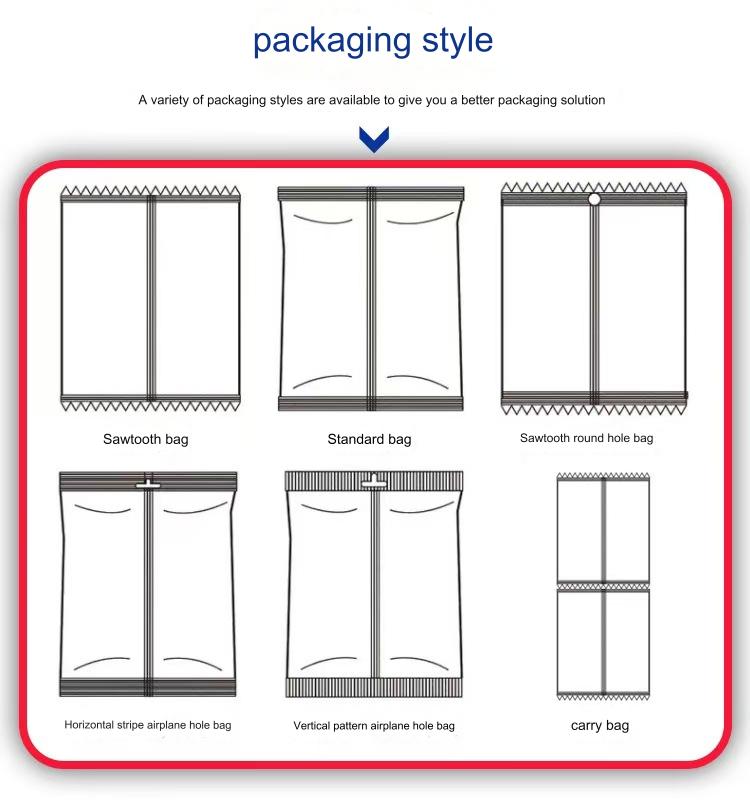

Diagram of multiple pillow bag seal and vent-hole styles — Existing bag-style options

Existing Packaging Samples

Vegetable packs produced as pillow bags — Existing vegetable packaging examples

Long vegetables sealed in clear pillow bags — Long-product sample packs

Leaf vegetables entering clear film on conveyor — Current fresh-produce trial example

Information Required Before Quotation

Product name, shape and orientation

Minimum and maximum L × W × H

Target bags per minute

Film material, width and printed mark

Desired bag style and vent holes

Local voltage, frequency and phase

Request a Pillow Packing Configuration

Send product dimensions, target speed, film specification, bag style, local electrical standard and destination country.

Send Product and Film Details

Build an evidence-based quotation

Turn your packing problem into an acceptance check

Film tracks poorly or the seal does not close consistently

Provide film structure, width, thickness and print repeat; agree a sample run and retain the approved settings and packs.

Small or awkward products lose support at transfer

Show the smallest and largest samples, orientation and infeed method; review support and spacing through the former.

Changeovers depend on one experienced operator

Request the approved format list, changeover references and model-specific documentation with the supply scope.

Compare measurable results

Count accepted packs over a timed run and record stops, rejects and film used. Evaluate the actual end and longitudinal seals against agreed criteria; the listed maximum speed alone does not verify seal quality.

Bring your hardest product or packing condition

Ask for a product/film feasibility review and a sample-test proposal with settings, video and acceptance checks agreed in advance.

Include in your inquiry: Product photos and L × W × H range; product weight; film specification and print repeat; pack style; target output; power supply.

Start with the product or material, its size range and your required output. Use the inquiry form below to provide your contact details; sample shipment and trial scope can then be agreed.

Send requirements for this machine

Two-year warranty: replacement parts and their shipping are free during the warranty period. Lifetime after-sales service is available. A sample-test proposal is not a guarantee of a specific result or a free on-site trial.
