   Home > Our Products > Wrapping Machine > automatic aluminum tube pipe profile hor

Wrapping Machine

automatic aluminum tube pipe profile horizontal flow stretch wrap packaging machine orbital wrapping machine doors

  • Category: Wrapping Machine
  • Views:1500
  • Voltage:380/220/110V
  • Rotating speed:60-200r/min
  • Feed rate:20-100mm/s
  • type:automatic
  • Product description:Specify door or profile dimensions, support needs and wrapping trials for an orbital wrapper quote. Confirm safeguards, electrical supply and the supplied configuration.
  • INQUIRY

Should flat doors and narrow tubes use the same guide setup?

Compare the support face and the tendency to tilt for each product orientation. Trial each shape with its intended guides before agreeing the quoted setup and changeover method.

Review my profile trial

horizontal orbit stretch film wrapping machine

For an orbital wrapping machine quotation for doors, profiles or pipes, provide the maximum product cross-section, length, weight and surface condition, including any protruding hardware. Ask for the proposed clear passage through the ring, conveyor support and guiding arrangement, and how the leading and trailing ends will be supported. The product name alone does not establish that a particular door or profile will fit.

Confirm the supplied control sequence, operator loading and unloading tasks, film cutting and end treatment, and the safeguards around the ring and conveyor. Do not assume unattended operation or a particular certification from the words automatic or horizontal. Request configuration-specific safety documentation and any applicable declaration of conformity. Have the supplier confirm the electrical supply, rotation range and feed speed in the quotation; the values listed above are not a verified production rate.

Agree a trial using a representative product and the proposed wrapping material before ordering. Record film overlap, coverage at the ends, surface marking, package stability and the complete loading-to-unloading cycle time. Stretch wrapping alone does not establish a waterproof or dust-tight package. If rain, dust or transport exposure is a requirement, define the extra protection and acceptance checks with the supplier instead of relying on the general wrapping description.

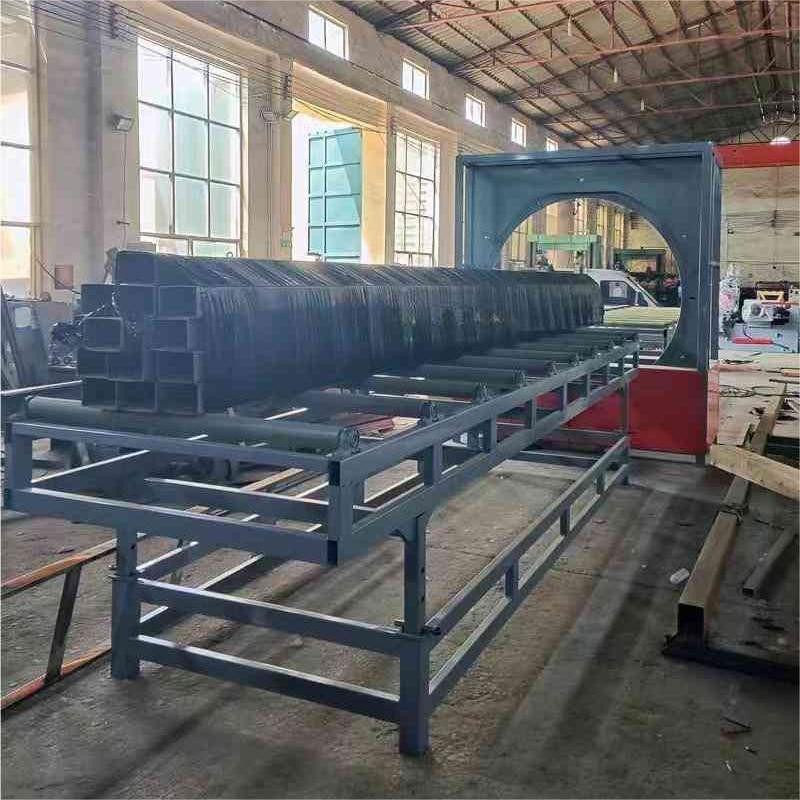

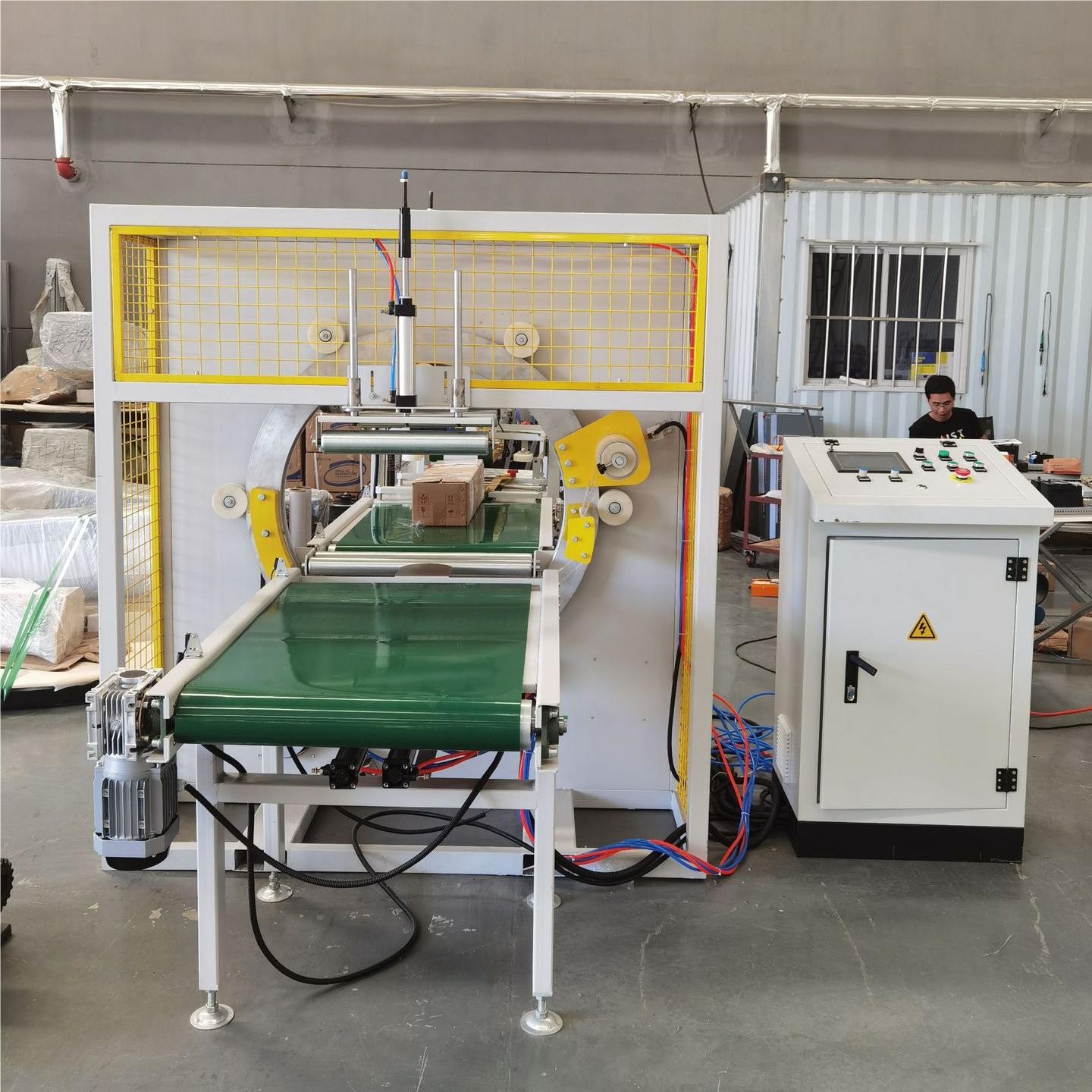

Horizontal orbital stretch wrapper with guarded ring and infeed conveyorOrbital wrapping ring connected to a long workshop roller conveyor


Orbital wrapper film holder and ring drive wheel details

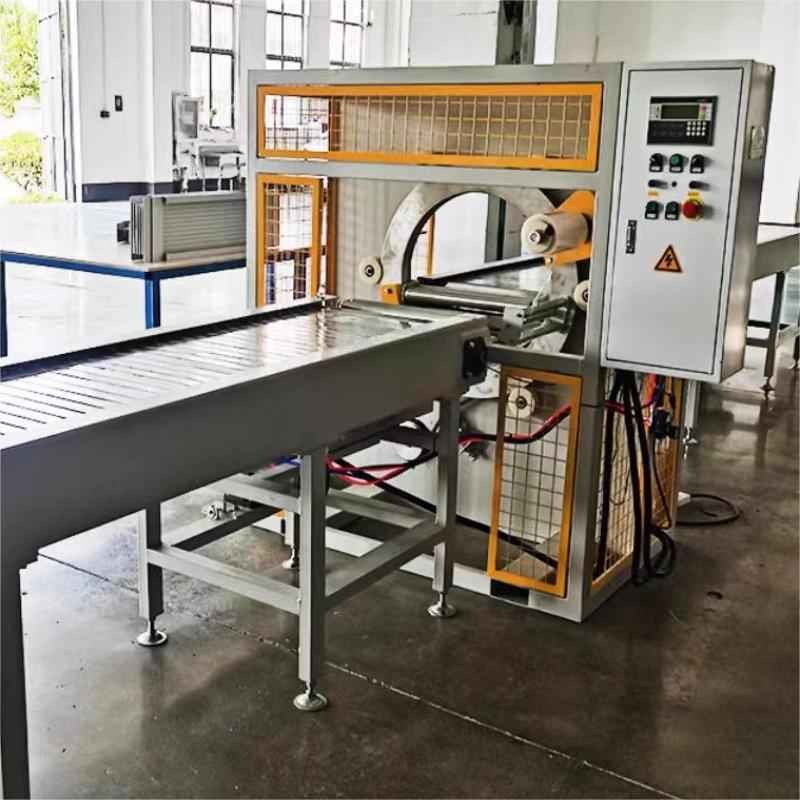

Orbital stretch wrapper control panel and foot pedal

stretch wrapping swivel

Stretch film and long metal parts passing through an orbital wrapping ring

Membrane frame

Film roll mounted on the orbital wrapping ring behind a safety guard

Customized orbital

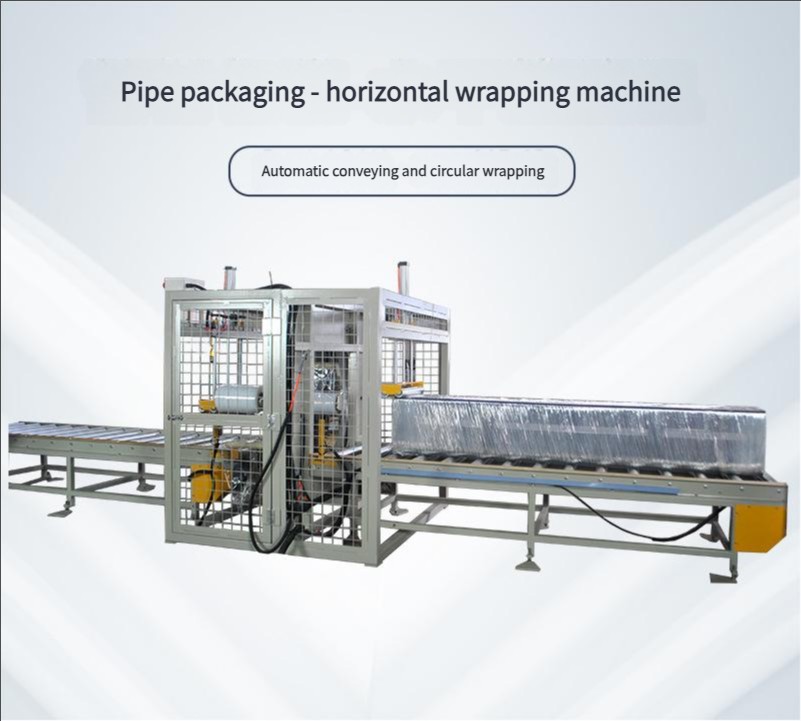

Roller conveyor leading through an orbital stretch wrapping machine

Rows of blue orbital wrapping machines with infeed roller conveyors


Size the profile cross-section

Illustrated sample guide: Size the profile cross-section. section width, section height, product length.
Send a cross-section sketch, overall length and a photo of projecting flanges or corner protectors.
Read the three sample checks
  1. Section width — Measure the widest cross-section as a bundle.
  2. Section height — Include protruding flanges and protective pads.
  3. Product length — Measure the full piece along its feed direction.
