Baling Machine

hydraulic waste plastic paper recycling compressor bale machine

  • Category: Baling Machine
  • Views:2802
  • Model:30T
  • Motor:15KW
  • Bale size:1000 × 600 × 800 mm
  • Baler Weight:100 to300kgs
  • Product description:Compare a vertical hydraulic baler for sorted waste paper and plastic. Send the feed material, daily weight, required bale size and unloading method for a quote.
  • INQUIRY

What details should I give for a waste stream containing paper and plastic?

Separate the materials for identification and weigh each stream over a normal shift. Ask for suitability and an accepted bale specification for each before pricing a shared press.

Review my two waste streams

For a paper or cardboard trial, compare the collector's size and handling limits with a finished bale before specifying the press. Check the collector's bale requirements.

Waste Paper Baling Machine /Hydraulic Baling Press Machine


Introduction of Waste paper baling machine/hydraulic baling press machine:

For a vertical hydraulic baler handling sorted paper or plastic, give the supplier a separate sample of each material. Confirm the bale dimensions your recycler will accept and how the bale will be removed. Ask for the rated pressing force of the quoted model, stated in kN. For an output estimate, time loading, pressing, tying and unloading with your own material and weigh the completed bales.

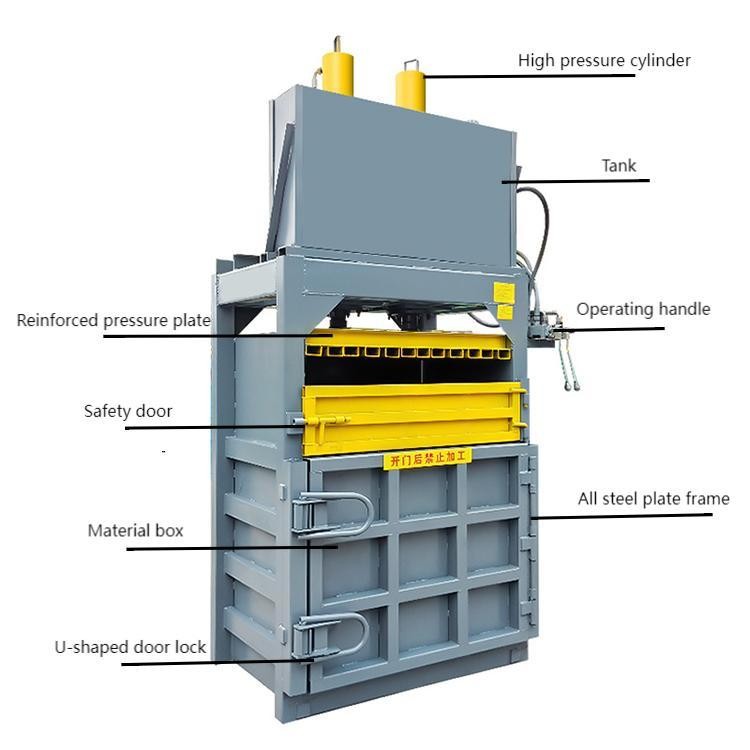

Labeled diagram of a vertical hydraulic baler and its main components

Reconstructed double-cylinder vertical hydraulic baler display with reinforced door and locking handlesReconstructed equipment illustration. Final details depend on the selected configuration.

Two outdoor views of a vertical hydraulic baler

Technology parameter of Vertical Hydraulic Baling Machine:

Vertical hydraulic baler size selection8 ton · single cylinderChamber: 600 × 400 × 950 mm; bale: 600 × 400 × 600 mm; machine: 1260 × 660 × 2150 mm10 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2650 mm20 ton · single cylinderChamber: 800 × 400 × 1250 mm; bale: 800 × 400 × 800 mm; machine: 1450 × 650 × 2700 mm30 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm40 ton · double cylinderChamber: 1000 × 600 × 1250 mm; bale: 1000 × 600 × 800 mm; machine: 1650 × 850 × 2750 mm60 ton · double cylinderChamber: 1100 × 750 × 1450 mm; bale: 1100 × 750 × 950 mm; machine: 1600 × 2100 × 3100 mm80 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3200 mm100 ton · double cylinderChamber: 1100 × 750 × 1500 mm; bale: 1100 × 750 × 950 mm; machine: 1700 × 2100 × 3300 mm120 tonConfirmed bale size: 1100 × 700 × 1800 mm; request the complete selected-configuration drawingConfirm the material, target bale weight, motor option and discharge arrangement for the ordered model. Dimensions do not specify a universal motor or installation package.30-ton bale dimensions: 1000 × 600 × 800 mm. 120-ton bale dimensions: 1100 × 700 × 1800 mm. Confirm material and final configuration with the quotation.

Features of Waste Paper Baler Machine:

* Applicable to a practical model for small and medium-sized companies to compress garbage.

* 8T, 10T and 20T configurations are ready to use after connection to the specified electrical supply. Follow the supplied pre-start checks. Confirm setup requirements for other models.

* U-shaped anti-dropping door handle, easy to unlock, greatly reducing the time cost after packing.

* Motors adopt brand copper core motors with strong power, durability, faster heat dissipation, and guarantee the machine continues to run smoothly.

* 60T and 80T models can be ordered with optional push-out bale discharge. This option must be specified separately; confirm the arrangement for other models.

* Imported abrasion-resistant and high-sealing oil pipe with thick pipe wall and strong sealing performance of the connection port to ensure the compression work no oil leaks during operation.

* Low failure rate and durable.

Reconstructed vertical baler illustration showing the open door and a close-up of the U-shaped handleReconstructed equipment illustration. Final details depend on the selected configuration. Installation requirements are confirmed for the ordered model.

Reconstructed baler component illustrations showing motor windings and the discharge support structureReconstructed equipment illustration. Final details depend on the selected configuration. Bale discharge method varies by model.

Hydraulic hoses and metal hose fittings

What Models We Have:

Photo comparison of vertical baler models with different press ratings

Larger vertical baler models shown side by side

What Materials Can Bale:

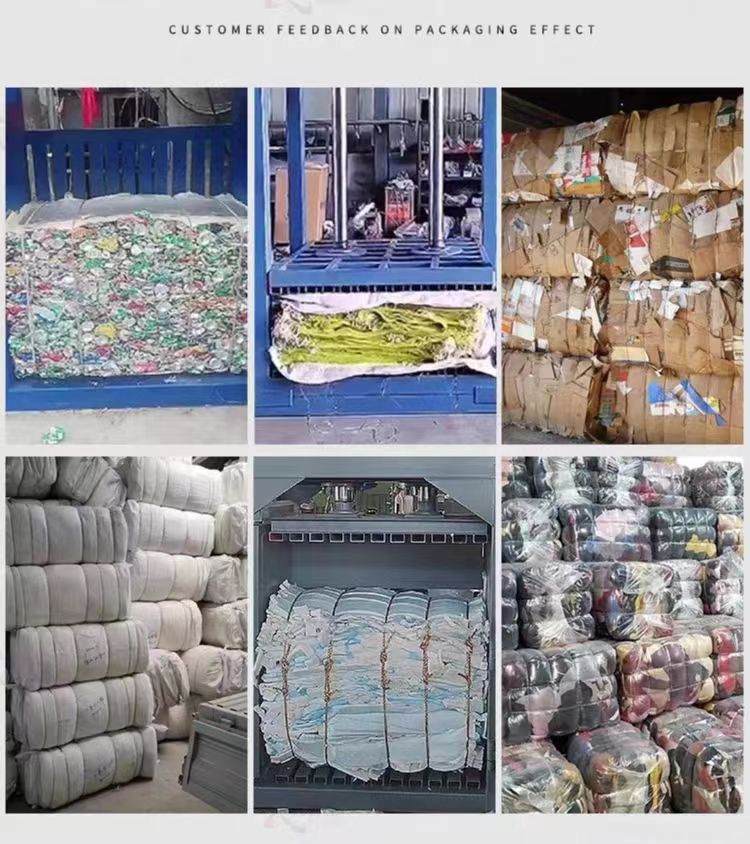

Examples of compressed cardboard, cans, plastic bottles, offcuts and textiles

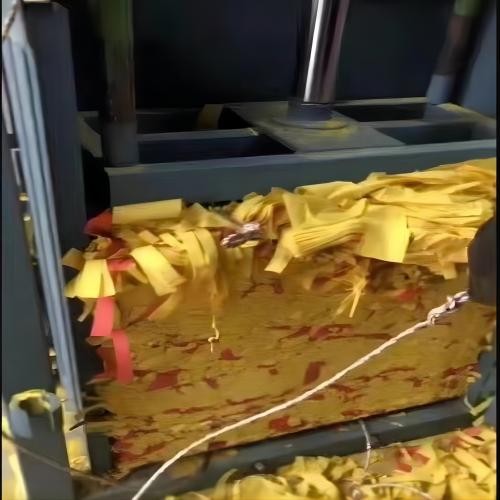

Vertical balers with compressed materials and finished bale examples

Company presentation with facility, workshop, team and document photographs

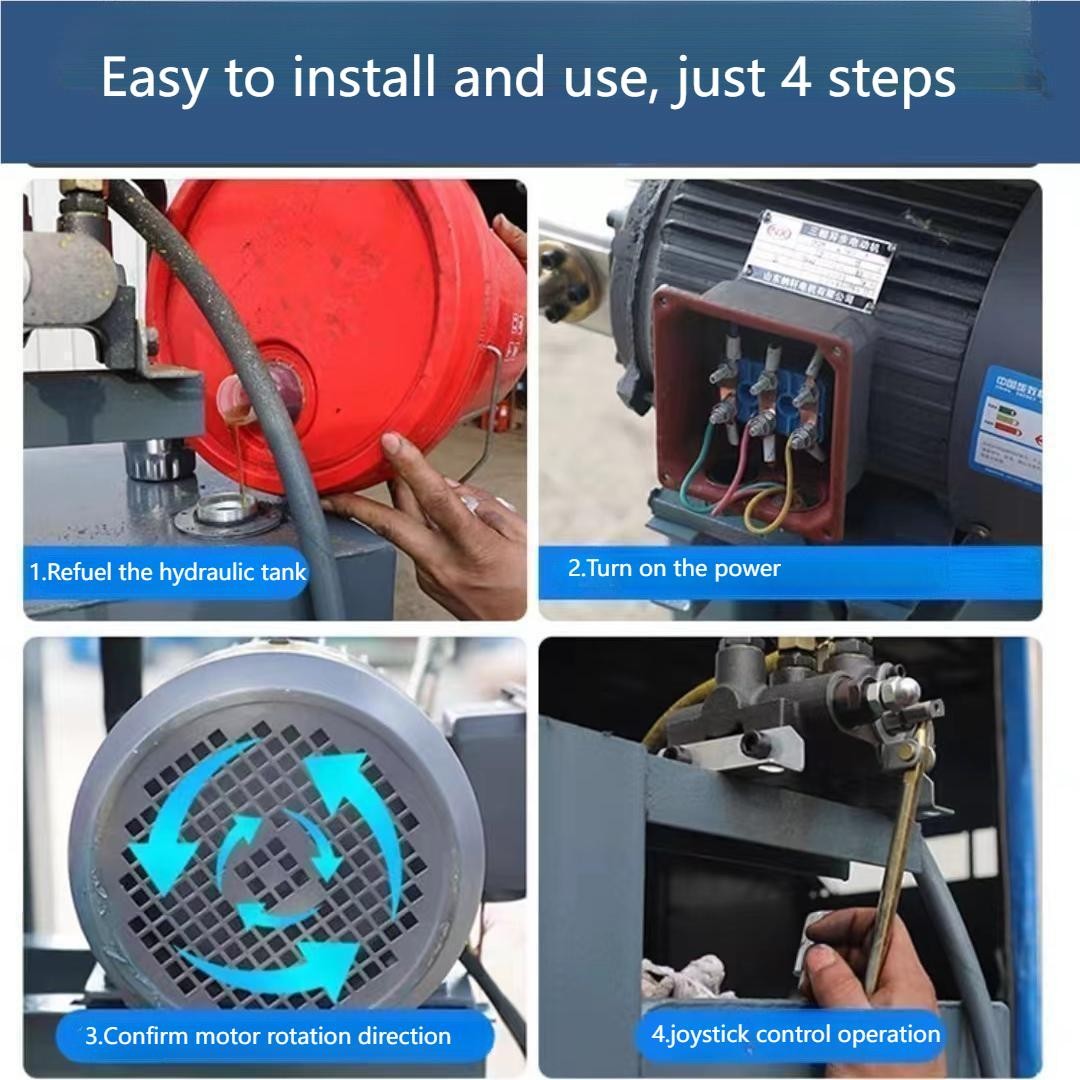

Installation and optional bale discharge8T / 10T / 20TReady to use after connection to the specified electrical supply; no machine assembly required for these configurations.60T / 80TPush-out bale discharge is available as an optional item. Specify it in the quotation and order; it is not standard equipment.30T motor15 kW for the confirmed 30-ton configuration.Other modelsConfirm installation, electrical supply and discharge requirements for the selected configuration.Complete the pre-start checks in the supplied operating instructions. Confirm local voltage and phase before ordering.

Describe the incoming material

Illustrated sample guide: Describe the incoming material. longest sheet, loose pile, material mix.
Send photos of material before pressing, its largest piece size and the typical mass handled per shift.
Read the three sample checks
  1. Longest sheet — Measure the largest piece as it arrives.
  2. Loose pile — Show a representative loose batch.
  3. Material mix — Identify cardboard, paper or film in the batch.
