Automating carton sealing starts with a clear description of the packed box and the work still done by the operator. A warehouse receiving mixed carton sizes needs a different review from a manufacturer running long, uniform batches. Compare those workflows before asking for a machine price or a projected saving.

Define the sealing task first

A top-and-bottom case taper applies adhesive tape along the centre seams of a carton. A flap-folding configuration adds a defined flap-handling operation. Tape wrapping around a box or bundle is another process. Tell the supplier which seams or surfaces must be covered, whether flaps arrive prepared, and how the carton enters and leaves the station.

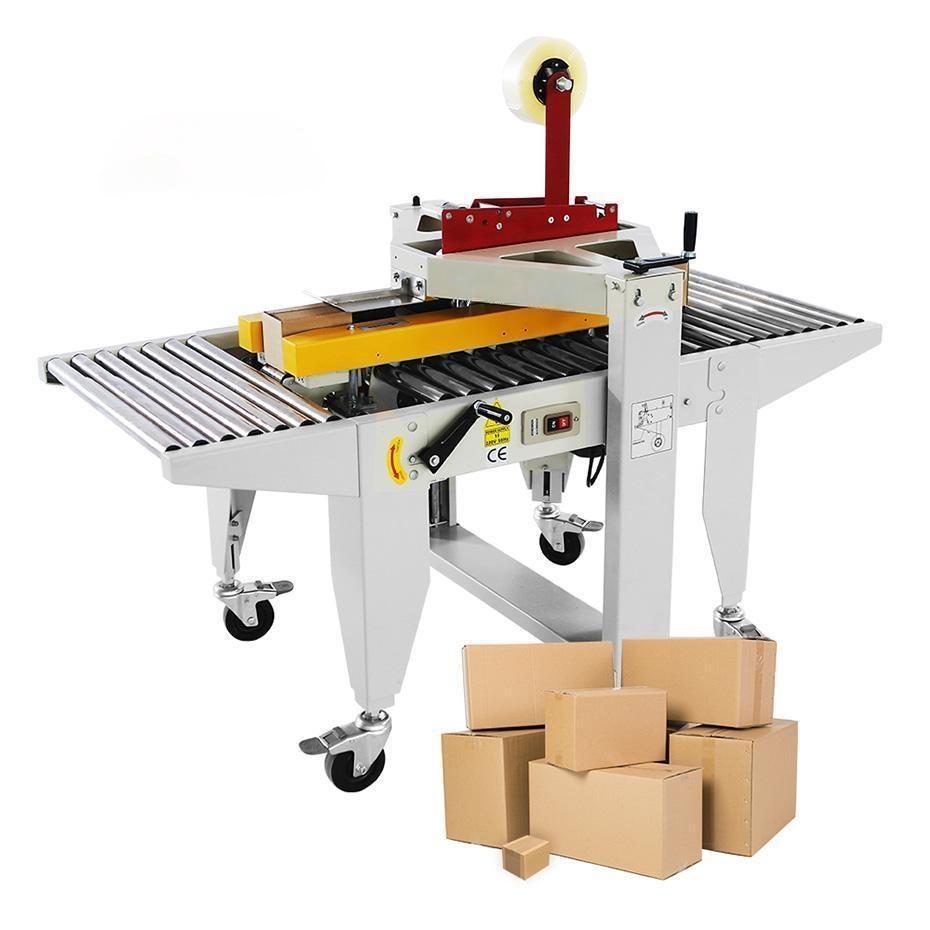

The KPW-FX5050 carton tape sealing machine is an operator-adjusted option for uniform batches. Its published reference includes carton widths of 120–500 mm and heights of 110–500 mm. Confirm filled-box length, weight, condition and handling against the intended configuration; those two ranges alone do not establish that every carton will run.

Separate automatic functions in the quotation

• Feeding: who positions and introduces the filled carton?
• Flap preparation: which flaps arrive folded, and which does the equipment handle?
• Size adjustment: does an operator set a batch, or is random-size handling specifically included?
• Sealing: which tape heads, tape widths and seam patterns are supplied?
• Discharge: what removes the carton, and what happens when downstream equipment is occupied?

Review the flap-folding carton sealer when flap handling is part of the requirement. Obtain a model-specific response about size changes and line controls; a product name containing “automatic” does not define every function in a complete packing line.

Build a cost comparison from your operation

Use recorded staffing, accepted cartons, rework, tape use and operating time for the same carton mix. Include commissioning, the quoted accessories and any buyer-supplied conveyors or site work. Compare those inputs with the proposed trial result. A general labour-saving percentage, payback promise or another company's case cannot determine the result at your site.

Keep the productive running rate separate from the rate across a shift with setup and material changes. Our carton sealer changeover trial checklist shows how to retain the box sequence, agree acceptance and record the complete observation window.

Prepare a useful equipment enquiry

Send a carton schedule with filled dimensions and weights, photographs of the seams and flaps, tape specification, target output, batch sizes and frequency of size changes. Add the incoming/outgoing conveyor drawing, working height, electrical supply and destination country. State any required guarding, operating documents, training and installation responsibilities so these can be identified in the quotation.

For tape applied around cartons rather than only along centre seams, use the tape wrapping application guide. The carton sealing category selector links these different processes without treating them as interchangeable machines.
