How to pack heavy cargo pallets?
Heavy cargo checks before choosing pallet wrapping machines

Begin with the loaded pallet, not an assumed efficiency or film-saving percentage. Record its dimensions, total weight, stability and handling route before comparing equipment.
When comparing
pallet wrapping machines, check whether the loaded pallet fits the stated working range and whether the proposed loading method suits your site. The product page linked below is a reference for a turntable machine, not proof that every heavy or unstable load is suitable.
Confirm the Load, Operator Tasks and Working Area
Measure the complete loaded pallet, including overhang. Ask the supplier to confirm the proposed machine capacity against the actual load and its weight distribution; a headline maximum load is not a complete application assessment.
Describe the forklift or pallet-truck approach, available floor space, loading and unloading procedure, and nearby pedestrian routes. Confirm the required clearances and site conditions before arranging the machine.
The linked product page describes PLC settings for wrapping layers and laps, plus photoelectric height sensing. These features do not establish AI load recognition, self-learning film settings or automatic correction of an unstable stack.
Use representative loads to review wrap settings and the complete work cycle. Record loading, film handling, wrapping and removal separately rather than treating rotation time as finished pallets per hour.
If pallet stacking or conveyor transfer is required, request a separate layout and control-interface review. A third-party patent or unrelated installation does not establish that those functions are included in the quoted machine.
Ask who attaches and finishes the film and what happens at the end of each cycle. Do not infer automatic film cutting, clamping or suction from the word automatic in a product title.
Select Against Your Own Load and Output Requirements
Use your actual pallet mix and production schedule as the basis for selection. General market-growth figures cannot establish the capacity, staffing or return on investment of a particular installation.
Prepare the following checks for a configuration review:
Record the smallest and largest loaded pallets, total weights and any fragile, loose or unevenly distributed goods. Include photos or a packing drawing so the application can be assessed.
Record the required output and the available time for loading, wrapping and removal. Ask how faults, film changes and maintenance affect the planned workflow.
Agree which requirements belong to the machine, the handling equipment and the operator. Confirm any requested customization, commissioning or local service separately rather than treating it as standard.
The current linked KPW-TP1650F page lists a 2000 kg maximum load and a wrapping-size line of L(500–1200) mm × W(500–1200) mm × 2000 mm. Treat these as page-listed reference values and obtain written confirmation for your loaded pallet and quoted configuration.
A load outside those listed dimensions, or one with uncertain stability, needs a separate application review. Do not assume the same configuration accommodates a larger or taller pallet.
Five Checks for a Heavy-Pallet Wrapping Proposal
1. Additional Weighing and Labeling Requirements
If weighing or labeling is part of the workflow, specify it separately. The linked turntable product page does not establish an integrated scale, label printer or a verified weighing accuracy for this application.
Describe any recipe storage, changeover and data requirements before requesting a quotation. Obtain confirmation of the actual controls and interfaces rather than assuming they are included.
Compare the proposed workflow with your current staffing and handling steps. Any labor or output estimate should state the tested load, operator tasks and acceptance conditions.
2. Film Settings and Material Trials
The product page describes an AC-motor pre-stretch carriage and adjustable film tension. Confirm the film specification and settings with representative loads instead of assuming automatic identification of film thickness or material.
Measure film used per accepted pallet during a trial. Compare like-for-like loads and acceptance criteria; a pre-stretch setting alone does not establish a percentage saving or an annual cost reduction.
3. Reference Product: KPW-TP1650F
Pallet Wrapping Machine
The current page lists PLC control, adjustable turntable speed of 0–12 rpm and pre-stretch reaching 250%. These are model-page descriptions, not verified output, energy-saving or load-retention results for your goods.
It also lists 110 V/220 V, 50 Hz/60 Hz, single-phase supply. Confirm the ordered electrical configuration and the required working height before purchase; do not infer that all listed supply variants are simultaneously supported by one machine.
4. Load Support and Film Finishing
Loose goods and loads needing compression require a specific support and handling assessment. Do not assume that the reference turntable machine includes a top platen or can operate without a pallet.
Describe the required film-end finish and handling after wrapping. Ask the supplier to demonstrate the proposed method on your load rather than relying on an unrelated patent description.
5. Site Safety and Documentation
Ask
Keepway to identify the proposed guarding, emergency stops, operating procedures and applicable documentation for the quoted configuration. Do not infer certification or a complete safety system from this selection article.
Review operator training, maintenance access and fault-handling instructions before acceptance. A component feature or monitoring screen does not establish a zero-incident outcome.
Plan Integration Only Where It Is Required
For a connected production line, state the required signals, data fields and responsibility for each interface. Cloud monitoring, remote access and automatic parameter optimization need separate confirmation.
Describe who needs the operating data and how it will be used. Request a demonstration of any agreed reporting or alarm function rather than assuming a mobile app is included.
If future expansion matters, include it in the layout review. Confirm the limits of the supplied configuration and any additional work needed for later integration.
For AGV or conveyor handling, agree the transfer sequence, load positioning, safety boundaries and interface ownership. A standalone wrapper listing does not establish a ready-to-run automated line.

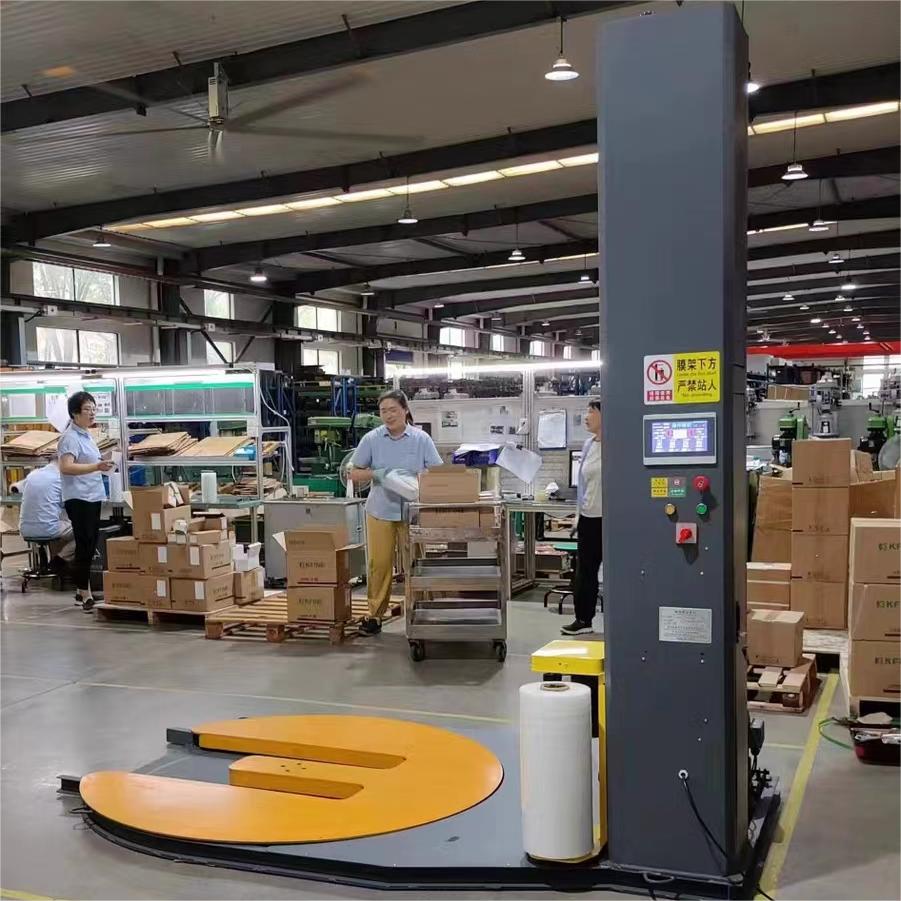

Prepare loaded pallet dimensions, total weight, photos, film requirements, handling method, electrical supply and target output. Use the linked product page and its INQUIRY button to request a configuration review; the image in this article is not evidence of the exact quoted model or options.
